TANK-POWER 2 Flute 30°Helix Regular End Mill (EP931)

TANK-POWER 2 Flute 30°Helix Regular End Mill (EP931)
TANK-POWER 2 Flute 30°Helix Regular End Mill (EP931)
New

TANK-POWER 2 Flute 30°Helix Regular End Mill (EP931)

Product Code: EP931

No. Flutes: 2 YG-1 LEGEND TiAIN Surface Treatment: Titanium Aluminium Nitride Coating YG-1 LEGEND YPM Tool Material: YPM YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND SHANK YG-1 STANDARD Shank Type: YG-1 Standard
Buy Local

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape ROUGHING
Size Min -
Size Max -
Length

-
Coating -



Product Data
Workpiece Material P M K
Helix Angle Square 30
No. Flutes 2
Operation Die Sinking, Facing, Side Milling, Slotting
Shank Type Plain YG-1 Standard
Surface Treatment Titanium Aluminium Nitride Coating
Tool Material YPM
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add TANK-POWER 2 Flute 30°Helix Regular End Mill (EP931) to comparison

View Comparison

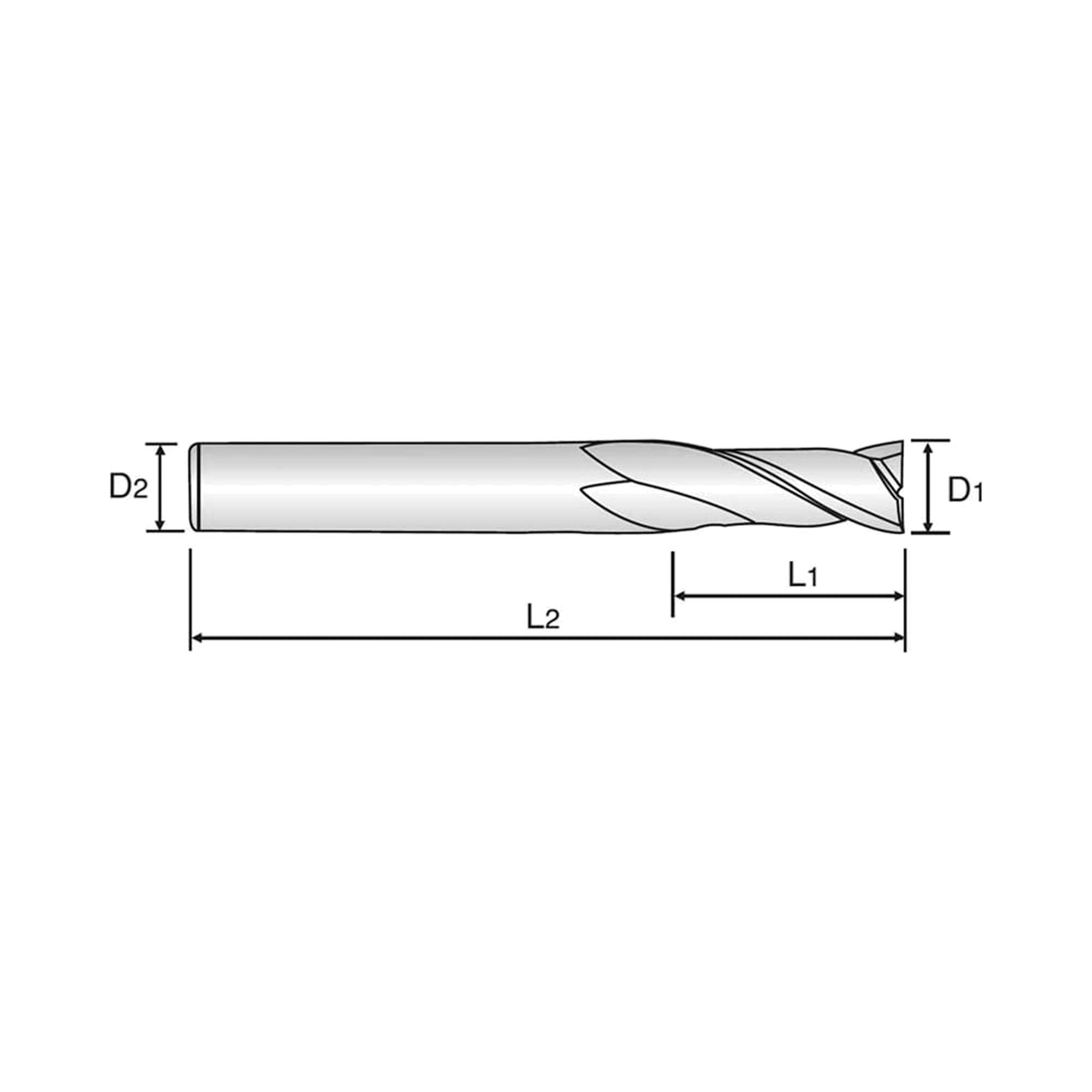

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EP931010 1 6 2.5 55 0~-0.030 h6 2 EP931020 2 6 6 55 0~-0.030 h6 2 EP931030 3 6 10 55 0~-0.030 h6 2 EP931040 4 8 12 60 0~-0.030 h6 2 EP931050 5 8 15 65 0~-0.030 h6 2 EP931060 6 8 15 65 0~-0.030 h6 2 EP931070 7 10 20 75 0~-0.030 h6 2 EP931080 8 10 20 75 0~-0.030 h6 2 EP931090 9 10 25 80 0~-0.030 h6 2 EP931100 10 10 25 80 0~-0.030 h6 2 EP931120 12 12 30 90 0~-0.030 h6 2 EP931140 14 12 35 95 0~-0.030 h6 2 EP931160 16 16 40 105 0~-0.030 h6 2 EP931180 18 16 40 105 0~-0.030 h6 2 EP931200 20 20 45 115 0~-0.030 h6 2 EP931220 22 20 45 115 0~-0.030 h6 2 EP931250 25 25 50 125 0~-0.030 h6 2

Operation

Side Milling
Slotting
Die Sinking
Facing

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
