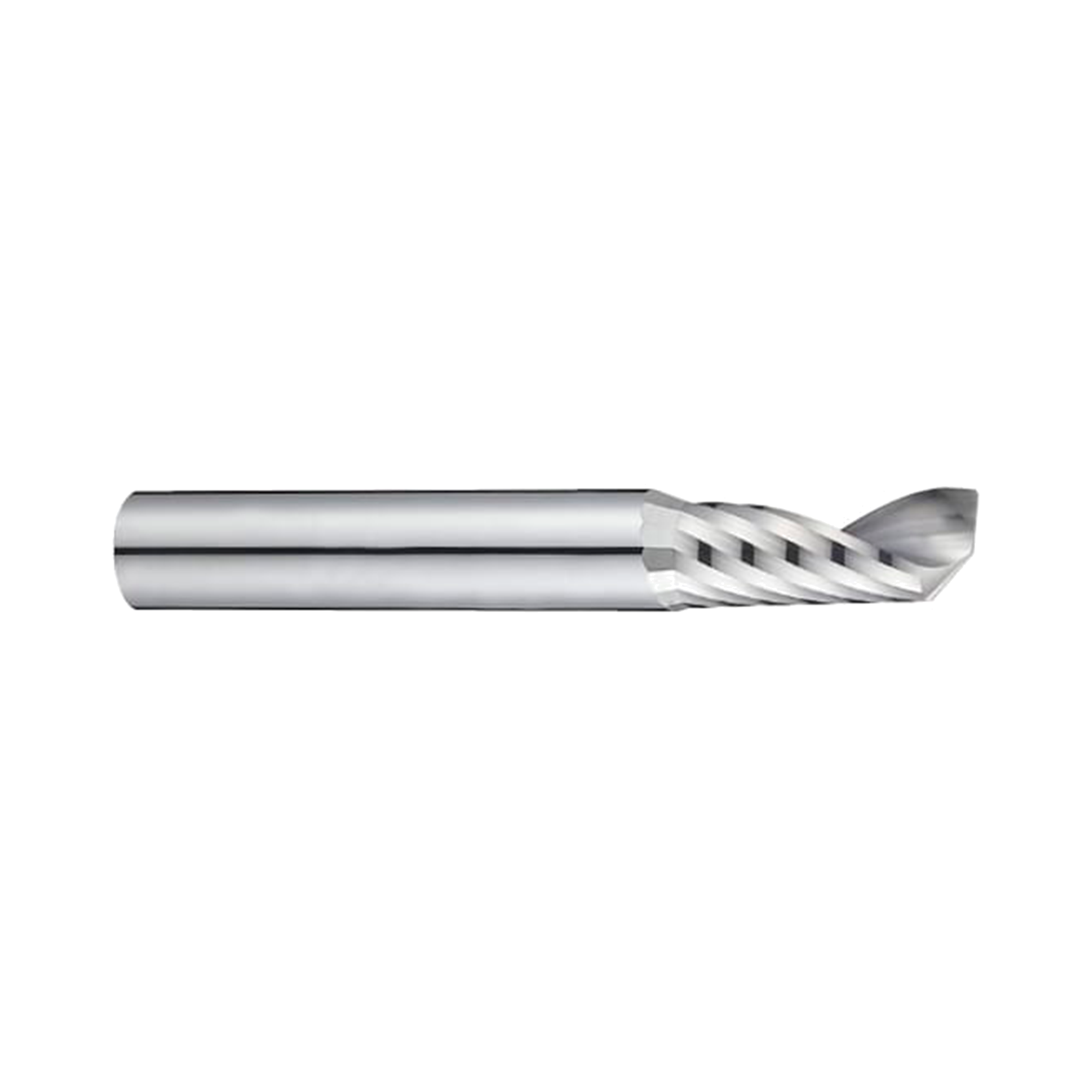

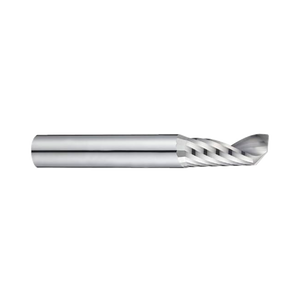

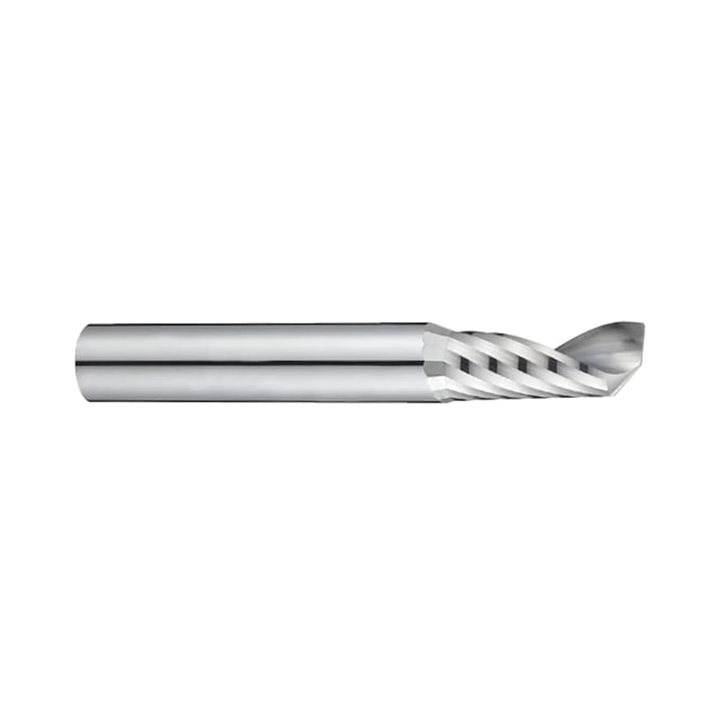

ALU-POWER 1 Flute 30°Helix End Mill (E5E47)
Code: E5E47020
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.

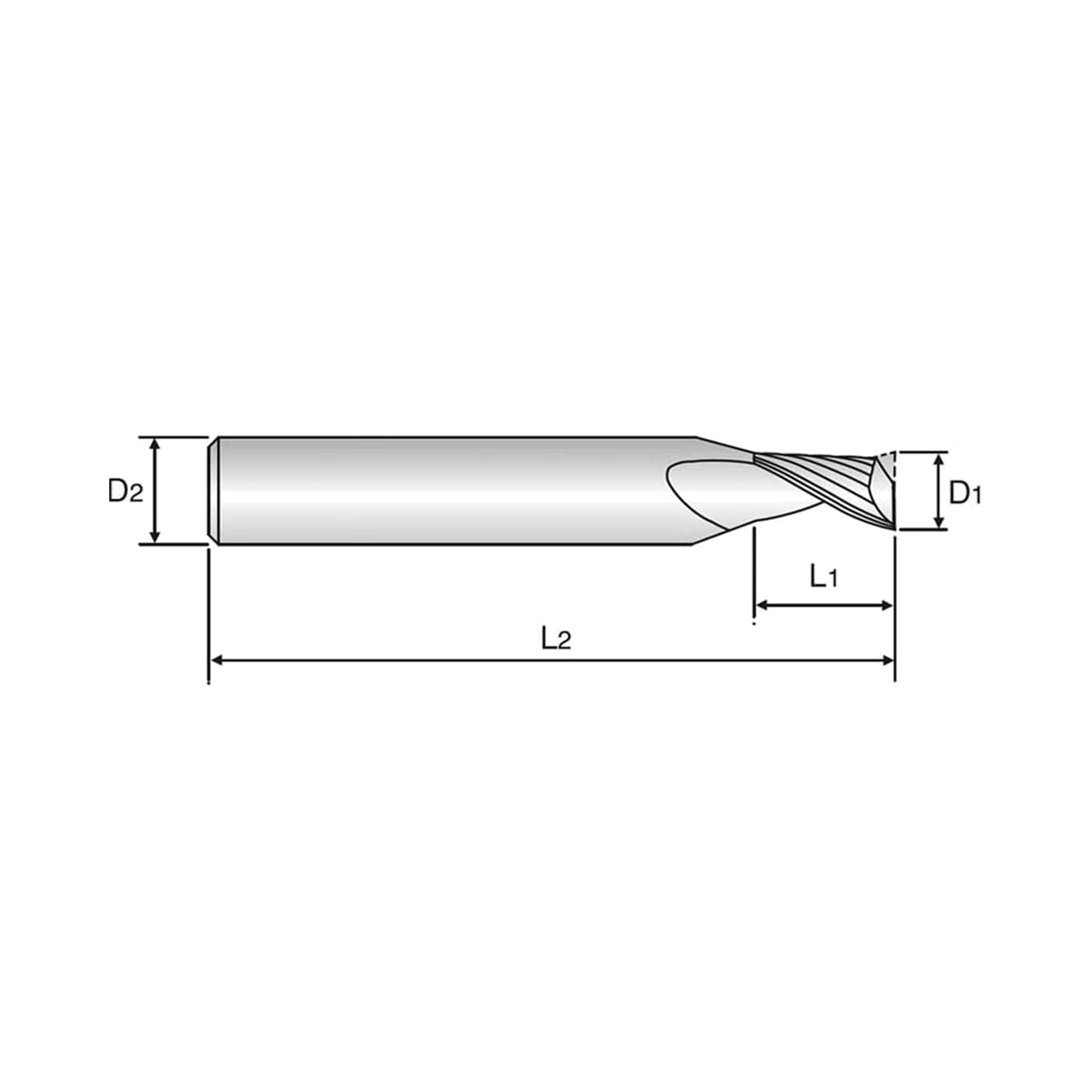

| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank diameter (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| E5E47020 | 2.0 | 0.04 | 50.0 | 3.0 | 8.0 | In stock | $18.00 | ||
| E5E47030 | 3.0 | 0.05 | 50.0 | 3.0 | 12.0 | In stock | $18.50 | ||
| E5E47040 | 4.0 | 0.07 | 60.0 | 4.0 | 15.0 | Low stock | $20.70 | ||
| E5E47050 | 5.0 | 0.09 | 60.0 | 5.0 | 17.0 | In stock | $24.90 | ||
| E5E47060 | 6.0 | 0.1 | 65.0 | 6.0 | 20.0 | In stock | $28.90 | ||
| E5E47080 | 8.0 | 0.14 | 65.0 | 8.0 | 22.0 | In stock | $55.70 | ||
| E5E47100 | 10.0 | 0.14 | 75.0 | 10.0 | 25.0 | In stock | $111.10 | ||
| E5E47120 | 12.0 | 0.14 | 80.0 | 12.0 | 30.0 | In stock | $138.40 |
Add ALU-POWER 1 Flute 30°Helix End Mill (E5E47) to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Speeds & Feeds
Product Description

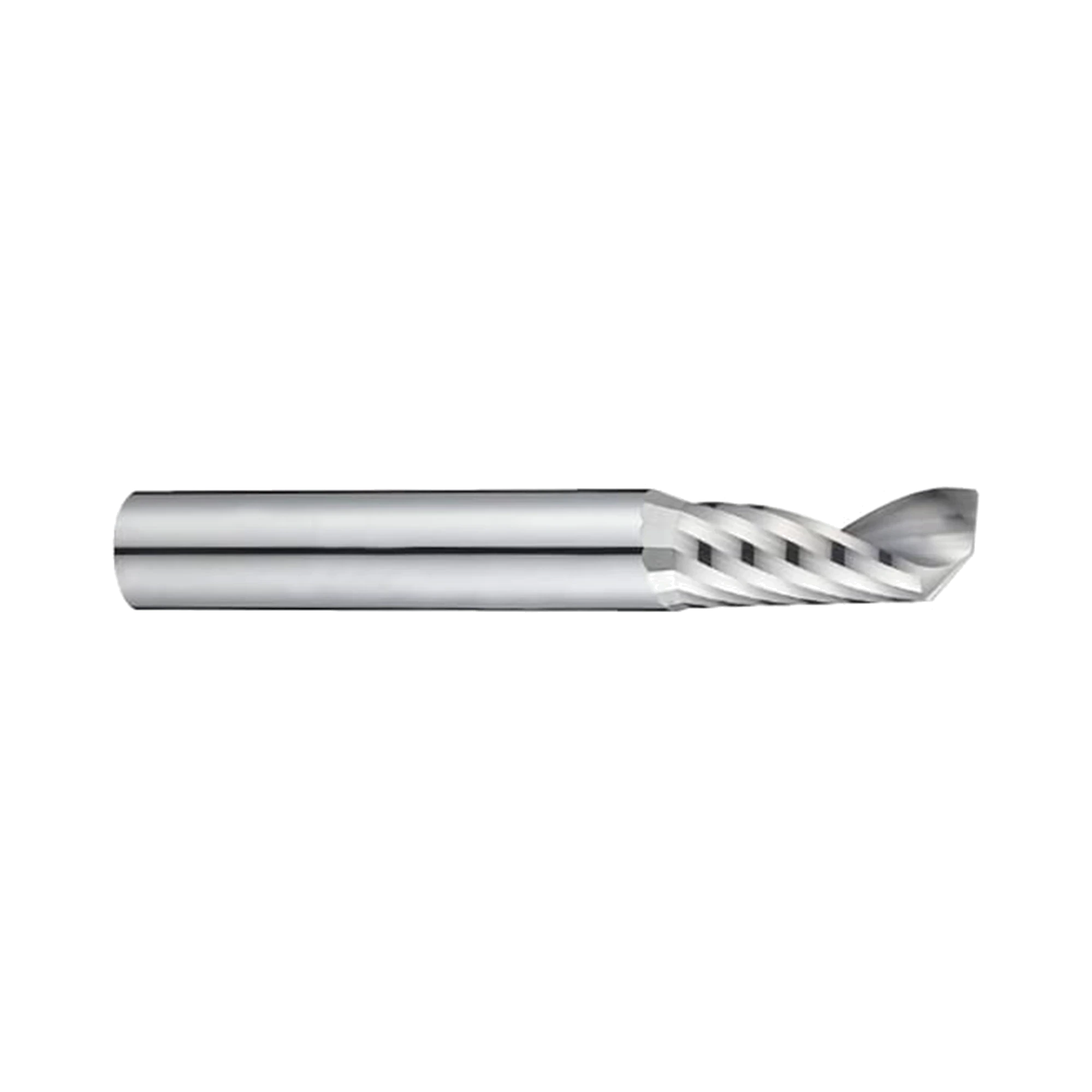

The YG-1 E5E47 series plastic cut has a single lapped flute design for excellent workpiece finish and chip evacuation. The wide, drawing up cut geometry is ideal for plastics such as ABS, acrylic and non-ferrous metals. Diameters within the series range from 2-12mm.
- Lapped Flute Design for Excellent Workpiece Finish
- Single Flute for Excellent Chip Evacuation
- Wide Cut Geometry for Dedicated Plastic Machining
- Drawing Cut (Up Cut)
- Router Style Cutter Prevents Chip Build Up in Flute Pockets
Product Data
| Workpiece Material | N |
| Cutting Shape | Square |
| Helix Angle | Square 30, Square 45 |
| No. Flutes | 1 |
| Operation | Facing, Side Milling, Small Part |
| Shank Type | Plain |
| Surface Treatment | Uncoated |
| Tool Material | Carbide |
| Flutes | 1 |
| Helix Angle | 30° |
| Cutting Edge Shape | Square |
| Size Min | D3.0 |
| Size Max | D12.0 |
| Length | - |
| Coated | Uncoated |
Side Milling
Small Part
Facing
Aluminium
Excellent
Good
Great
Excellent
Acrylic
Excellent
Good
Great
Excellent
Speeds & Feeds
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 2.0 | 200 | 0.069 | 32000 | 2200 |
| 3.0 | 235 | 0.096 | 25000 | 2400 |
| 4.0 | 250 | 0.120 | 20000 | 2400 |
| 5.0 | 235 | 0.147 | 15000 | 2200 |
| 6.0 | 255 | 0.170 | 13500 | 2300 |
| 8.0 | 250 | 0.240 | 10000 | 2400 |
| 10.0 | 250 | 0.300 | 8000 | 2400 |
| 12.0 | 255 | 0.343 | 6700 | 2300 |
| Ø | Vc | fz | RPM | FEED |
|---|---|---|---|---|
| 2.0 | 145 | 0.065 | 23000 | 1500 |
| 3.0 | 170 | 0.094 | 18000 | 1700 |
| 4.0 | 190 | 0.120 | 15000 | 1800 |
| 5.0 | 190 | 0.150 | 12000 | 1800 |
| 6.0 | 190 | 0.180 | 10000 | 1800 |
| 8.0 | 195 | 0.244 | 7800 | 1900 |
| 10.0 | 190 | 0.333 | 6000 | 2000 |
| 12.0 | 190 | 0.440 | 5000 | 2200 |
| RPM: | – | rev/min |
| FEED: | – | mm/min |
| Vc: | – | m/min |
| Fz: | – | mm/tooth |
