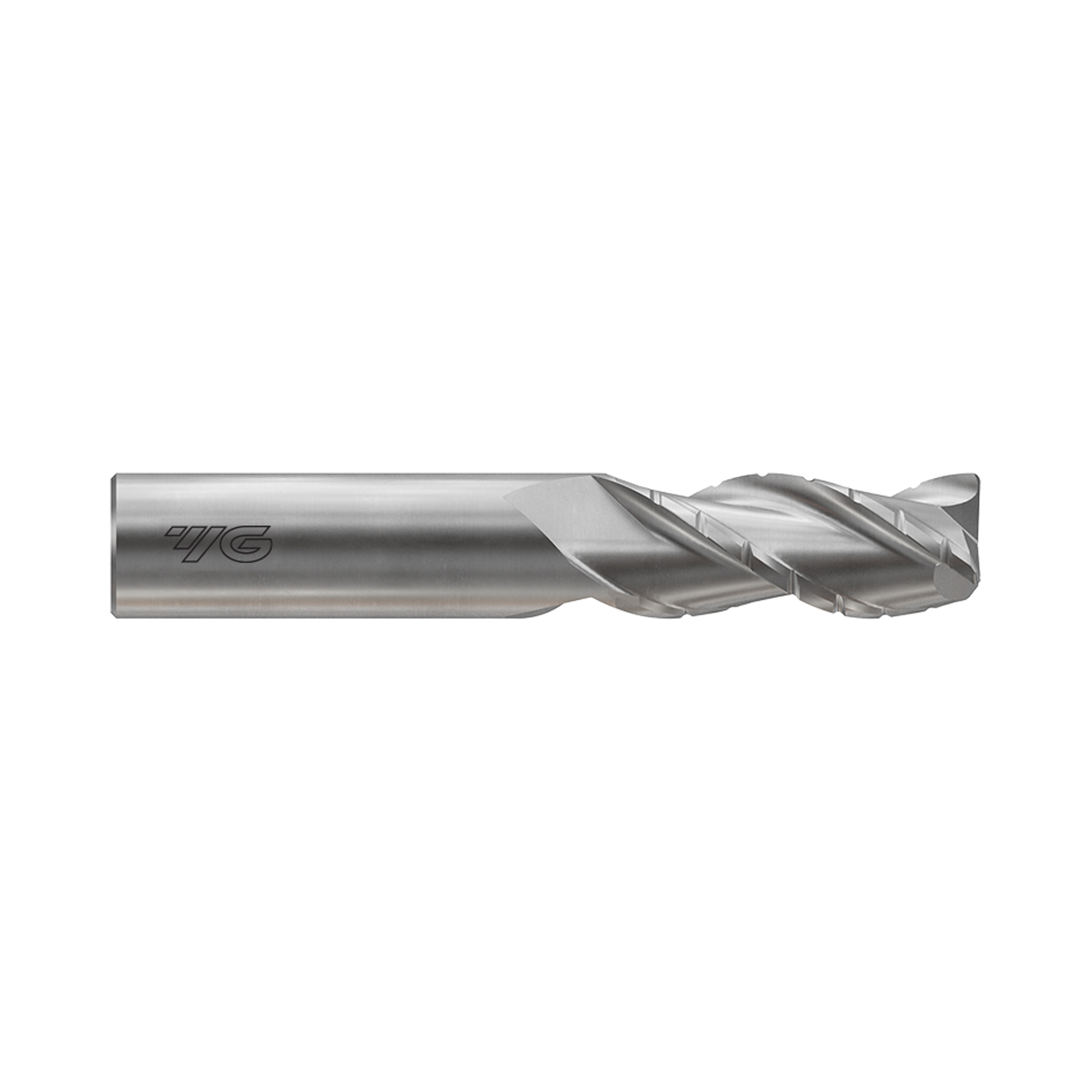

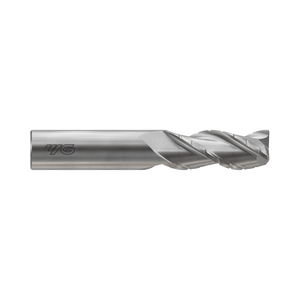

ALU-POWER HPC 3 Flute 37°Helix Corner Radius Chip Breaker with Neck End Mill (E5I86)

ALU-POWER HPC 3 Flute 37°Helix Corner Radius Chip Breaker with Neck End Mill (E5I86)
ALU-POWER HPC 3 Flute 37°Helix Corner Radius Chip Breaker with Neck End Mill (E5I86)
New

ALU-POWER HPC 3 Flute 37°Helix Corner Radius Chip Breaker with Neck End Mill (E5I86)

Product Code: E5I86

No. Flutes: 3 YG-1 LEGEND UNCOATED Surface Treatment: Uncoated YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 37 Helix Angle: Square 37° YG-1 LEGEND SHANK PLAIN Shank Type: Plain
Buy Local

Specifications

Flutes 3
Helix Angle 37°
Cutting Edge Shape CORNER RADIUS
Size Min D6.0
Size Max D20.0
Length

Extended Neck
Coating Uncoated



Product Data
Workpiece Material N
Helix Angle Square 37
No. Flutes 3
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Trochoidal
Shank Type Plain
Surface Treatment Uncoated
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ALU-POWER HPC 3 Flute 37°Helix Corner Radius Chip Breaker with Neck End Mill (E5I86) to comparison

View Comparison
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E5I86060 6 6 13 57 +0.008~-0.008 h5 3 E5I86080 8 8 19 63 +0.009~-0.009 h5 3 E5I86100 10 10 22 72 +0.010~-0.010 h5 3 E5I86120 12 12 26 83 +0.010~-0.010 h5 3 E5I86160 16 16 32 92 +0.010~-0.010 h5 3 E5I86200 20 20 38 104 +0.013~-0.013 h5 3 E5I86901 6 6 13 57 +0.008~-0.008 h5 3 E5I86902 6 6 24 75 +0.008~-0.008 h5 3 E5I86903 6 6 24 75 +0.008~-0.008 h5 3 E5I86904 8 8 19 63 +0.009~-0.009 h5 3 E5I86905 8 8 32 75 +0.009~-0.009 h5 3 E5I86906 8 8 32 75 +0.009~-0.009 h5 3 E5I86907 10 10 22 72 +0.010~-0.010 h5 3 E5I86908 10 10 40 100 +0.010~-0.010 h5 3 E5I86909 10 10 40 100 +0.010~-0.010 h5 3 E5I86910 12 12 26 83 +0.010~-0.010 h5 3 E5I86911 12 12 48 100 +0.010~-0.010 h5 3 E5I86912 12 12 48 100 +0.010~-0.010 h5 3 E5I86913 16 16 32 92 +0.010~-0.010 h5 3 E5I86914 16 16 64 125 +0.010~-0.010 h5 3 E5I86915 16 16 64 125 +0.010~-0.010 h5 3 E5I86916 20 20 38 104 +0.013~-0.013 h5 3 E5I86917 20 20 80 150 +0.013~-0.013 h5 3 E5I86918 20 20 80 150 +0.013~-0.013 h5 3

Speeds & Feeds

ØVcfzRPMFEED
6.04880.076258895918
10.04880.114155335326
12.04880.152129455918
16.04880.16897084883
20.04880.19177674439
ØVcfzRPMFEED
6.01830.07697082219
10.01830.11458251997
12.01830.15248542219
16.01830.16836411831
20.01830.19129131665
ØVcfzRPMFEED
6.02680.051142182167
10.02680.10285312600
12.02680.12771092708
16.02680.14053322235
20.02680.15242651950
ØVcfzRPMFEED
6.05030.102266858134
10.05030.191160119150
12.05030.2541334210167
16.05030.279100078388
20.05030.30580057320
ØVcfzRPMFEED
6.06100.076323617398
10.06100.114194176658
12.06100.152161817398
16.06100.168121366103
20.06100.19197085548
ØVcfzRPMFEED
6.02440.076129452959
10.02440.11477672663
12.02440.15264722959
16.02440.16848542441
20.02440.19138832219
ØVcfzRPMFEED
6.03510.051186212838
10.03510.102111733405
12.03510.12793113547
16.03510.14069832927
20.03510.15255862554
ØVcfzRPMFEED
6.06250.1023315710106
10.06250.1911989411370
12.06250.2541657912633
16.06250.2791243410422
20.06250.30599479096
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth

Operation

Side Milling
Slotting
Die Sinking
Facing
Corner
Helical Interpol
Trochoidal

Work Material

N Aluminium

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
N Non-ferrous

Great

Good Great Excellent
