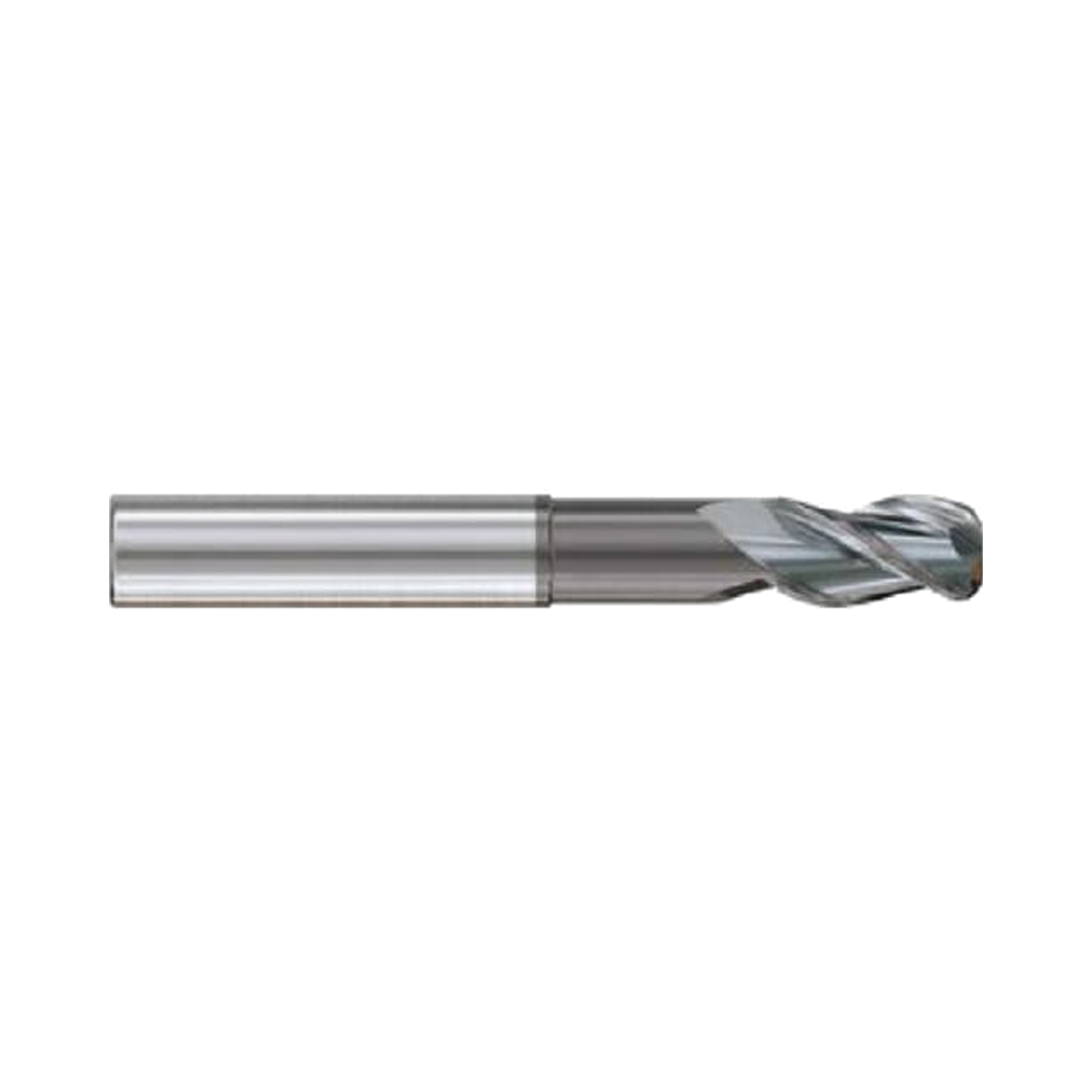

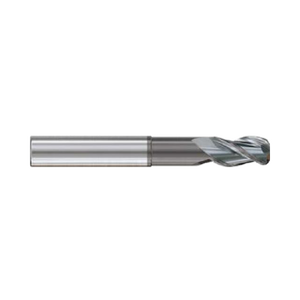

ALU-POWER HPC 3 Flute 37°Helix Corner Radius with Neck End Mill (JAH25)

ALU-POWER HPC 3 Flute 37°Helix Corner Radius with Neck End Mill (JAH25)
ALU-POWER HPC 3 Flute 37°Helix Corner Radius with Neck End Mill (JAH25)
New

ALU-POWER HPC 3 Flute 37°Helix Corner Radius with Neck End Mill (JAH25)

Product Code: JAH25

No. Flutes: 3 YG-1 LEGEND DLC Surface Treatment: DLC YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 37 Helix Angle: Square 37° YG-1 LEGEND SHANK PLAIN Shank Type: Plain
Buy Local

The JAH25 series features a corner radius and reduced neck diameter to prevent interference with the workpiece. The polished DLC (diamond like carbon) coating protects against tool wear in hardwearing aluminium alloys or abrasive plastics. While other 3-flute end mills can muster up the speed for rough cutting aluminium, few can make it through without melting down the aluminum that surrounds the work itself. That’s where the ALU-POWER HPC has a distinct advantage – speed, strength and sharpness. ALU-POWER HPC’s highly polished 3-flute design provides more balanced cutting performance – without excessive heat build up resulting in longer tool life, balanced cutting without vibration, extreme cutting conisations and supreme metal removal rates in aluminium, non-ferrous alloys and plastics.

  • Micrograin carbide substrate
  • Deep flute pockets
  • Extreme metal removal rates
  • Polished flutes for excellent chip flow
  • Effective chip evacuation at high feed rates with lower cutting forces
  • Highly effective in vertical ramping up to 20 degrees and step-over plunging applications
  • 3 flute ‘centre match’ HPC geometry for high feed rates & large depth of cut
  • DLC coating excels in hard aluminum and high speeds
  • To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck)

Specifications

Flutes 3
Helix Angle 37°
Cutting Edge Shape CORNER RADIUS
Size Min D6.0
Size Max D20.0
Length

EXTENDED NECK
Coating Uncoated



Product Data
Workpiece Material N
Helix Angle Square 37
No. Flutes 3
Operation Corner, Die Sinking, Facing, Helical-Interpol, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment DLC
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ALU-POWER HPC 3 Flute 37°Helix Corner Radius with Neck End Mill (JAH25) to comparison

View Comparison

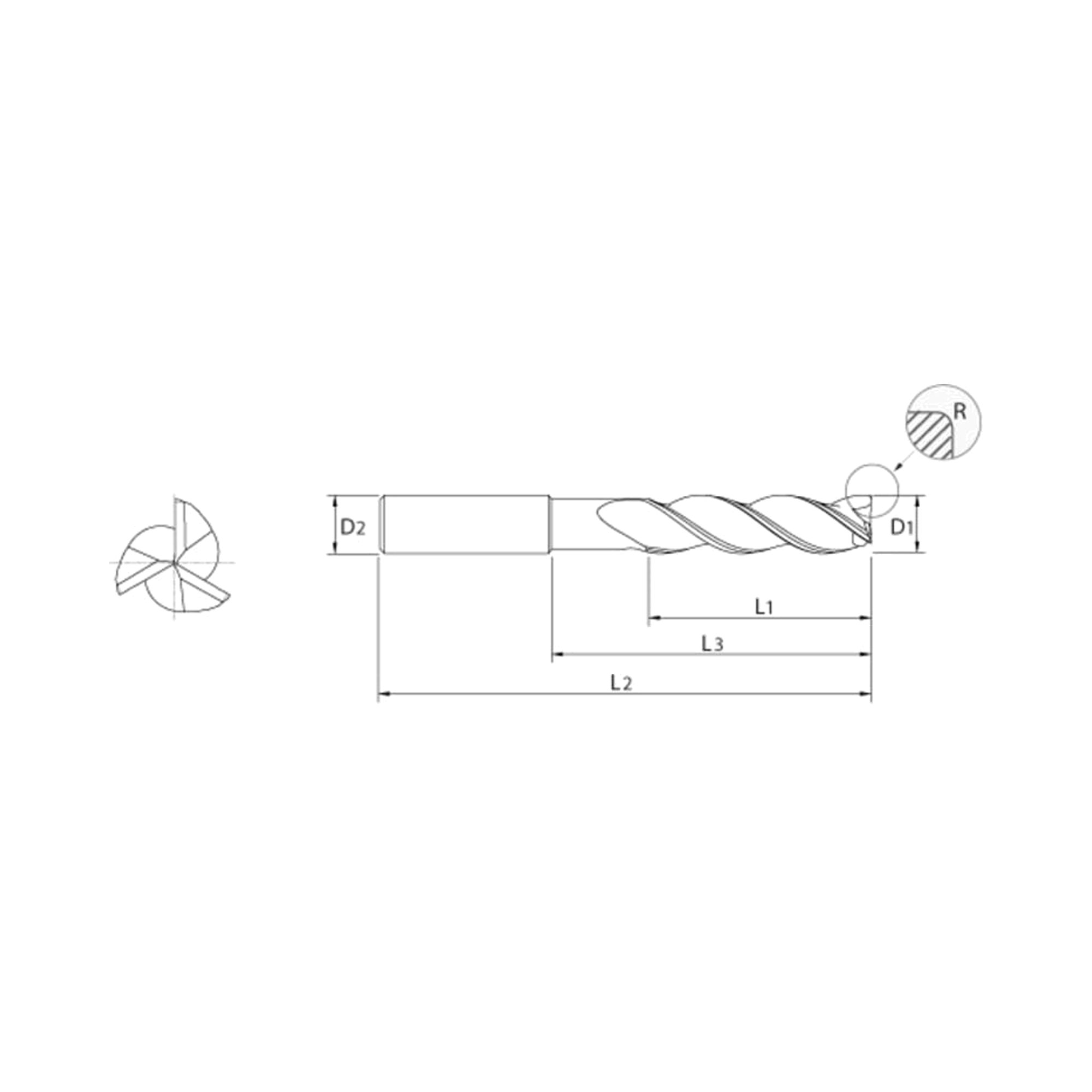

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute JAH25060 6 6 10 63 0~-0.008 h5 3 JAH25080 8 8 12 75 0~-0.009 h5 3 JAH25100 10 10 14 100 0~-0.009 h5 3 JAH25120 12 12 16 100 0~-0.011 h5 3 JAH25140 14 14 18 125 0~-0.011 h5 3 JAH25160 16 16 20 125 0~-0.011 h5 3 JAH25200 20 20 25 150 0~-0.013 h5 3 JAH25901 6 6 10 63 0~-0.008 h5 3 JAH25902 6 6 13 72 0~-0.008 h5 3 JAH25903 6 6 13 72 0~-0.008 h5 3 JAH25904 8 8 12 75 0~-0.009 h5 3 JAH25905 8 8 12 75 0~-0.009 h5 3 JAH25906 8 8 12 75 0~-0.009 h5 3 JAH25907 8 8 12 75 0~-0.009 h5 3 JAH25908 8 8 12 75 0~-0.009 h5 3 JAH25909 8 8 12 75 0~-0.009 h5 3 JAH25910 10 10 14 100 0~-0.009 h5 3 JAH25911 10 10 14 100 0~-0.009 h5 3 JAH25912 10 10 14 100 0~-0.009 h5 3 JAH25913 10 10 14 100 0~-0.009 h5 3 JAH25914 10 10 14 100 0~-0.009 h5 3 JAH25915 10 10 14 100 0~-0.009 h5 3 JAH25916 10 10 14 100 0~-0.009 h5 3 JAH25917 12 12 16 100 0~-0.011 h5 3 JAH25918 12 12 16 100 0~-0.011 h5 3 JAH25919 12 12 16 100 0~-0.011 h5 3 JAH25920 12 12 16 100 0~-0.011 h5 3 JAH25921 12 12 16 100 0~-0.011 h5 3 JAH25922 12 12 16 100 0~-0.011 h5 3 JAH25923 12 12 16 100 0~-0.011 h5 3 JAH25924 12 12 16 100 0~-0.011 h5 3 JAH25925 12 12 16 100 0~-0.011 h5 3 JAH25926 12 12 16 100 0~-0.011 h5 3 JAH25927 14 14 18 125 0~-0.011 h5 3 JAH25928 14 14 18 125 0~-0.011 h5 3 JAH25929 14 14 18 125 0~-0.011 h5 3 JAH25930 16 16 20 125 0~-0.011 h5 3 JAH25931 16 16 20 125 0~-0.011 h5 3 JAH25932 16 16 20 125 0~-0.011 h5 3 JAH25933 16 16 20 125 0~-0.011 h5 3 JAH25934 16 16 20 125 0~-0.011 h5 3 JAH25935 16 16 20 125 0~-0.011 h5 3 JAH25936 16 16 20 125 0~-0.011 h5 3 JAH25937 16 16 20 125 0~-0.011 h5 3 JAH25938 20 20 25 150 0~-0.013 h5 3 JAH25939 20 20 25 150 0~-0.013 h5 3 JAH25940 20 20 25 150 0~-0.013 h5 3 JAH25941 20 20 25 150 0~-0.013 h5 3 JAH25942 20 20 25 150 0~-0.013 h5 3 JAH25943 20 20 25 150 0~-0.013 h5 3 JAH25944 20 20 25 150 0~-0.013 h5 3 JAH25945 20 20 25 150 0~-0.013 h5 3

Speeds & Feeds

DiameterVcfzRPMFEED
6.04880.076258895918
10.04880.114155335326
12.04880.152129455918
16.04880.16897084883
20.04880.19177674439
DiameterVcfzRPMFEED
6.01830.07697082219
10.01830.11458251997
12.01830.15248542219
16.01830.16836411831
20.01830.19129131665
DiameterVcfzRPMFEED
6.02680.051142182167
10.02680.10285312600
12.02680.12771092708
16.02680.14053322235
20.02680.15242651950
DiameterVcfzRPMFEED
6.05030.102266858134
10.05030.191160119150
12.05030.2541334210167
16.05030.279100078388
20.05030.30580057320
DiameterVcfzRPMFEED
6.06100.076323617398
10.06100.114194176658
12.06100.152161817398
16.06100.168121366103
20.06100.19197085548
DiameterVcfzRPMFEED
6.02440.076129452959
10.02440.11477672663
12.02440.15264722959
16.02440.16848542441
20.02440.19138832219
DiameterVcfzRPMFEED
6.03510.051186212838
10.03510.102111733405
12.03510.12793113547
16.03510.14069832927
20.03510.15255862554
DiameterVcfzRPMFEED
6.06250.1023315710106
10.06250.1911989411370
12.06250.2541657912633
16.06250.2791243410422
20.06250.30599479096
ØVcfzRPMFEED
6.010060.1405337022367
10.010060.2673202225621
12.010060.3562668528467
16.010060.3812001422876
20.010060.4191601120131
ØVcfzRPMFEED
6.03660.140194178138
10.03660.267116509321
12.03660.356970810357
16.03660.38172818323
20.03660.41958257324
ØVcfzRPMFEED
6.05640.1142992110260
10.05640.2161795311628
12.05640.2921496113110
16.05640.3301122011115
20.05640.35689769576
ØVcfzRPMFEED
6.010210.2295416637147
10.010210.4323249942100
12.010210.5842708347465
16.010210.6352031238695
20.010210.6991625034051
RPM: – rev/min
FEED: – mm/min
Vc: – m/min
Fz: – mm/tooth

Operation

Side Milling
Small Part
Slotting
Die Sinking
Facing
Corner
Helical Interpol

Work Material

N Aluminium

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
N Non-ferrous

Great

Good Great Excellent
