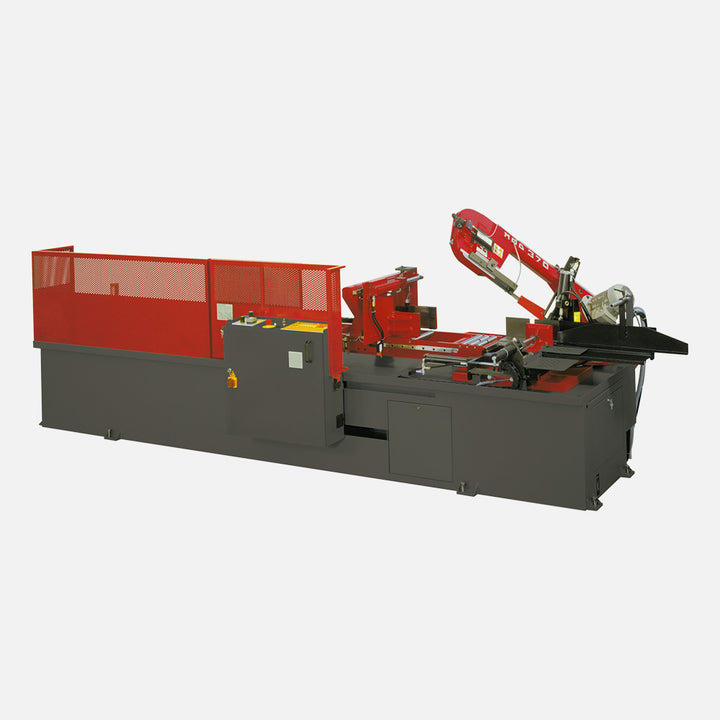

BIANCO 370 A DS 3R BANDSAW MACHINE
Product Code:
Automatic band saw machine with cutting capacities up to 60° right and 45° left
Fully automatic band saw machine, operated by NC control for each machine function. Bow rotation and feeding carriage controlled by brush-less motors. Touch version is equipped with a 7” touch screen control panel. The machine has perimetrical safety protection, double safety button for cycle start-up and low voltage electrical system according to EC rules.
ALSO AVAILABLE WITH 7'' OR 10'' TOUCH SCREEN CONTROL PANEL.
WE SUGGEST YOU NOT TO FEED FULL MATERIAL BIGGER THAN Ø150 mm WHILE THE MACHINE IS OPERATING IN AUTOMATIC MODE.
FEATURES
- Cutting capacities up to 60° right and 45° left
- Fully automatic machine, including the material feeding and the bow rotation
- Material feeding carriage sliding on ball bearing guides
- NC control of each machine control
- The machine can be fitted with an automatic loading unit
- Carriage stroke 3000 mm
STANDARD ACCESSORIES
- Feeding carriage and bow rotation controlled by Brush Less motor
- Cleaning brush
- Chip conveyor
- Inverter
| 90° mm | 280 | 240 | 310x240 |
| 45° DX-R mm | 230 | 230 | 230x230 |
| 45° SX-L mm | 200 | 170 | 220x100 |
| 60° DX-R mm | 140 | 140 | 140x140 |
| Blade | 3120x27x0.9 | ||
Product Data
| Brand | Bianco |
| Capacity Rectangle | 240x310mm |
| Capacity Round | 280mm |
| Capacity Square | 240mm |
| Category | Automatic |
| Power | 415V |
| Type | Automatic |
Made in Italy
3 Year Warranty
