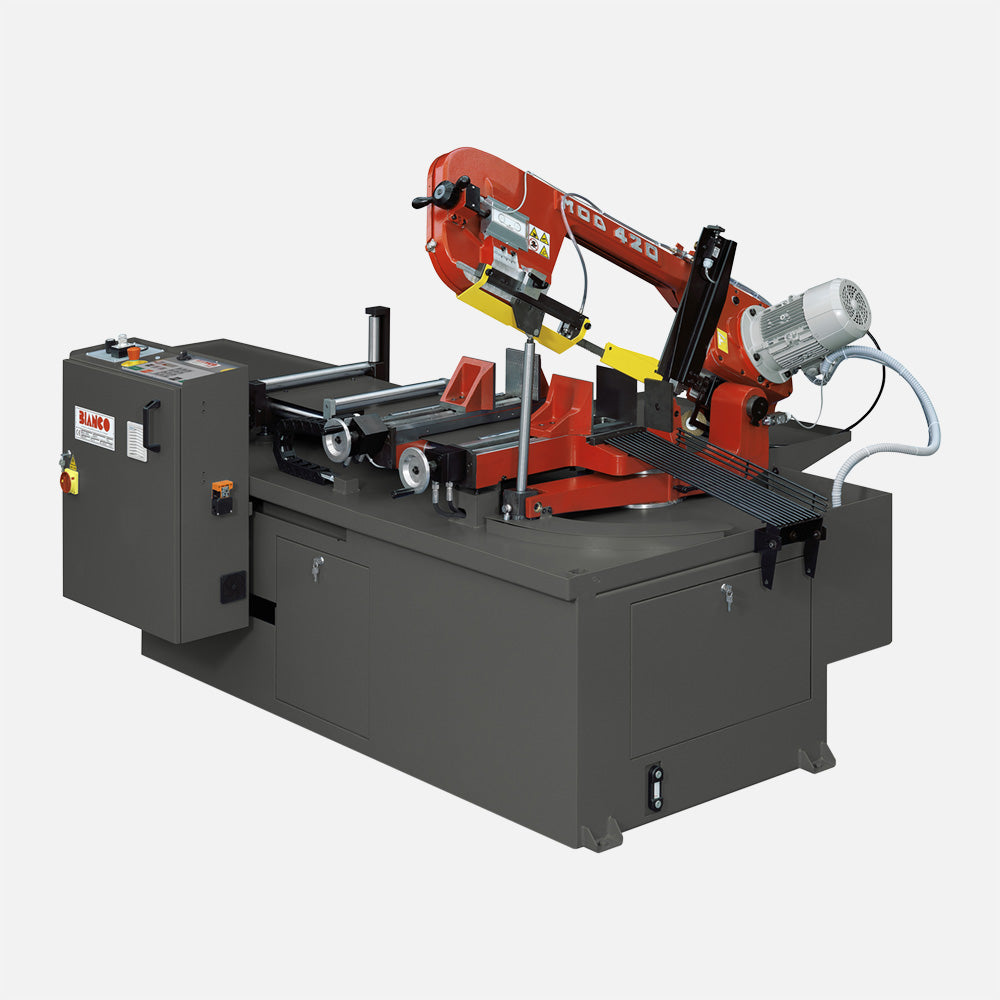

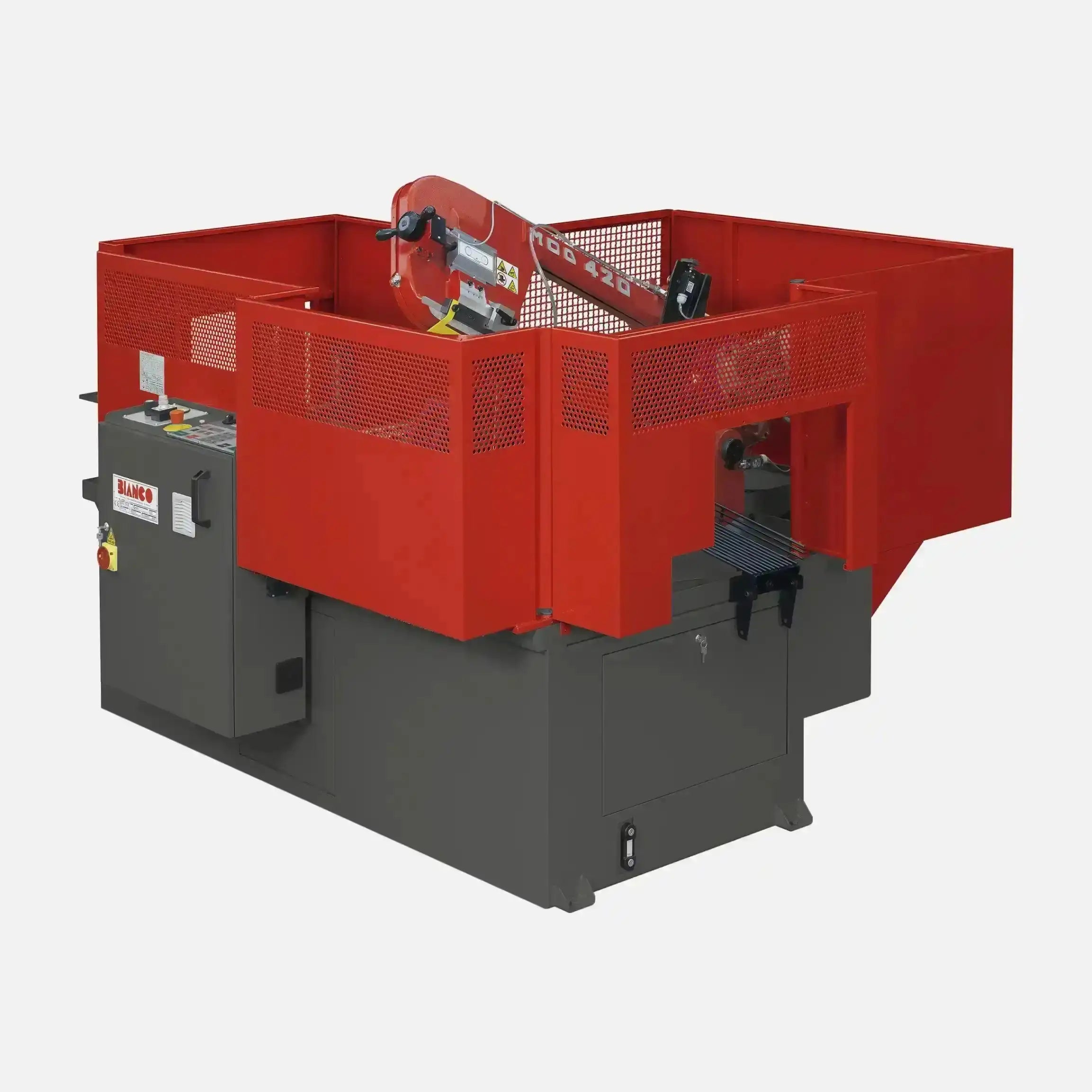

BIANCO 420 A BANDSAW MACHINE
Product Code:
Automatic band saw machine with cutting capacities up to 60° right
Automatic band saw machine with bow, vice movement and material feeding at hydraulic control. Automatic fast up/down bow movement controlled by feeler pin. Downfeed with infinitesimal adjustment. Manual setting of the cutting length trough mechanical handle, quantity of pieces to be cut and all machine functions are operated and controlled by PLC. Mechanical blade tensioning controlled by limit switch. The machine is equipped with perimetrical safety protection, double safety button for cycle start-up and low voltage electrical system according to EC rules.
WE SUGGEST YOU NOT TO FEED FULL MATERIAL BIGGER THAN 150mm Ø WHILE THE MACHINE IS OPERATING IN AUTOMATIC MODE.
FEATURES
- Cutting capacities up to 60° right
- Manual setting of the cutting length trough mechanical handle
- Quantity of pieces to be cut and all machine functions operated and controlled by PLC
- Reducer unit with hardened and ground gears
- Mechanical blade tensioning controlled by limit switch
- Carriage stroke 800 mm
STANDARD ACCESSORIES
- Discharge tray
- Powered cleaning brush
| 90° mm | 300 | 240 | 420x200 |
| 45° mm | 240 | 230 | 270x140 |
| 60° mm | 170 | 170 | 170x170 |
| Blade | 3270x27x0.9 | ||
| Brand | Bianco |
| Capacity Rectangle | 200x420mm |
| Capacity Round | 300mm |
| Capacity Square | 240mm |
| Category | Automatic |
| Power | 415V |
| Type | Automatic |
Made in Italy
3 Year Warranty
