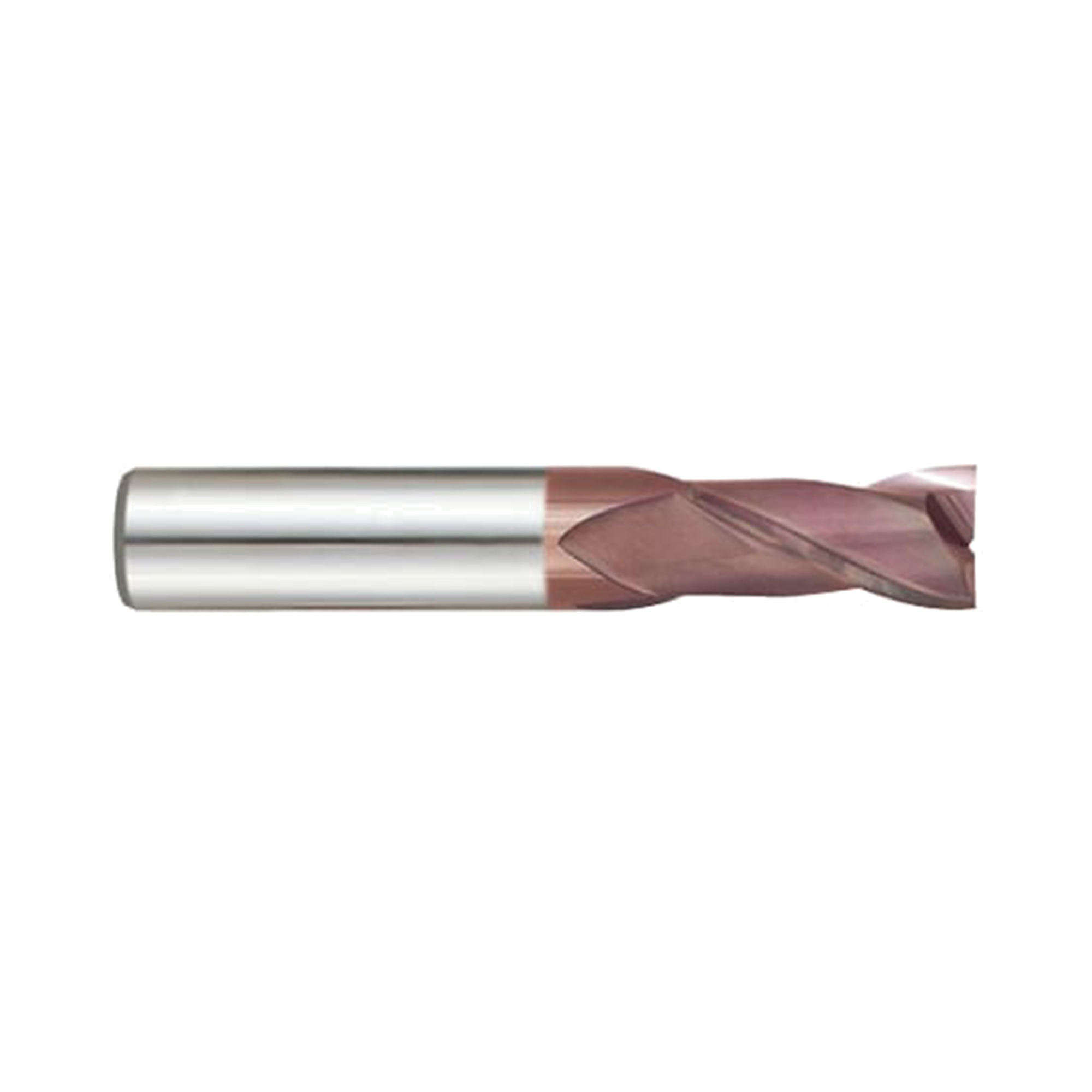

(G9527) K-2 Carbide, 2Flute End Mill, Long Length

Name: (G9527) K-2 Carbide, 2Flute End Mill, Long Length
Brand: Excision Pty Ltd
SKU: G9527035
Price: 27.30 AUD
Availability: InStock

TiAlN-Coated 2 Flute Long Length Slotting End Mills

$30.03 INC GST $27.30 EX GST Price available on request

SKU: G9527035

Work materials

P M K N S H

Key features

TiAlN-coated solid carbide construction
Two-flute geometry designed for slotting
Suitable for dry milling at high temperatures

Tool material Carbide

Surface treatment Titanium Aluminium Nitride Coating

Mill Diameter (mm)

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Slotting-focused geometry

Two flutes provide a geometry specifically designated for slotting work.

Dry milling capability

TiAlN coating suits dry milling applications at high temperatures.

Long-length selection

Cutter diameters from 3.5 to 20 mm cover practical long-length milling requirements.

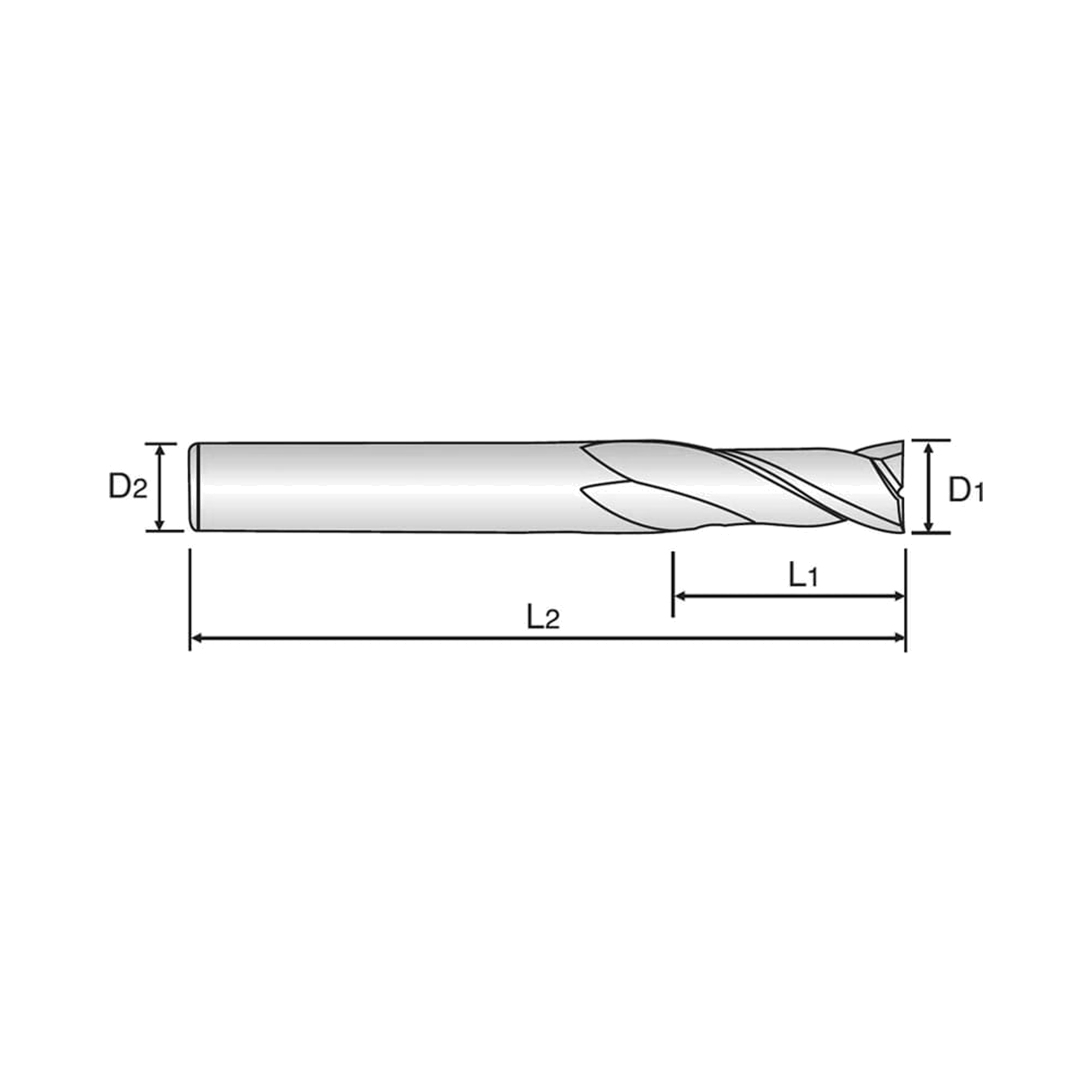

SKU	Mill Diameter (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	CAD files	Stock	Price
G9527035	3.5	50.0	3.5	7.0	STEP DXF	1-2 Weeks	$27.30
G9527040	4.0	50.0	4.0	8.0	STEP DXF	Low stock	$16.86
G9527045	4.5	50.0	4.5	8.0	STEP DXF	1-2 Weeks	$28.50
G9527050	5.0	50.0	5.0	10.0	STEP DXF	In stock	$14.71
G9527055	5.5	57.0	5.5	10.0	STEP DXF	1-2 Weeks	$40.60
G9527060	6.0	57.0	6.0	10.0	STEP DXF	In stock	$16.86
G9527065	6.5	60.0	6.5	13.0	STEP DXF	1-2 Weeks	$46.90
G9527070	7.0	60.0	7.0	13.0	STEP DXF	1-2 Weeks	$39.40
G9527075	7.5	63.0	7.5	16.0	STEP DXF	In stock	$26.99
G9527080	8.0	63.0	8.0	16.0	STEP DXF	Low stock	$30.45
G9527085	8.5	67.0	8.5	16.0	STEP DXF	Low stock	$44.40
G9527090	9.0	67.0	9.0	16.0	STEP DXF	1-2 Weeks	$73.40
G9527095	9.5	72.0	9.5	19.0	STEP DXF	Low stock	$49.15
G9527100	10.0	72.0	10.0	19.0	STEP DXF	Low stock	$37.57
G9527110	11.0	83.0	11.0	22.0	STEP DXF	In stock	$49.42
G9527120	12.0	83.0	12.0	22.0	STEP DXF	In stock	$49.42
G9527130	13.0	83.0	13.0	22.0	STEP DXF	Low stock	$67.51
G9527140	14.0	83.0	14.0	22.0	STEP DXF	1-2 Weeks	$145.20
G9527150	15.0	92.0	15.0	26.0	STEP DXF	Low stock	$115.52
G9527160	16.0	92.0	16.0	26.0	STEP DXF	1-2 Weeks	$158.70
G9527180	18.0	92.0	18.0	26.0	STEP DXF	Low stock	$95.95
G9527200	20.0	104.0	20.0	32.0	STEP DXF	1-2 Weeks	$214.50

Add (G9527) K-2 Carbide, 2Flute End Mill, Long Length to comparison

View Comparison

Overview
Specifications
Work Material
Speeds & Feeds
Reviews

Application

Product Description

YG-1 G9527 K-2 Carbide 2 Flute Long Length End Mills are TiAlN-coated solid carbide slotting tools. The two-flute geometry is designed for slotting, while long lengths provide reach for milling operations. These plain-shank end mills suit dry milling applications at high temperatures in ISO P, M and K materials. The G9527 series covers 3.5 to 20 mm cutter diameters with 7 to 32 mm lengths of cut. Overall lengths span 50 to 104 mm, providing a longer tool format for practical milling tasks. Matched shank and cutter diameters support straightforward selection of compatible plain-shank toolholders. It provides a defined selection for common long-length slotting requirements.

TiAlN-coated solid carbide construction
Two-flute geometry designed for slotting
Suitable for dry milling at high temperatures
Plain shank matches the nominal cutter diameter
For ISO P M and K material groups
3.5 to 20 mm cutter diameter range

Product Data

Cutting Shape	Square
Length	Long
No. Flutes	2
Surface Treatment	Titanium Aluminium Nitride Coating
Tool Material	Carbide

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

11 grades

Non-alloy steel

ExcellentVDI 1–5

Low-alloy steel

ExcellentVDI 6–9

High-alloy and tool steel

ExcellentVDI 10–11

Cast iron

6 grades

Grey cast iron

GoodVDI 15–16

Nodular cast iron

GoodVDI 17–18

Malleable cast iron

GoodVDI 19–20

Superalloys & titanium

7 grades

Heat-resistant superalloys

GoodVDI 31–35

Titanium alloys

GoodVDI 36–37

Stainless steel

3 grades

Stainless steel

GoodVDI 12–14

Non-ferrous materials

9 grades

Wrought aluminium

GoodVDI 21–22

Cast aluminium

GoodVDI 23–25

Copper, bronze and brass

GoodVDI 26–28

Non-metallic materials

GoodVDI 29

Hardened materials

1 grade

Chilled cast iron

GoodVDI 40

VDI grade reference37 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDI	Work material	Recommendation	HB ref.	HRC ref.
1	PNon-alloy steel	Excellent	125	-
2	PNon-alloy steel	Excellent	190	13
3	PNon-alloy steel	Excellent	250	25
4	PNon-alloy steel	Excellent	270	28
5	PNon-alloy steel	Excellent	300	32
6	PLow-alloy steel	Excellent	180	10
7	PLow-alloy steel	Excellent	275	29
8	PLow-alloy steel	Excellent	300	32
9	PLow-alloy steel	Excellent	350	38
10	PHigh-alloy and tool steel	Excellent	200	15
11	PHigh-alloy and tool steel	Excellent	325	35
12	MStainless steel	Good	200	15
13	MStainless steel	Good	240	23
14	MStainless steel	Good	180	10
15	KGrey cast iron	Good	180	10
16	KGrey cast iron	Good	260	26
17	KNodular cast iron	Good	160	3
18	KNodular cast iron	Good	250	25
19	KMalleable cast iron	Good	130	-
20	KMalleable cast iron	Good	230	21
21	NWrought aluminium	Good	60	-
22	NWrought aluminium	Good	100	-
23	NCast aluminium	Good	75	-
24	NCast aluminium	Good	90	-
25	NCast aluminium	Good	130	-
26	NCopper, bronze and brass	Good	110	-
27	NCopper, bronze and brass	Good	90	-
28	NCopper, bronze and brass	Good	100	-
29	NNon-metallic materials	Good	-	-
31	SHeat-resistant superalloys	Good	200	15
32	SHeat-resistant superalloys	Good	280	30
33	SHeat-resistant superalloys	Good	250	25
34	SHeat-resistant superalloys	Good	350	38
35	SHeat-resistant superalloys	Good	320	34
36	STitanium alloys	Good	-	-
37	STitanium alloys	Good	-	-
40	HChilled cast iron	Good	400	42

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

ISO	VDI 3323	Material Description	Ae	Ap	Parameter	Diameter (Ø)
ISO	VDI 3323	Material Description	Ae	Ap	Parameter	1.0	1.5	2.0	3.0	4.0	5.0	6.0	8.0	10.0	12.0	14.0	16.0	20.0
P	1-4	Non-Alloy Steel	1.0D	0.5D	Vc	45	45	50	55	60	70	70	70	70	70	75	75	70
					fz	0.004	0.008	0.01	0.015	0.025	0.031	0.039	0.057	0.064	0.065	0.063	0.062	0.063
					RPM	14324	9549	7958	5836	5173	4456	3714	2785	2228	1857	1705	1492	1114
					FEED	115	153	159	175	259	276	290	318	285	241	215	185	140
	5		1.0D	0.5D	Vc	25	25	30	35	40	40	45	45	40	45	45	50	45
					fz	0.004	0.008	0.01	0.016	0.025	0.031	0.041	0.05	0.05	0.048	0.048	0.05	0.05
					RPM	7958	5305	4775	3714	3183	2546	2387	1790	1273	1194	1023	995	716
					FEED	64	85	95	119	159	158	196	179	127	115	98	99	72
	6-7	Low-Alloy Steel	1.0D	0.5D	Vc	45	45	50	55	60	70	70	70	70	70	75	75	70
					fz	0.004	0.008	0.01	0.015	0.025	0.031	0.039	0.057	0.064	0.065	0.063	0.062	0.063
					RPM	14324	9549	7958	5836	5173	4456	3714	2785	2228	1857	1705	1492	1114
					FEED	115	153	159	175	259	276	290	318	285	241	215	185	140
	8-9		1.0D	0.5D	Vc	25	25	30	35	40	40	45	45	40	45	45	50	45
					fz	0.004	0.008	0.01	0.016	0.025	0.031	0.041	0.05	0.05	0.048	0.048	0.05	0.05
					RPM	7958	5305	4775	3714	3183	2546	2387	1790	1273	1194	1023	995	716
					FEED	64	85	95	119	159	158	196	179	127	115	98	99	72
	10	High-Alloyed Steel, and Tool Steel	1.0D	0.5D	Vc	45	45	50	55	60	70	70	70	70	70	75	75	70
					fz	0.004	0.008	0.01	0.015	0.025	0.031	0.039	0.057	0.064	0.065	0.063	0.062	0.063
					RPM	14324	9549	7958	5836	5173	4456	3714	2785	2228	1857	1705	1492	1114
					FEED	115	153	159	175	259	276	290	318	285	241	215	185	140
	11.1-11.2		1.0D	0.5D	Vc	25	25	30	35	40	40	45	45	40	45	45	50	45
					fz	0.004	0.008	0.01	0.016	0.025	0.031	0.041	0.05	0.05	0.048	0.048	0.05	0.05
					RPM	7958	5305	4775	3714	3183	2546	2387	1790	1273	1194	1023	995	716
					FEED	64	85	95	119	159	158	196	179	127	115	98	99	72
M	14.1	Stainless steel	1.0D	0.5D	Vc	20	25	25	30	35	35	35	35	35	35	35	35	35
					fz	0.003	0.007	0.009	0.016	0.025	0.031	0.04	0.055	0.059	0.058	0.059	0.068	0.064
					RPM	6366	5305	3979	3183	2785	2228	1857	1393	1114	928	796	696	557
					FEED	38	74	72	102	139	138	149	148	131	108	94	95	71
K	15-20	Grey cast iron Nodular cast iron Malleable cast iron	1.0D	0.5D	Vc	60	55	69	55	60	55	55	55	60	55	55	55	55
					fz	0.005	0.008	0.012	0.018	0.024	0.03	0.043	0.063	0.077	0.102	0.119	0.145	0.189
					RPM	19099	11671	9549	5836	4775	3501	2918	2188	1910	1459	1251	1094	875
					FEED	191	187	229	210	229	210	251	276	294	298	298	317	331
N	21~22	Aluminum-wrought alloy	1.0D	1.0D	Vc	140	130	140	145	140	145	145	145	145	140	145	145	140
					fz	0.004	0.007	0.01	0.015	0.021	0.025	0.032	0.043	0.053	0.065	0.073	0.085	0.11
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714	3297	2885	2228
					FEED	357	386	446	462	468	462	492	496	489	483	481	490	490
	23~25	Aluminum-cast,alloyed	1.0D	1.0D	Vc	140	130	140	145	140	145	145	145	145	140	145	145	140
					fz	0.004	0.007	0.01	0.015	0.021	0.025	0.032	0.043	0.053	0.065	0.073	0.085	0.11
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714	3297	2885	2228
					FEED	357	386	446	462	468	462	492	496	489	483	481	490	490
	26-28	Copper Alloys (Bronze / Brass)	1.0D	1.0D	Vc	80	95	105	105	110	105	105	110	105	105	105	110	105
					fz	0.004	0.007	0.01	0.015	0.019	0.025	0.033	0.043	0.055	0.066	0.078	0.085	0.11
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785	2387	2188	1671
					FEED	204	282	334	334	444	334	368	376	368	368	372	372	368
	29.1	Non Metallic Materials	1.0D	1.0D	Vc	80	95	105	105	110	105	105	110	105	105	105	110	105
					fz	0.004	0.007	0.01	0.015	0.019	0.025	0.033	0.043	0.055	0.066	0.078	0.085	0.11
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785	2387	2188	1671
					FEED	204	282	334	334	444	334	368	376	368	368	372	372	368
H	40	Chilled Cast Iron	1.0D	0.5D	Vc	25	25	30	35	40	40	45	45	40	45	45	50	45
					fz	0.004	0.008	0.01	0.016	0.025	0.031	0.041	0.05	0.05	0.048	0.048	0.05	0.05
					RPM	7958	5305	4775	3714	3183	2546	2387	1790	1273	1194	1023	995	716
					FEED	64	85	95	119	159	158	196	179	127	115	98	99	72

Recommended parameters

Recommended cutting speeds and feeds
Parameter	Value	Unit
Spindle speed	–	rev/min
Feed rate	–	mm/min
Cutting speed (Vc)	–	m/min
Feed per tooth (fz)	–	mm/tooth

Choose your options and calculate the recommended parameters.
