PRIME DIN371/DIN374 Spiral Flute X-Coating (TRE33)

PRIME DIN371/DIN374 Spiral Flute X-Coating (TRE33)
PRIME DIN371/DIN374 Spiral Flute X-Coating (TRE33)
New

PRIME DIN371/DIN374 Spiral Flute X-Coating (TRE33)

Product Code: TRE33

Thread Class: 2BX YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND UNF Thread Shape: UNF YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND X COATING Surface Treatment: YG-1 X Coating YG-1 LEGEND HSS PM Tool Material: HSS PM YG-1 LEGEND DIN 371-374 Tool Standard: DIN 371-374 YG-1 LEGEND HELIX SQUARE 45 Helix Angle: Square 45°
Buy Local
  • Prime Spiral Flute X-Coating
  • High performance on various ductile materials
  • Specially designed to prevent oversized threads and reduce gauging problems
Product Data
Workpiece Material P M K N H
Aluminum Great
Helix Angle Square 45
Operation Blind Drilling
Surface Treatment YG-1 X Coating
Thread Angle 60
Thread Class 2BX
Thread Form C
Thread Shape UNF
Tool Material HSS PM
Tool Standard DIN 371-374
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add PRIME DIN371/DIN374 Spiral Flute X-Coating (TRE33) to comparison

View Comparison
EDP No. Size TPI Thread Length Overall Length Neck Length Shank Diameter Square Size No. of Flute TRE33182GS #4 48 5.1 56 18 3.5 2.7 2 TRE33222GS #5 44 5.1 56 18 3.5 2.7 3 TRE33262GS #6 40 6.4 56 20 4 3 3 TRE33302GS #8 36 6.4 63 21 4.5 3.4 3 TRE33342GS #10 32 8.5 70 25 6 4.9 3 TRE33382GS #12 28 8.5 80 30 6 4.9 3 TRE33422GS 1/4 28 10.2 80 30 7 5.5 3 TRE33462GS 5/16 24 10.6 90 35 8 6.2 3 TRE33502GS 3/8 24 10.6 100 39 9 7 3 TRE33542GS 7/16 20 12.7 100 40 8 6.2 3 TRE33582GS 1/2 20 12.7 100 40 9 7 3 TRE33622GS 9/16 18 14.2 100 40 11 9 3 TRE33662GS 5/8 18 14.2 100 40 12 9 3 TRE33722GS 3/4 16 15.9 110 44 14 11 4 TRE33762GS 7/8 14 18.2 125 50 18 14.5 4 TRE33802GS 1" 12 21.2 140 54 20 16 4

Operation

Blind Drilling

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P Tool Steels

Great

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Great

Good Great Excellent
N Copper

Great

Good Great Excellent
N Plastic

Great

Good Great Excellent
H Hardened Steels (HRc30~45)

Great

Good Great Excellent

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand

View the range

Prime Tap

You Might Also Like

New

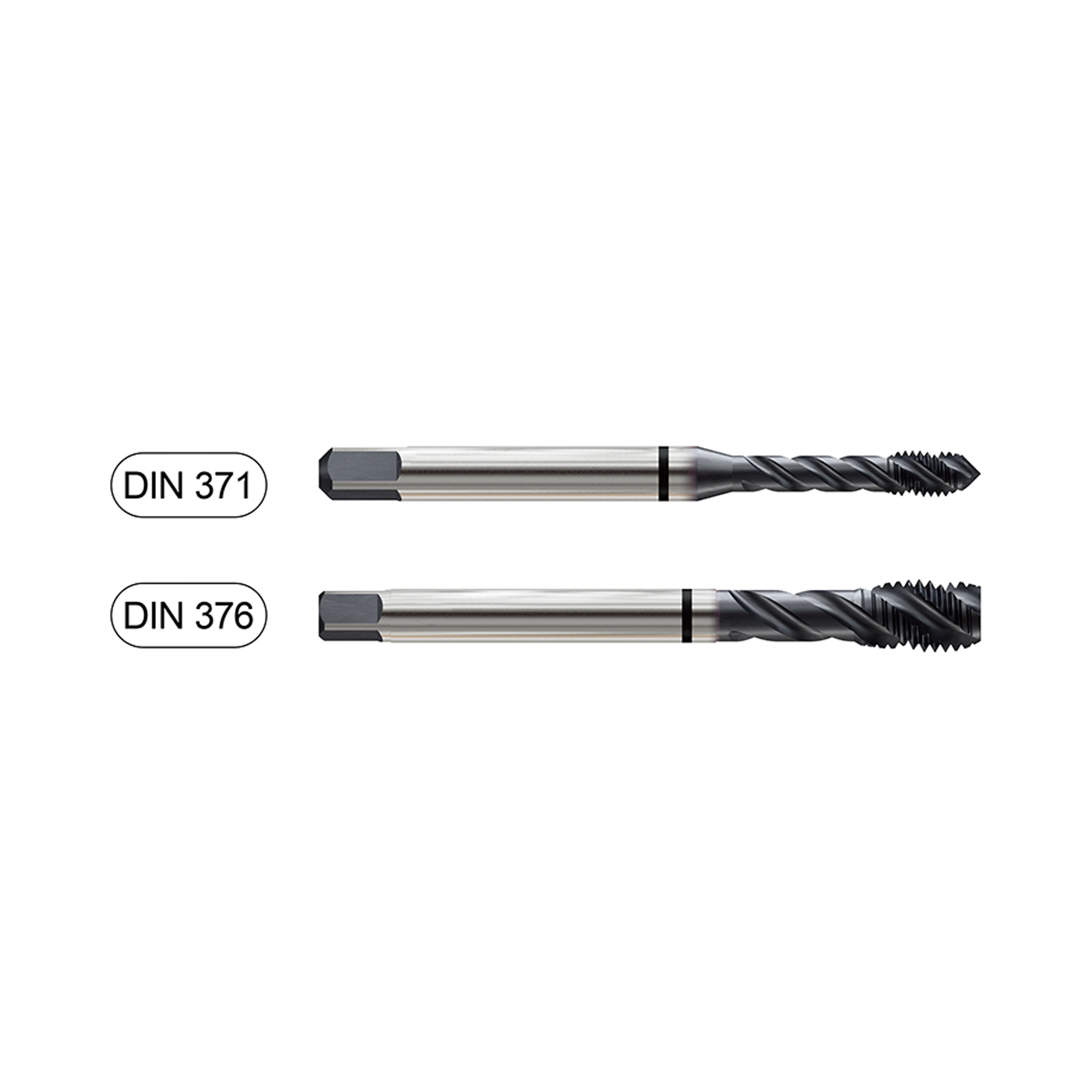

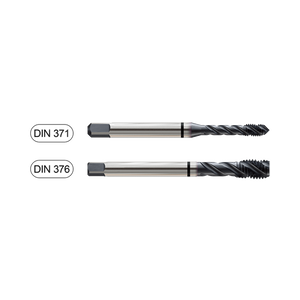

PRIME DIN371/DIN376 Spiral Flute X-Coating (TRE30) PRIME DIN371/DIN376 Spiral Flute X-Coating (TRE30)
