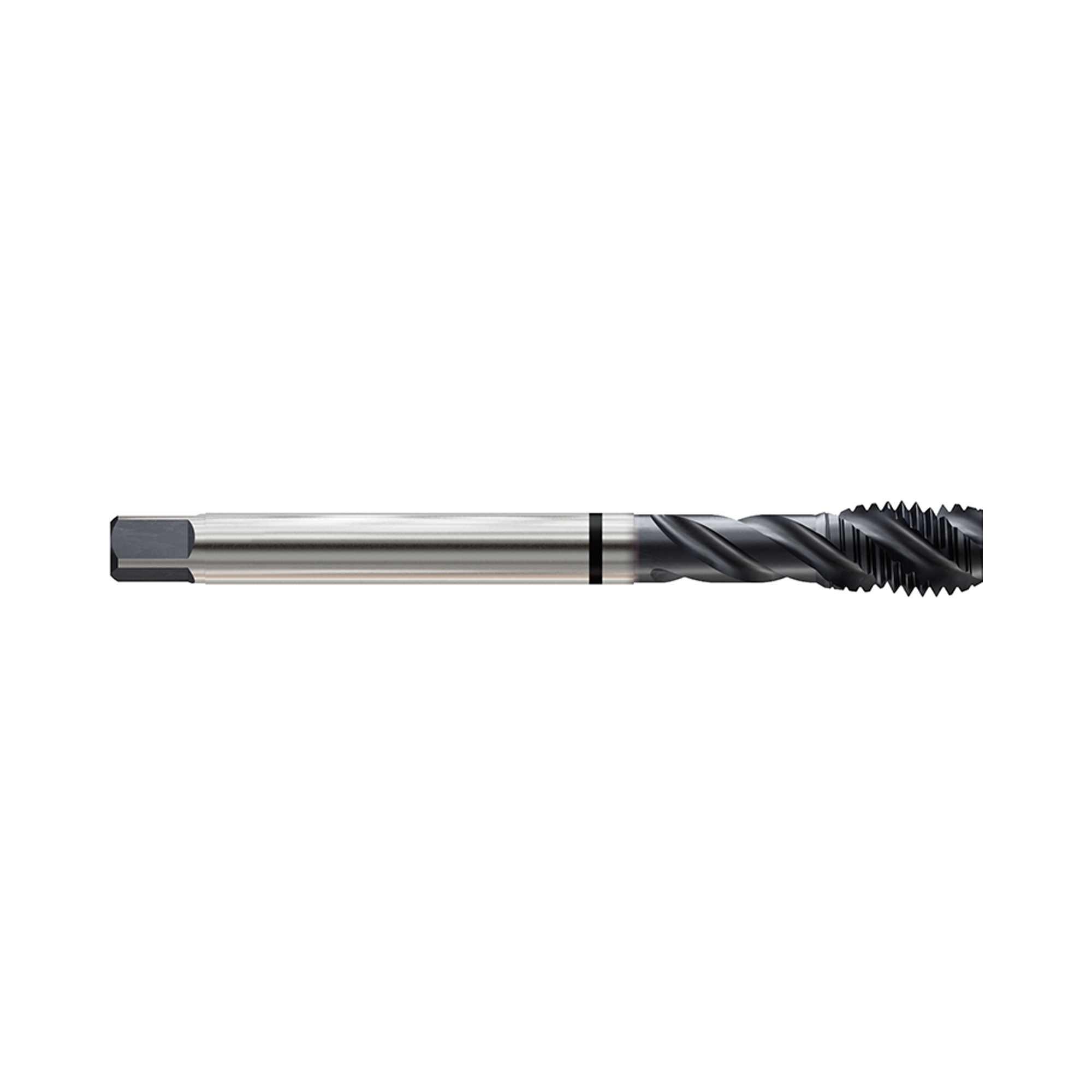

PRIME DIN374 Spiral Flute X-Coating (TRE31)

PRIME DIN374 Spiral Flute X-Coating (TRE31)
New

PRIME DIN374 Spiral Flute X-Coating (TRE31)

Product Code: TRE31

YG-1 LEGEND 6HX Thread Class: 6HX YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND MF Thread Shape: MF YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND X COATING Surface Treatment: YG-1 X Coating YG-1 LEGEND HSS PM Tool Material: HSS PM YG-1 LEGEND DIN 374 Tool Standard: DIN 374 YG-1 LEGEND HELIX SQUARE 45 Helix Angle: Square 45°
Buy Local
  • Prime Spiral Flute X-Coating
  • High performance on various ductile materials
  • Specially designed to prevent oversized threads and reduce gauging problems
Product Data
Workpiece Material P M K N H
Aluminum Great
Helix Angle Square 45
Operation Blind Drilling
Surface Treatment YG-1 X Coating
Thread Angle 60
Thread Class 6HX
Thread Form C
Thread Shape MF
Tool Material HSS PM
Tool Standard DIN 374
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add PRIME DIN374 Spiral Flute X-Coating (TRE31) to comparison

View Comparison
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute TRE31256GS M4 0.5 5.6 63 21 2.8 2.1 5 3 TRE31296GS M5 0.5 6.4 70 25 3.5 2.7 6 3 TRE31326GS M6 0.75 8 80 30 4.5 3.4 6 3 TRE31336GS M6 0.5 8 80 30 4.5 3.4 6 3 TRE31376GS M8 1.0 10 90 36 6 4.9 8 3 TRE31386GS M8 0.75 10 80 30 6 4.9 8 3 TRE31406GS M9 1.0 10 90 36 7 5.5 8 3 TRE31416GS M9 0.75 10 80 30 7 5.5 8 3 TRE31436GS M10 1.25 13 100 40 7 5.5 8 3 TRE31446GS M10 1.0 10 90 36 7 5.5 8 3 TRE31456GS M10 0.75 10 90 36 7 5.5 8 3 TRE31516GS M12 1.5 15 100 40 9 7 10 3 TRE31526GS M12 1.25 15 100 40 9 7 10 3 TRE31536GS M12 1.0 15 100 40 9 7 10 3 TRE31556GS M14 1.5 15 100 40 11 9 12 3 TRE31566GS M14 1.25 15 100 40 11 9 12 3 TRE31576GS M14 1.0 15 100 40 11 9 12 3 TRE31616GS M16 1.5 15 100 40 12 9 12 3 TRE31626GS M16 1.0 15 100 40 12 9 12 3 TRE31666GS M18 2.0 20 125 50 14 11 14 4 TRE31676GS M18 1.5 15 110 44 14 11 14 4 TRE31686GS M18 1.0 15 110 44 14 11 14 4 TRE31696GS M4 0.35 5.6 63 21 2.8 2.1 5 3 TRE31716GS M20 2.0 20 140 54 16 12 15 4 TRE31726GS M20 1.5 15 125 50 16 12 15 4 TRE31736GS M20 1.0 15 125 50 16 12 15 4 TRE31756GS M22 2.0 20 140 54 18 14.5 17 4 TRE31766GS M22 1.5 15 125 50 18 14.5 17 4 TRE31776GS M22 1.0 15 125 50 18 14.5 17 4 TRE31796GS M24 2.0 20 140 54 18 14.5 17 4 TRE31806GS M24 1.5 15 140 54 18 14.5 17 4 TRE31816GS M24 1.0 15 140 54 18 14.5 17 4

Operation

Blind Drilling

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
P Tool Steels

Great

Good Great Excellent
P High Alloyed

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Great

Good Great Excellent
N Copper

Great

Good Great Excellent
N Plastic

Great

Good Great Excellent
H Hardened Steels (HRc30~45)

Great

Good Great Excellent
