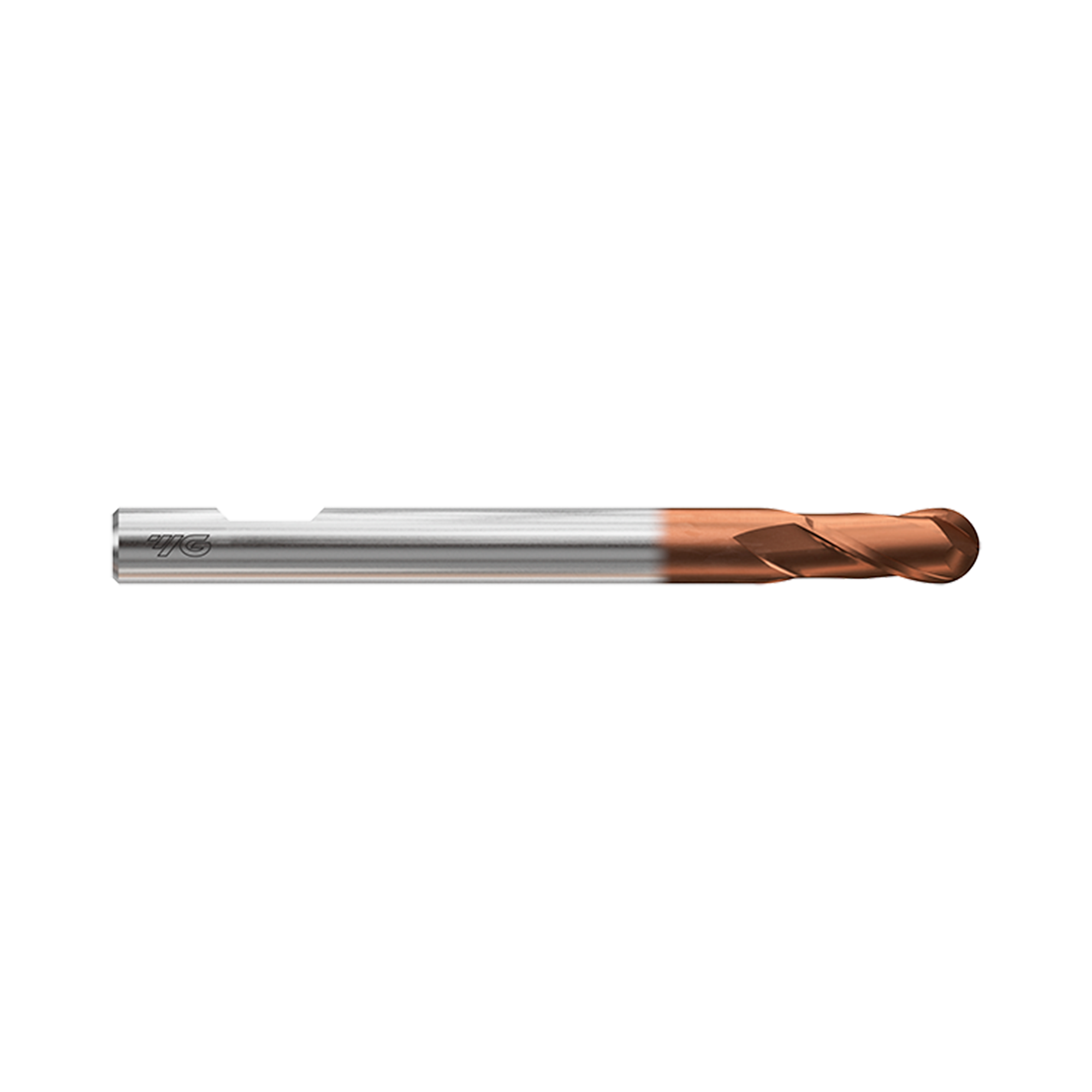

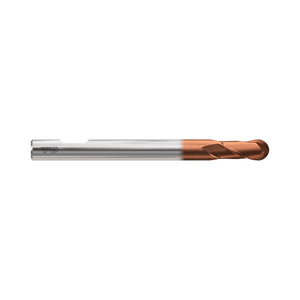

TANK-POWER 2 Flute 30°Helix Long Ball End Mill (E9A32)

TANK-POWER 2 Flute 30°Helix Long Ball End Mill (E9A32)
New

TANK-POWER 2 Flute 30°Helix Long Ball End Mill (E9A32)

Product Code: E9A32

Ball Radius Tolerance: 0.02 No. Flutes: 2 YG-1 LEGEND UNCOATED Surface Treatment: Uncoated YG-1 LEGEND YPM Tool Material: YPM YG-1 LEGEND DIN 1889 Tool Standard: DIN 1889 YG-1 LEGEND HELIX BALL 30 Helix Angle: Ball Nose 30° YG-1 LEGEND move ball profiling YG-1 LEGEND SHANK 1835B Shank Type: 1835B
Buy Local
  • Designed to machine carbon steels, alloyed steels, stainless steels.
  • Designed for milling of radius bottom slots, fillets and special contours.
  • YG-1’s new developed TANK-POWER Coating suitable for high speed cutting.

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape BALL NOSE
Size Min R1.0
Size Max R12.5
Length

LONG LENGTH
Coating TIAIN



Product Data
Workpiece Material P M K N
Ball Radius Tolerance 0.02
Helix Angle Ball Nose 30
No. Flutes 2
Operation Profiling, Side Milling, Small Part
Shank Type 1835B
Surface Treatment Uncoated
Tool Material YPM
Tool Standard DIN 1889
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add TANK-POWER 2 Flute 30°Helix Long Ball End Mill (E9A32) to comparison

View Comparison
EDP No. Radius Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E9A32020 R1.0 2 6 7 54 0~-0.030 h6 2 E9A32030 R1.5 3 6 8 56 0~-0.030 h6 2 E9A32040 R2.0 4 6 11 63 0~-0.030 h6 2 E9A32050 R2.5 5 6 13 68 0~-0.030 h6 2 E9A32060 R3.0 6 6 13 68 0~-0.030 h6 2 E9A32070 R3.5 7 10 16 80 0~-0.030 h6 2 E9A32080 R4.0 8 10 19 88 0~-0.030 h6 2 E9A32090 R4.5 9 10 19 88 0~-0.030 h6 2 E9A32100 R5.0 10 10 22 95 0~-0.030 h6 2 E9A32120 R6.0 12 12 26 110 0~-0.030 h6 2 E9A32140 R7.0 14 12 26 110 0~-0.030 h6 2 E9A32160 R8.0 16 16 32 123 0~-0.030 h6 2 E9A32180 R9.0 18 16 32 123 0~-0.030 h6 2 E9A32200 R10.0 20 20 38 141 0~-0.030 h6 2 E9A32220 R11.0 22 20 38 141 0~-0.030 h6 2 E9A32250 R12.5 25 25 45 166 0~-0.030 h6 2

Operation

Profiling
Side Milling
Small Part

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
