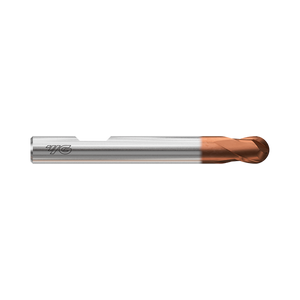

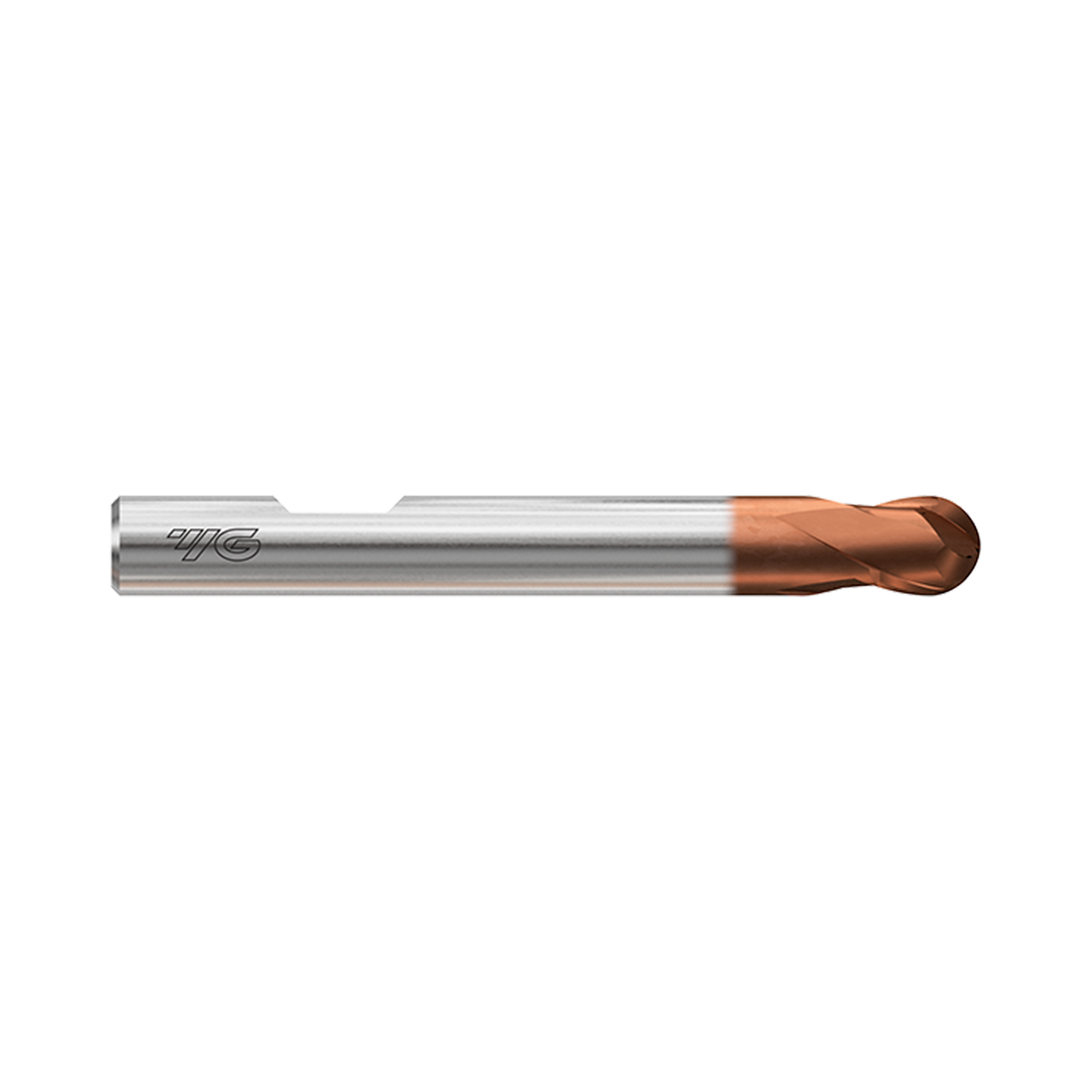

TANK-POWER 2 Flute 30°Helix Short Ball End Mill (E9940)

TANK-POWER 2 Flute 30°Helix Short Ball End Mill (E9940)
New

TANK-POWER 2 Flute 30°Helix Short Ball End Mill (E9940)

Product Code: E9940

Ball Radius Tolerance: 0.02 No. Flutes: 4 YG-1 LEGEND UNCOATED Surface Treatment: Uncoated YG-1 LEGEND YPM Tool Material: YPM YG-1 LEGEND DIN 327 Tool Standard: DIN 327 YG-1 LEGEND HELIX BALL 30 Helix Angle: Ball Nose 30° YG-1 LEGEND move ball profiling YG-1 LEGEND SHANK 1835B Shank Type: 1835B
Buy Local
  • Designed to machine carbon steels, alloyed steels, stainless steels.
  • Designed for milling of radius bottom slots, fillets and special
    contours.
  • YG-1’s new developed TANK-POWER Coating suitable for high
    speed cutting.

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape Ball Nose
Size Min R0.5
Size Max R12.5
Length

Short Length
Coating TiAIN



Product Data
Workpiece Material P M K N
Ball Radius Tolerance 0.02
Helix Angle Ball Nose 30
No. Flutes 4
Operation Profiling, Side Milling, Small Part
Shank Type 1835B
Surface Treatment Uncoated
Tool Material YPM
Tool Standard DIN 327
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add TANK-POWER 2 Flute 30°Helix Short Ball End Mill (E9940) to comparison

View Comparison
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E9940010 1 6 2.5 47 0~-0.030 h6 2 E9940020 2 6 4 48 0~-0.030 h6 2 E9940030 3 6 5 49 0~-0.030 h6 2 E9940040 4 6 7 51 0~-0.030 h6 2 E9940050 5 6 8 52 0~-0.030 h6 2 E9940060 6 6 8 52 0~-0.030 h6 2 E9940070 7 10 10 60 0~-0.030 h6 2 E9940080 8 10 11 61 0~-0.030 h6 2 E9940090 9 10 11 61 0~-0.030 h6 2 E9940100 10 10 13 63 0~-0.030 h6 2 E9940120 12 12 16 73 0~-0.030 h6 2 E9940140 14 12 16 73 0~-0.030 h6 2 E9940160 16 16 19 79 0~-0.030 h6 2 E9940180 18 16 19 79 0~-0.030 h6 2 E9940200 20 20 22 88 0~-0.030 h6 2 E9940220 22 20 22 88 0~-0.030 h6 2 E9940250 25 25 26 102 0~-0.030 h6 2

Operation

Profiling
Side Milling
Small Part

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
