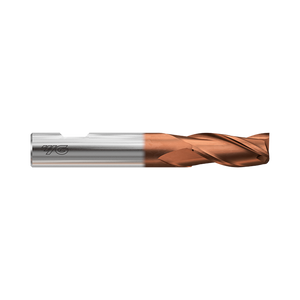

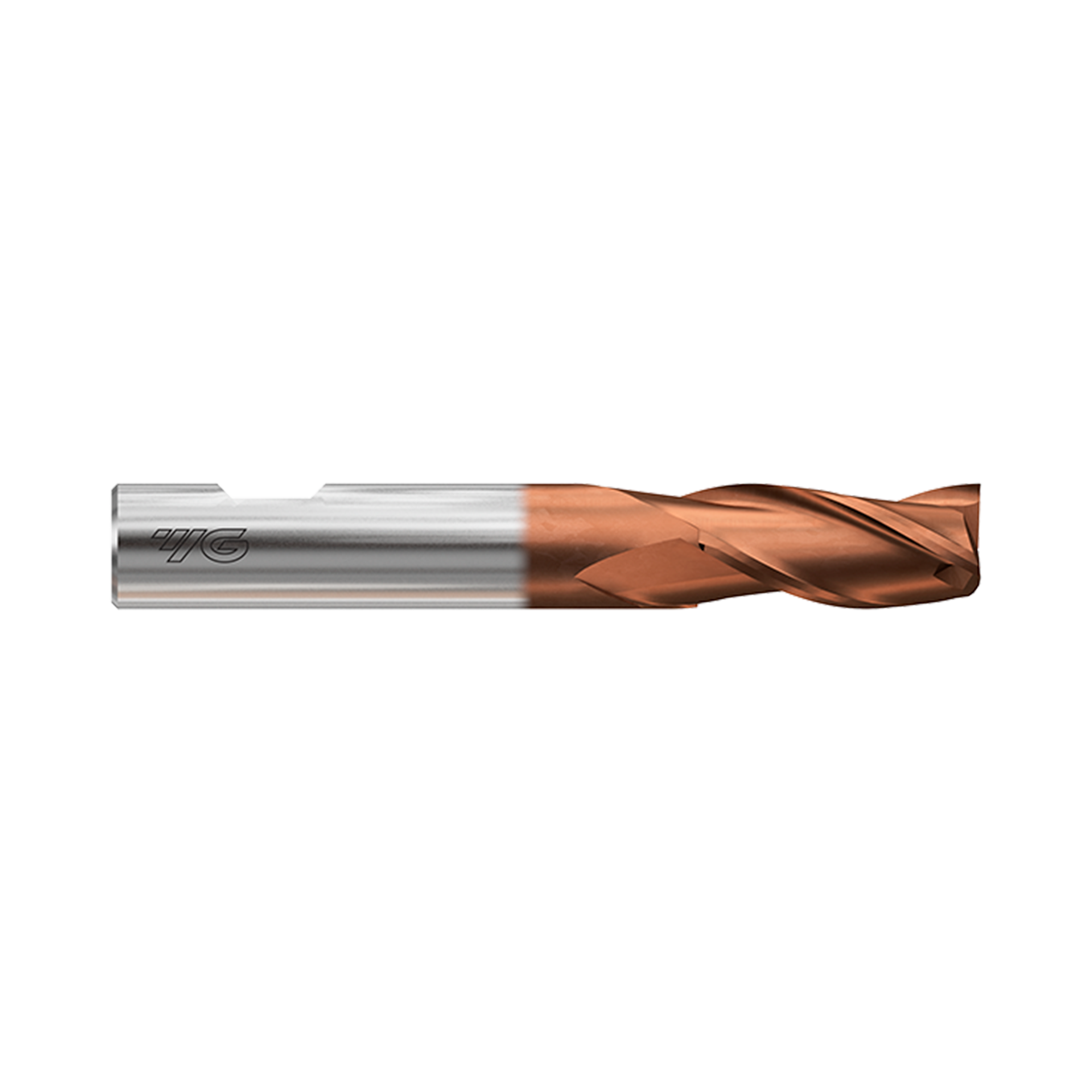

TANK-POWER 3 Flute 30°Helix Short End Mill (E9A30)

TANK-POWER 3 Flute 30°Helix Short End Mill (E9A30)
New

TANK-POWER 3 Flute 30°Helix Short End Mill (E9A30)

Product Code: E9A30

No. Flutes: 3 YG-1 LEGEND UNCOATED Surface Treatment: Uncoated YG-1 LEGEND YPM Tool Material: YPM YG-1 LEGEND DIN 844 Tool Standard: DIN 844 YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND move square side cutting YG-1 LEGEND SHANK 1835B Shank Type: 1835B
Buy Local
  • Designed to machine carbon steels, alloyed steels, stainless steels.
  • Well balanced web design to minimize deflection and chattering.
  • 3 flute design possess the advantage of 2 flute and 4 flute end mill.
  • YG-1’s new developed TANK-POWER Coating suitable for high speed cutting.

Specifications

Flutes 3
Helix Angle 30°
Cutting Edge Shape SQUARE
Size Min D1.0
Size Max D25.0
Length

SHORT LENGTH
Coating TIAIN



Product Data
Workpiece Material P M K N
Helix Angle Square 30
No. Flutes 3
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type 1835B
Surface Treatment Uncoated
Tool Material YPM
Tool Standard DIN 844
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add TANK-POWER 3 Flute 30°Helix Short End Mill (E9A30) to comparison

View Comparison
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E9A30010 1 6 3 47 e8 h6 3 E9A30020 2 6 7 51 e8 h6 3 E9A30030 3 6 8 52 e8 h6 3 E9A30040 4 6 11 55 e8 h6 3 E9A30050 5 6 13 57 e8 h6 3 E9A30060 6 6 13 57 e8 h6 3 E9A30070 7 10 16 66 e8 h6 3 E9A30080 8 10 19 69 e8 h6 3 E9A30090 9 10 19 69 e8 h6 3 E9A30100 10 10 22 72 e8 h6 3 E9A30120 12 12 26 83 e8 h6 3 E9A30140 14 12 26 83 e8 h6 3 E9A30160 16 16 32 92 e8 h6 3 E9A30180 18 16 32 92 e8 h6 3 E9A30200 20 20 38 104 e8 h6 3 E9A30220 22 20 38 104 e8 h6 3 E9A30250 25 25 45 121 e8 h6 3

Operation

Side Milling
Small Part
Slotting
Die Sinking
Facing

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
