New

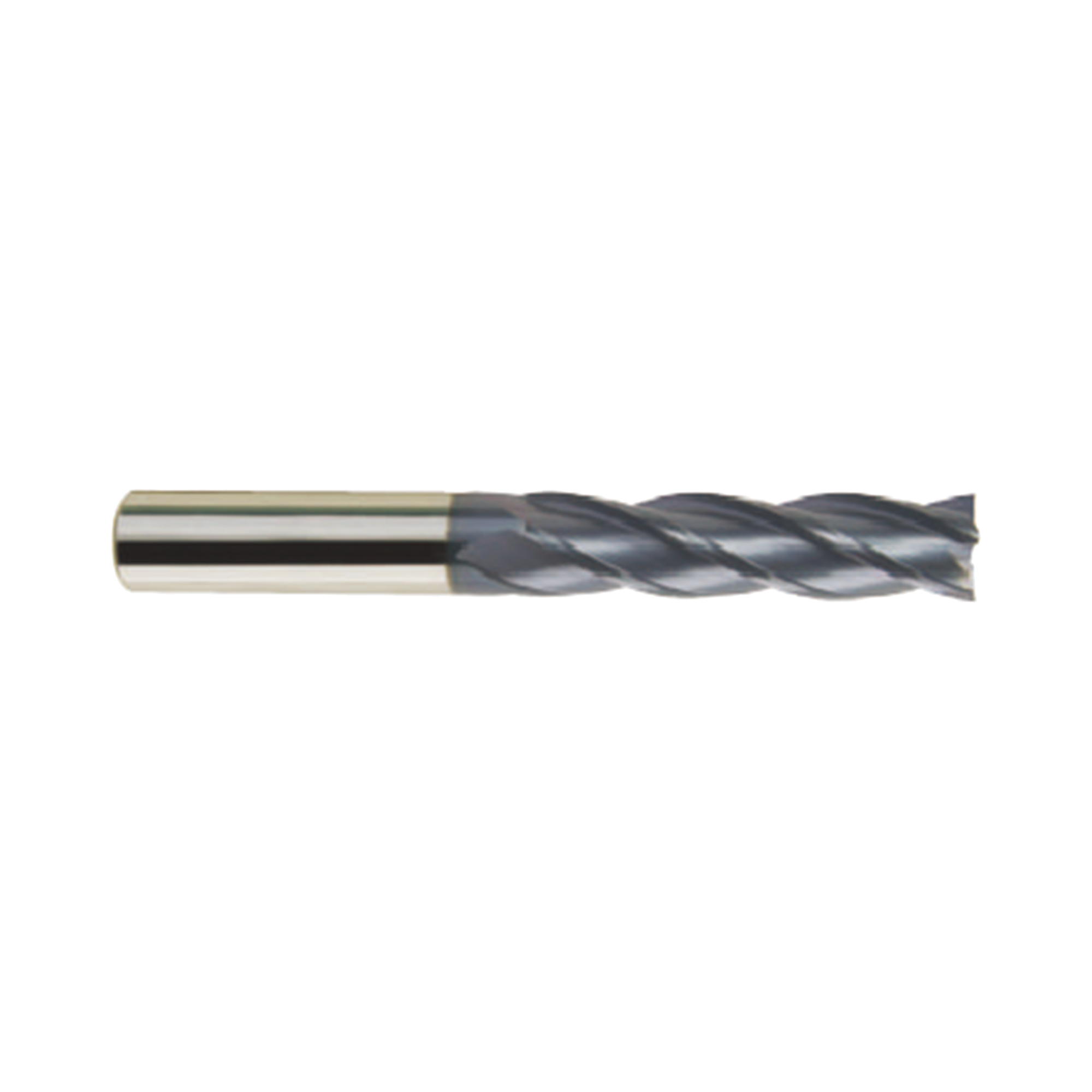

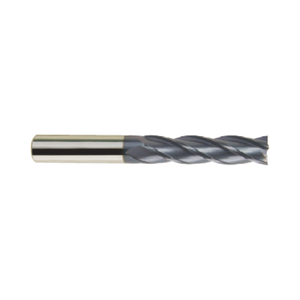

TANK-POWER 4 Flute 30°Helix Long E/M (GAC25)

TANK-POWER 4 Flute 30°Helix Long E/M (GAC25)
TANK-POWER 4 Flute 30°Helix Long E/M (GAC25)
New

TANK-POWER 4 Flute 30°Helix Long E/M (GAC25)

Product Code: GAC25

No. Flutes: 4 YG-1 LEGEND TiAIN Surface Treatment: Titanium Aluminium Nitride Coating YG-1 LEGEND X COATING Surface Treatment: YG-1 X Coating YG-1 LEGEND HSS PM Tool Material: HSS PM YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND SHANK YG-1 STANDARD Shank Type: YG-1 Standard
Buy Local
  • Premium HSS-PM is used for raw material.
  • Coating used for increasing wear-resistance.

Specifications

Flutes 4
Helix Angle 30°
Cutting Edge Shape Corner Radius
Size Min -
Size Max -
Length

-
Coating X-Coating



Product Data
Workpiece Material P M K
Helix Angle Square 30
No. Flutes 4
Shank Type Plain YG-1 Standard
Surface Treatment Titanium Aluminium Nitride Coating, YG-1 X Coating
Tool Material HSS PM
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add TANK-POWER 4 Flute 30°Helix Long E/M (GAC25) to comparison

View Comparison

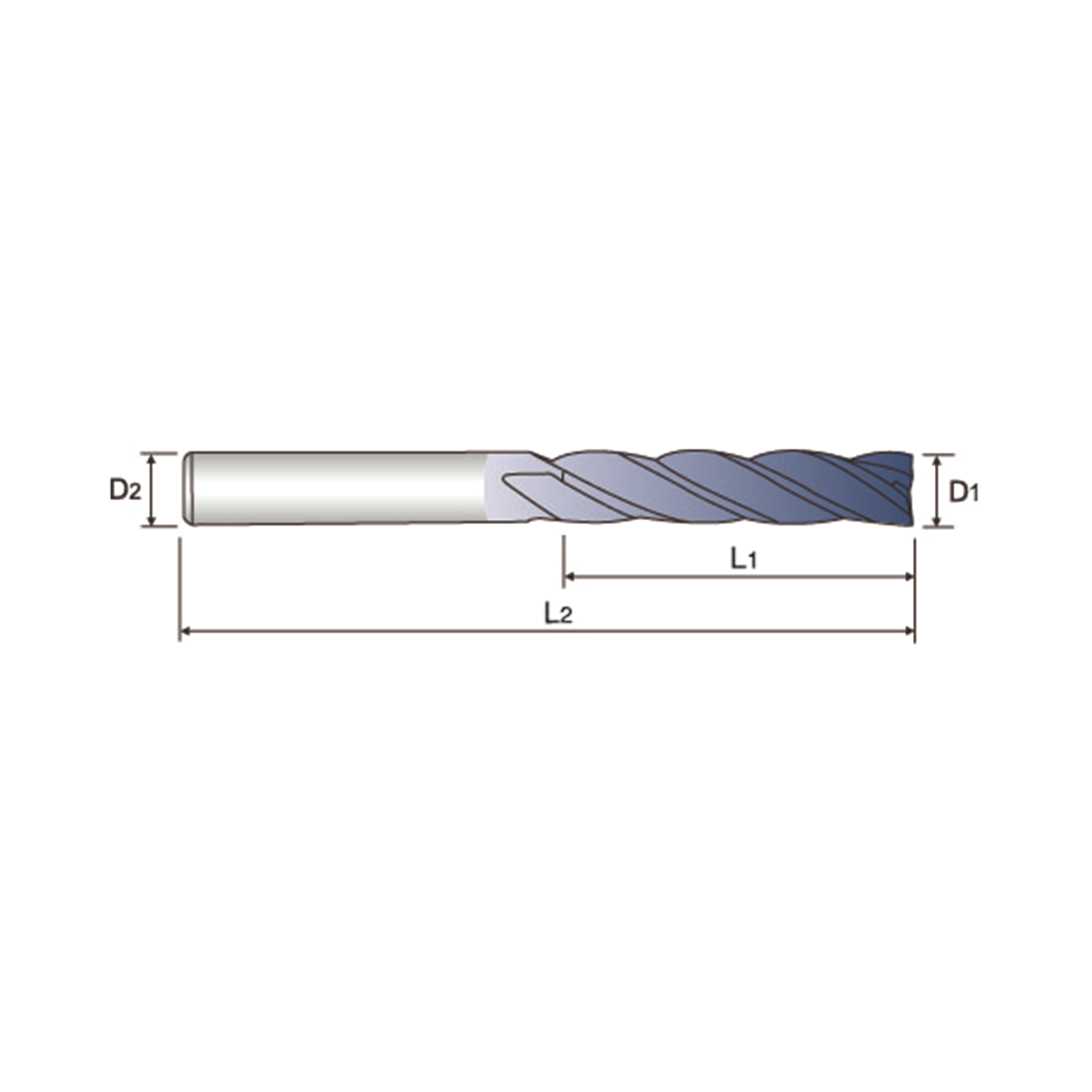

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GAC25040N 4 8 20 70 0~+0.030 h6 4 GAC25050N 5 8 25 75 0~+0.030 h6 4 GAC25060N 6 8 25 75 0~+0.030 h6 4 GAC25070N 7 10 35 90 0~+0.030 h6 4 GAC25080N 8 10 35 90 0~+0.030 h6 4 GAC25090N 9 10 45 90 0~+0.030 h6 4 GAC25100AN 10 10 31 80 0~+0.030 h6 4 GAC25120AN 12 12 36 90 0~+0.030 h6 4 GAC25120N 12 12 55 115 0~+0.030 h6 4 GAC25140N 14 16 55 120 0~+0.030 h6 4 GAC25160AN 16 16 51 105 0~+0.030 h6 4 GAC25180AN 18 16 56 105 0~+0.030 h6 4 GAC25180N 18 16 65 130 0~+0.030 h6 4 GAC25200N 20 20 75 145 0~+0.030 h6 4 GAC25220N 22 20 75 145 0~+0.030 h6 4 GAC25250N 25 25 90 165 0~+0.030 h6 4 GAC25260N 26 25 90 165 0~+0.030 h6 4 GAC25300N 30 25 90 165 0~+0.030 h6 4

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand
