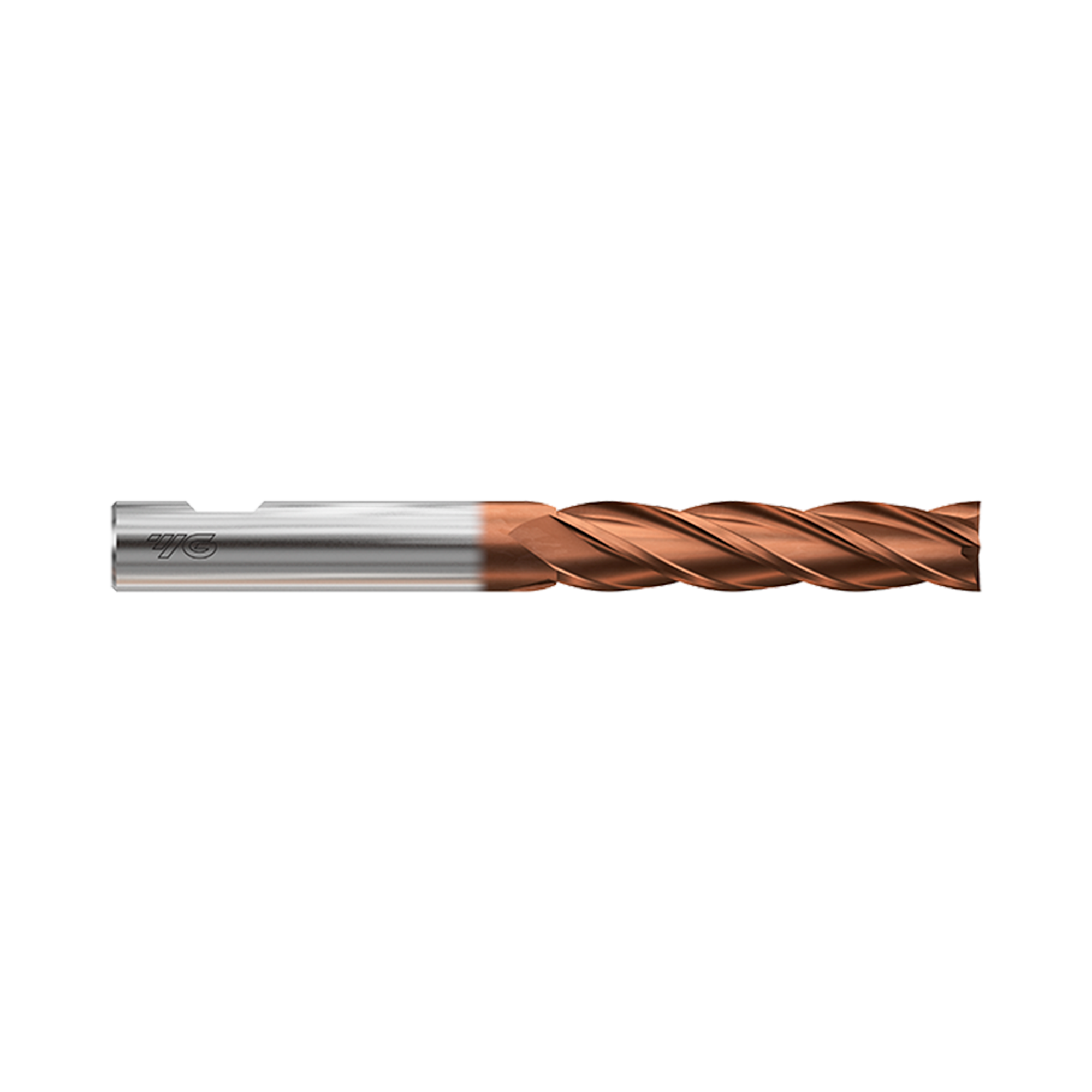

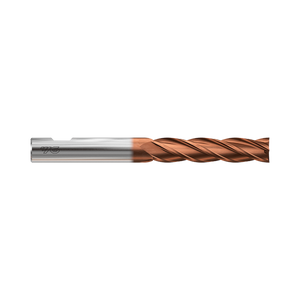

TANK-POWER 4 Flute 30°Helix Long End Mill (E9A31)

TANK-POWER 4 Flute 30°Helix Long End Mill (E9A31)
New

TANK-POWER 4 Flute 30°Helix Long End Mill (E9A31)

Product Code: E9A31

No. Flutes: 4 YG-1 LEGEND UNCOATED Surface Treatment: Uncoated YG-1 LEGEND YPM Tool Material: YPM YG-1 LEGEND DIN 844 Tool Standard: DIN 844 YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND move square side cutting YG-1 LEGEND SHANK 1835B Shank Type: 1835B
Buy Local
  • Designed to machine carbon steels, alloyed steels, stainless steels.
  • Recommended for pocketing, cam milling, die sinking and slotting.
  • Designed for high speed cutting of difficult - to - cut materials.
  • YG-1’s new developed TANK-POWER Coating suitable for high speed cutting.

Specifications

Flutes 4
Helix Angle 30°
Cutting Edge Shape SQUARE
Size Min D2.0
Size Max D25.0
Length

LONG LENGTH
Coating TIAIN



Product Data
Workpiece Material P M K N
Helix Angle Square 30
No. Flutes 4
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type 1835B
Surface Treatment Uncoated
Tool Material YPM
Tool Standard DIN 844
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add TANK-POWER 4 Flute 30°Helix Long End Mill (E9A31) to comparison

View Comparison
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E9A31020 2 6 10 54 0~+0.030 h6 4 E9A31030 3 6 12 56 0~+0.030 h6 4 E9A31040 4 6 19 63 0~+0.030 h6 4 E9A31050 5 6 24 68 0~+0.030 h6 4 E9A31060 6 6 24 68 0~+0.030 h6 4 E9A31070 7 10 30 80 0~+0.030 h6 4 E9A31080 8 10 38 88 0~+0.030 h6 4 E9A31090 9 10 38 88 0~+0.030 h6 4 E9A31100 10 10 45 95 0~+0.030 h6 4 E9A31120 12 12 53 110 0~+0.030 h6 4 E9A31140 14 12 53 110 0~+0.030 h6 4 E9A31160 16 16 63 123 0~+0.030 h6 4 E9A31180 18 16 63 123 0~+0.030 h6 4 E9A31200 20 20 75 141 0~+0.030 h6 4 E9A31220 22 20 75 141 0~+0.030 h6 4 E9A31250 25 25 90 166 0~+0.030 h6 4

Operation

Side Milling
Small Part
Slotting
Die Sinking
Facing

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
