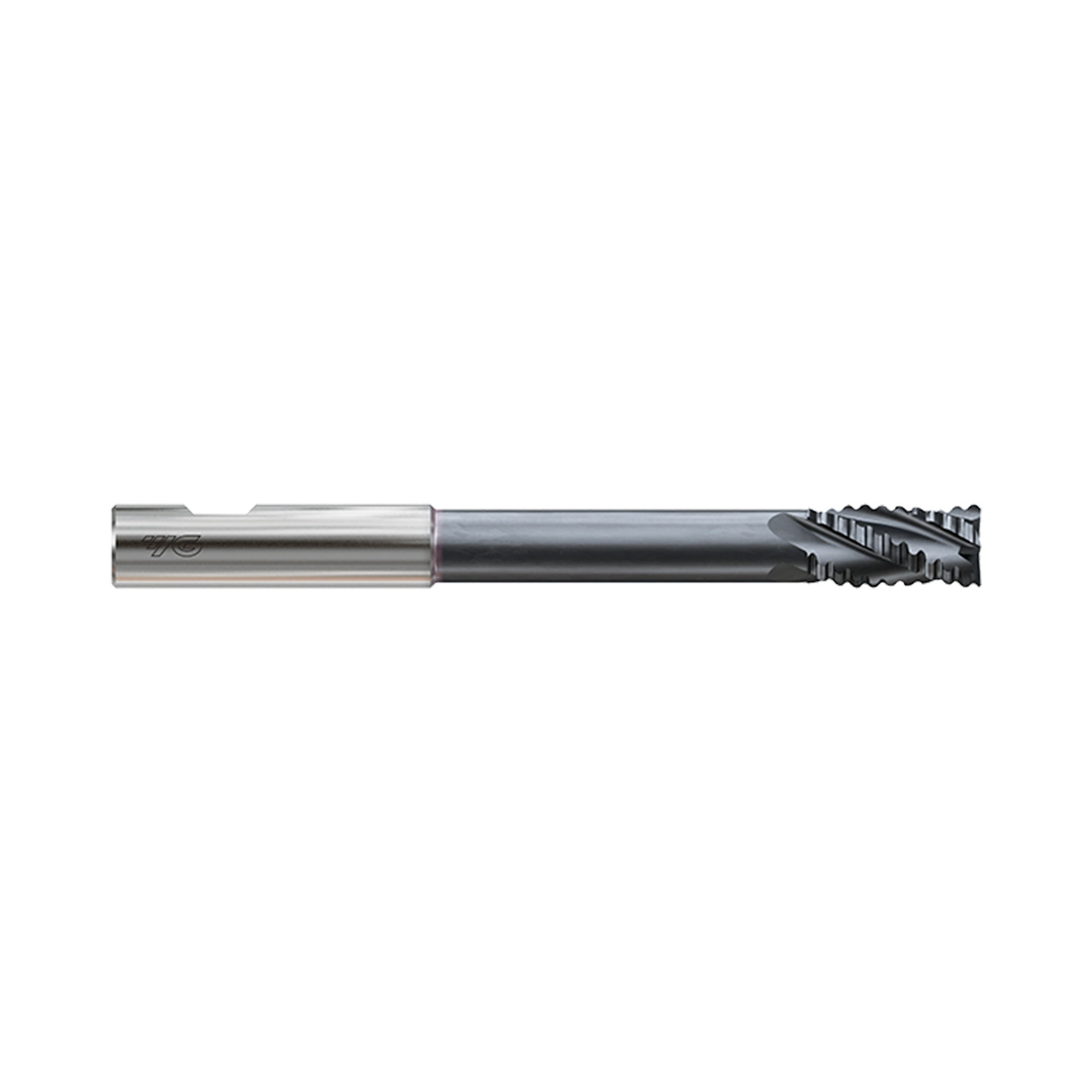

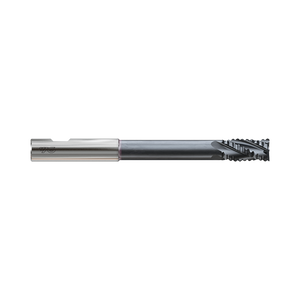

TANK-POWER Multi Flute 30°Helix Roughing End Mill (GAE43)

TANK-POWER Multi Flute 30°Helix Roughing End Mill (GAE43)
TANK-POWER Multi Flute 30°Helix Roughing End Mill (GAE43)
New

TANK-POWER Multi Flute 30°Helix Roughing End Mill (GAE43)

Product Code: GAE43

YG-1 LEGEND 4-5 flutes No. Flutes: 4-5 YG-1 LEGEND 45 CHAMFER ANGLE Chamfer Angle: 45° YG-1 LEGEND X COATING Surface Treatment: YG-1 X Coating YG-1 LEGEND YPM Tool Material: YPM YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND move square side cutting YG-1 LEGEND NR Periphery Type: Roughing & Finishing YG-1 LEGEND SHANK 1835B Shank Type: 1835B
Buy Local
  • High chip removal and minimizing breakages of cutting edges.
  • Design to machine carbon steels, alloyed steels, stainless steels.
  • YG
    -1’s new developed TANK
    -POWER Coating suitable for high
    speed cutting.

Specifications

Flutes Multi Flute
Helix Angle 30°
Cutting Edge Shape ROUGHING
Size Min D10.0
Size Max D25.0
Length

With Neck
Coating X-Coating



Product Data
Workpiece Material P M K N
Chamfer Angle 45
Helix Angle Square 30
No. Flutes 4 & 5
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Periphery Type Roughing & Finishing
Shank Type 1835B
Surface Treatment YG-1 X Coating
Tool Material YPM
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add TANK-POWER Multi Flute 30°Helix Roughing End Mill (GAE43) to comparison

View Comparison

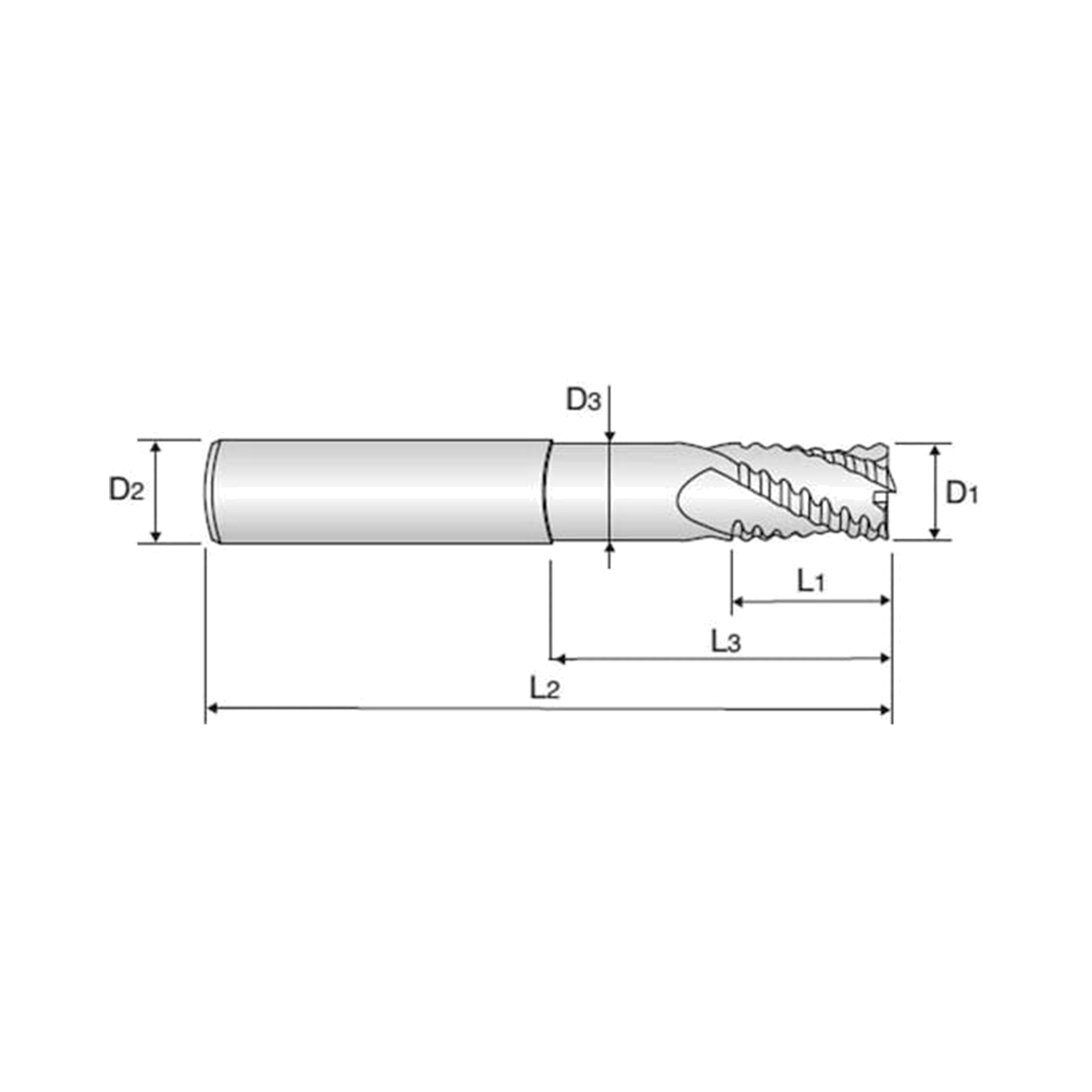

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GAE43100 10 10 22 110 js12 h6 4 GAE43120 12 12 26 125 js12 h6 4 GAE43160 16 16 32 138 js12 h6 4 GAE43200 20 20 38 160 js12 h6 4 GAE43250 25 25 45 216 js12 h6 5

Operation

Side Milling
Small Part
Slotting
Die Sinking
Facing

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
