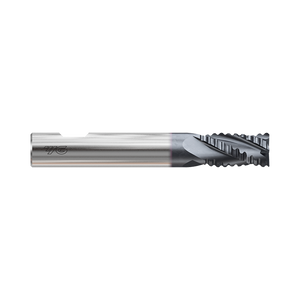

TANK-POWER Multi Flute 30°Helix Short Roughing (Coarse) End Mill (E9A33)

Product Code: E9A33

No. Flutes: 3-5 YG-1 LEGEND 45 CHAMFER ANGLE Chamfer Angle: 45° YG-1 LEGEND UNCOATED Surface Treatment: Uncoated YG-1 LEGEND YPM Tool Material: YPM YG-1 LEGEND DIN 844 Tool Standard: DIN 844 YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND move square side cutting ~20 YG-1 LEGEND move square slotting ~22 YG-1 LEGEND NR Periphery Type: Roughing & Finishing YG-1 LEGEND SHANK 1835B Shank Type: 1835B
Buy Local
  • Suitable for high -feed roughing milling.
  • Designed to machine carbon steels, alloyed steels, stainless steels.
  • up to Ø20 : center cut, over Ø20 : non center cut
  • YG-1’s new developed TANK-POWER Coating suitable for high speed cutting.

Specifications

Flutes Multi Flute
Helix Angle 30°
Cutting Edge Shape ROUGHING
Size Min D6.0
Size Max D25.0
Length

SHORT LENGTH
Coating X-Coating



Product Data
Workpiece Material P M K N
Chamfer Angle 45
Helix Angle Square 30
No. Flutes 3-5
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Periphery Type Roughing & Finishing
Shank Type 1835B
Surface Treatment Uncoated
Tool Material YPM
Tool Standard DIN 844
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add TANK-POWER Multi Flute 30°Helix Short Roughing (Coarse) End Mill (E9A33) to comparison

View Comparison
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute E9A33060 6 6 13 57 js12 h6 3 E9A33070 7 10 16 66 js12 h6 3 E9A33080 8 10 19 69 js12 h6 3 E9A33090 9 10 19 69 js12 h6 3 E9A33100 10 10 22 72 js12 h6 4 E9A33120 12 12 26 83 js12 h6 4 E9A33140 14 12 26 83 js12 h6 4 E9A33160 16 16 32 92 js12 h6 4 E9A33180 18 16 32 92 js12 h6 4 E9A33200 20 20 38 104 js12 h6 4 E9A33220 22 20 38 104 js12 h6 5 E9A33250 25 25 45 121 js12 h6 5

Operation

Side Milling
Small Part
Slotting
Die Sinking
Facing

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
