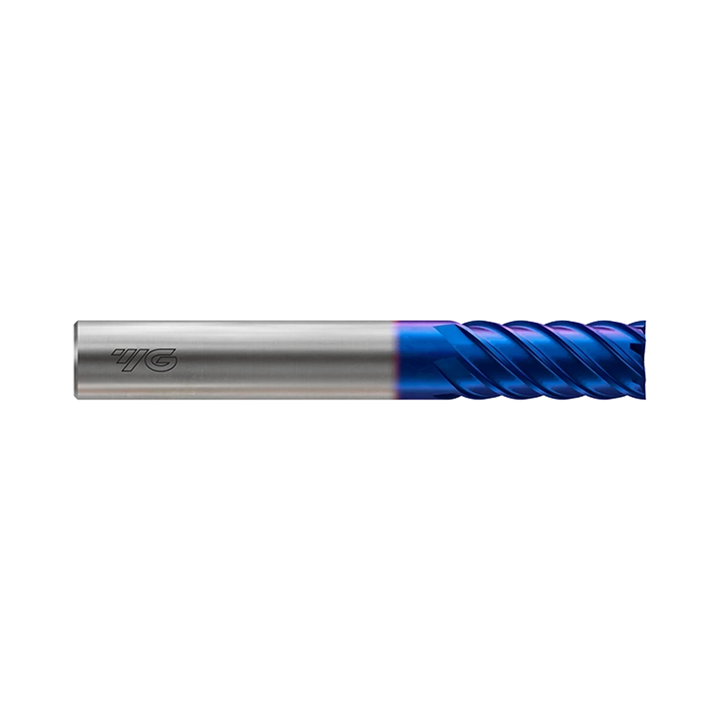

X5070 Multi Flute 45°Helix Long End Mill (G8D63)

6&8-Flute Ball Nose for HRc45–70

X5070 Multi Flute 45°Helix Long End Mill (G8D63)
$79.97 INC GST $72.70 EX GST
SKU
G8D63060
Work materials
PH

Key features

  • Negative rake angle; strong negative land
  • High abrasion resistance; mirror surface finish
  • Use hydraulic, shrink, HP3/GSK, or power milling chucks
Tool material Carbide
Surface treatment YG-1 Blue Coating
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

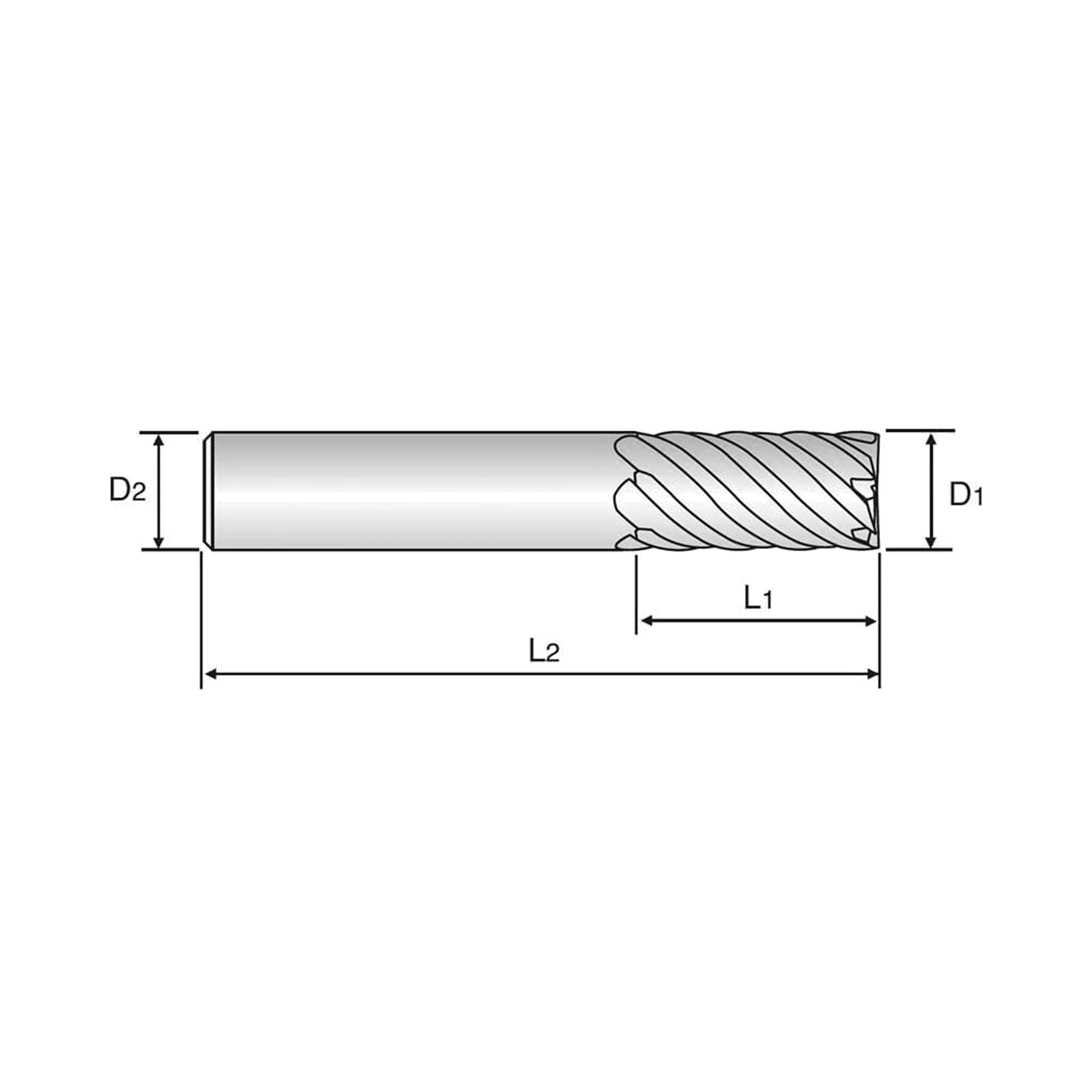

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)FlutesLength of cut (mm)CAD filesStock Price Qty Add
G8D630606.057.06.0613.0STEPDXF 1-2 Weeks $72.70
G8D630808.063.08.0619.0STEPDXF 1-2 Weeks $91.10
G8D6310010.072.010.0622.0STEPDXF Low stock $137.70
G8D6312012.083.012.0626.0STEPDXF Low stock $188.10
G8D6316016.092.016.0632.0STEPDXF 1-2 Weeks $318.00

Add X5070 Multi Flute 45°Helix Long End Mill (G8D63) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The YG-1 G8D63 X5070 Blue ultrafine micrograin carbide cutter features 6 flutes and a plain shank. Its long length 45° helix improves surface finish, feed rates, and stable tool life. Designed for ultra-performance machining of steels, heat resistant steels, and hardened steels to HRc70. Nanograin substrate and silicone based coating enable dry machining up to 1400°c and trochoidal strategies.

  • Negative rake angle; strong negative land
  • High abrasion resistance; mirror surface finish
  • Use hydraulic, shrink, HP3/GSK, or power milling chucks
  • 45° Helix Angle; long length
  • Diameters 6mm–25mm
Product Data
Workpiece Material P H
Cutting Shape Ball Nose, Square
Hardened Steels(HRc40~45) Great
Helix Angle Square 45
Length Extended Neck, Long
No. Flutes 6 & 8
Operation Facing, Side Milling, Small Part, Trochoidal
Shank Type Plain
Surface Treatment YG-1 Blue Coating
Tool Material Carbide
Flutes 6&8
Helix Angle 45°
Cutting Edge Shape Ball Nose
Size Min D6.0
Size Max D25.0
Length

Extended Neck
Coating Blue Coating

Side Milling
Small Part
Facing
Trochoidal

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

4 grades
Non-alloy steel
GoodVDI 5
Low-alloy steel
GoodVDI 8–9
High-alloy and tool steel
GoodVDI 11

Hardened materials

4 grades
Hardened steel
ExcellentVDI 38–39
Chilled cast iron
GoodVDI 40
Hardened cast iron
ExcellentVDI 41
VDI grade reference8 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
5PNon-alloy steelGood30032
8PLow-alloy steelGood30032
9PLow-alloy steelGood35038
11PHigh-alloy and tool steelGood32535
38HHardened steelExcellent55055
39HHardened steelExcellent63060
40HChilled cast ironGood40042
41HHardened cast ironExcellent55055

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
