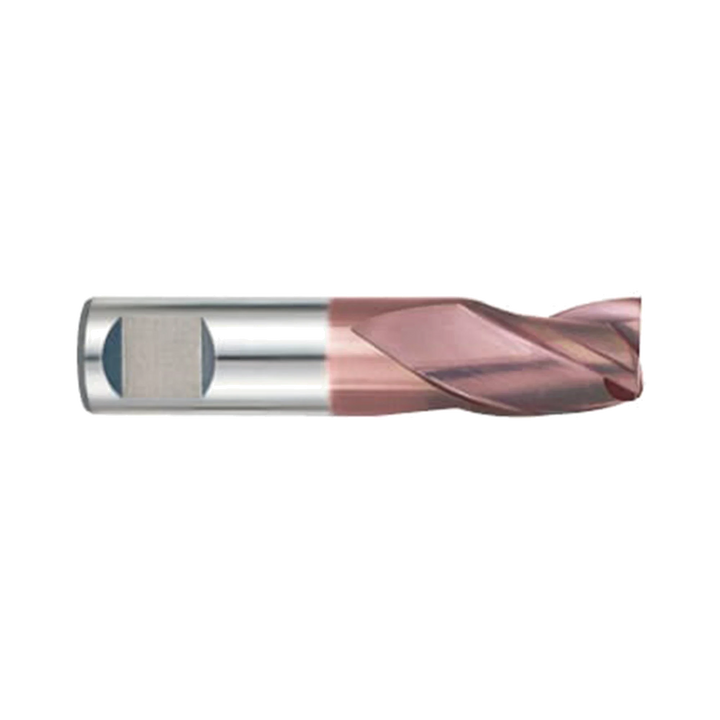

(G9553) K-2 Carbide, 3Flute End Mill, Short Length throw Away, Flat Shank

$31.02 INC GST $28.20 EX GST Price available on request

SKU: G9553005

Work Material

P M K S

Mill Diameter (mm)

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

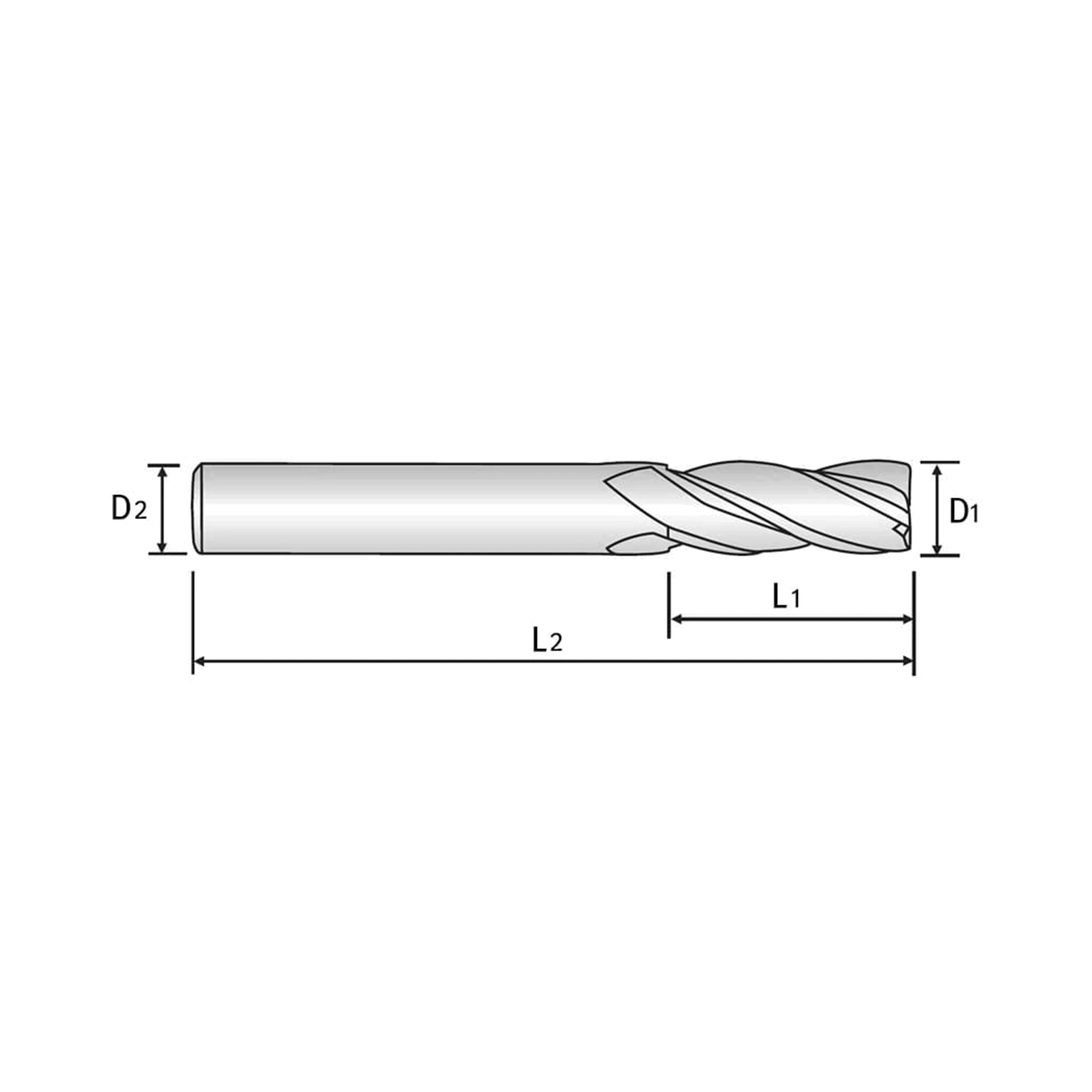

SKU	Mill Diameter (mm)	Overall length (mm)	Shank dia. (mm)	Length of cut (mm)	Stock	Price
G9553005	0.5	38.0	3.0	1.5	1-2 Weeks	$28.20
G9553006	0.6	38.0	3.0	1.5	1-2 Weeks	$28.20
G9553008	0.8	38.0	3.0	2.0	1-2 Weeks	$24.90
G9553010	1	38.0	3.0	2.0	1-2 Weeks	$22.60
G9553012	1.2	38.0	3.0	2.0	1-2 Weeks	$25.80
G9553015	1.5	38.0	3.0	2.0	1-2 Weeks	$22.60
G9553018	1.8	38.0	3.0	2.0	1-2 Weeks	$29.40

Add (G9553) K-2 Carbide, 3Flute End Mill, Short Length throw Away, Flat Shank to comparison

View Comparison

Application

Product Description

The G9553/G9410 series K2 coated carbide milling cutters feature 3 flutes making them suitable for slotting & profiling applications. K2 carbide range from global market leaders YG-1 are the number 1 best selling tool for general purpose milling. Ideal for general milling steel <45HRc, stainless steel, cast iron, copper & aluminium.

3 flutes for slotting & profiling applications
Special K2 coating for longer tool life, high heat and wear resistance
Dry cutting on steel can increase tool life up to 40%
Also suitable for general milling of steel, stainless steel, cast iron & non-ferrous
Consistent and reliable performance in general machining conditions
Made from high-quality micrograin carbide.
Manufactured by global market leader YG-1

Product Data

Workpiece Material	P M K S
Cutting Shape	Square
Helix Angle	30
Length	Short, Throw Away
No. Flutes	3
Operation	Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type	Plain YG-1 Standard
Surface Treatment	Titanium Aluminium Nitride Coating
Tool Material	Carbide

Flutes	4
Helix Angle	30°
Cutting Edge Shape	SQUARE
Size Min	D3.5
Size Max	D20.0
Length	LONG LENGTH
Coating	TiAlN

Side Milling

Small Part

Slotting

Die Sinking

Facing

P Carbon Steels

Excellent

Good Great Excellent

P Alloy Steels

Excellent

Good Great Excellent

P Prehardened Steels

Excellent

Good Great Excellent

M Stainless Steels

Great

Good Great Excellent

K Cast Iron

Great

Good Great Excellent

S Inconel

Great

Good Great Excellent

S Titanium

Great

Good Great Excellent

P

Non-alloy steel

Excellent

HRc

13252832

HB

125190250270300

P

Low alloy steel

Excellent

HRc

10293238

HB

180275300350

P

High alloy & tool steel

Excellent

HRc

1535

HB

200325

M

Stainless steel

Good

HRc

152310

HB

200240180

K

Grey cast iron

Good

HRc

1026

HB

180260

K

Nodular cast iron

Good

HRc

325

HB

160250

K

Malleable cast iron

Good

HRc

21

HB

130230

N

Aluminium. wrought

Good

HRc

HB

60100

N

Aluminium. cast

Good

HRc

HB

7590130

N

Copper. bronze. brass

Good

HRc

HB

11090100

N

Non-metallics

Good

HRc

HB

S

Heat-resistant superalloys

Good

HRc

HB

200280250350

S

Titanium alloys

Good

HRc

HB

H

Hardened steels & cast irons

Good

HRc

40

HB

630

Cutting Speeds and Feeds

Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.

Choose the machining conditions below, then calculate the recommended spindle speed and feed rate.

ISO	VDI 3323	Material Description	Ae	Ap	Parameter	Diameter (Ø)
ISO	VDI 3323	Material Description	Ae	Ap	Parameter	1.0	1.5	2.0	3.0	4.0	5.0	6.0	8.0	10.0	12.0	14.0	16.0	20.0
P	1-4	Non-Alloy Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	5		0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55	55	60	65
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037	0.037	0.038	0.037
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459	1251	1194	875
					FEED	57	89	115	129	227	229	271	249	200	162	139	136	97
	6-7	Low-Alloy Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	8-9		0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	10	High-Alloyed Steel, and Tool Steel	0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
	11.1-11.2		0.1D	1.0D	Vc	55	55	60	70	80	85	90	90	85	90	90	95	90
					fz	0.002	0.005	0.006	0.009	0.019	0.024	0.03	0.042	0.047	0.047	0.047	0.048	0.047
					RPM	17507	11671	9549	7427	6366	5411	4775	3581	2706	2387	2046	1890	1432
					FEED	105	175	172	201	363	390	430	451	381	337	289	272	202
M	14.1	Stainless steel	0.1D	1.0D	Vc	25	35	35	35	40	40	45	45	45	45	45	45	45
					fz	0.002	0.004	0.006	0.009	0.018	0.024	0.03	0.042	0.045	0.045	0.044	0.048	0.048
					RPM	7958	7427	5570	3714	3183	2546	2387	1790	1432	1194	1023	895	716
					FEED	48	89	100	100	172	183	215	226	193	161	135	129	103
K	15-20	Grey cast iron Nodular cast iron Malleable cast iron	0.1D	1.5D	Vc	60	55	60	55	60	55	55	55	60	55	55	55	55
					fz	0.008	0.013	0.017	0.026	0.035	0.044	0.064	0.093	0.115	0.154	0.181	0.22	0.285
					RPM	19099	11671	9549	5836	4775	3501	2918	2188	1910	1459	1251	1094	875
					FEED	458	455	487	455	501	462	560	611	659	674	679	722	748
N	21~22	Aluminum-wrought alloy	0.1D	1.5D	Vc	140	130	140	145	140	145	145	145	145	140	145	145	140
					fz	0.006	0.01	0.016	0.021	0.031	0.037	0.048	0.064	0.08	0.098	0.111	0.129	0.167
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714	3297	2885	2228
					FEED	802	828	1070	969	1036	1025	1108	1108	1108	1092	1098	1116	1116
	23~25	Aluminum-cast,alloyed	0.1D	1.5D	Vc	140	130	140	145	140	145	145	145	145	140	145	145	140
					fz	0.006	0.01	0.016	0.021	0.031	0.037	0.048	0.064	0.08	0.098	0.111	0.129	0.167
					RPM	44563	27587	22282	15385	11141	9231	7692	5769	4615	3714	3297	2885	2228
					FEED	802	828	1070	969	1036	1025	1108	1108	1108	1092	1098	1116	1116
	26-28	Copper Alloys (Bronze / Brass)	0.1D	1.5D	Vc	80	95	105	105	110	105	105	110	105	105	105	110	105
					fz	0.006	0.011	0.016	0.023	0.029	0.037	0.048	0.063	0.081	0.096	0.115	0.125	0.162
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785	2387	2188	1671
					FEED	458	665	802	769	762	742	802	827	812	802	824	821	812
	29.1	Non Metallic Materials	1.0D	1.5D	Vc	80	95	105	105	110	105	105	110	105	105	105	110	105
					fz	0.006	0.011	0.016	0.023	0.029	0.037	0.048	0.063	0.081	0.096	0.115	0.125	0.162
					RPM	25465	20160	16711	11141	8754	6685	5570	4377	3342	2785	2387	2188	1671
					FEED	458	665	802	769	762	742	802	827	812	802	824	821	812
H	40	Chilled Cast Iron	0.1D	1.0D	Vc	30	35	40	45	50	50	55	55	55	55	55	60	65
					fz	0.002	0.004	0.006	0.009	0.019	0.024	0.031	0.038	0.038	0.037	0.037	0.038	0.037
					RPM	9549	7427	6366	4775	3979	3183	2918	2188	1751	1459	1251	1194	875
					FEED	57	89	115	129	227	229	271	249	200	162	139	136	97

Recommended parameters

Recommended cutting speeds and feeds
Parameter	Value	Unit
Spindle speed	–	rev/min
Feed rate	–	mm/min
Cutting speed (Vc)	–	m/min
Feed per tooth (Fz)	–	mm/tooth

Choose your options and calculate the recommended parameters.
