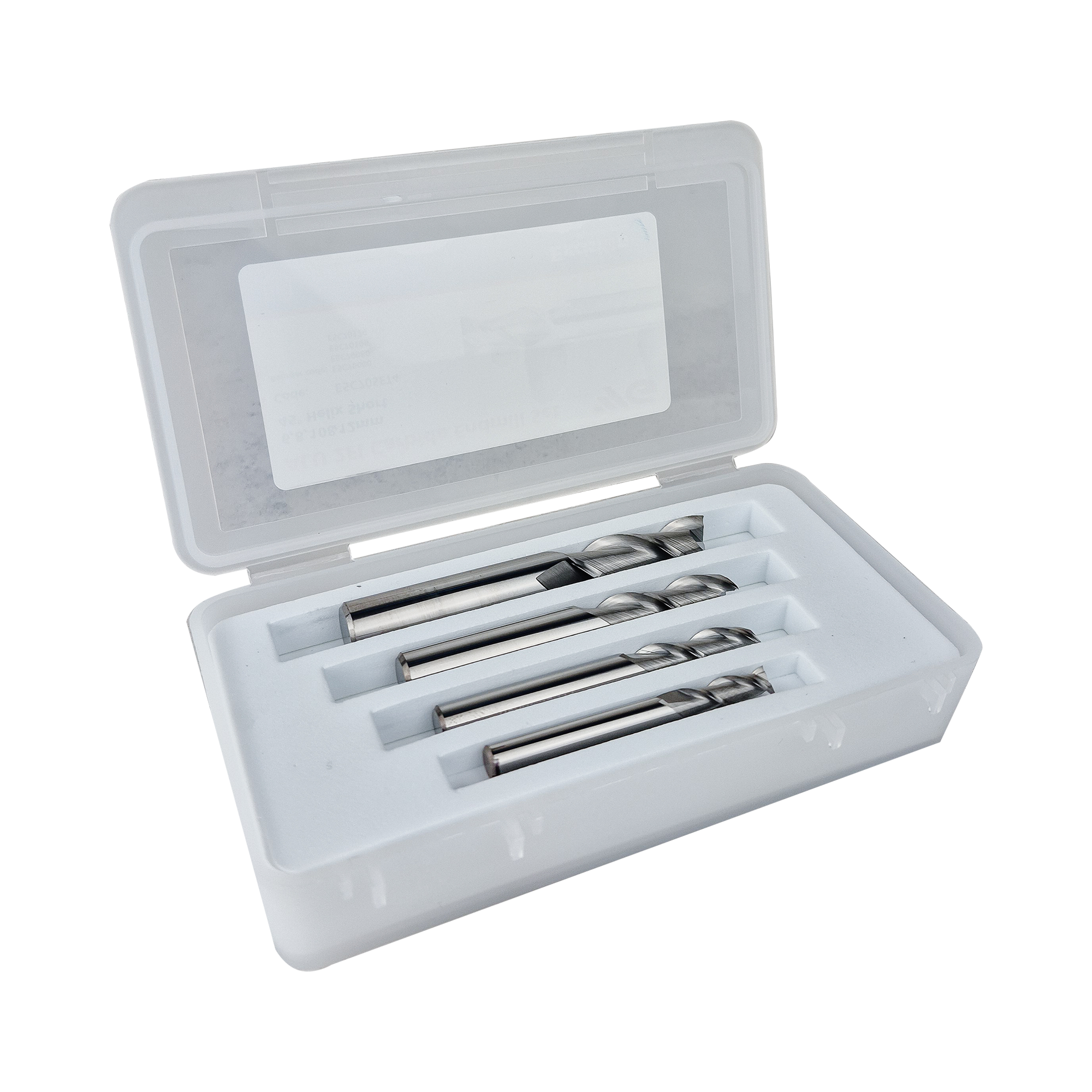

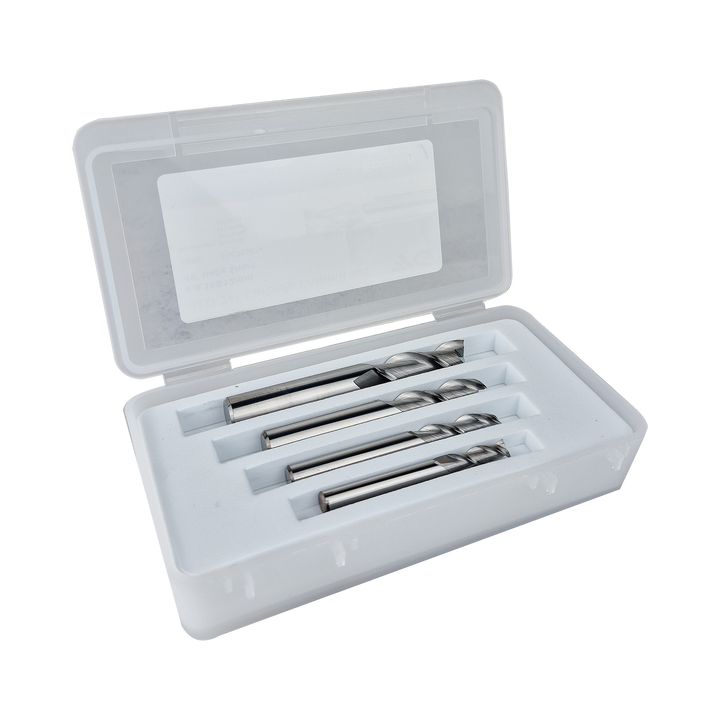

K-2 Carbide 2 Flute 45° Helix Short (E5C70) 4 Piece Set
No reviews
$126.50
INC GST
$115.00
EX GST
Price available on request
Unit price/ per
Was $283.22
Save 55%
- SKU
- E5C70SET4
$
Free standard delivery on orders over
$500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online
Buy now from our online retailers:
Select your preferred distributor:
Add K-2 Carbide 2 Flute 45° Helix Short (E5C70) 4 Piece Set to comparison
View Comparison- Overview
- Specifications
- Reviews
Product Description
Specifications
| Flutes | 2 |
| Helix Angle | 45° |
| Cutting Edge Shape | Ball Nose |
| Size Min | R0.50 |
| Size Max | R10.0 |
| Length |
Short Length |
| Coating |
TiAlN
|
Product Data
| Cutting Shape | Ball Nose |
| Helix Angle | Square 45 |
| No. Flutes | 2 |
| Shank Type | Plain YG-1 Standard |
| Surface Treatment | Titanium Aluminium Nitride Coating |
| Tool Material | Carbide |
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute
E5C70010 1 6 3 40 0~-0.020 h5 2
E5C70015 1.5 6 5 40 0~-0.020 h5 2
E5C70020 2 6 6 40 0~-0.020 h5 2
E5C70025 2.5 6 8 40 0~-0.020 h5 2
E5C70030 3 6 11 50 0~-0.020 h5 2
E5C70040 4 6 13 50 0~-0.020 h5 2
E5C70050 5 6 17 55 0~-0.020 h5 2
E5C70060 6 6 17 55 0~-0.020 h5 2
E5C70070 7 8 22 65 0~-0.020 h5 2
E5C70080 8 8 22 65 0~-0.020 h5 2
E5C70090 9 10 27 70 0~-0.020 h5 2
E5C70100 10 10 27 70 0~-0.020 h5 2
E5C70120 12 12 32 80 0~-0.020 h5 2
E5C70140 14 14 37 85 0~-0.020 h5 2
E5C70160 16 16 42 100 0~-0.020 h5 2
E5C70180 18 16 48 110 0~-0.020 h5 2
E5C70200 20 20 48 110 0~-0.020 h5 2
EDP No. Mill Diameter ShankDia Length of Cut Overall Length Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute
E5C70010 1 6 3 40 0~-0.020 h5 2
E5C70015 1.5 6 5 40 0~-0.020 h5 2
E5C70020 2 6 6 40 0~-0.020 h5 2
E5C70025 2.5 6 8 40 0~-0.020 h5 2
E5C70030 3 6 11 50 0~-0.020 h5 2
E5C70040 4 6 13 50 0~-0.020 h5 2
E5C70050 5 6 17 55 0~-0.020 h5 2
E5C70060 6 6 17 55 0~-0.020 h5 2
E5C70070 7 8 22 65 0~-0.020 h5 2
E5C70080 8 8 22 65 0~-0.020 h5 2
E5C70090 9 10 27 70 0~-0.020 h5 2
E5C70100 10 10 27 70 0~-0.020 h5 2
E5C70120 12 12 32 80 0~-0.020 h5 2
E5C70140 14 14 37 85 0~-0.020 h5 2
E5C70160 16 16 42 100 0~-0.020 h5 2
E5C70180 18 16 48 110 0~-0.020 h5 2
E5C70200 20 20 48 110 0~-0.020 h5 2
