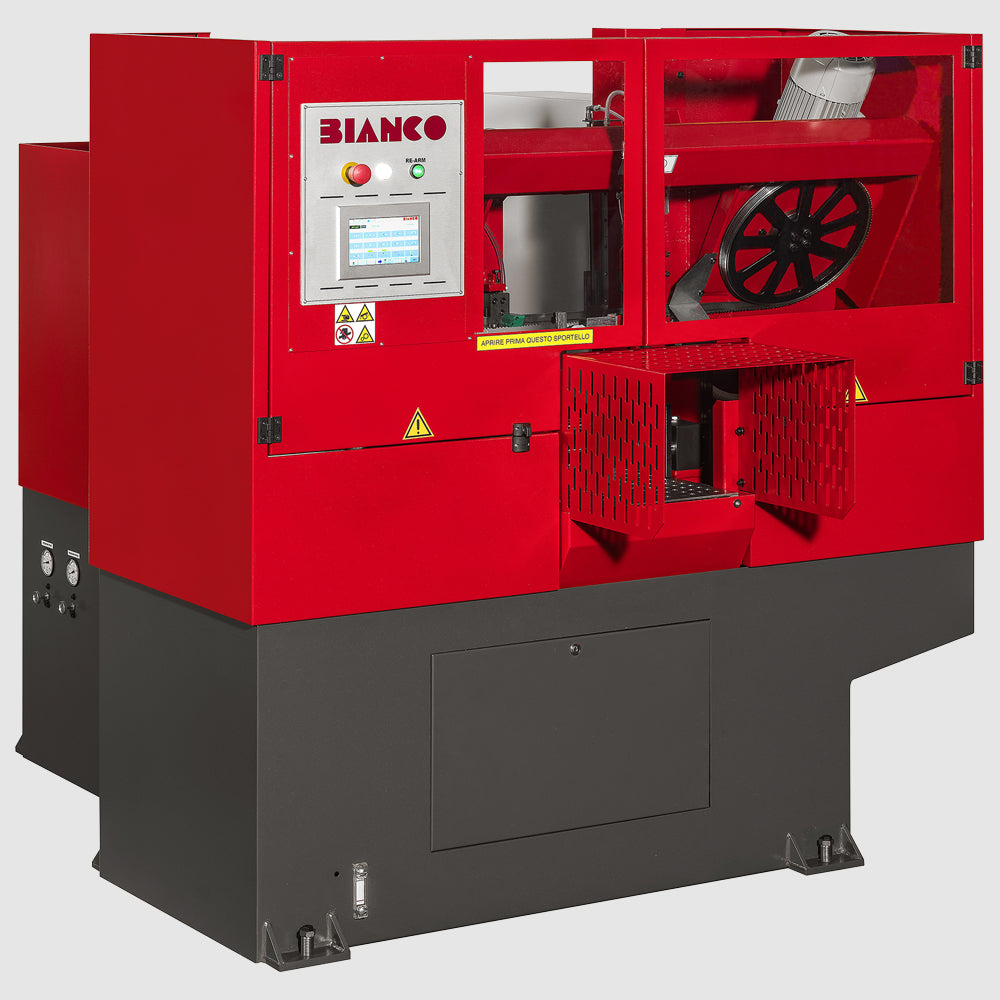

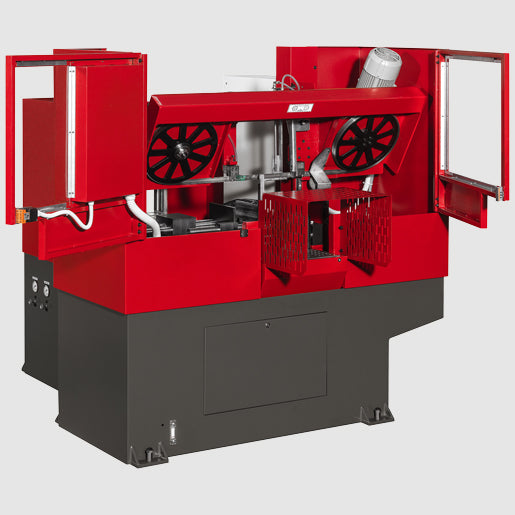

BIANCO 30.30 AF TC BANDSAW MACHINE
Product Code:
Automatic twin-column head & tail band saw machine
Twin column automatic bandsaw machine, heavy construction for high working performance. 30° tilted blade wheels, zero mm scrap length. Bow, base and columns in steel construction, vertical bow descent on ball bearing guides, hydraulic blade tensioning controlled by limit switch, low noise hydraulic system, automatic bow fast up/down movements controlled by feeler pin. Down feed with infinitesimal adjustment. CNC to control all the machine functions and possibility to store up to 99 cutting programs. “Touch” version is equipped with a 7” touch screen control panel. The machine has perimetrical safety protection, double safety button for cycle start-up and low voltage electrical system according to EC rules.
ALSO AVAILABLE WITH TOUCH SCREEN CONTROL PANEL.
FEATURES
- Hydraulic controlled two columns vertical bow descent on ball bearing guides
- Feeding carriage controlled by brush-less motor sliding on linear ball bearing guides
- Blade speed setting by inverter
- Worm reduction gear box
- 30° tilted blade wheels
- Hydraulic blade tensioning controlled by limit switch
STANDARD ACCESSORIES
- Feeding carriage controlled by Brush Less motor
- Cleaning brush
- Chip conveyor
- Inverter
'DL' Standard equipement on TOUCH models
'PAT' Automatic cutting parameters setting standard on TOUCH mod.)
| 90° mm | 300 | 300 | - |
| Blade | 3560x27x0.9 | ||
| Brand | Bianco |
| Capacity Rectangle | 150x300mm |
| Capacity Round | 300mm |
| Capacity Square | 300mm |
| Category | Automatic |
| Power | 415V |
| Type | Automatic |
Made in Italy
3 Year Warranty
