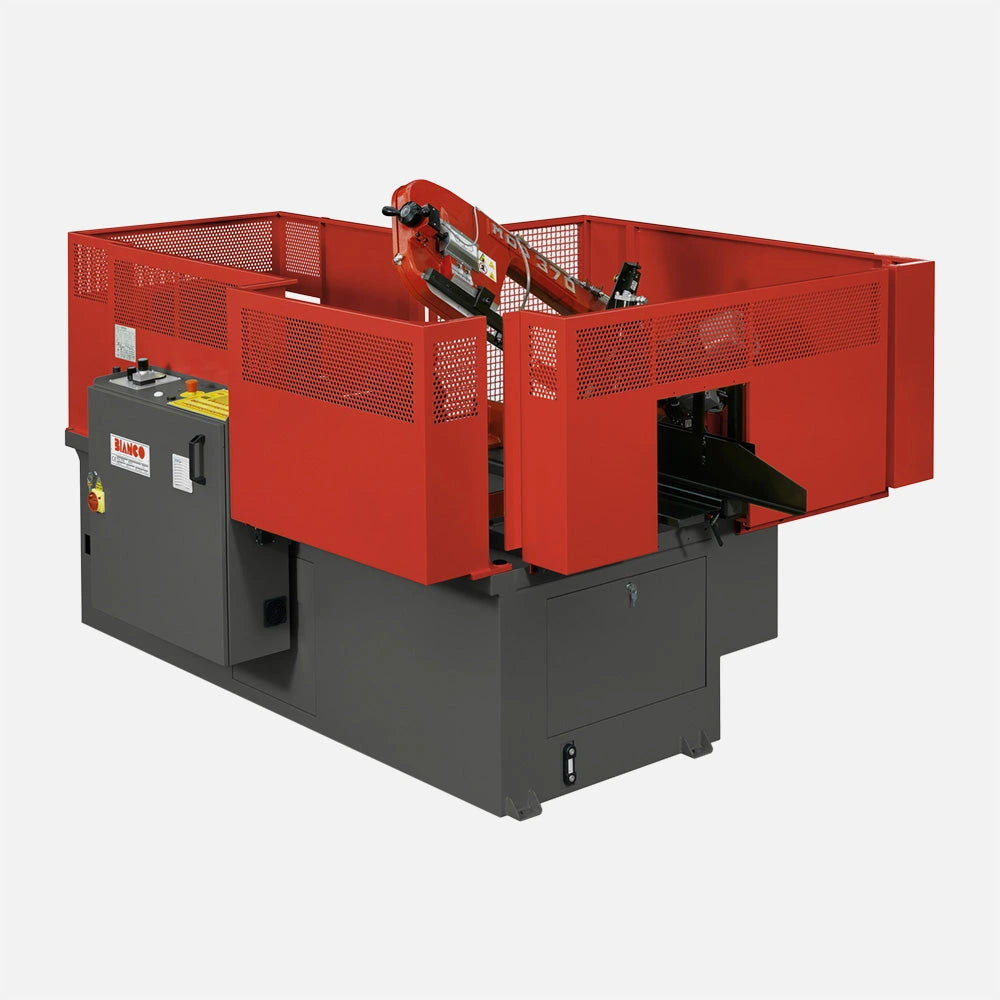

BIANCO 370 A DS 1R BANDSAW MACHINE
Code:
Made in Italy
3
3 Year Warranty
Add BIANCO 370 A DS 1R BANDSAW MACHINE to comparison
View Comparison- Overview
- Downloads & Documents
- Reviews
Product Description
Automatic band saw machine with cutting capacities up to 60° right and 45° left
Fully automatic band saw machine, operated by NC control for each machine function. Bow rotation and feeding carriage controlled by brush-less motors. Touch version is equipped with a 7” touch screen control panel. The machine has perimetrical safety protection, double safety button for cycle start-up and low voltage electrical system according to EC rules.
ALSO AVAILABLE WITH 7'' OR 10'' TOUCH SCREEN CONTROL PANEL.
WE SUGGEST YOU NOT TO FEED FULL MATERIAL BIGGER THAN Ø 150 mm WHILE THE MACHINE IS OPERATING IN AUTOMATIC MODE.
FEATURES
- Cutting capacities up to 60° right and 45° left
- Fully automatic machine, including the material feeding and the bow rotation
- NC control of each machine control
- The machine can be fitted with an automatic loading unit
- Carriage stroke 1000 mm
STANDARD ACCESSORIES
- Feeding carriage and bow rotation controlled by Brush Less motor
- Cleaning brush
- Chip conveyor
- Inverter
| 90° mm | 280 | 240 | 310x240 |
| 45° DX-R mm | 230 | 230 | 230x230 |
| 45° SX-L mm | 200 | 170 | 220x100 |
| 60° DX-R mm | 140 | 140 | 140x140 |
| Blade | 3120x27x0.9 | ||
Product Data
| Brand | Bianco |
| Capacity Rectangle | 240x310mm |
| Capacity Round | 280mm |
| Capacity Square | 240mm |
| Category | Automatic |
| Power | 415V |
| Type | Automatic |
