CSS1250 BANDSAW MACHINE

SKU:


Buy Local



Bandsaw Machine Semi-Automatic 90o with double vice

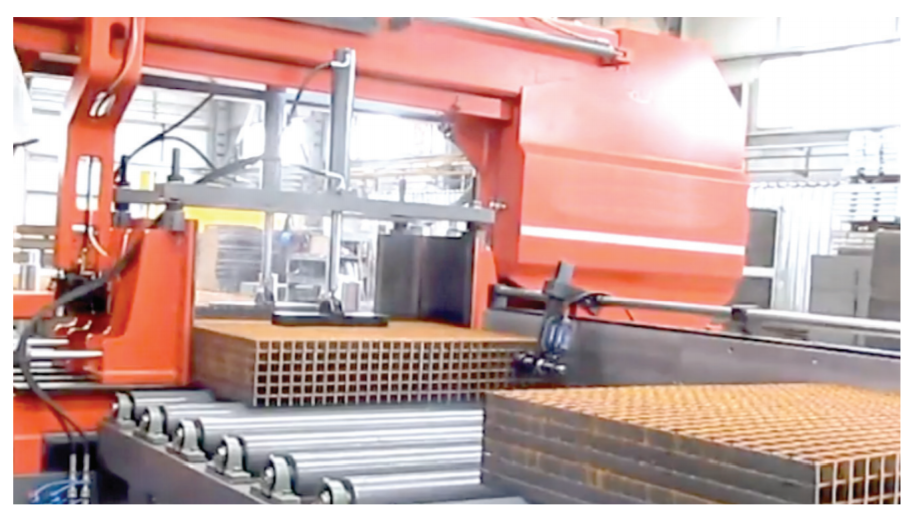

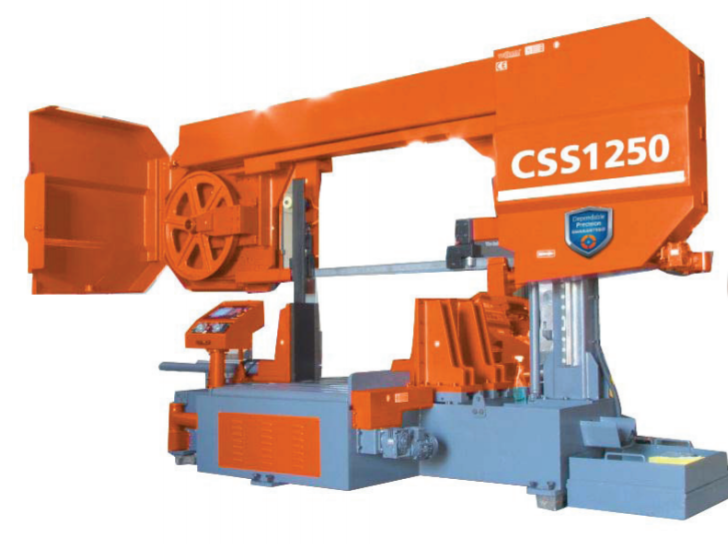

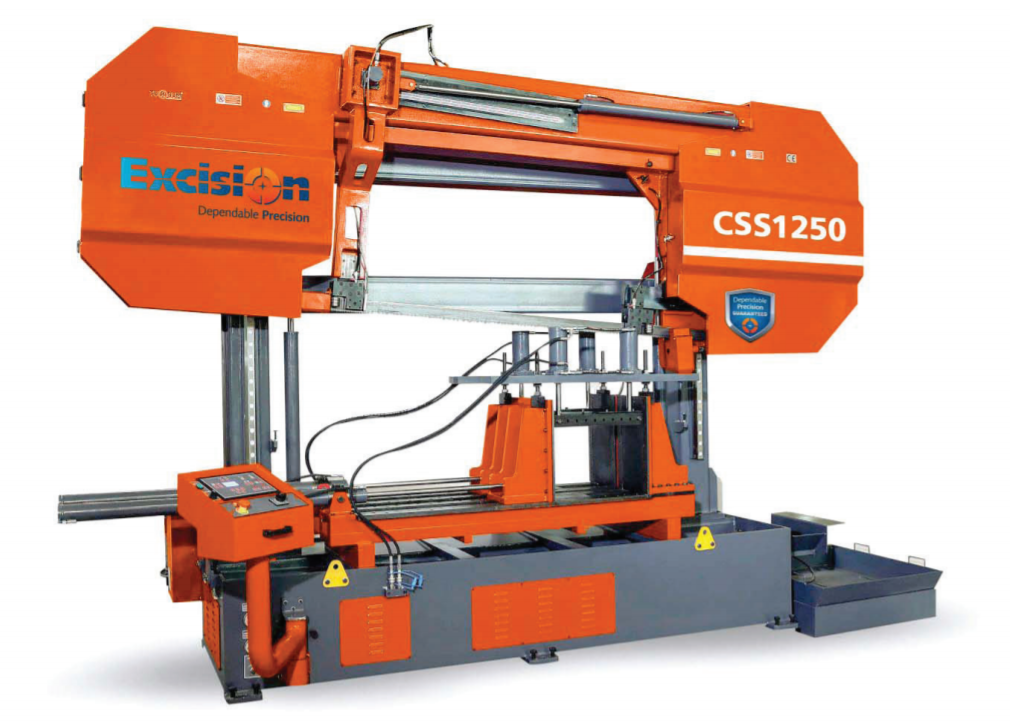

CSS1250 model is a semi automatic bandsaw machine with double column body design. The Machine is designed for straight cutting. Precision cutting capability has been gained with linear guides. Body up-down movements are done as hydraulic. The cut material can be easily tightened thanks to hydraulic vises. Feeding material is manual. The machine is controlled on digital control panel.


FEATURES:

  • Inverter - Provides to adjust blade speed up to workpiece diameter, thickness and hardness.
  • Blade Bedding - with Carbide and Bearings
  • Swarf Brush - Removes swarfs to keep clean the wheels and blade.
  • Bevel Helical Gearbox

Technical description:

  • Main Motor: 7.5 kW
  • Gearbox: Bevel Helical PKD 2390 High Efficiency
  • Hydraulic Motor: 1.5 kW
  • Coolant Motor: 0.25 kW
  • Blade Speed: 25 - 90 m/min
  • Blade Dimensions: 9,180 x 67 x 1.6mm
  • Machine Weight: 7,500 kg
  • Machine Dimensions: 1500W x 4400L x 2700H mm
  • Table Working Height: 785mm

Download technical features

Cutting Capacity
845mm 800mm 1250mm
