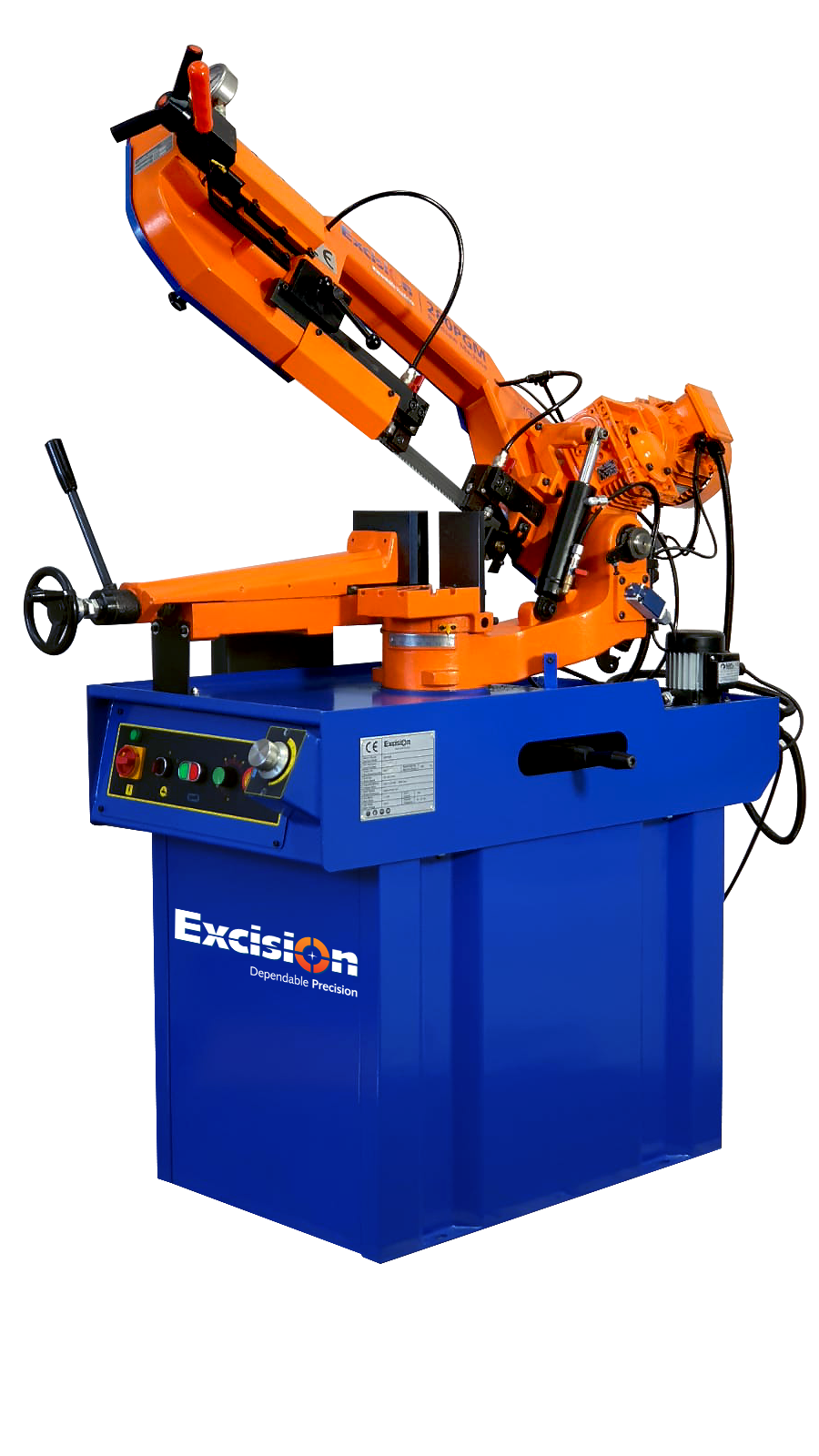

280 PGM Bandsaw Machine - 1 Phase
Code: 401280PGM1
Made in Turkey
3
3 Year Warranty
Add 280 PGM Bandsaw Machine - 1 Phase to comparison
View Comparison- Overview
- Downloads & Documents
- Reviews
Product Description
| The 280 PGM Bandsaw has been superseded by the All-New 280 GM Bandsaw Machine |
- Up to 60° mitre cutting
- Quick lock vice
- Coolant System
- Digital Display
- Includes stand
- Cast Iron saw frame

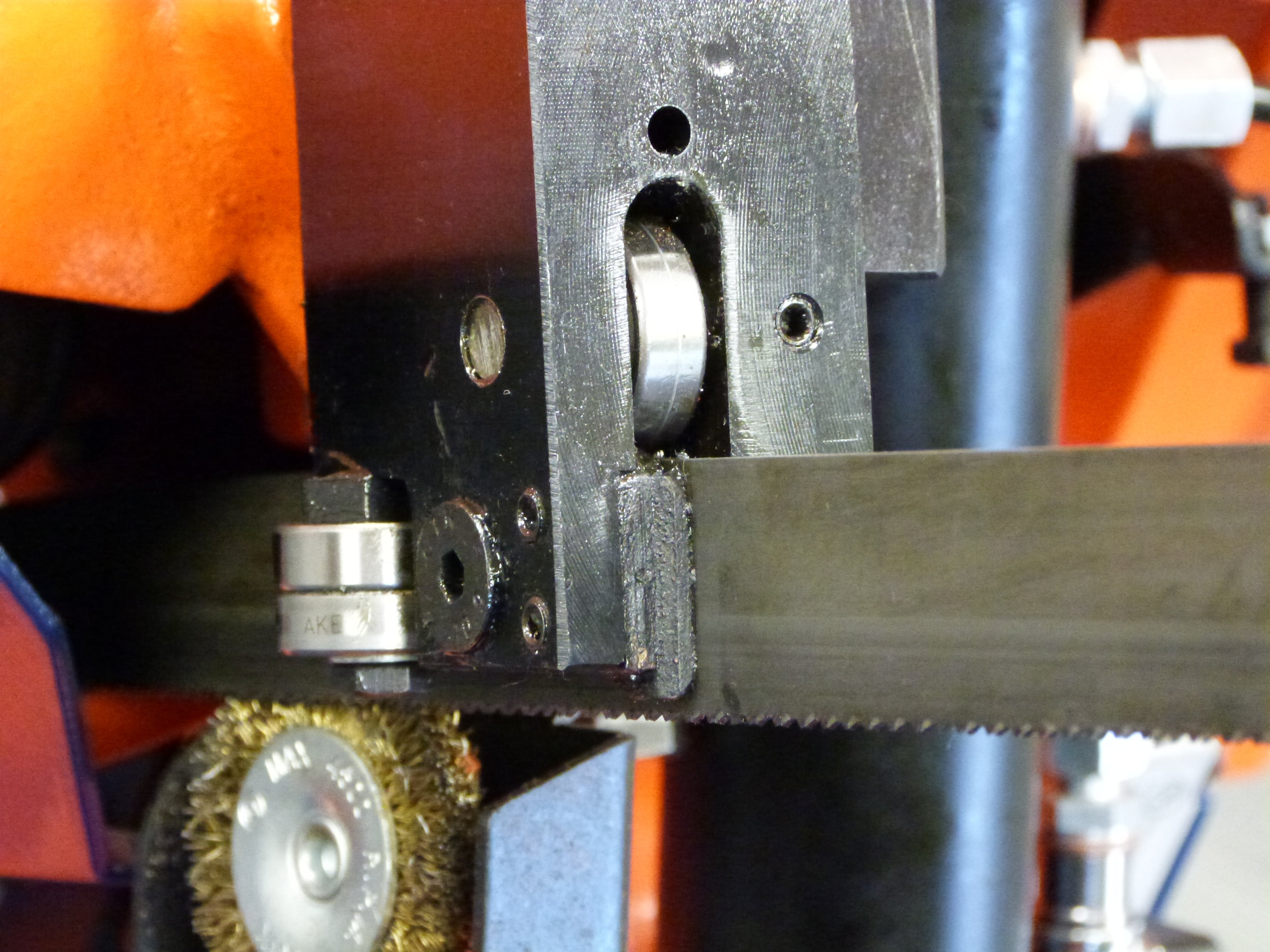

- Carbide blade guides
- Low voltage electrics
- Emergency Stop
- Automatic (variable) down feed
- 250mm vice opening

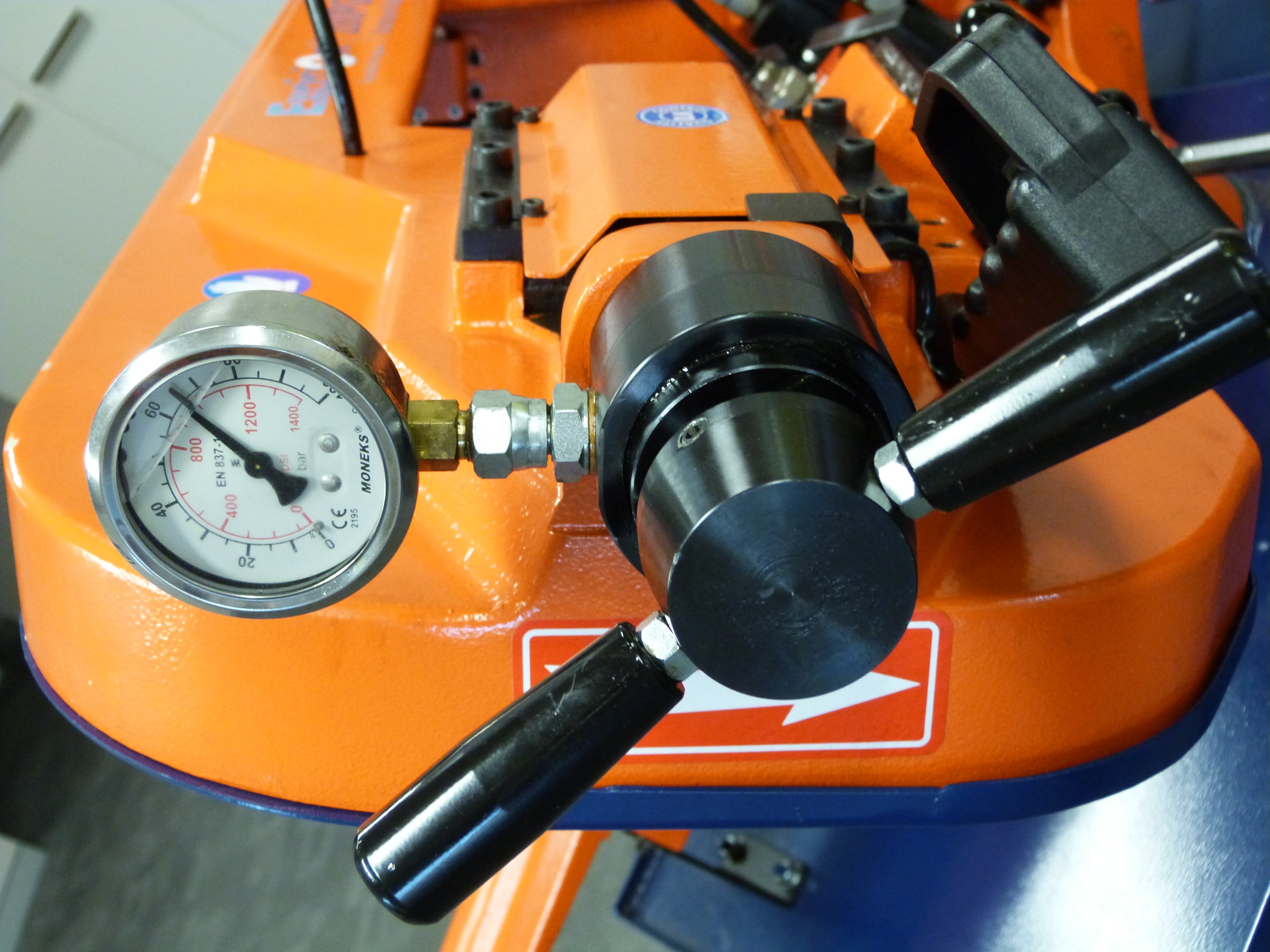

- Mechanical blade tension microswitch
- Includes infeed roller, 500mm adjustable end stop & one blade fitted
Download Brochure
Download Manual
| Round | Square | Rectangle | |
|---|---|---|---|
| 90° | 220mm | 220mm | 240 x 220mm / 248 x 150mm |
| 15° | 220mm | 220mm | 230 x 220mm / 248 x 115mm |
| 30° | 220mm | 205mm | 210 x 150mm / 220 x 100mm |
| 45° | 165mm | 145mm | 165 x 125mm |
| 60° | 105mm | 80mm | 105 x 80mm |
| Product Specifications | |
| Power Supply | 240V |
| Blade Speed | 25 - 90 M/MIN |
| Weight | 260 KG |
| Blade Size | 2520 x 27 x 0.9mm |
Product Data
| Brand | Excision |
| Capacity Rectangle | 220x240mm |
| Capacity Round | 220mm |
| Capacity Square | 220mm |
| Category | Manual |
| Power | 240V |
| Type | Manual |
