X5070 2 Flute 30°Helix Rib End Mill (G8A45)
2-Flute Rib-Processing for HRc45–70Code: G8A45864
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.
| SKU | Mill Diameter (mm) | Length of Cut (mm) | Length Below Shank (mm) | Shank diameter (mm) | Neck diameter (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| G8A45864 | 0.1 | 0.15 | 0.5 | 4.0 | 0.085 | 5 days | $120.00 | ||
| G8A45815 | 0.2 | 0.3 | 1.0 | - | - | Low stock | $108.10 | ||
| G8A45816 | 0.2 | 0.3 | 1.5 | - | - | Low stock | $108.10 | ||
| G8A45003 | 0.3 | 0.45 | 1.0 | - | - | In stock | $91.10 | ||
| G8A45844 | 0.3 | 0.45 | 1.5 | - | - | 5 days | $91.10 | ||
| G8A45817 | 0.3 | 0.45 | 2.0 | - | - | Low stock | $91.10 | ||
| G8A45818 | 0.3 | 0.45 | 3.0 | - | - | 5 days | $91.10 | ||
| G8A45842 | 0.3 | 0.45 | 4.0 | - | - | 5 days | $91.10 | ||
| G8A45843 | 0.4 | 0.6 | 1.0 | - | - | 5 days | $84.10 | ||
| G8A45004 | 0.4 | 0.6 | 2.0 | - | - | 5 days | $75.90 | ||
| G8A45984 | 0.4 | 0.6 | 3.0 | - | - | 5 days | $75.90 | ||
| G8A45985 | 0.4 | 0.6 | 4.0 | - | - | 5 days | $84.10 | ||
| G8A45986 | 0.4 | 0.6 | 5.0 | - | - | 5 days | $84.10 | ||
| G8A45005 | 0.5 | 0.7 | 2.0 | - | - | Low stock | $69.50 | ||
| G8A45861 | 0.5 | 0.7 | 2.5 | - | - | 5 days | $69.50 | ||
| G8A45988 | 0.5 | 0.7 | 4.0 | - | - | Low stock | $69.50 | ||
| G8A45989 | 0.5 | 0.7 | 6.0 | - | - | 5 days | $69.50 | ||
| G8A45990 | 0.5 | 0.7 | 8.0 | - | - | 5 days | $80.20 | ||
| G8A45006 | 0.6 | 0.9 | 2.0 | - | - | In stock | $69.50 | ||
| G8A45860 | 0.6 | 0.9 | 3.0 | - | - | 5 days | $69.50 | ||
| G8A45991 | 0.6 | 0.9 | 4.0 | - | - | 5 days | $69.50 | ||
| G8A45992 | 0.6 | 0.9 | 6.0 | - | - | 5 days | $69.50 | ||
| G8A45819 | 0.6 | 0.9 | 10.0 | - | - | 5 days | $62.30 | ||
| G8A45862 | 0.8 | 1.2 | 2.0 | - | - | 5 days | $63.00 | ||
| G8A45008 | 0.8 | 1.2 | 4.0 | - | - | Low stock | $63.00 | ||
| G8A45908 | 0.8 | 1.2 | 6.0 | - | - | 5 days | $63.00 | ||
| G8A45909 | 0.8 | 1.2 | 8.0 | - | - | 5 days | $68.60 | ||
| G8A45994 | 0.8 | 1.2 | 10.0 | - | - | 5 days | $69.60 | ||
| G8A45995 | 0.8 | 1.2 | 12.0 | - | - | 5 days | $87.20 | ||
| G8A45996 | 1.0 | 1.5 | 4.0 | - | - | Low stock | $56.30 | ||
| G8A45010 | 1.0 | 1.5 | 6.0 | - | - | Low stock | $56.30 | ||
| G8A45912 | 1.0 | 1.5 | 8.0 | - | - | Low stock | $56.30 | ||
| G8A45913 | 1.0 | 1.5 | 10.0 | - | - | Low stock | $56.30 | ||
| G8A45914 | 1.0 | 1.5 | 12.0 | - | - | In stock | $59.70 | ||
| G8A45997 | 1.0 | 1.5 | 16.0 | - | - | 5 days | $63.00 | ||
| G8A45998 | 1.0 | 1.5 | 20.0 | - | - | 5 days | $63.00 | ||
| G8A45012 | 1.2 | 1.8 | 6.0 | - | - | 5 days | $65.10 | ||
| G8A45915 | 1.2 | 1.8 | 8.0 | - | - | 5 days | $65.10 | ||
| G8A45916 | 1.2 | 1.8 | 10.0 | - | - | 5 days | $59.70 | ||
| G8A45917 | 1.2 | 1.8 | 12.0 | - | - | 5 days | $59.70 | ||
| G8A45999 | 1.2 | 1.8 | 16.0 | - | - | 5 days | $63.00 | ||
| G8A45015 | 1.5 | 2.3 | 6.0 | - | - | In stock | $56.30 | ||
| G8A45923 | 1.5 | 2.3 | 8.0 | - | - | 5 days | $65.10 | ||
| G8A45924 | 1.5 | 2.3 | 10.0 | - | - | In stock | $56.30 | ||
| G8A45925 | 1.5 | 2.3 | 12.0 | - | - | 5 days | $59.70 | ||
| G8A45926 | 1.5 | 2.3 | 14.0 | - | - | Low stock | $59.70 | ||
| G8A45927 | 1.5 | 2.3 | 16.0 | - | - | Low stock | $63.00 | ||
| G8A45928 | 1.5 | 2.3 | 18.0 | - | - | Low stock | $63.00 | ||
| G8A45810 | 1.5 | 2.3 | 20.0 | - | - | 5 days | $63.00 | ||
| G8A45958 | 2.0 | 3.0 | 6.0 | - | - | 5 days | $53.60 | ||
| G8A45020 | 2.0 | 3.0 | 8.0 | - | - | 5 days | $53.60 | ||
| G8A45959 | 2.0 | 3.0 | 10.0 | - | - | 5 days | $53.60 | ||
| G8A45960 | 2.0 | 3.0 | 12.0 | - | - | 5 days | $53.60 | ||
| G8A45961 | 2.0 | 3.0 | 14.0 | - | - | 5 days | $53.60 | ||
| G8A45962 | 2.0 | 3.0 | 16.0 | - | - | 5 days | $64.60 | ||
| G8A45963 | 2.0 | 3.0 | 18.0 | - | - | 5 days | $64.60 | ||
| G8A45964 | 2.0 | 3.0 | 20.0 | - | - | 5 days | $64.60 | ||
| G8A45966 | 2.0 | 3.0 | 25.0 | - | - | 5 days | $70.80 | ||
| G8A45814 | 2.0 | 3.0 | 30.0 | - | - | 5 days | $70.80 | ||
| G8A45975 | 3.0 | 4.5 | 10.0 | - | - | Low stock | $80.80 | ||
| G8A45976 | 3.0 | 4.5 | 12.0 | - | - | 5 days | $80.80 | ||
| G8A45977 | 3.0 | 4.5 | 14.0 | - | - | 5 days | $80.80 | ||
| G8A45978 | 3.0 | 4.5 | 16.0 | - | - | 5 days | $82.60 | ||
| G8A45979 | 3.0 | 4.5 | 18.0 | - | - | 5 days | $88.00 | ||
| G8A45980 | 3.0 | 4.5 | 20.0 | - | - | 5 days | $82.60 | ||
| G8A45981 | 3.0 | 4.5 | 25.0 | - | - | 5 days | $88.00 | ||
| G8A45832 | 3.0 | 4.5 | 30.0 | - | - | In stock | $99.50 | ||
| G8A45833 | 3.0 | 4.5 | 35.0 | - | - | 5 days | $107.90 | ||
| G8A45983 | 3.0 | 4.5 | 40.0 | - | - | 5 days | $107.60 | ||
| G8A45040 | 4.0 | 6.0 | 12.0 | - | - | 5 days | $80.80 | ||
| G8A45801 | 4.0 | 6.0 | 16.0 | - | - | 5 days | $102.10 | ||
| G8A45802 | 4.0 | 6.0 | 20.0 | - | - | 5 days | $102.10 | ||
| G8A45803 | 4.0 | 6.0 | 25.0 | - | - | 5 days | $91.80 | ||
| G8A45834 | 4.0 | 6.0 | 30.0 | - | - | 5 days | $110.60 | ||
| G8A45835 | 4.0 | 6.0 | 35.0 | - | - | Low stock | $107.90 | ||
| G8A45836 | 4.0 | 6.0 | 40.0 | - | - | 5 days | $125.10 | ||
| G8A45837 | 4.0 | 6.0 | 45.0 | - | - | 5 days | $137.60 | ||
| G8A45838 | 4.0 | 6.0 | 50.0 | - | - | 5 days | $165.20 |
Add X5070 2 Flute 30°Helix Rib End Mill (G8A45) to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Reviews
Product Description

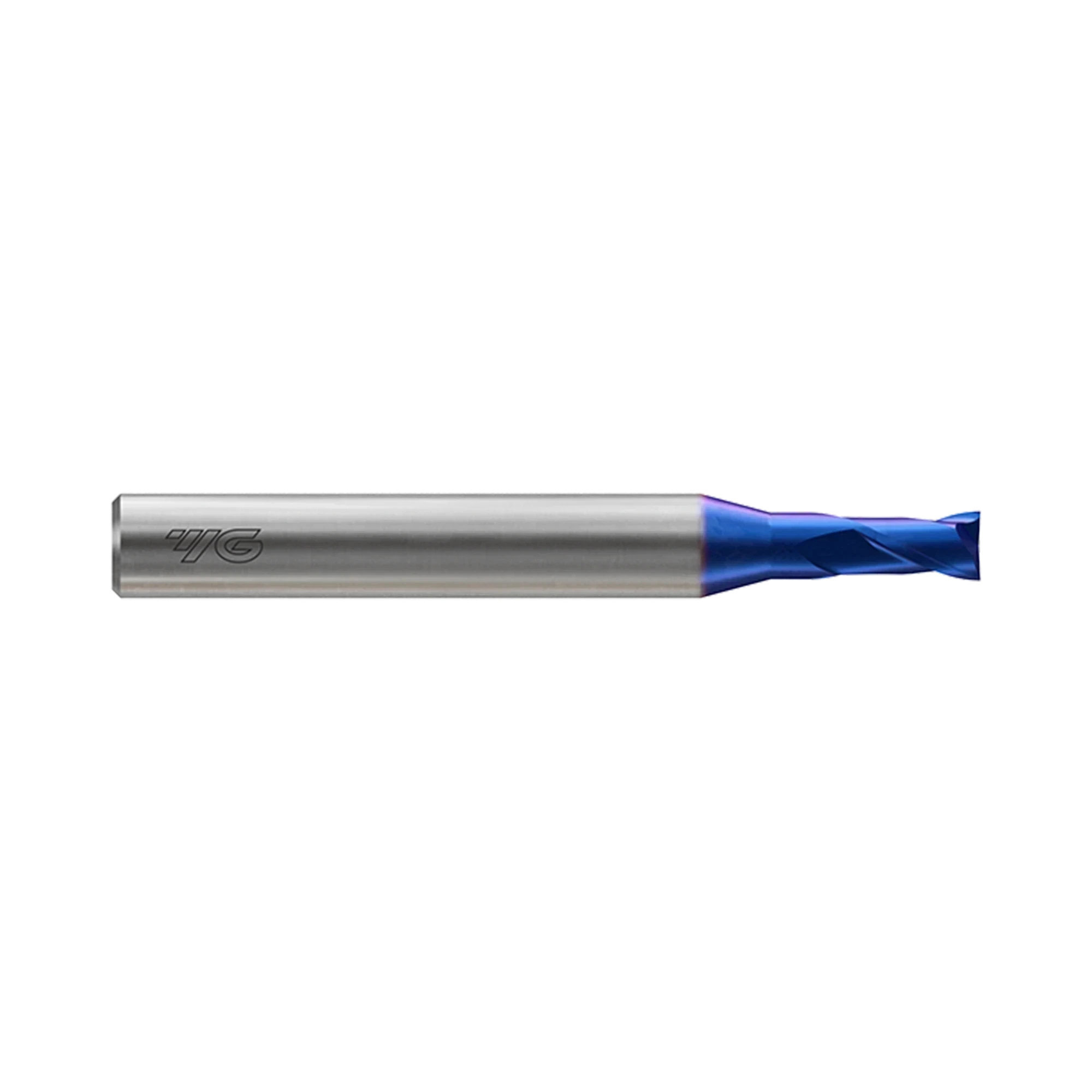

The YG-1 G8A45 series miniature X5070 Blue ultrafine micrograin carbide cutter has 2 flutes, a plain shank and long neck for deep pocket milling. They range in diameter from 0.1mm-4mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.
- Nanograin carbide substrate with blue silicone based coating.
- Dry machining in steels and hardened steeld < HRc70.
- Suitable for machining at extreme cutting speeds.
- High abrasion resistance with a mirror surface finish.
- Strong negative land provides tool strength for high hardness machining.
- Ultimate tool life.
- Can cope with extreme heat (up to 1400°)
- Long neck for extended reach.
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
Product Data
| Workpiece Material | P H |
| Cutting Shape | Corner Radius |
| Hardened Steels(HRc40~45) | Great |
| Helix Angle | Square 30 |
| No. Flutes | 2 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Shank Type | Plain |
| Surface Treatment | YG-1 Blue Coating |
| Tool Material | Carbide |
| Flutes | 2 |
| Helix Angle | 30° |
| Cutting Edge Shape | Corner Radius |
| Size Min | D0.2 |
| Size Max | D1.2 |
| Length | Long Neck |
| Coating | Blue Coating |
Side Milling
Small Part
Slotting
Die Sinking
Facing
Prehardened Steels
Great
Good
Great
Excellent
Hardened Steels (HRc40~45)
Great
Good
Great
Excellent
Hardened Steels (HRc45~55)
Excellent
Good
Great
Excellent
High Hardened Steels (HRc55~70)
Excellent
Good
Great
Excellent
