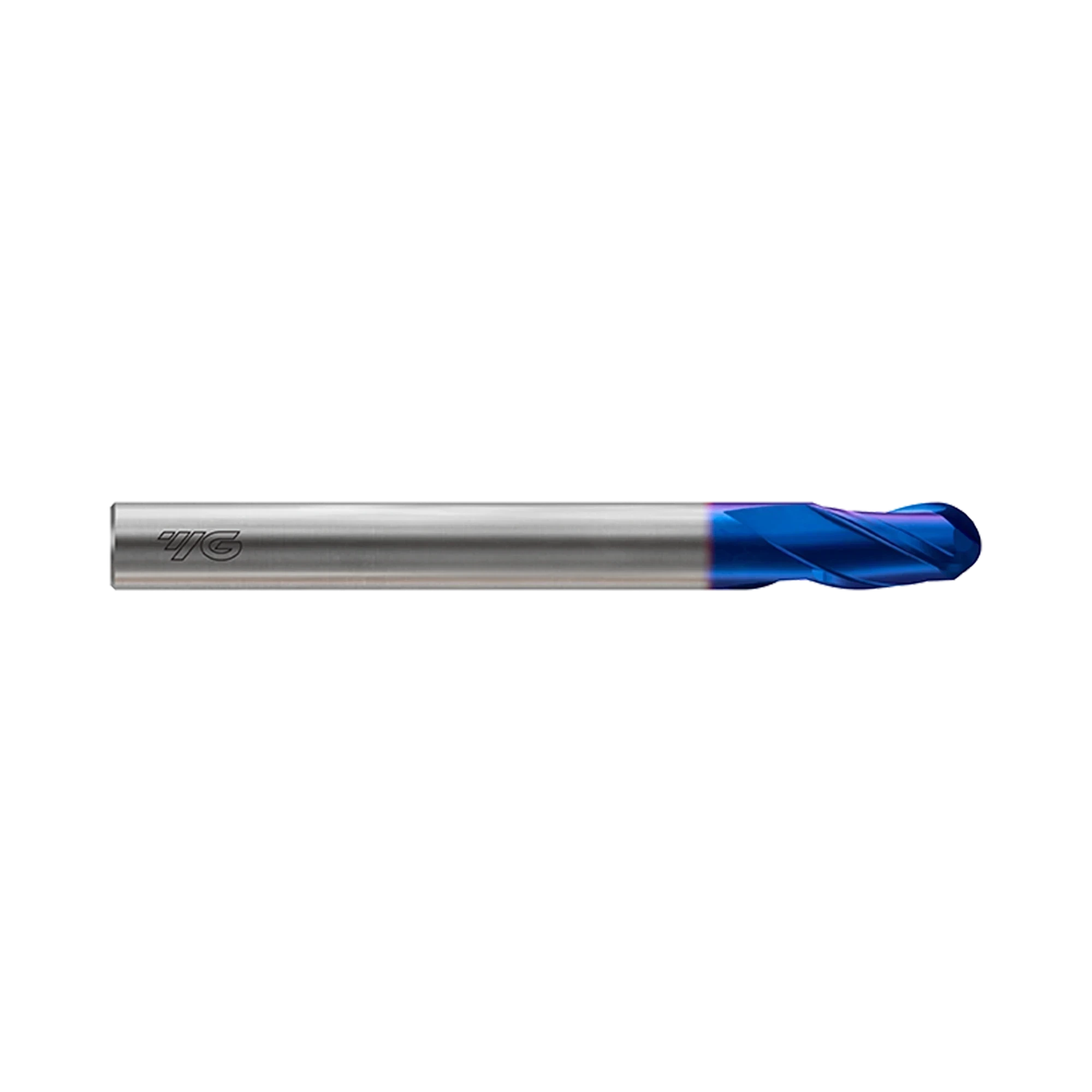

X5070 3 Flute 30°Helix Long Ball End Mill (G8A59)
3-Flute Center-Match Ball Nose for HRc45–70Code: G8A59030
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.
| SKU | Mill Diameter (mm) | Ball Nose Radius (mm) | Overall length (mm) | Shank diameter (mm) | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| G8A59030 | 3.0 | R1.5 | 60.0 | 6.0 | 8.0 | In stock | $88.00 | ||
| G8A59040 | 4.0 | R2.0 | 70.0 | 6.0 | 8.0 | Low stock | $92.10 | ||
| G8A59050 | 5.0 | R2.5 | 80.0 | 6.0 | 10.0 | 5 days | $96.70 | ||
| G8A59060 | 6.0 | R3.0 | 90.0 | 6.0 | 12.0 | 5 days | $101.30 | ||
| G8A59080 | 8.0 | R4.0 | 100.0 | 8.0 | 14.0 | 5 days | $158.40 | ||
| G8A59100 | 10.0 | R5.0 | 100.0 | 10.0 | 18.0 | 5 days | $263.70 | ||
| G8A59120 | 12.0 | R6.0 | 110.0 | 12.0 | 22.0 | 5 days | $339.20 | ||
| G8A59160 | 16.0 | R8.0 | 140.0 | 16.0 | 30.0 | 5 days | $720.20 | ||
| G8A59200 | 20.0 | R10.0 | 160.0 | 20.0 | 38.0 | 5 days | $1,104.10 |
Add X5070 3 Flute 30°Helix Long Ball End Mill (G8A59) to comparison
View Comparison- Overview
- Specifications
- Specifications
- Operation
- Work Material
- Reviews
Product Description
The YG-1 G8D59 series X5070 Blue ultrafine micrograin carbide cutter has 3 flutes and a ball nose geometry for 3D machining applications. They range in diameter from 3mm-20mm. The X5070 range is designed for ultra-performance machining of steels, heat resistant steels and hardened steels up to HRc70. The nanograin substrate and silicone based coating allows for dry machining up to temperatures of 1400°c.
- Nanograin carbide substrate with blue silicone based coating.
- Dry machining in steels and hardened steeld < HRc70.
- Suitable for machining at extreme cutting speeds.
- High abrasion resistance with a mirror surface finish.
- Strong negative land provides tool strength for high hardness machining.
- Ultimate tool life.
- Can cope with extreme heat (up to 1400°).
- Excellent workplace finish.
- Designed for high precision milling operation.
- To achieve the maximum performance from this tool, we recommend using a high performance tool holder (Hydraulic chuck, shrink chuck, HP3/GSK or power milling chuck).
Product Data
| Workpiece Material | P H |
| Ball Radius Tolerance | 0.01 |
| Cutting Shape | Ball Nose |
| Hardened Steels(HRc40~45) | Great |
| Helix Angle | Ball Nose 30 |
| No. Flutes | 3 |
| Operation | Profiling, Side Milling, Small Part |
| Shank Type | Plain |
| Surface Treatment | YG-1 Blue Coating |
| Tool Material | Carbide |
| Flutes | 3 |
| Helix Angle | 30° |
| Cutting Edge Shape | Ball Nose |
| Size Min | R1.5 |
| Size Max | R10.0 |
| Length | Center Match |
| Coating | Blue Coating |
Profiling
Side Milling
Small Part
Prehardened Steels
Great
Good
Great
Excellent
Hardened Steels (HRc40~45)
Great
Good
Great
Excellent
Hardened Steels (HRc45~55)
Excellent
Good
Great
Excellent
High Hardened Steels (HRc55~70)
Excellent
Good
Great
Excellent
