YG1001
P01–P10
K10–K25
CVD TiCN–Al₂O₃
Stable Machining of Cast Iron
- Substrate designed for high wear resistance
- Thick Al₂O₃ ensures good wear at high speeds, including dry cutting
New
Made in South Korea

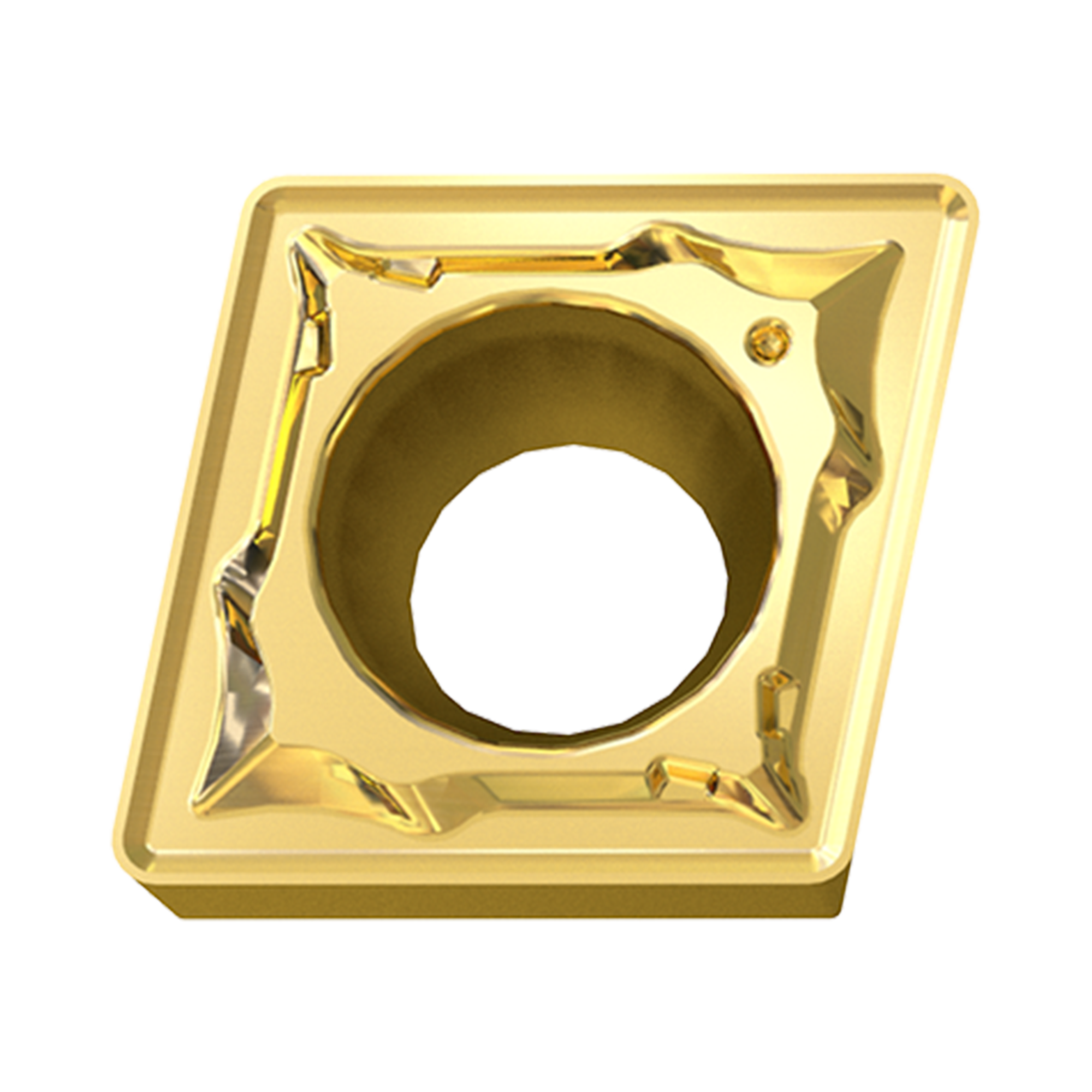

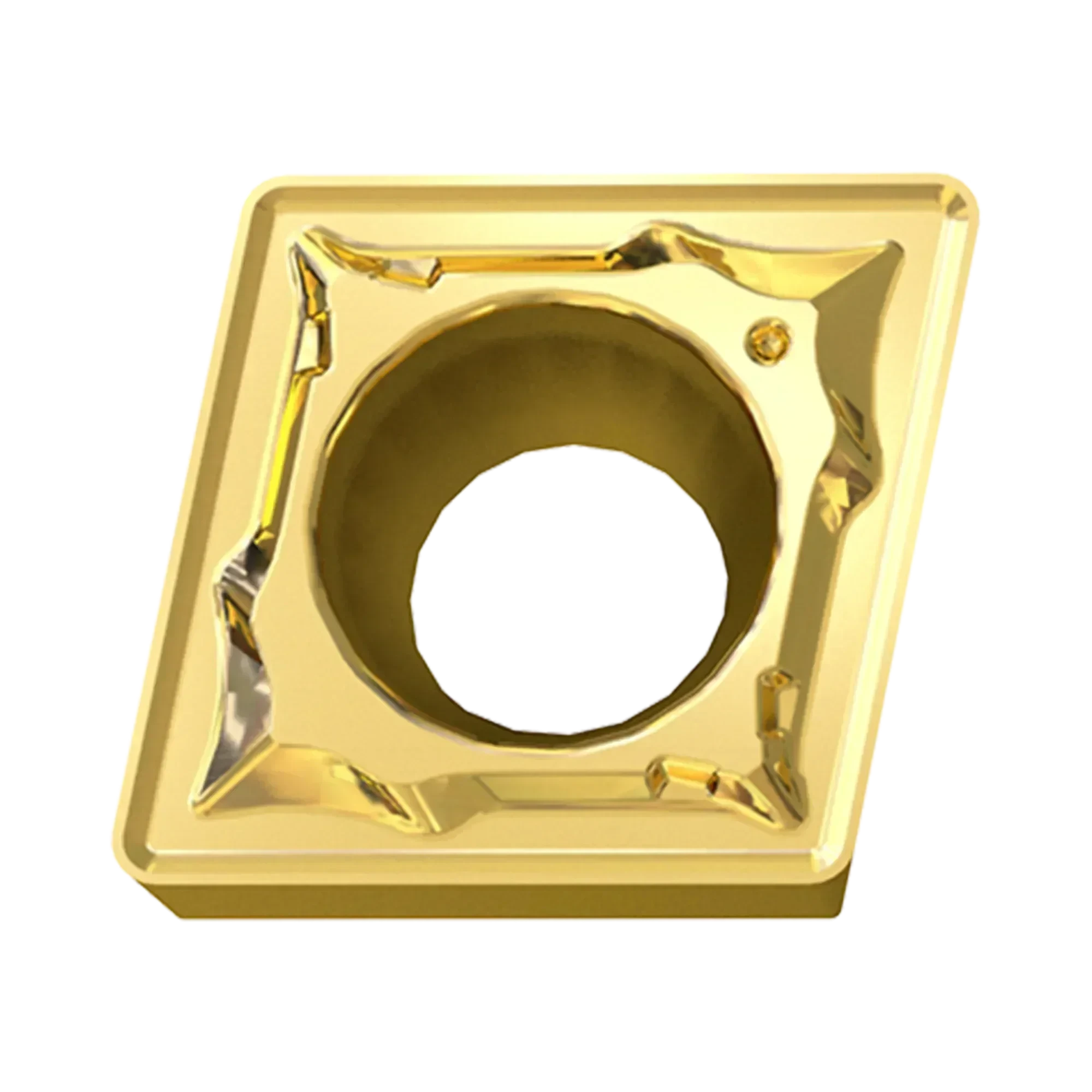

CCMT-UG General Turning Insert (80° Positive)
Code: 22000005
-
Key Features
- Five grades cover finishing to roughing across steel, stainless and cast iron
- UG Medium chipbreaker for controlled chips and smooth surfaces in general turning
- CCMT 80° positive geometry for low cutting forces and dependable performance
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.
| SKU | Designation | Grade | Inner Circle (mm) | Corner radius (mm) | Thickness (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| 22000005 | CCMT 120408 | YG801 | 12.7 | 0.8 | 4.76 | 5 days | $11.60 | ||
| 22000006 | CCMT 060204 | YG801 | 6.35 | 0.4 | 2.38 | In stock | $8.30 | ||
| 22000007 | CCMT 09T304 | YG801 | 9.525 | 0.4 | 3.97 | In stock | $9.90 | ||
| 22000008 | CCMT 09T308 | YG801 | 9.525 | 0.8 | 3.97 | In stock | $9.90 | ||
| 22000009 | CCMT 060208 | YG801 | 6.35 | 0.8 | 2.38 | 5 days | $8.30 | ||
| 22000150 | CCMT 09T308 | YG3010 | 9.525 | 0.8 | 3.97 | In stock | $10.90 | ||
| 22000151 | CCMT 09T308 | YG3020 | 9.525 | 0.8 | 3.97 | 5 days | $10.90 | ||
| 22000152 | CCMT 09T308 | YG3030 | 9.525 | 0.8 | 3.97 | 5 days | $10.90 | ||
| 22000153 | CCMT 120408 | YG3010 | 12.7 | 0.8 | 4.76 | 5 days | $12.70 | ||
| 22000154 | CCMT 120408 | YG3020 | 12.7 | 0.8 | 4.76 | 5 days | $12.70 | ||
| 22000155 | CCMT 120408 | YG3030 | 12.7 | 0.8 | 4.76 | 5 days | $12.70 | ||
| 22000166 | CCMT 060204 | YG3010 | 6.35 | 0.4 | 2.38 | 5 days | $9.10 | ||
| 22000167 | CCMT 060204 | YG3020 | 6.35 | 0.4 | 2.38 | In stock | $9.10 | ||
| 22000168 | CCMT 060204 | YG3030 | 6.35 | 0.4 | 2.38 | 5 days | $9.10 | ||
| 22000172 | CCMT 09T304 | YG3010 | 9.525 | 0.4 | 3.97 | 5 days | $10.90 | ||
| 22000173 | CCMT 09T304 | YG3020 | 9.525 | 0.4 | 3.97 | 5 days | $10.90 | ||
| 22000174 | CCMT 09T304 | YG3030 | 9.525 | 0.4 | 3.97 | 5 days | $10.90 | ||
| 22000175 | CCMT 120404 | YG3010 | 12.7 | 0.4 | 4.76 | 5 days | $12.70 | ||
| 22000176 | CCMT 120404 | YG3020 | 12.7 | 0.4 | 4.76 | 5 days | $12.70 | ||
| 22000445 | CCMT 09T308 | YG1001 | 9.525 | 0.8 | 3.97 | 5 days | $9.90 | ||
| 22000479 | CCMT 060208 | YG3010 | 6.35 | 0.8 | 2.38 | 5 days | $9.10 | ||
| 22000483 | CCMT 120412 | YG3010 | 12.7 | 1.2 | 4.76 | 5 days | $12.70 | ||
| 22000683 | CCMT 060208 | YG3020 | 6.35 | 0.8 | 2.38 | In stock | $9.10 | ||
| 22000684 | CCMT 060208 | YG3030 | 6.35 | 0.8 | 2.38 | 5 days | $9.10 |
Turning Grades
YG3010
P05–P20
K15–K35
CVD TiCN–Al₂O₃
Finishing Steels & Ductile Cast Iron
- Finishing/light machining under stable conditions
- New Al₂O₃ + post-treatment improves wear and surface smoothness
YG3020
P15–P30
CVD TiCN–Al₂O₃
General Steel Application
- Substrate engineered for good toughness
- Excellent surface smoothness and reliability
YG3030
P20–P35
M10-M30
CVD TiCN–Al₂O₃
Interrupted Cutting of Steel & Stainless
- Roughing in mild & low-carbon alloy steels
- Optimized post-treatment balances wear & chipping resistance
YG801
P10–P30
PVD–TiAlSiN
Carbon Steel at Low Cutting Speed
- Recommended for mild steel and boring
- Special PVD coating delivers excellent wear resistance
P
Steels
M
Stainless Steels
K
Cast Iron
Add CCMT-UG General Turning Insert (80° Positive) to comparison
View Comparison- Overview
- Reviews
Product Description
CCMT-UG 80° positive carbide inserts from YG-1 deliver stable medium chip control. The UG chipbreaker manages heat and chips for consistent surface finish and tool life. Select YG1001, YG3010, YG3020, YG3030 or YG801 to match cast iron, steel or stainless. A cost-effective option from South Korea’s YG-1, known for performance and reliability.
- Five grades cover finishing to roughing across steel, stainless and cast iron
- UG Medium chipbreaker for controlled chips and smooth surfaces in general turning
- CCMT 80° positive geometry for low cutting forces and dependable performance
- YG1001 supports high-speed cast iron including dry cutting for long wear
- YG3030 resists chipping in interrupted cuts on steel and stainless
- YG801 suits low speed carbon steel and boring with durable PVD coating
Product Data
| Chip Breaker | UG |
| Corner Radius | 0.4, 0.8, 1.2 |
| Turning Grade | YG1001, YG3010, YG3020, YG3030, YG801 |
