YG1001
P01–P10
K10–K25
CVD TiCN–Al₂O₃
Stable Machining of Cast Iron
- Substrate designed for high wear resistance
- Thick Al₂O₃ ensures good wear at high speeds, including dry cutting
New
Made in South Korea

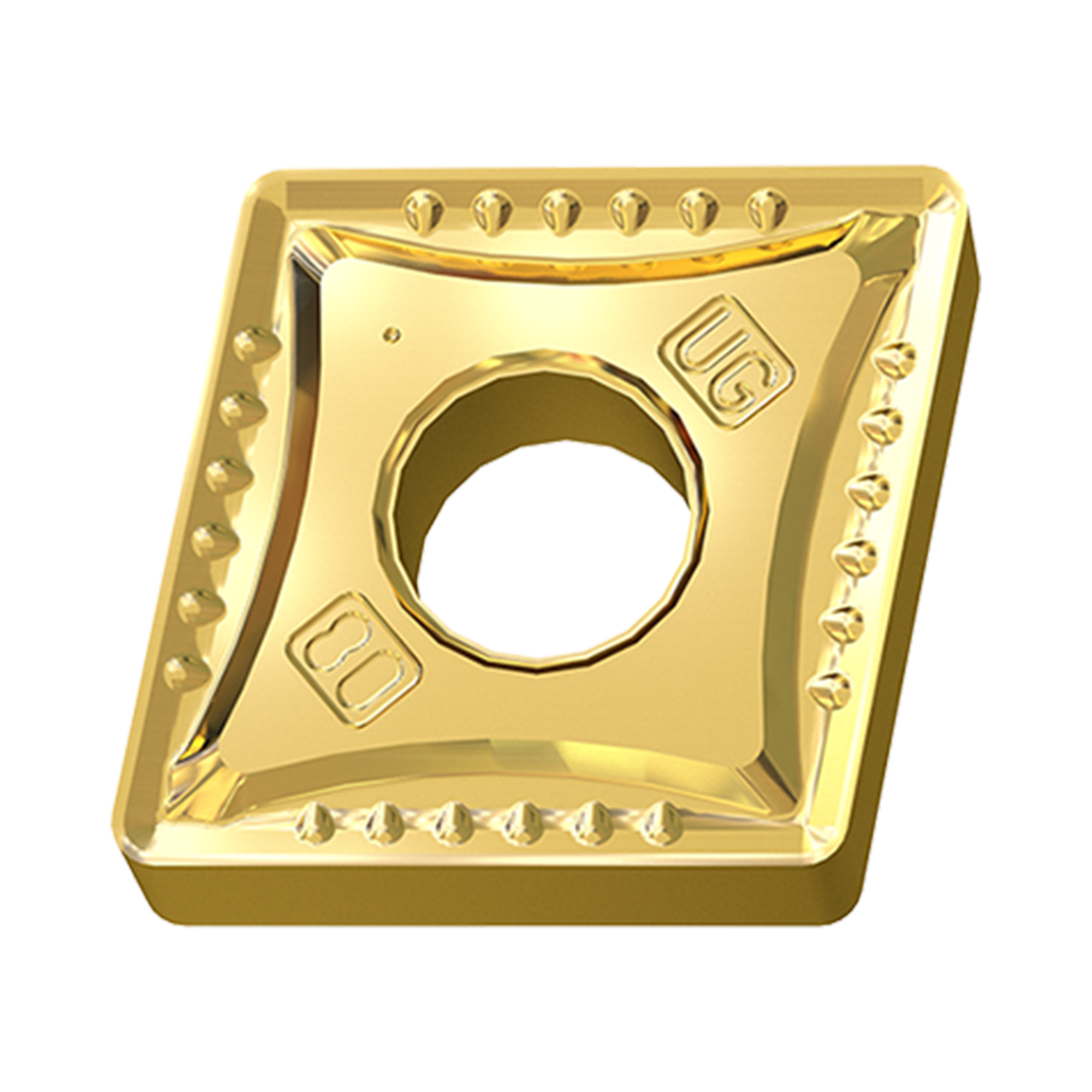

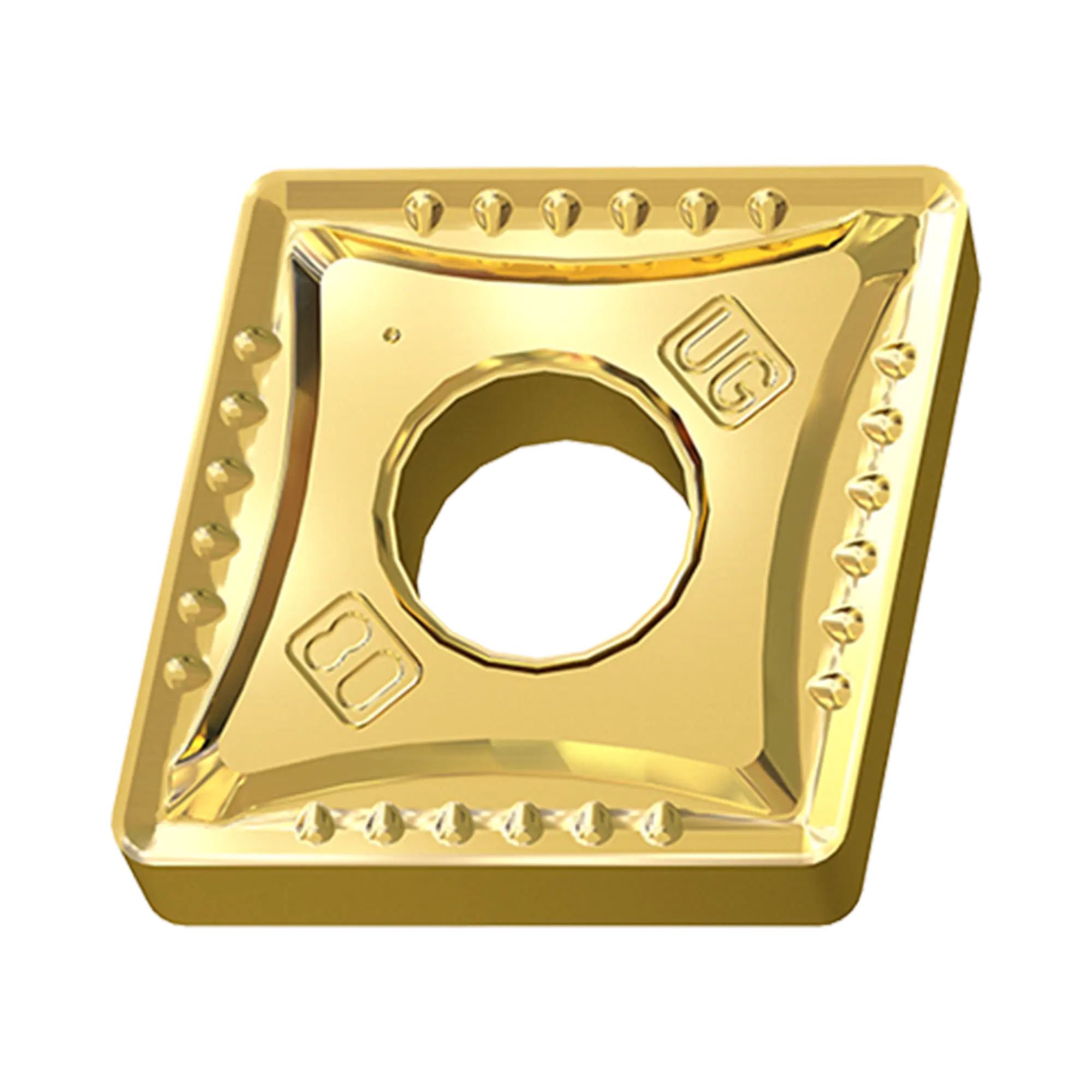

CNMG-UG Medium Machining (Stable) Turning Insert (80° Negative)
Code: 22000001
Made in South Korea
If you're not 100% happy with your purchase, we'll replace or refund.
| SKU | Designation | Grade | Inner Circle (mm) | Corner radius (mm) | Thickness (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|
| 22000001 | CNMG 120408 | YG801 | 12.7 | 0.8 | 4.76 | In stock | $11.60 | ||
| 22000099 | CNMG 120408 | YG3020 | 12.7 | 0.8 | 4.76 | In stock | $12.70 | ||
| 22000113 | CNMG 120408 | YG3010 | 12.7 | 0.8 | 4.76 | 5 days | $12.70 | ||
| 22000139 | CNMG 120408 | YG3030 | 12.7 | 0.8 | 4.76 | 5 days | $12.70 | ||
| 22000181 | CNMG 120404 | YG3010 | 12.7 | 0.4 | 4.76 | 5 days | $12.70 | ||
| 22000182 | CNMG 120404 | YG3020 | 12.7 | 0.4 | 4.76 | 5 days | $12.70 | ||
| 22000183 | CNMG 120404 | YG3030 | 12.7 | 0.4 | 4.76 | 5 days | $12.70 | ||
| 22000198 | CNMG 120412 | YG3010 | 12.7 | 1.2 | 4.76 | 5 days | $12.70 | ||
| 22000199 | CNMG 120412 | YG3020 | 12.7 | 1.2 | 4.76 | 5 days | $12.70 | ||
| 22000200 | CNMG 120412 | YG3030 | 12.7 | 1.2 | 4.76 | In stock | $12.70 | ||
| 22000337 | CNMG 120408 | YG1001 | 12.7 | 0.8 | 4.76 | 5 days | $11.60 | ||
| 22000508 | CNMG 160612 | YG3020 | 15.875 | 1.2 | 6.35 | 5 days | $20.30 | ||
| 22000510 | CNMG 160616 | YG3020 | 15.875 | 1.6 | 6.35 | 5 days | $20.30 | ||
| 22000530 | CNMG 160612 | YG3010 | 15.875 | 1.2 | 6.35 | 5 days | $20.30 | ||
| 22000531 | CNMG 160612 | YG3030 | 15.875 | 1.2 | 6.35 | 5 days | $20.30 | ||
| 22000534 | CNMG 160616 | YG3010 | 15.875 | 1.6 | 6.35 | 5 days | $20.30 | ||
| 22000535 | CNMG 160616 | YG3030 | 15.875 | 1.6 | 6.35 | 5 days | $20.30 | ||
| 22000685 | CNMG 120412 | YG1001 | 12.7 | 1.2 | 4.76 | 5 days | $11.60 | ||
| 22000749 | CNMG 160608 | YG3030 | 15.875 | 0.8 | 6.35 | 5 days | $20.30 | ||
| 22000801 | CNMG 190608 | YG3010 | 19.05 | 0.8 | 6.35 | 5 days | $27.10 | ||
| 22000802 | CNMG 190608 | YG3020 | 19.05 | 0.8 | 6.35 | 5 days | $27.10 | ||
| 22000803 | CNMG 190608 | YG3030 | 19.05 | 0.8 | 6.35 | 5 days | $27.10 |
Turning Grades
YG3010
P05–P20
K15–K35
CVD TiCN–Al₂O₃
Finishing Steels & Ductile Cast Iron
- Finishing/light machining under stable conditions
- New Al₂O₃ + post-treatment improves wear and surface smoothness
YG3020
P15–P30
CVD TiCN–Al₂O₃
General Steel Application
- Substrate engineered for good toughness
- Excellent surface smoothness and reliability
YG3030
P20–P35
M10-M30
CVD TiCN–Al₂O₃
Interrupted Cutting of Steel & Stainless
- Roughing in mild & low-carbon alloy steels
- Optimized post-treatment balances wear & chipping resistance
YG801
P10–P30
PVD–TiAlSiN
Carbon Steel at Low Cutting Speed
- Recommended for mild steel and boring
- Special PVD coating delivers excellent wear resistance
P
Steels
M
Stainless Steels
K
Cast Iron
Add CNMG-UG Medium Machining (Stable) Turning Insert (80° Negative) to comparison
View Comparison- Overview
- Reviews
Product Description
Product Data
| Chip Breaker | UG |
| Corner Radius | 0.4, 0.8, 1.2, 1.6 |
| Turning Grade | YG1001, YG3010, YG3020, YG3030, YG801 |
