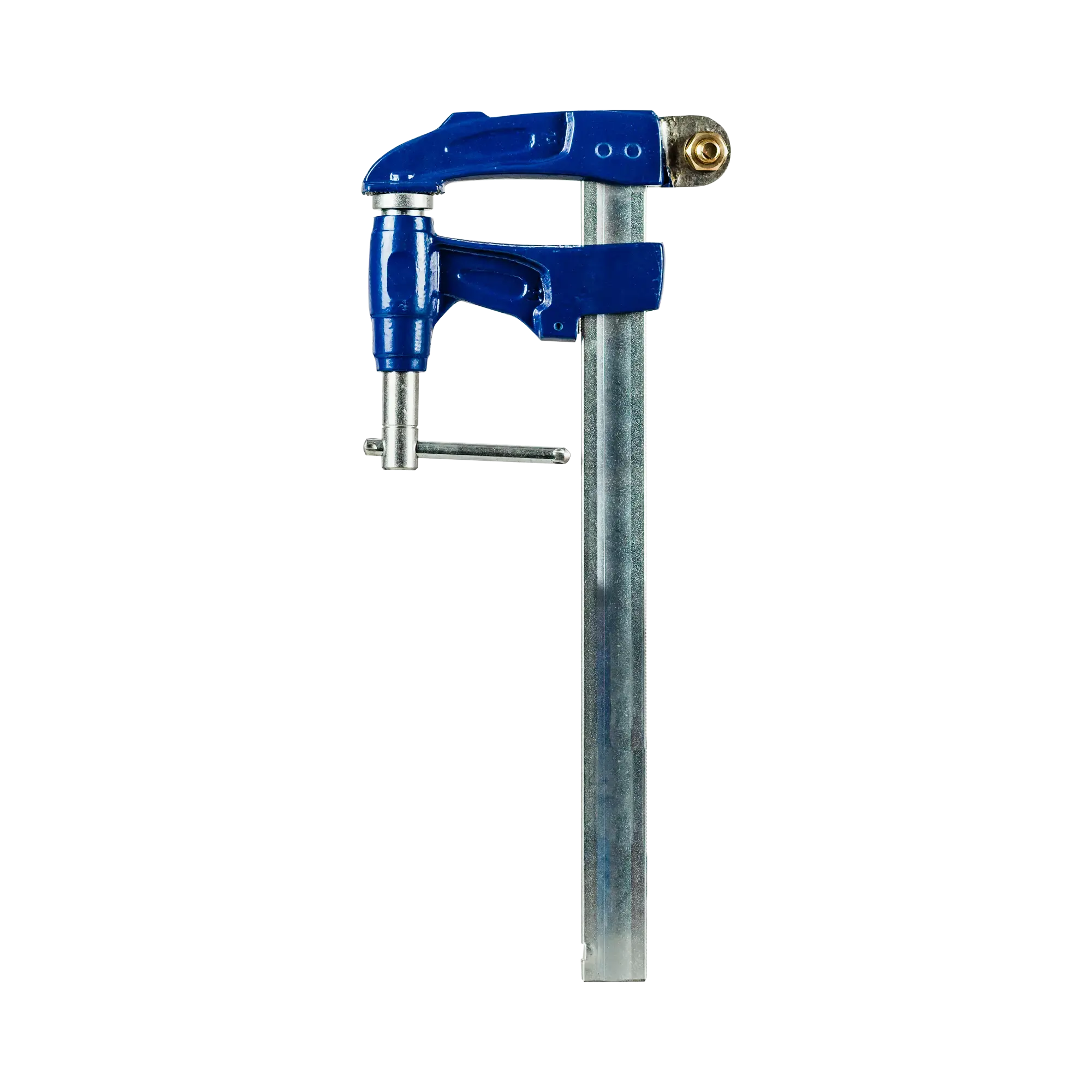

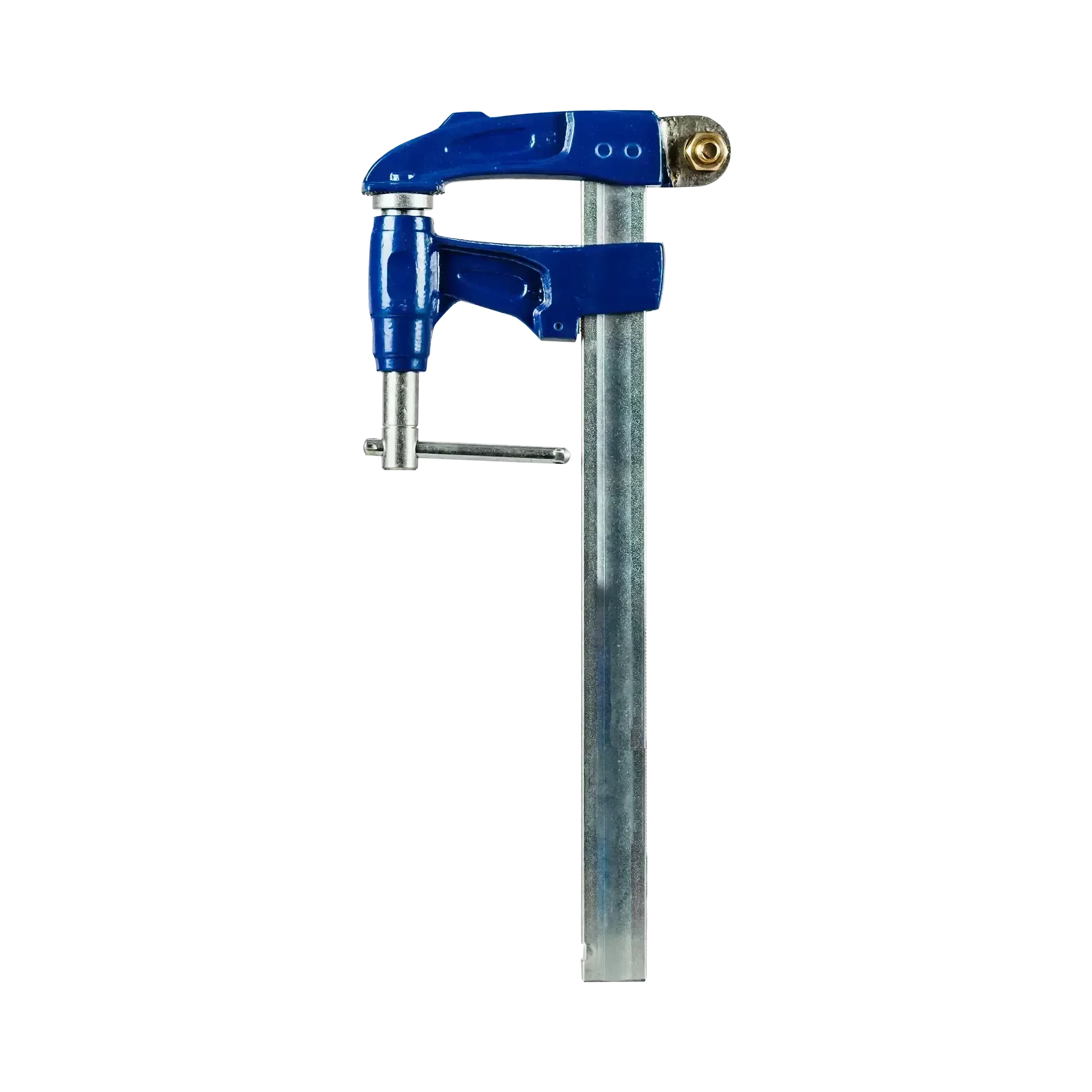

300mm EX Earth Xtreme Clamp - 120mm Depth
Code: 326300120
Made in Spain
Add 300mm EX Earth Xtreme Clamp - 120mm Depth to comparison
View Comparison- Overview
- Reviews
Product Description
The World's best welding clamp with a unique earthing contact plate. The unique design gives you over 70% more clamping force than heavy duty conventional F-clamps.-
Rated to 800amps for industrial welding applications
-
Special contact plate for increased safety
-

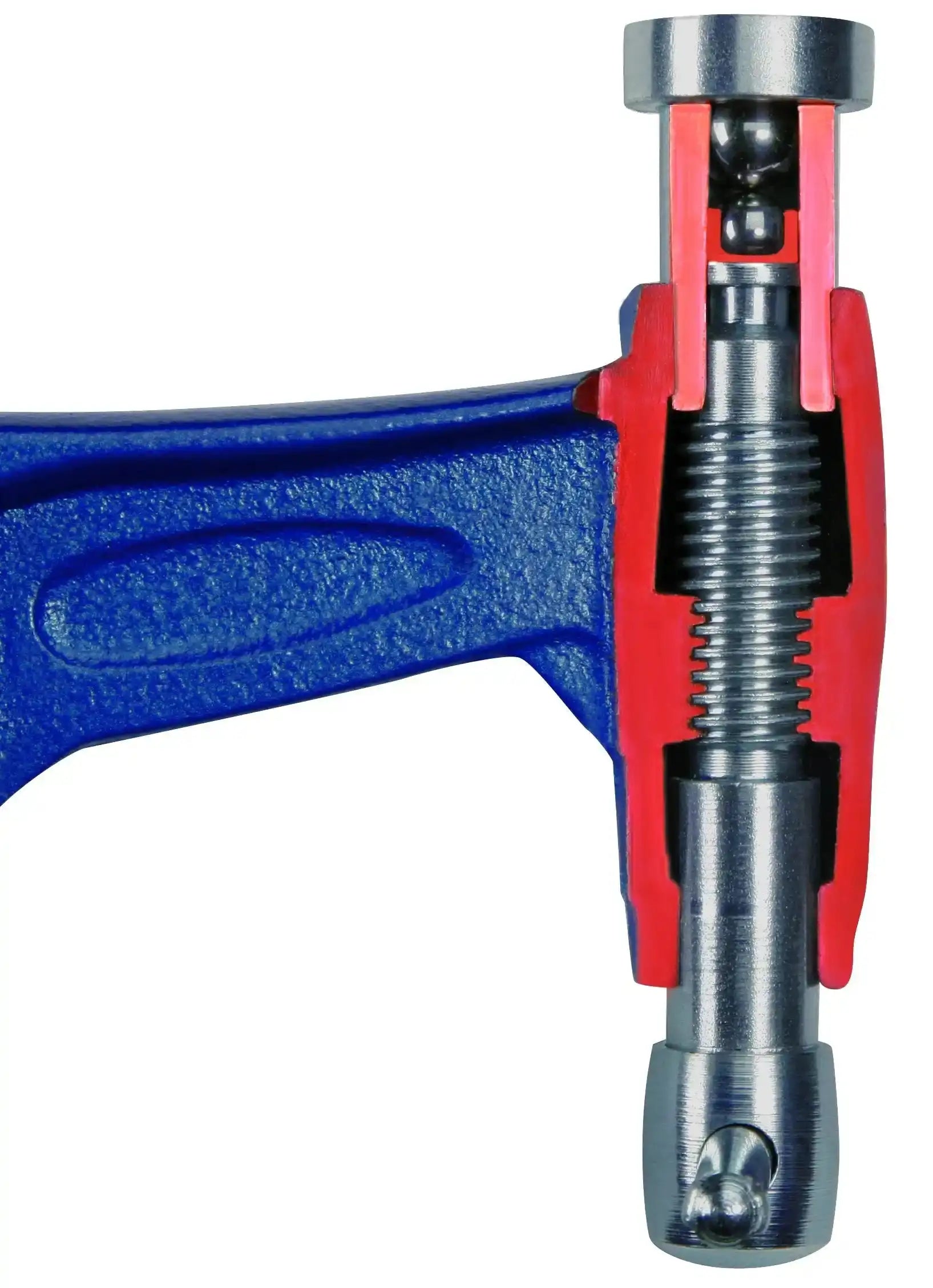

The Unique internal ball bearing removes friction allowing greater precision and more clamping force
-
Completely sealed thread means no welding slag damage
-
Totally sealed means permanently lubricated
-
Dependable braking system (hardened steel) for total confidence
-
Trapezoidal thread means more force for clamping and more ease for release
-
Suited to all environments and applications including welding, working with fluids, humid or salty atmosphere
-
Patented
-
Lifetime Guarantee
-
Made in Spain
| Clamping Force | Solid Bar (a) | Bar Opening (b) | Jaw Depth (c) |
|---|---|---|---|
| 1200kg | 35 x 8mm | 300mm | 120mm |
Product Data
| A=BAR OPENING | 300MM |
| B=JAW DEPTH | 120MM |
| TYPE | Xtreme Clamp |
