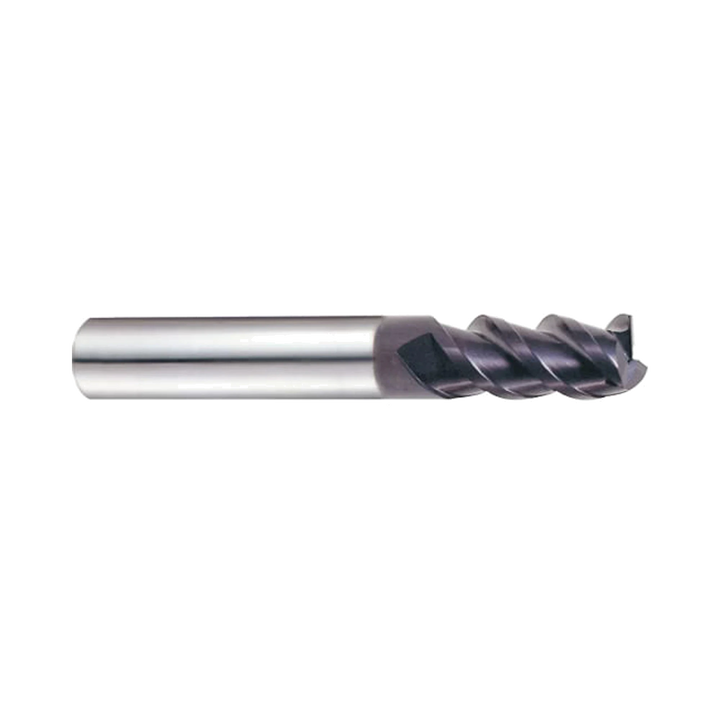

JET-POWER Multi Flute 50°Helix Long End Mill (EH830)

JET-POWER Multi Flute 50°Helix Long End Mill (EH830)
$95.37 INC GST $86.70 EX GST
SKU
EH830080
P M S
Mill Diameter (mm)
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

SKUMill Diameter (mm)Overall length (mm)Shank dia. (mm)Length of cut (mm)CAD filesStock Price Qty Add
EH8300606.050.06.013.0STEPDXF No stock $67.70
EH8300808.060.08.019.0STEPDXF Low stock $86.70
EH83010010.070.010.022.0STEPDXF Low stock $128.30
EH83012012.075.012.025.0STEPDXF Low stock $176.00
EH83016016.090.016.032.0STEPDXF Low stock $291.90
EH83018018.090.018.032.0STEPDXF No stock $426.70
EH83020020.0100.020.038.0STEPDXF No stock $484.00
EH83025025.0120.025.045.0STEPDXF No stock $774.30

Add JET-POWER Multi Flute 50°Helix Long End Mill (EH830) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

The EH830 series range from 6-25mm diameter. These fine pitch rougher End Mills have 3 - 4 flutes and a plain shank (weldon shank available in the EH841 Series) . The Jet Power range from YG-1 have exceptional tool life suitable for high speed machining of Titanium, Hastelloy, Stainless Steel, Inconel and Steel (Under HRc45). Ideal for high velocity milling operation.

  • Extreme Machining of Titanium, Inconel, Hastelloy, Stainless Steel & Steels (Under HRc45)
  • HSC (Suitable for high speed machining)
  • TiALN coated ultrafine micrograin carbide substrate
  • Inox geometry flute design
  • Fast chip ejection
  • High velocity milling operation

Specifications

Flutes 3 & 4
Helix Angle 50°
Cutting Edge Shape SQUARE
Size Min D6.0
Size Max D25.0
Length

Long Length
Coating TiAIN



Product Data
Workpiece Material P M S
Cutting Shape Square
Hardened Steels(HRc40~45) Great
Helix Angle Square 50
Length Long
No. Flutes 3 & 4
Operation Die Sinking, Facing, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment Titanium Aluminium Nitride Coating
Tool Material Carbide
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EH830060 6 6 13 50 0~-0.030 h5 3 EH830080 8 8 19 60 0~-0.030 h5 3 EH830100 10 10 22 70 0~-0.030 h5 3 EH830120 12 12 25 75 0~-0.030 h5 3 EH830160 16 16 32 90 0~-0.030 h5 3 EH830180 18 18 32 90 0~-0.030 h5 3 EH830200 20 20 38 100 0~-0.030 h5 4 EH830250 25 25 45 120 0~-0.030 h5 4 EH830901 6 6 13 50 0~-0.030 h5 4
Side Milling
Small Part
Slotting
Die Sinking
Facing
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
S Inconel

Great

Good Great Excellent
S Titanium

Excellent

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent

No VDI recommendations set for this product.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute EH830060 6 6 13 50 0~-0.030 h5 3 EH830080 8 8 19 60 0~-0.030 h5 3 EH830100 10 10 22 70 0~-0.030 h5 3 EH830120 12 12 25 75 0~-0.030 h5 3 EH830160 16 16 32 90 0~-0.030 h5 3 EH830180 18 18 32 90 0~-0.030 h5 3 EH830200 20 20 38 100 0~-0.030 h5 4 EH830250 25 25 45 120 0~-0.030 h5 4 EH830901 6 6 13 50 0~-0.030 h5 4
