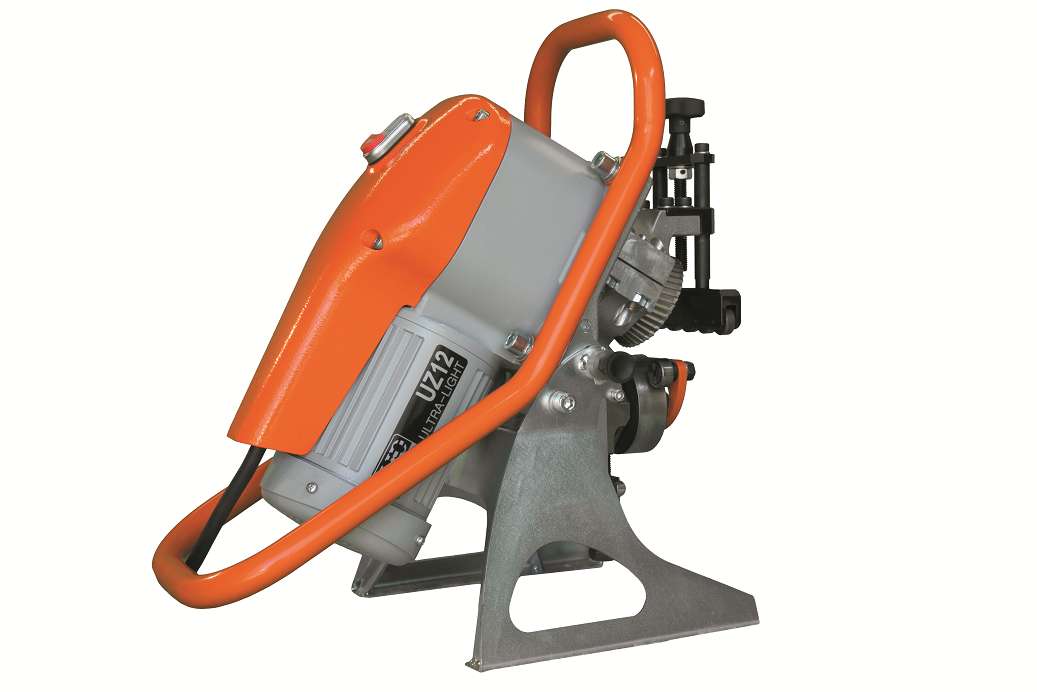

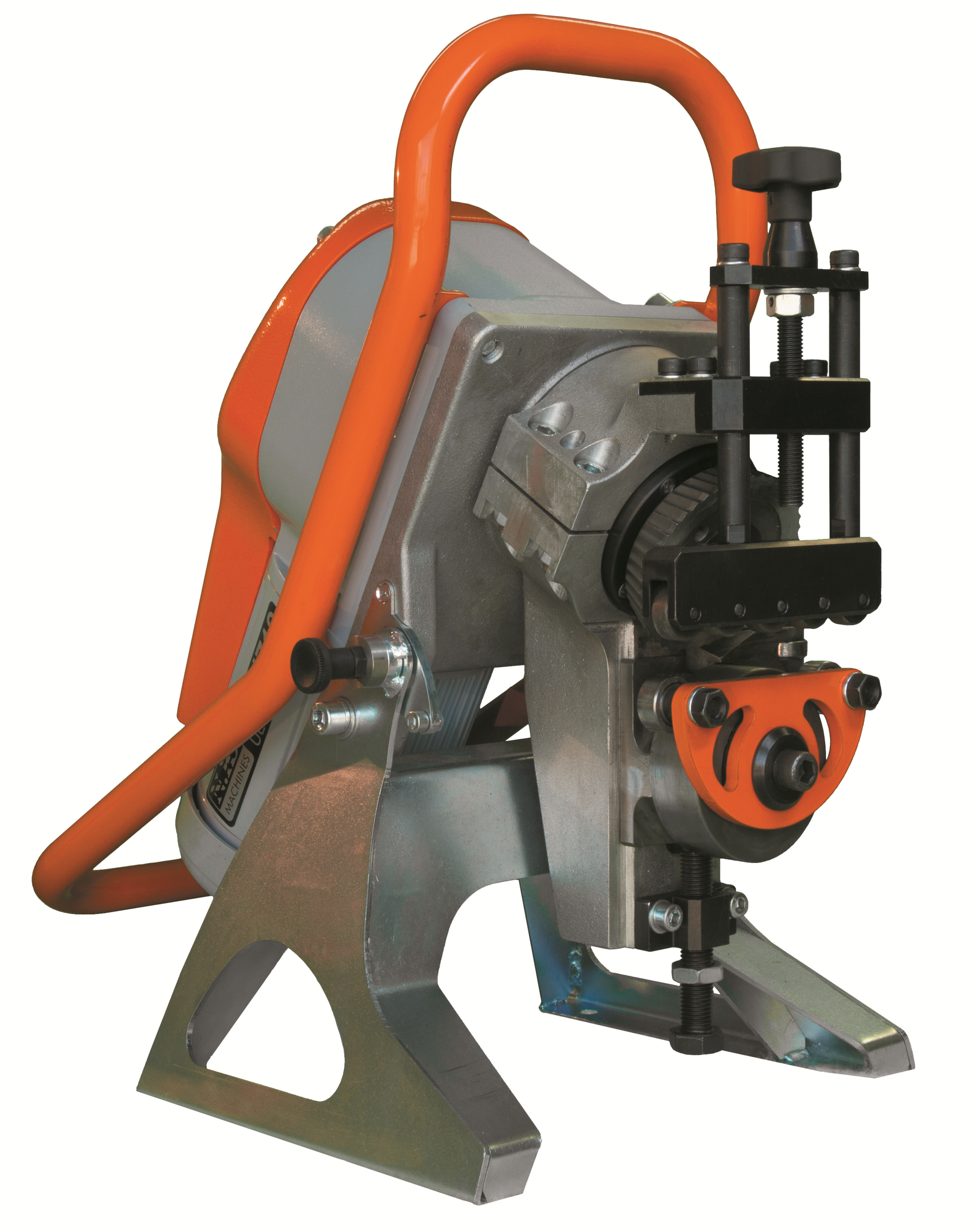

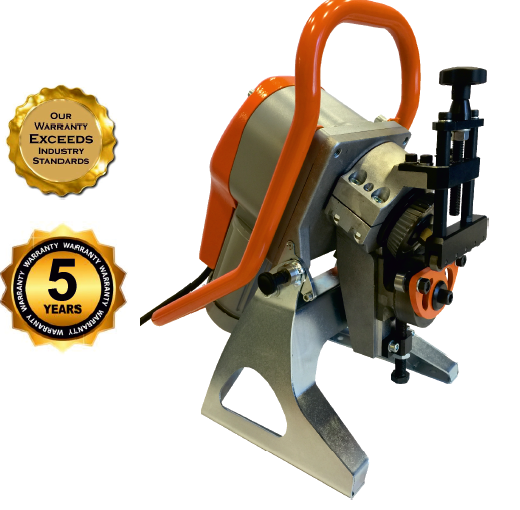

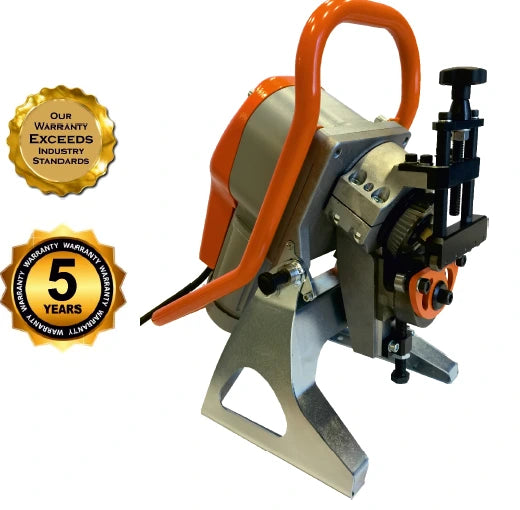

KA12 Auto Beveller
- SKU
- 21922
- Product type
- Metal Preparing Machines
Made in Czech Republic
One-Man Operation

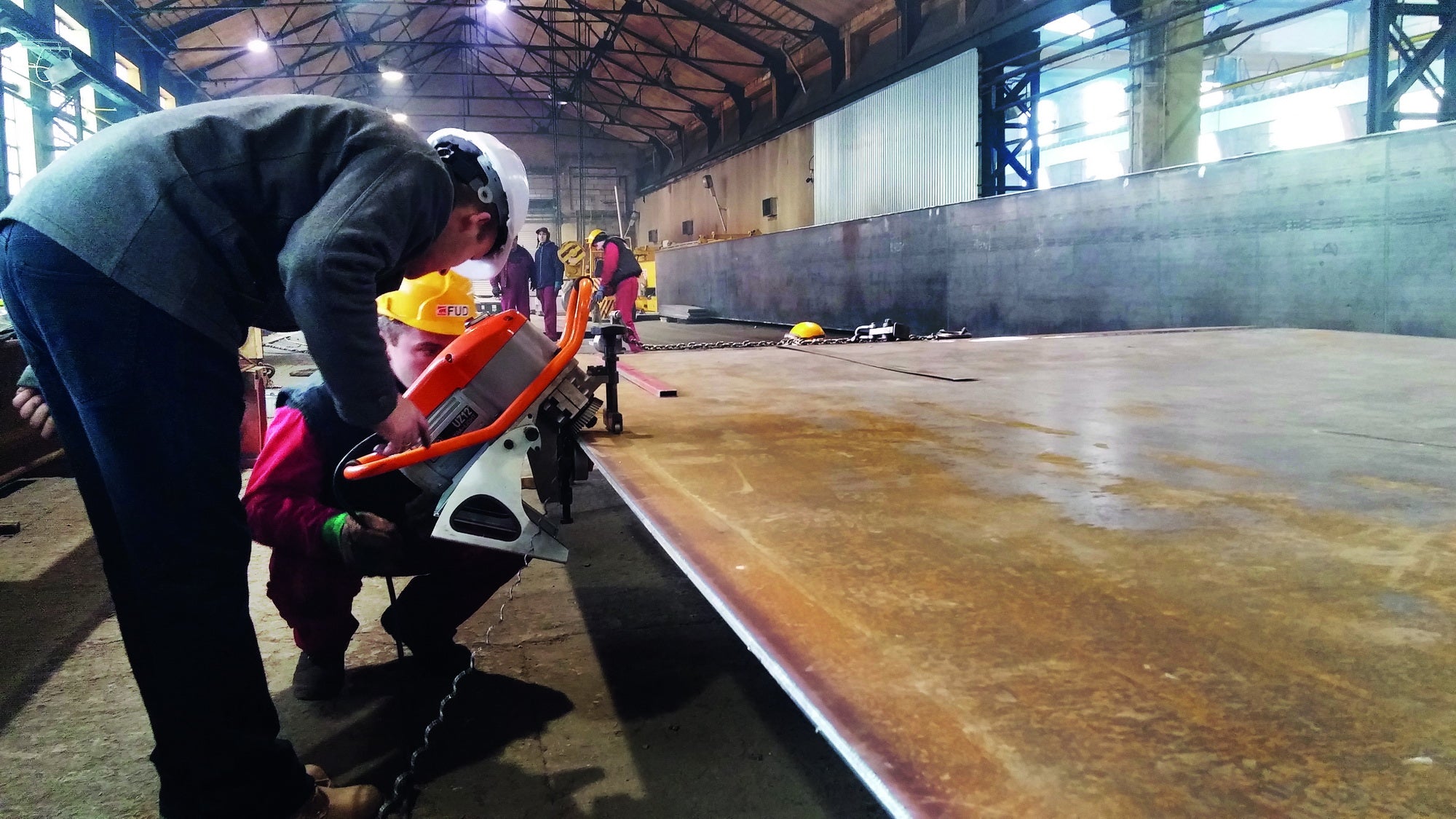

At just 30 kg this unit is easy to carry and run solo on-site.
Double-Sided Bevel Without Flipping
Cuts both sides (X or K) without shifting the plate.
Quietest in Class
Low-noise motor keeps the shop or site tolerable.
Add KA12 Auto Beveller to comparison
View Comparison- Overview
- Reviews

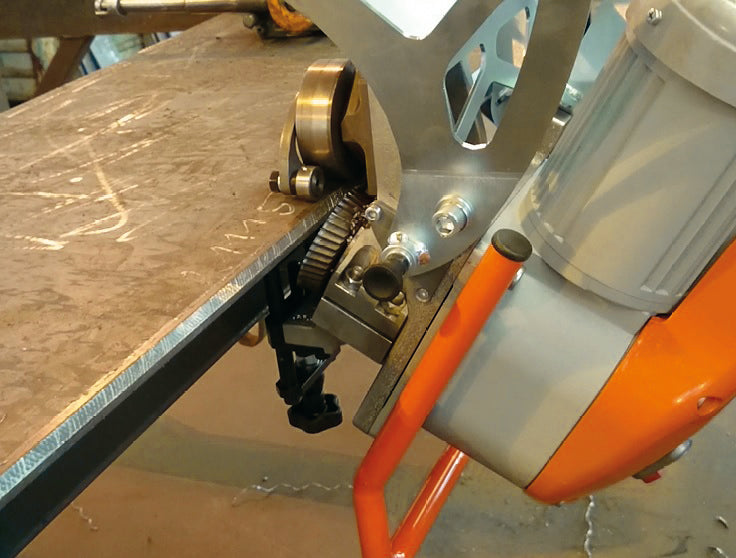

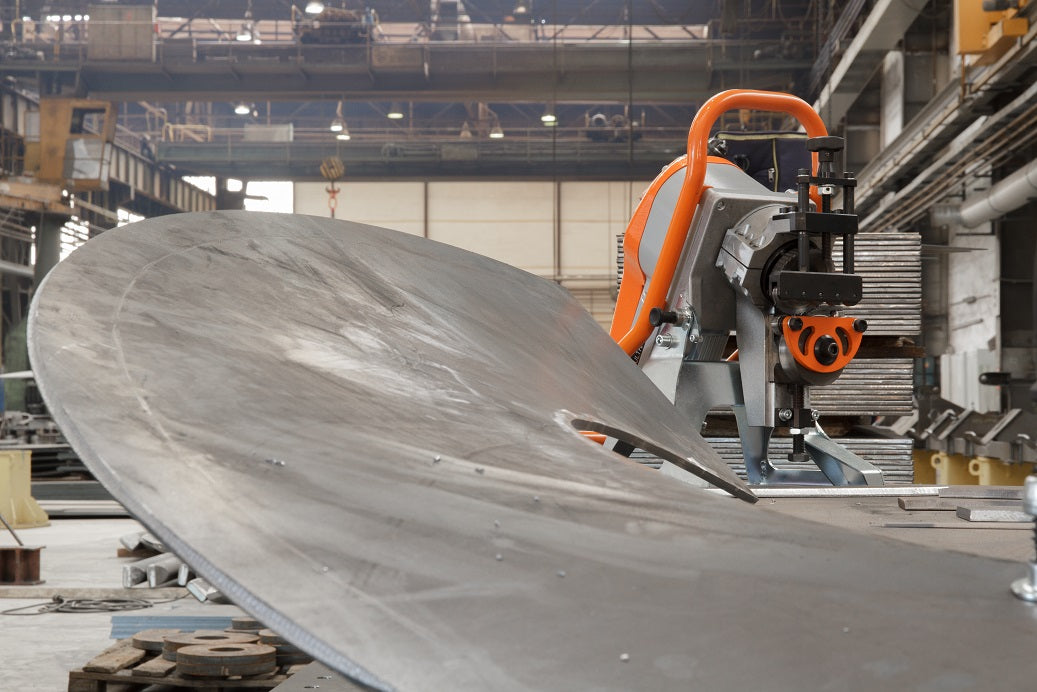

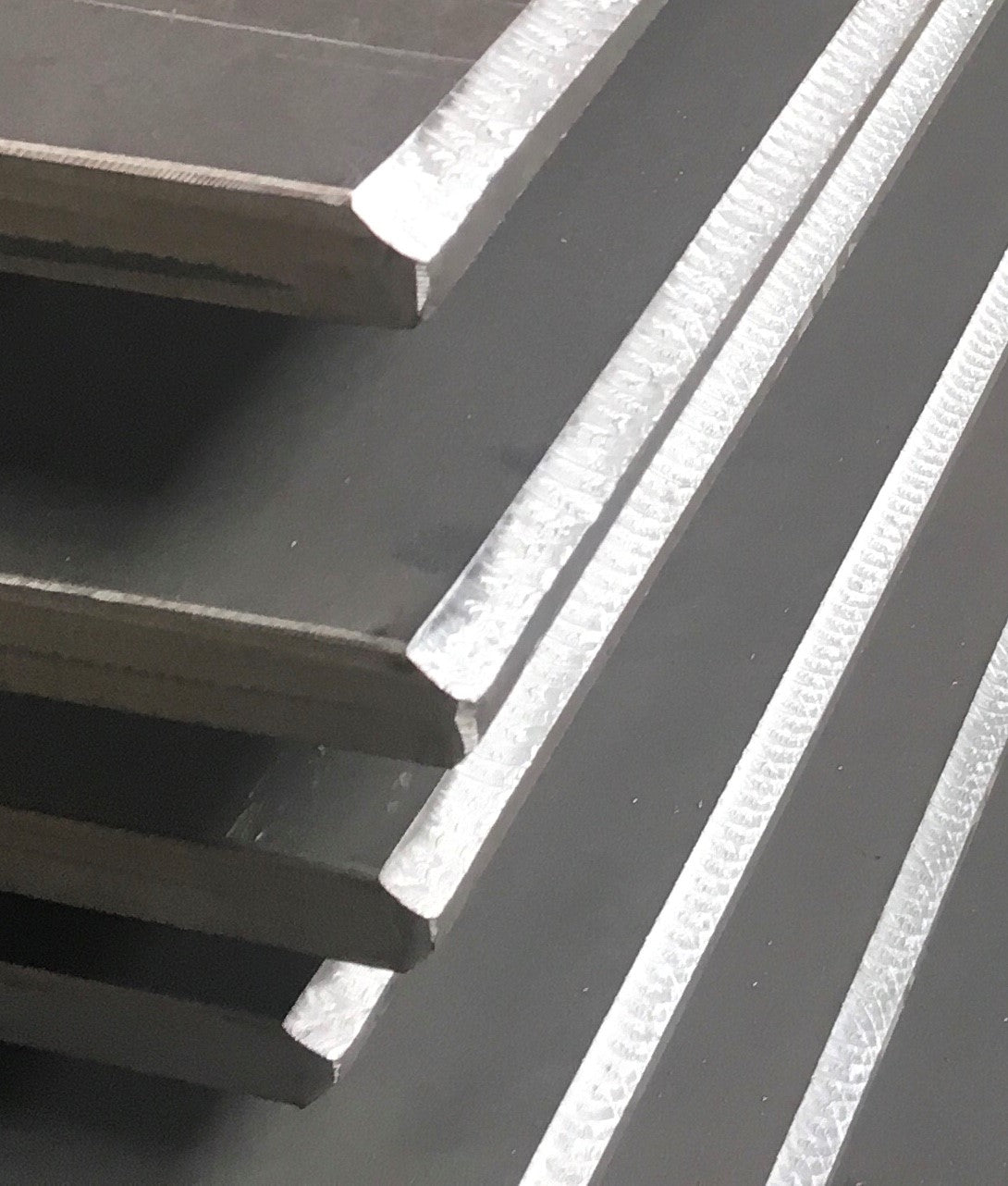

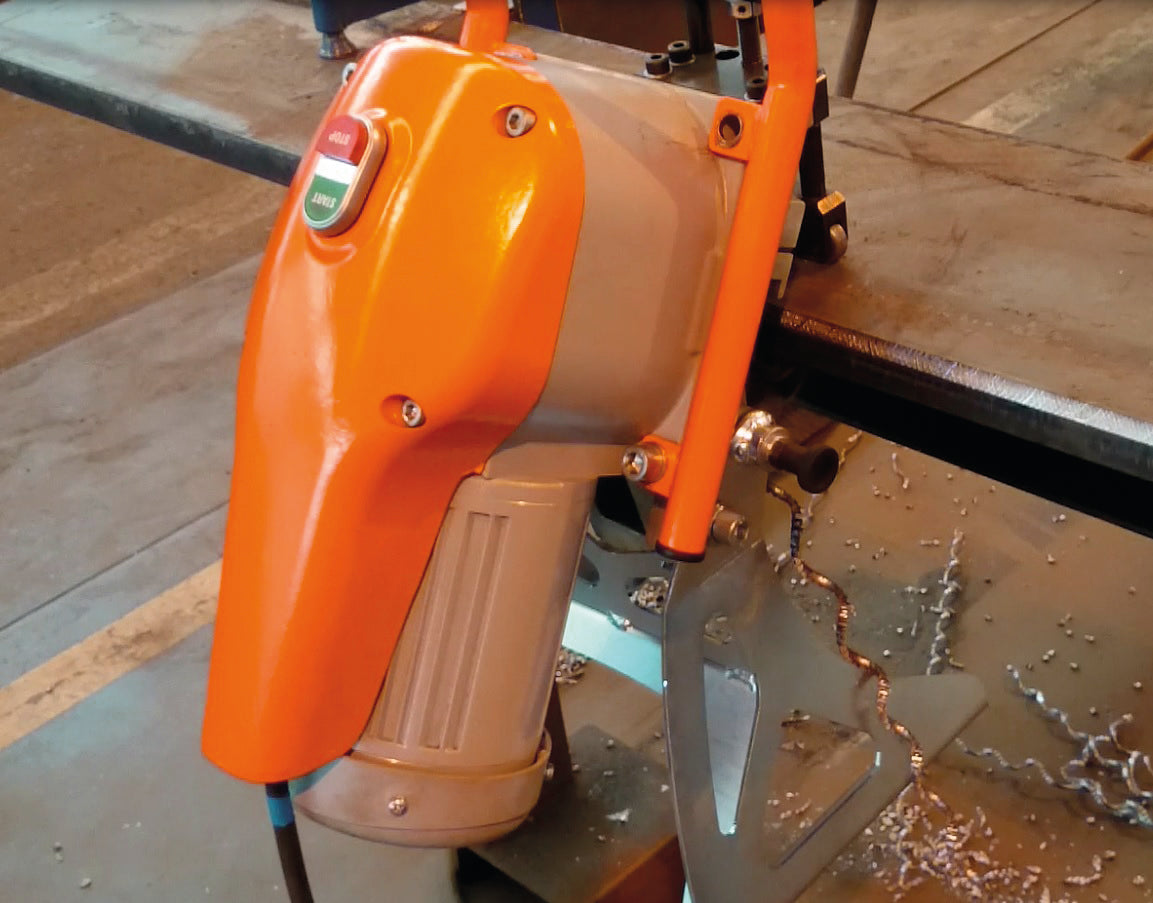

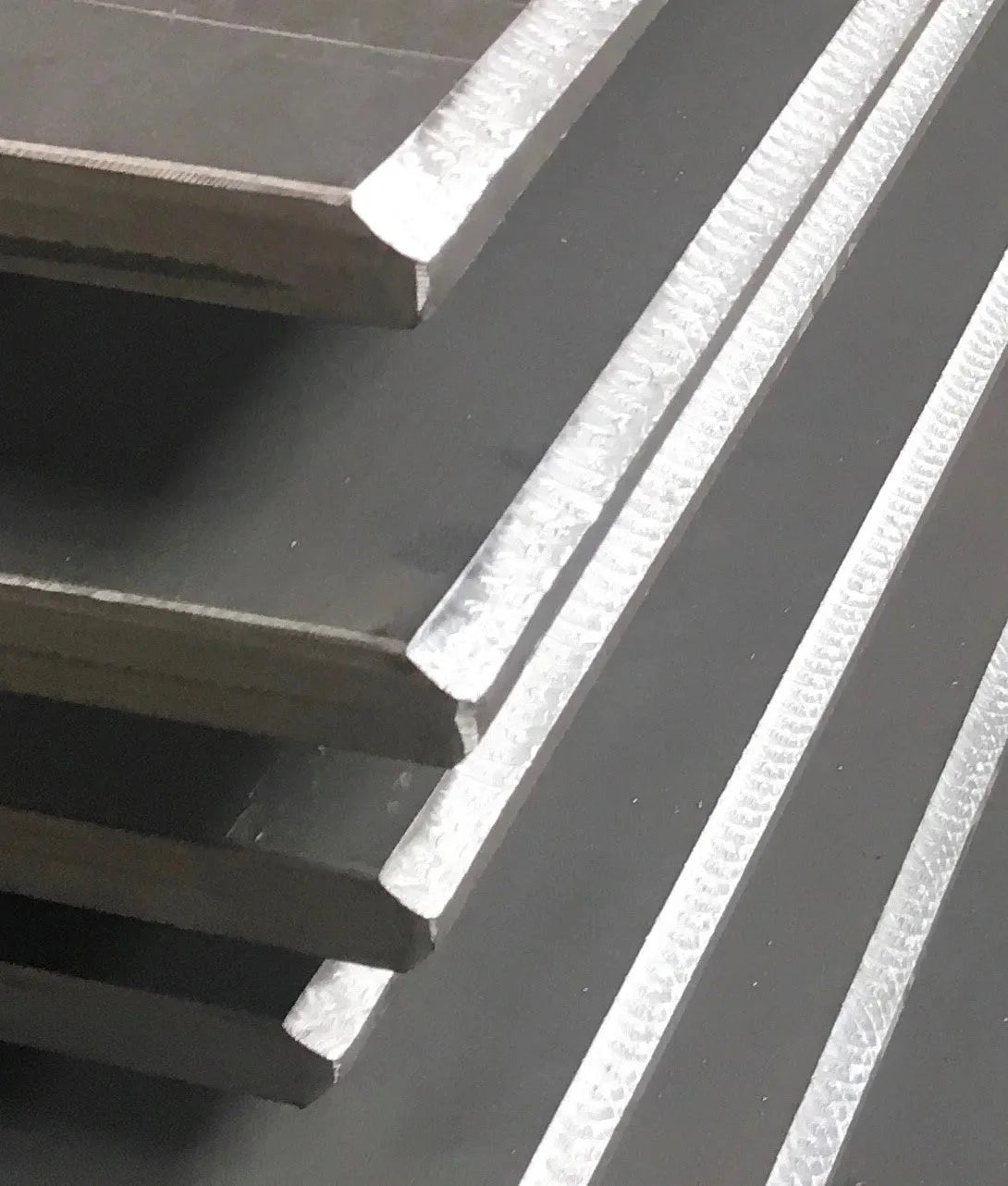

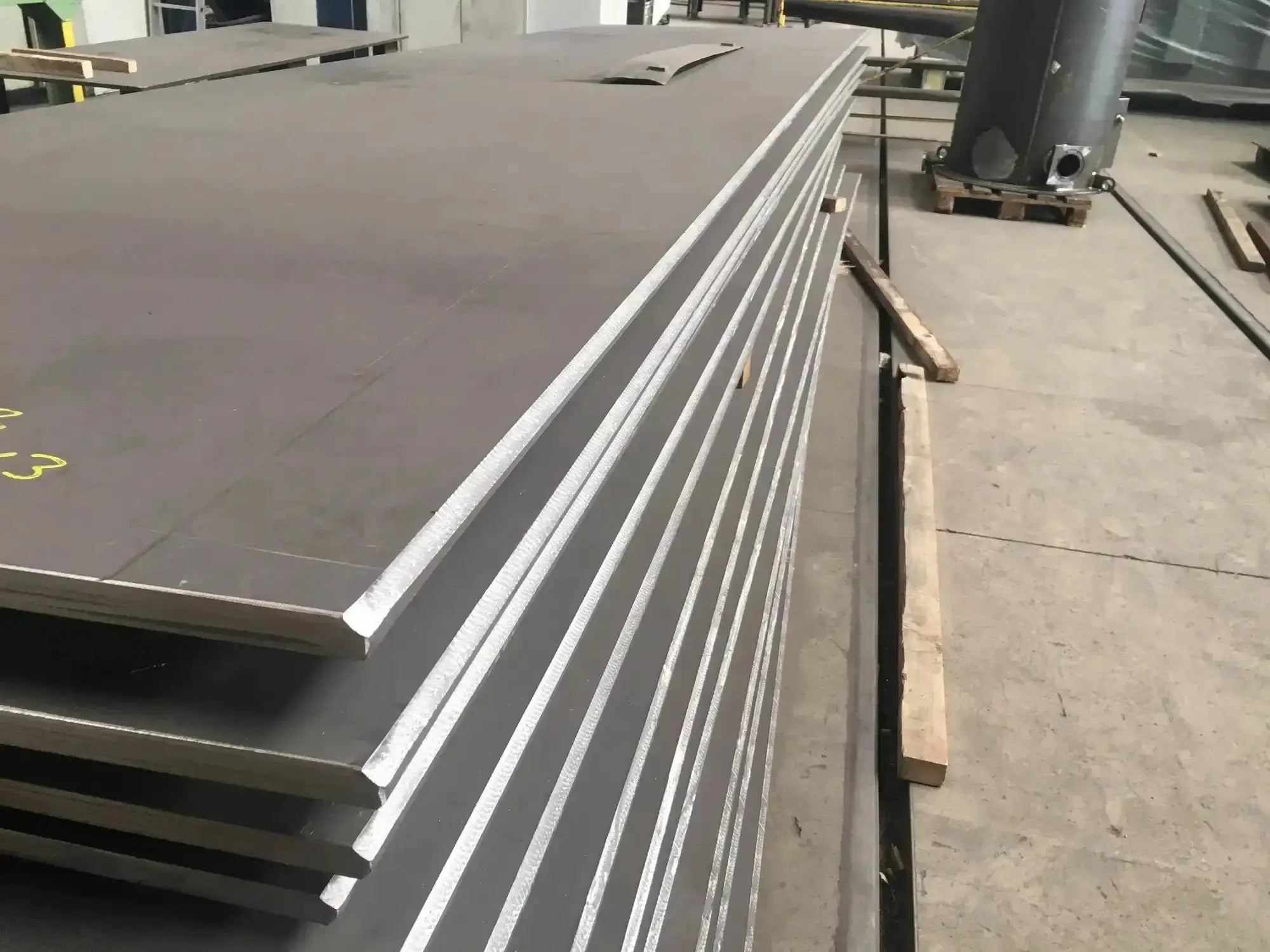

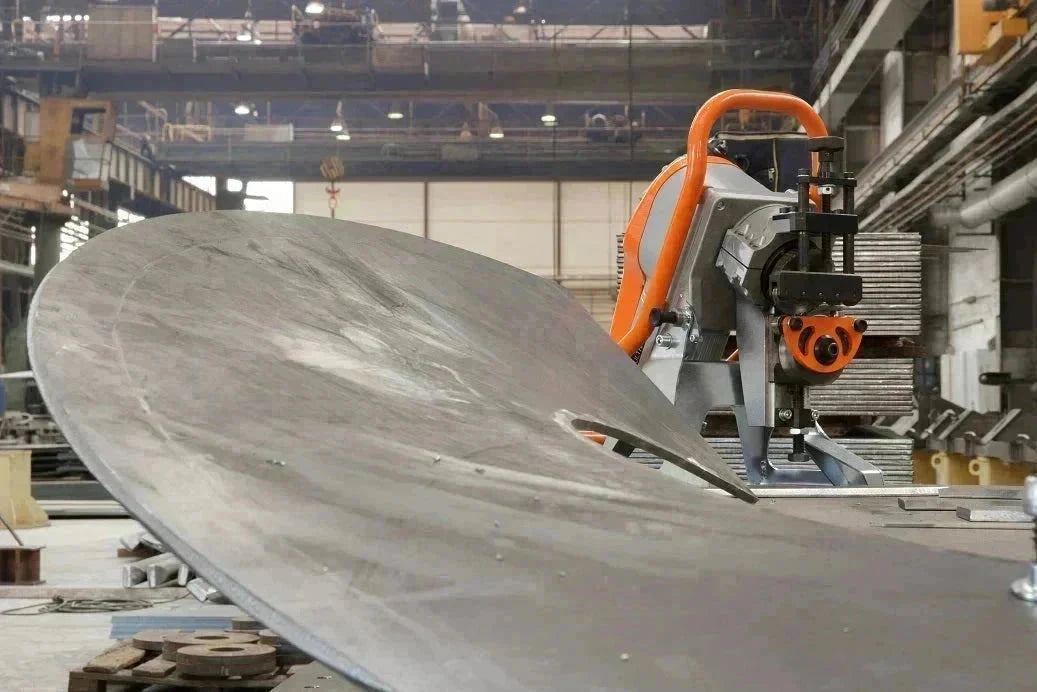

Lightweight and stripped back, the KA12 Auto Beveller makes fast, clean work of metal edges without the usual weight or bulk. Its automatic feed keeps things smooth even on bigger plates while the compact design suits tight setups or mobile jobs. Handles steel, stainless, copper and more without fuss. Surprisingly quiet under load.
- Handles bevels 3–35 mm thick

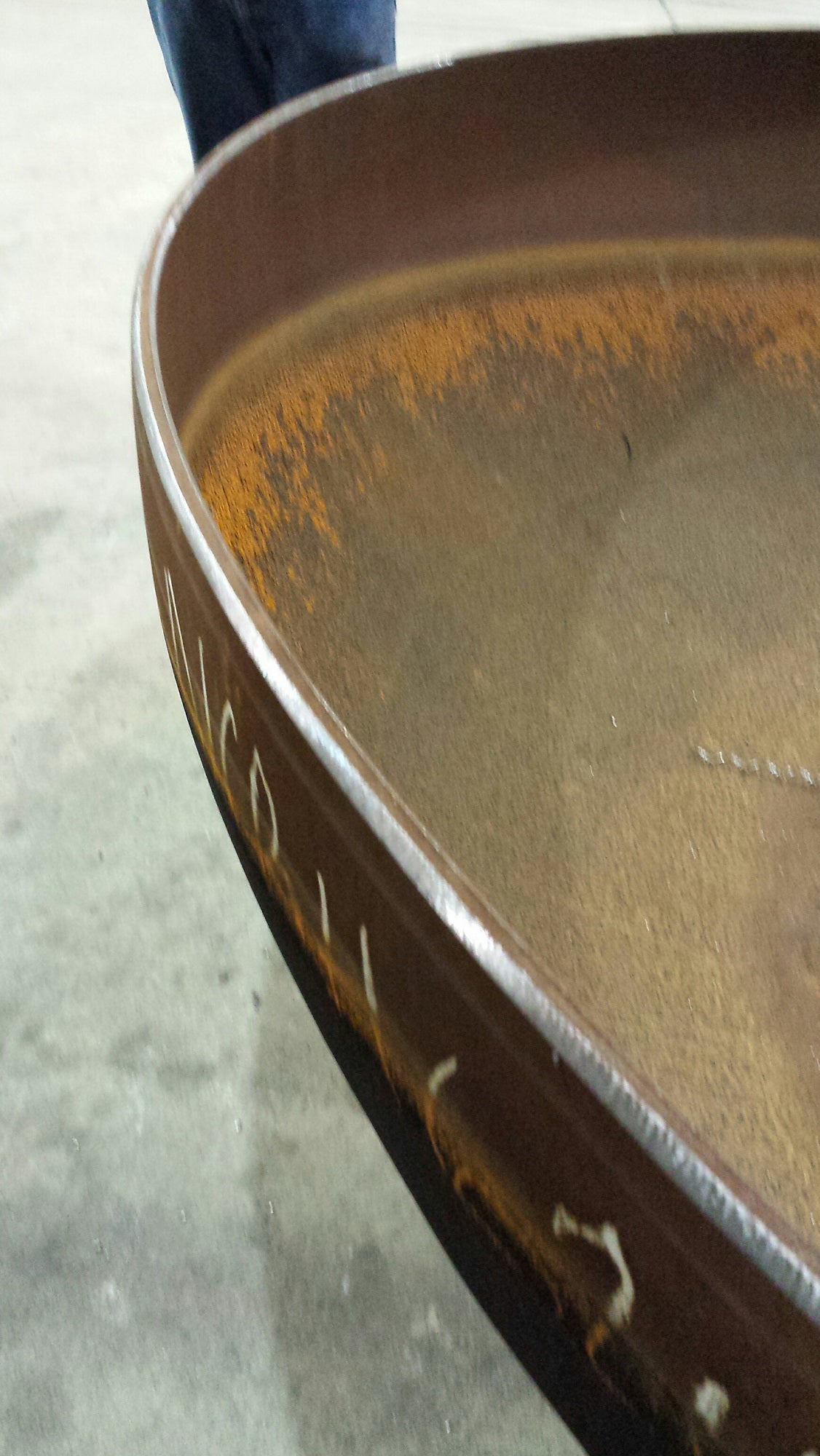

- Pipe bevels from 95 mm inner Ø
- Works at 1.8 m/min without support
- No material flipping for double-sided cuts

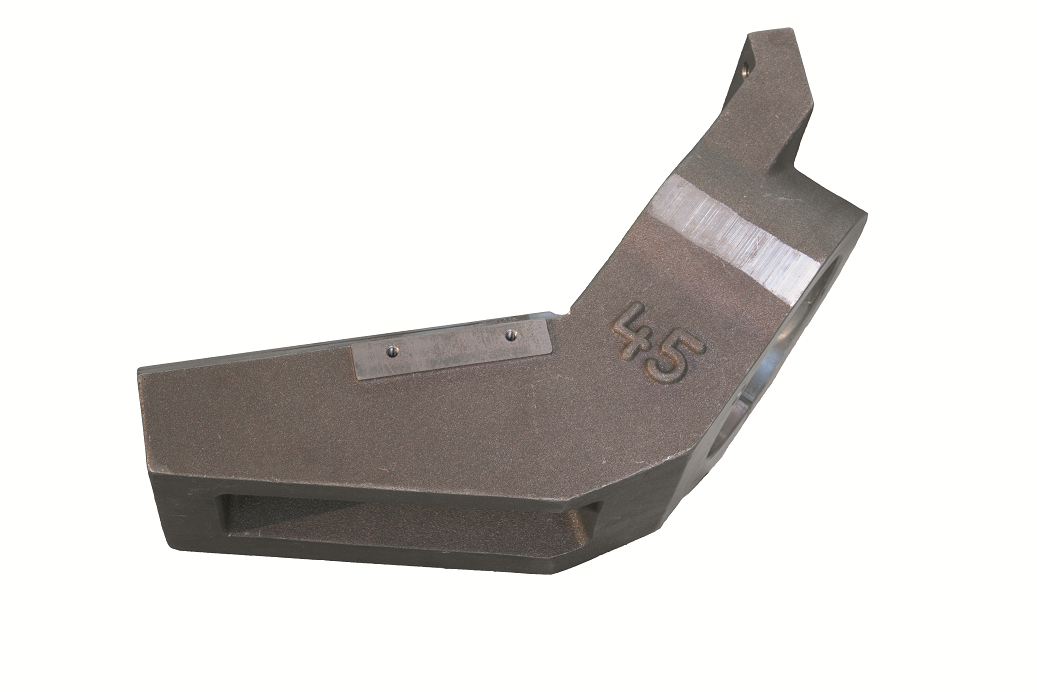

- Swap bevel angles with KIT arms
Specifications
- Bevel angle: 30°, 45°, 22.5°, 37.5°, 50° (replaceable KIT)
- Thickness of bevel. material: 3 - 35 mm / 0.12 - 1.37 in

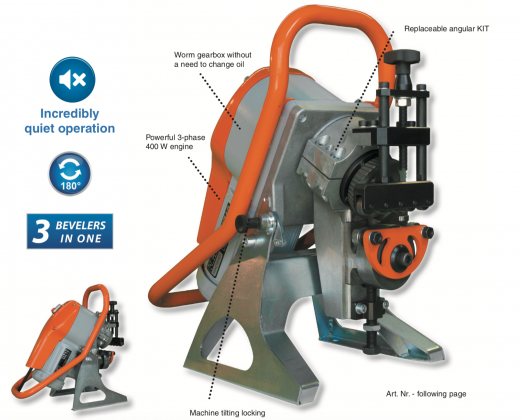

- Engine: 400 W
- Feed: 1,8 m/min. / 5.9 ft/min.
- Weight: 30 kg / 66 lb

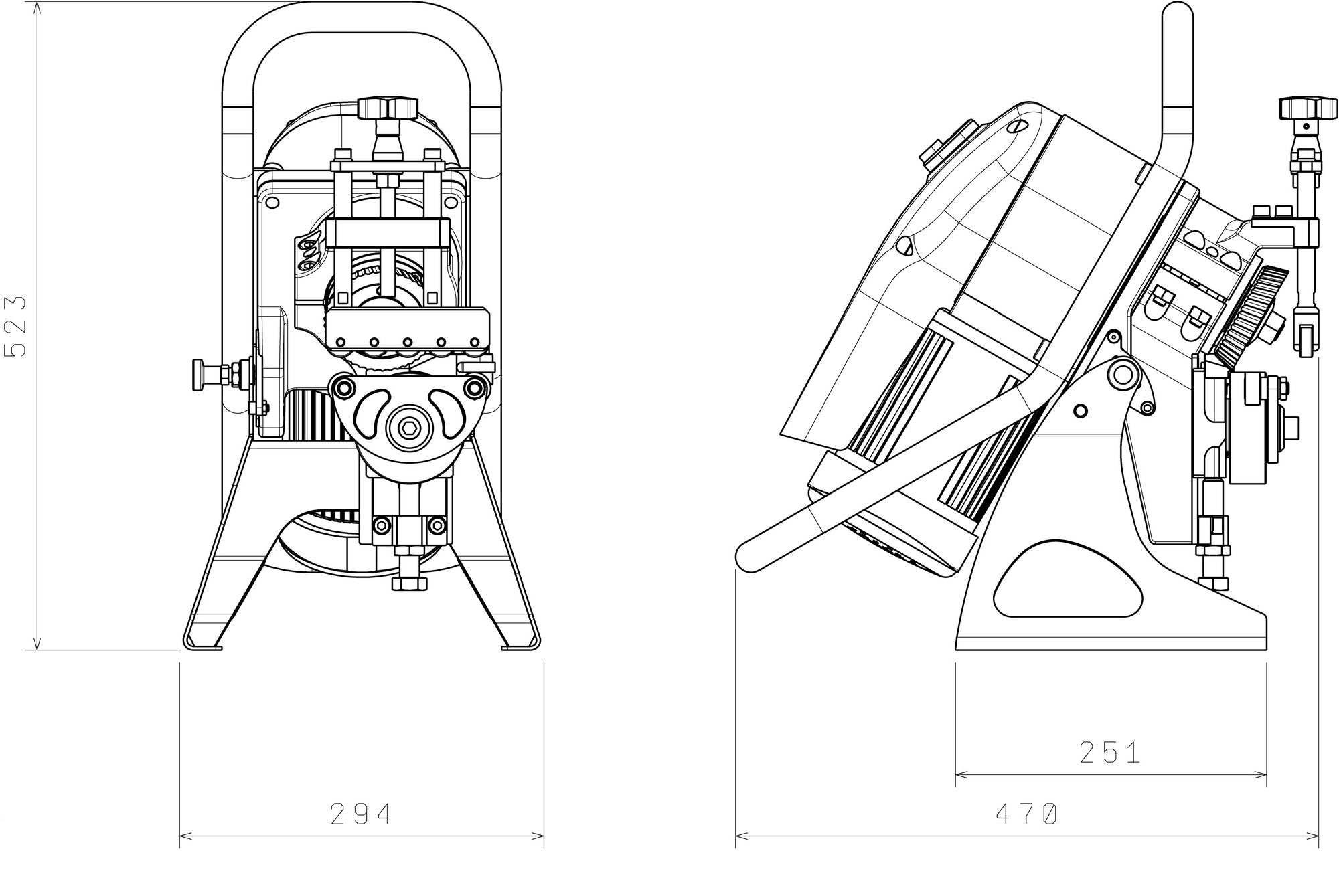

- Dimensions: 470 x 294 x 523 mm / 18.5 x 11.57 x 20.59 in
User manual 3D MANIPULATOR User manual Catalogue sheet
Watch Video Watch Video Watch Video Watch Video
|
Machine name: |
400V – 3phase | 480V – 3phase | 220V – 3phase |
|
KA 12 Auto Beveler - KIT 30° + 45° |
1922 | 1819 | 1913 |
|
KA 12 Auto Beveler - KIT 22,5° + 30° + 37,5° + 45° + 50° + pipe bevelling tool |
1918 | 1818 | 1912 |
| Accessories: | Art.Nr. |

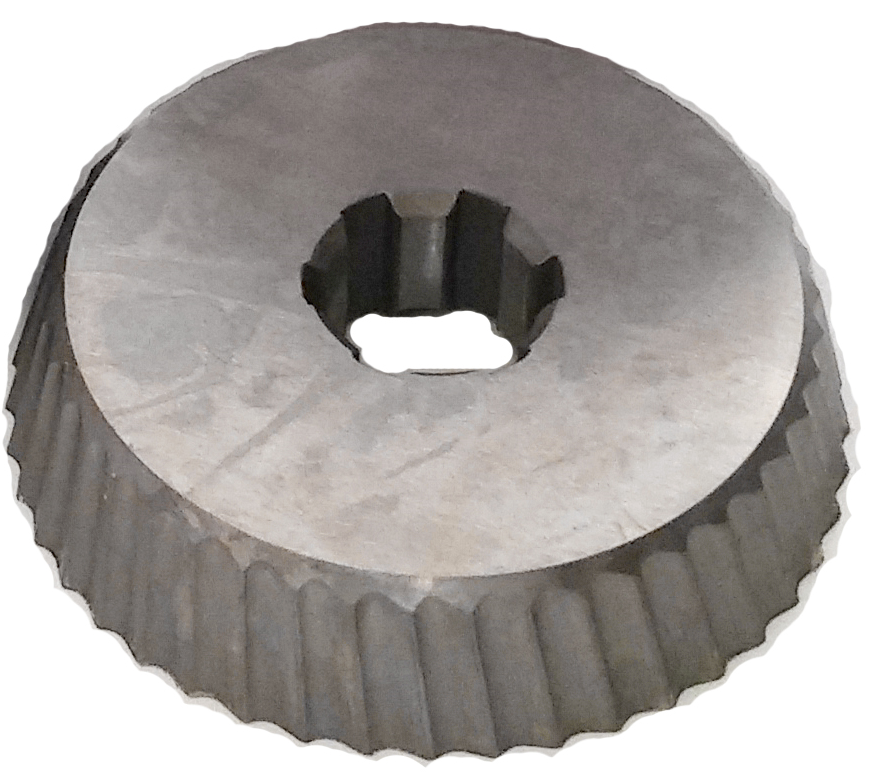

| ECO cutting tool - suitable for conventional steel |
1927 |
| ECO cutting tool - suitable for conventional steel – 2+1 free set |
1928 |
| PVD cutting tool - suitable for tougher materials |
1916 |

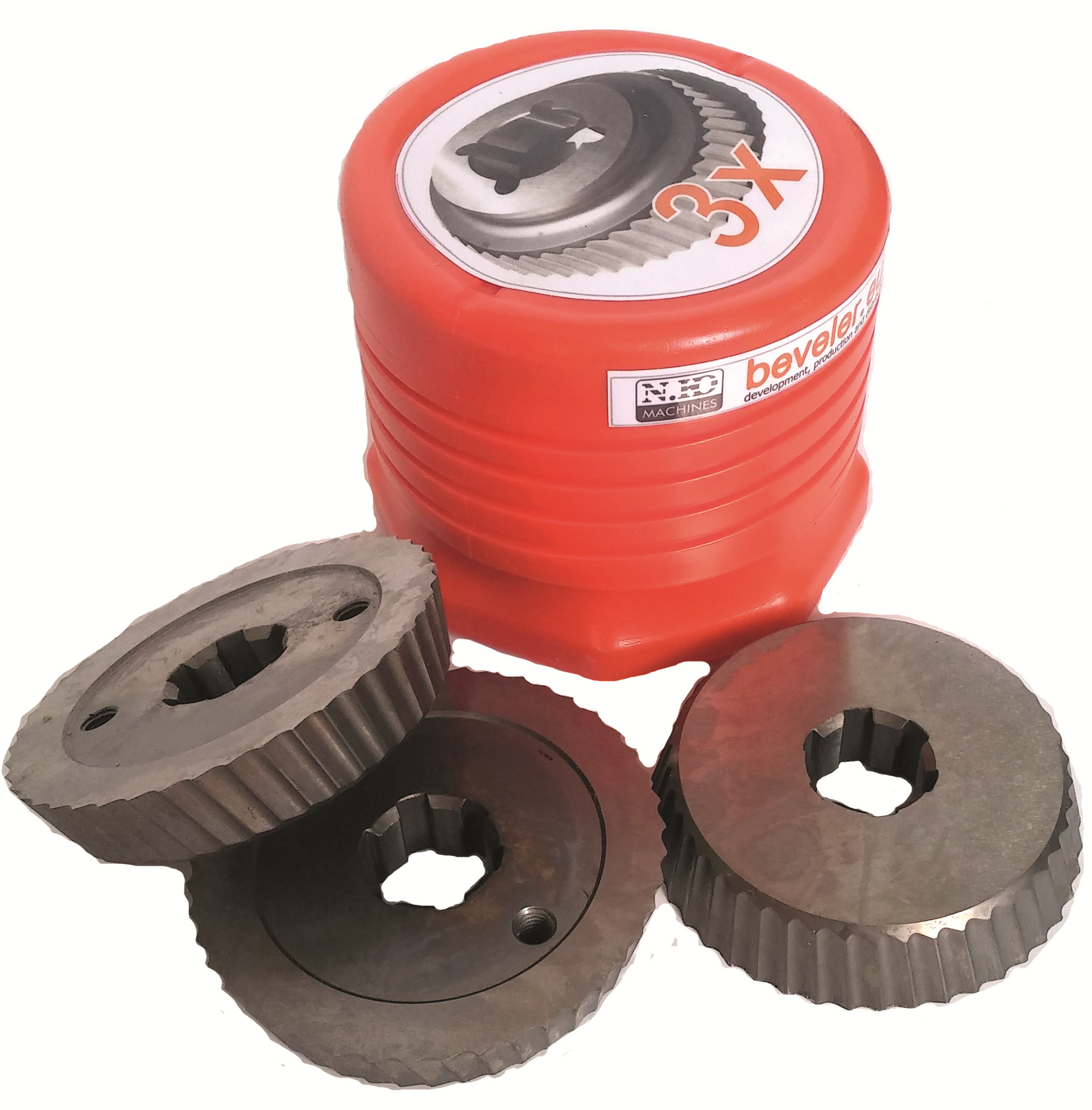

| PVD cutting tool - suitable for tougher materials – 2+1 free set |
1935 |
| Separate KIT 22,5° | 1926 |
| Separate KIT 30° | 1923 |
| Separate KIT 37,5° | 1925 |
| Separate KIT 45° | 1924 |
| Separate KIT 50° | 1929 |
| Pipe and tube bevelling fixture from Ø 95 mm / 3.74 in (internal diameter) | 1919 |

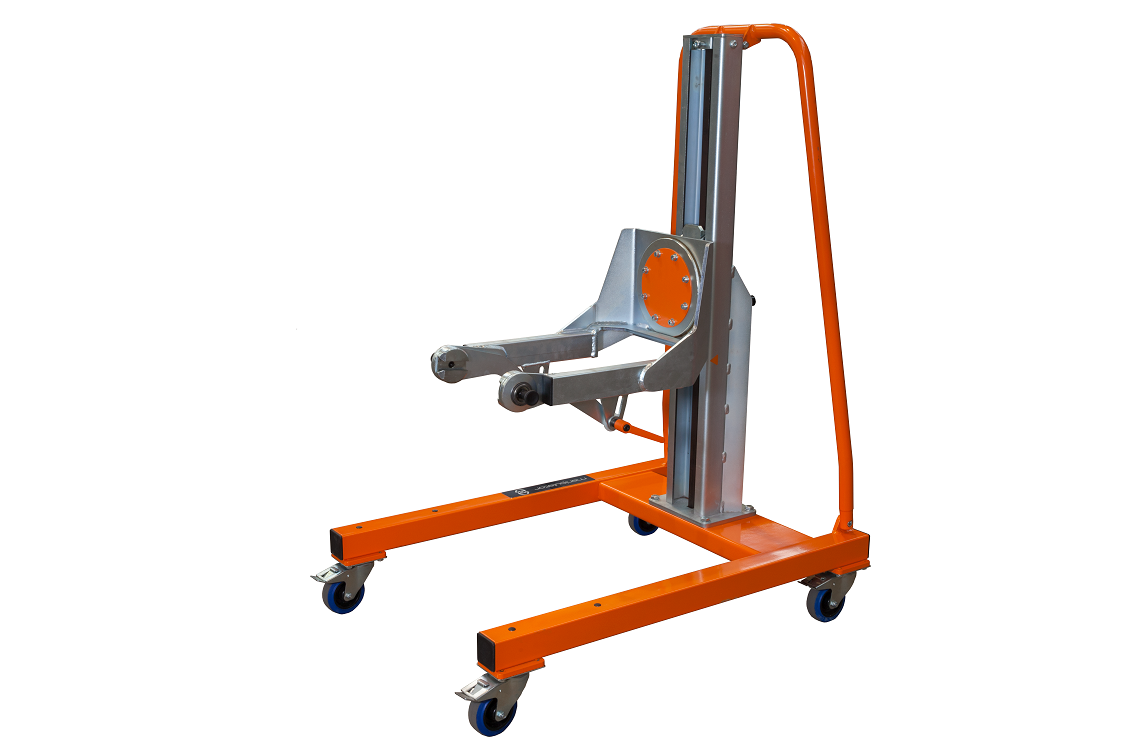

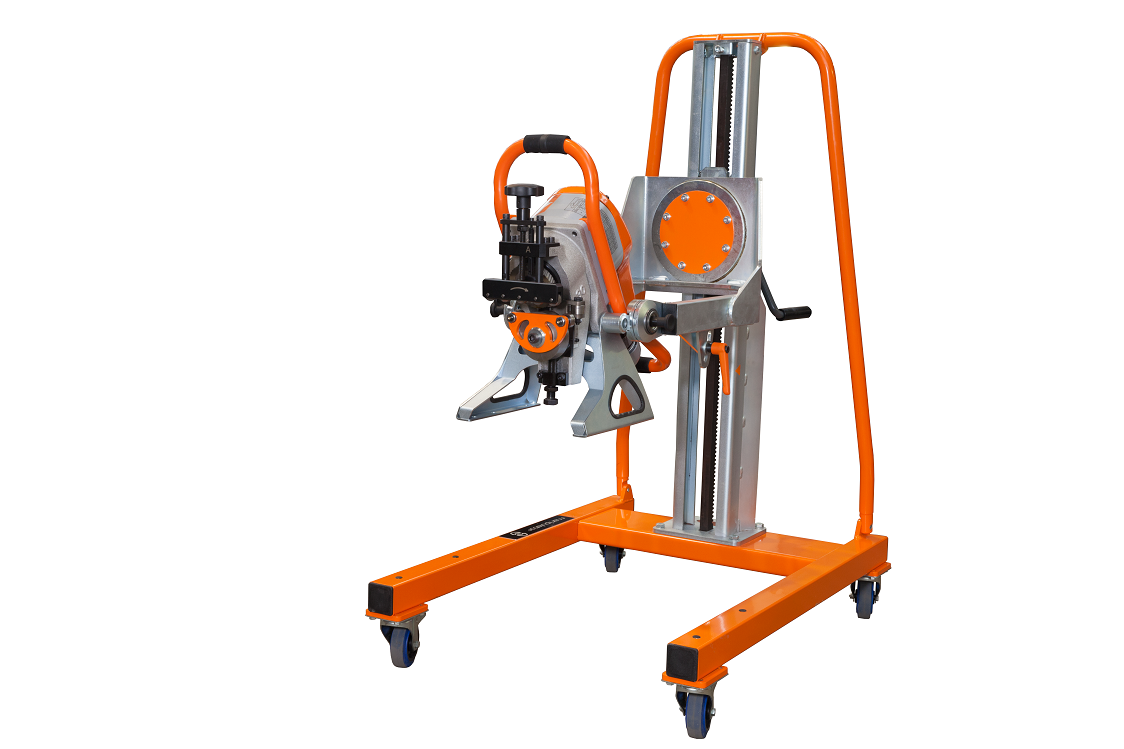

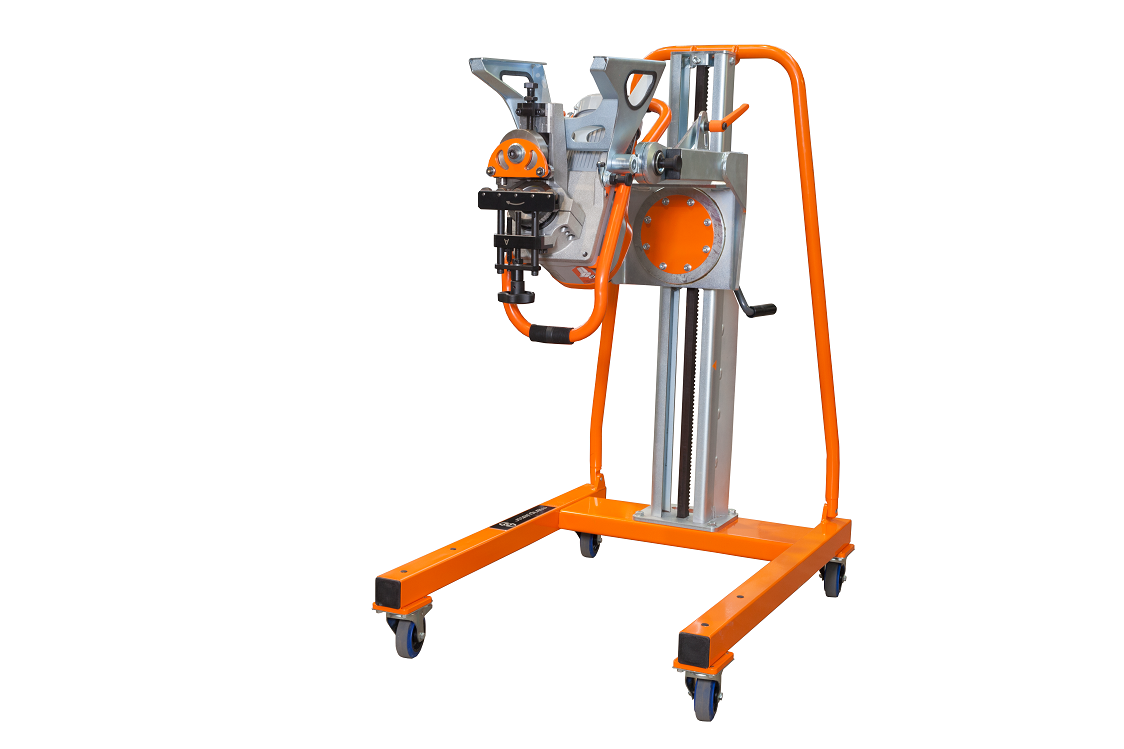

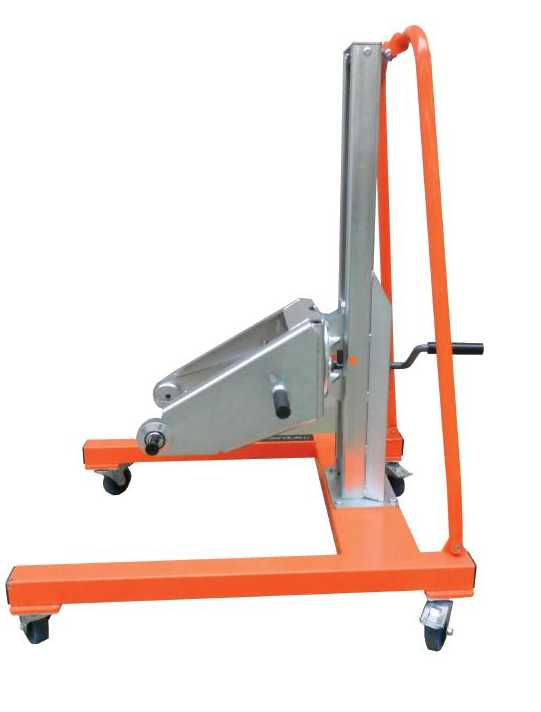

| 3D Manipulator – allows you to rotate the machine by 180° thus creating a two-sided bevel and facilitates the machine transport at the workplace. | 1930 |

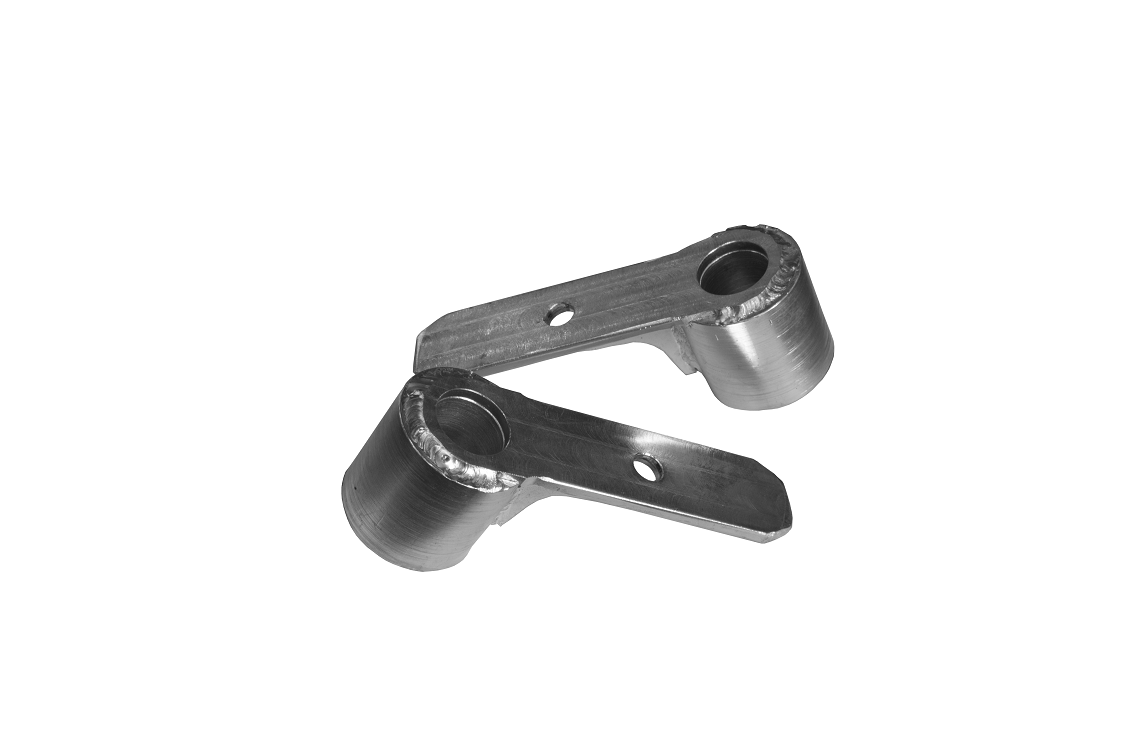

| Adapter for connecting KA 12 with the 3D Manipulator | 1911 |

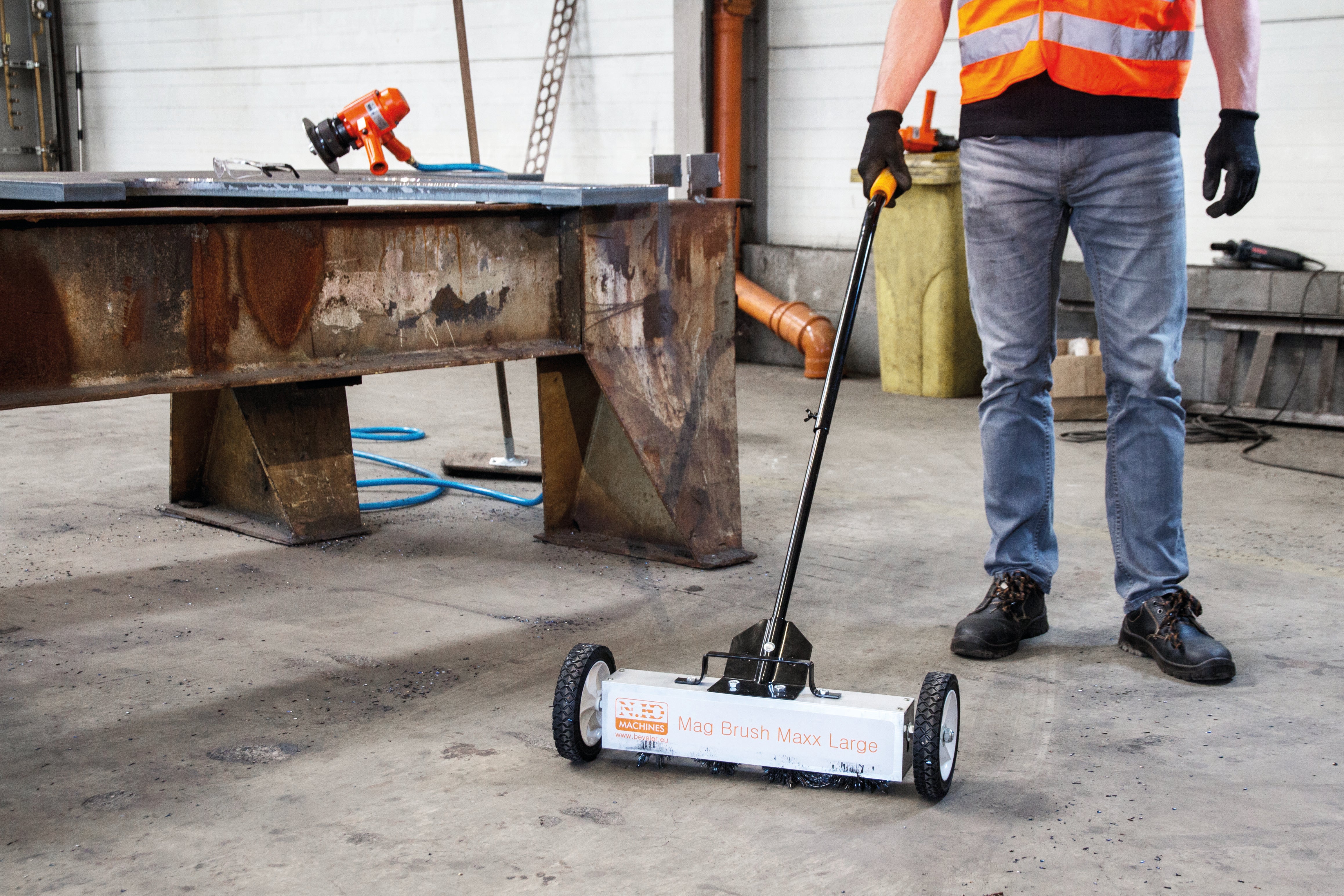

| Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in |
NMF0107 |
No specifications available.
