Double-Sided Without the Lift

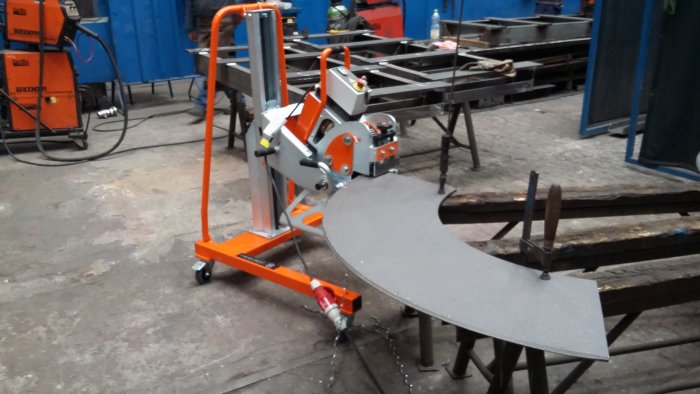

Flip the beveler 180° using the trolley — no flipping the plate or using a crane.
Adaptable to Uneven Floors
Manipulator keeps the machine steady even on rough or uneven concrete.
Tool-Free Setup
Quick clamping system assembles or disassembles in seconds — no tools needed.
Add KA15 Auto Beveller to comparison
View Comparison- Overview
- Downloads & Documents
- Reviews

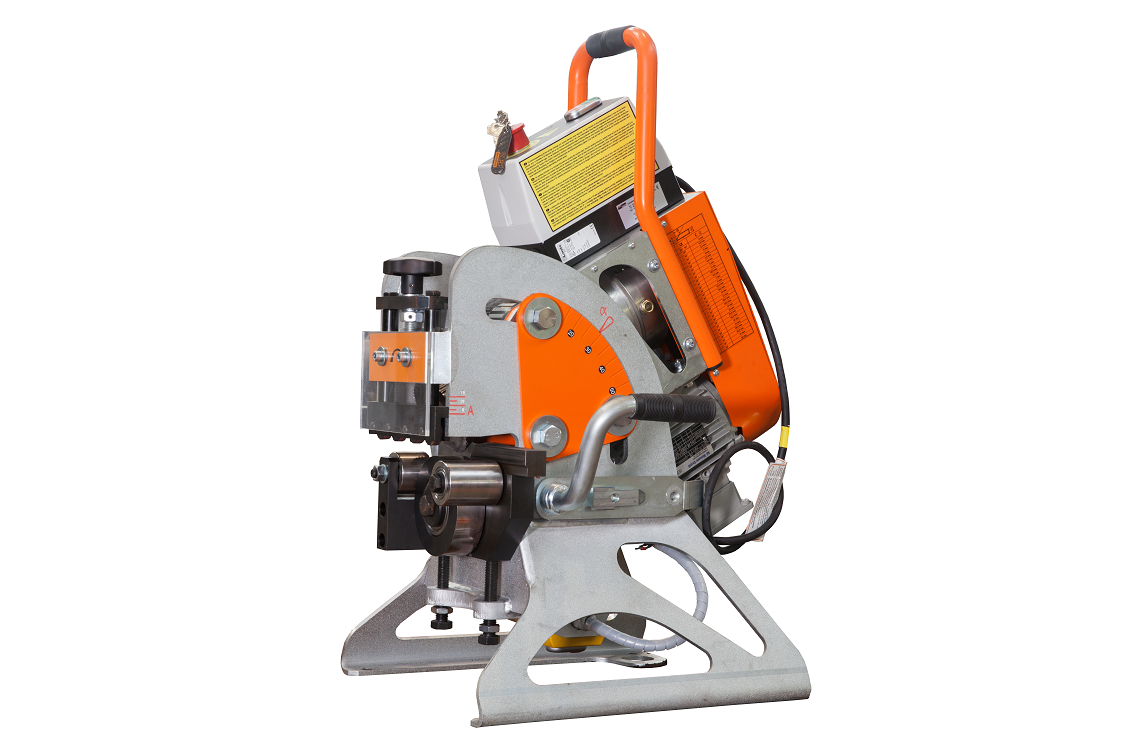

Product Description

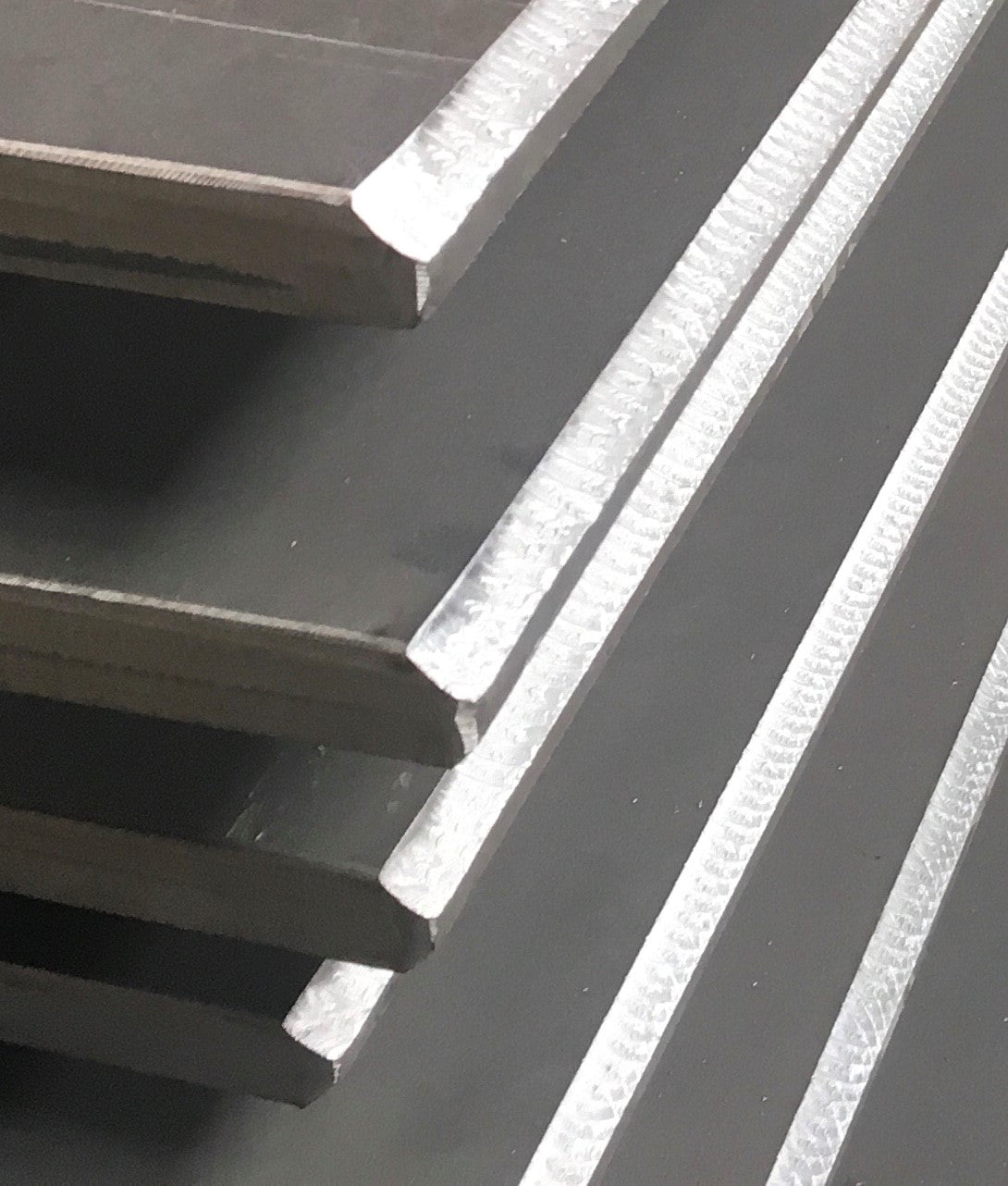

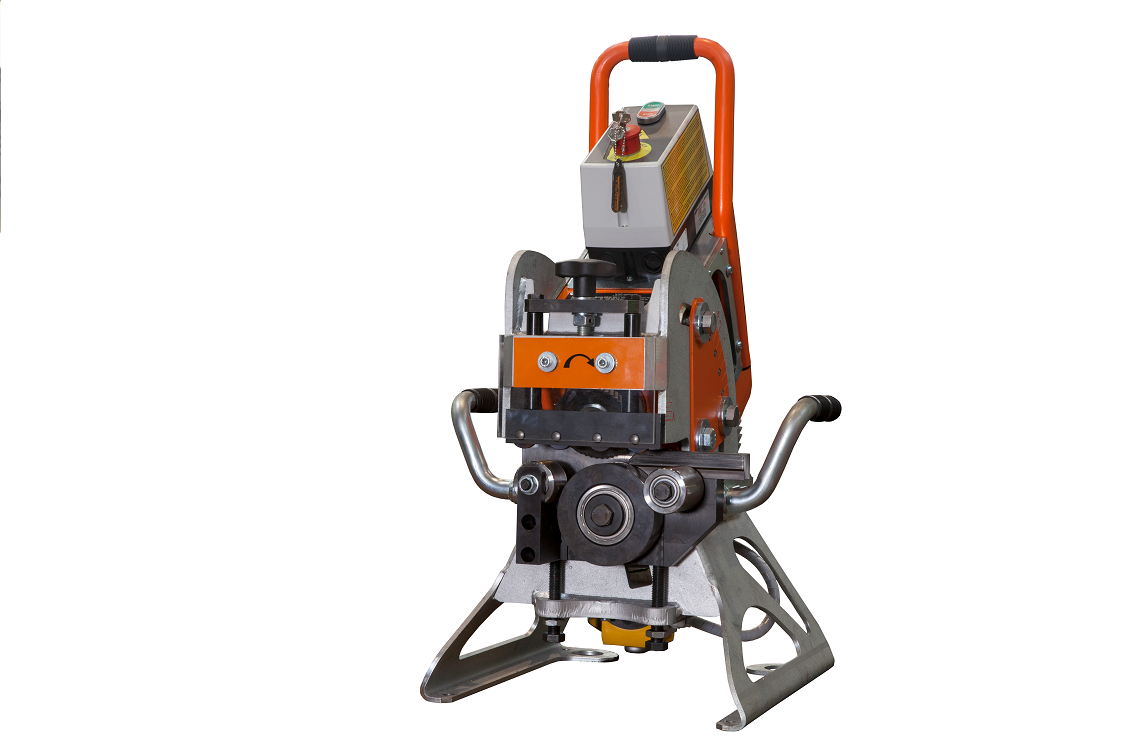

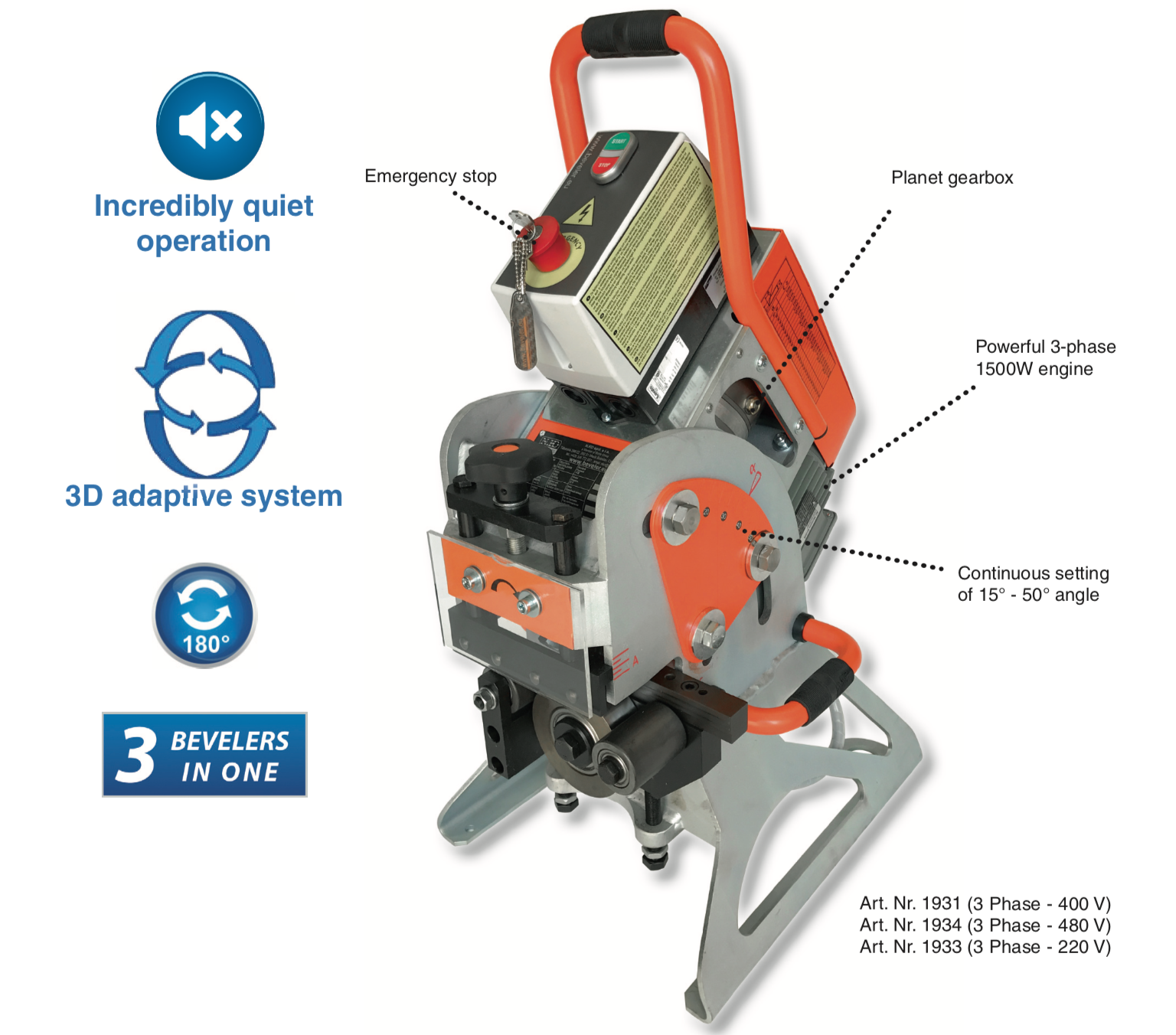

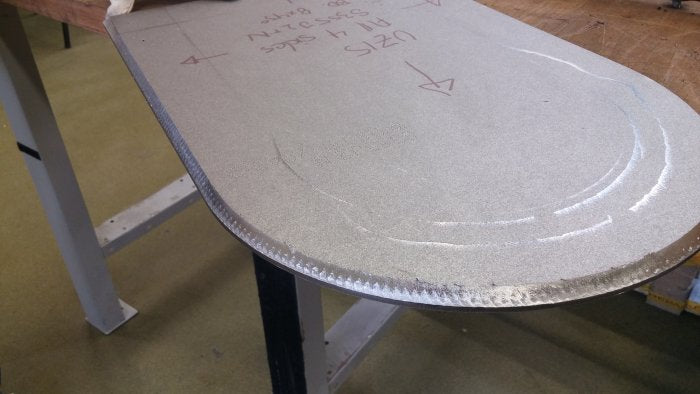

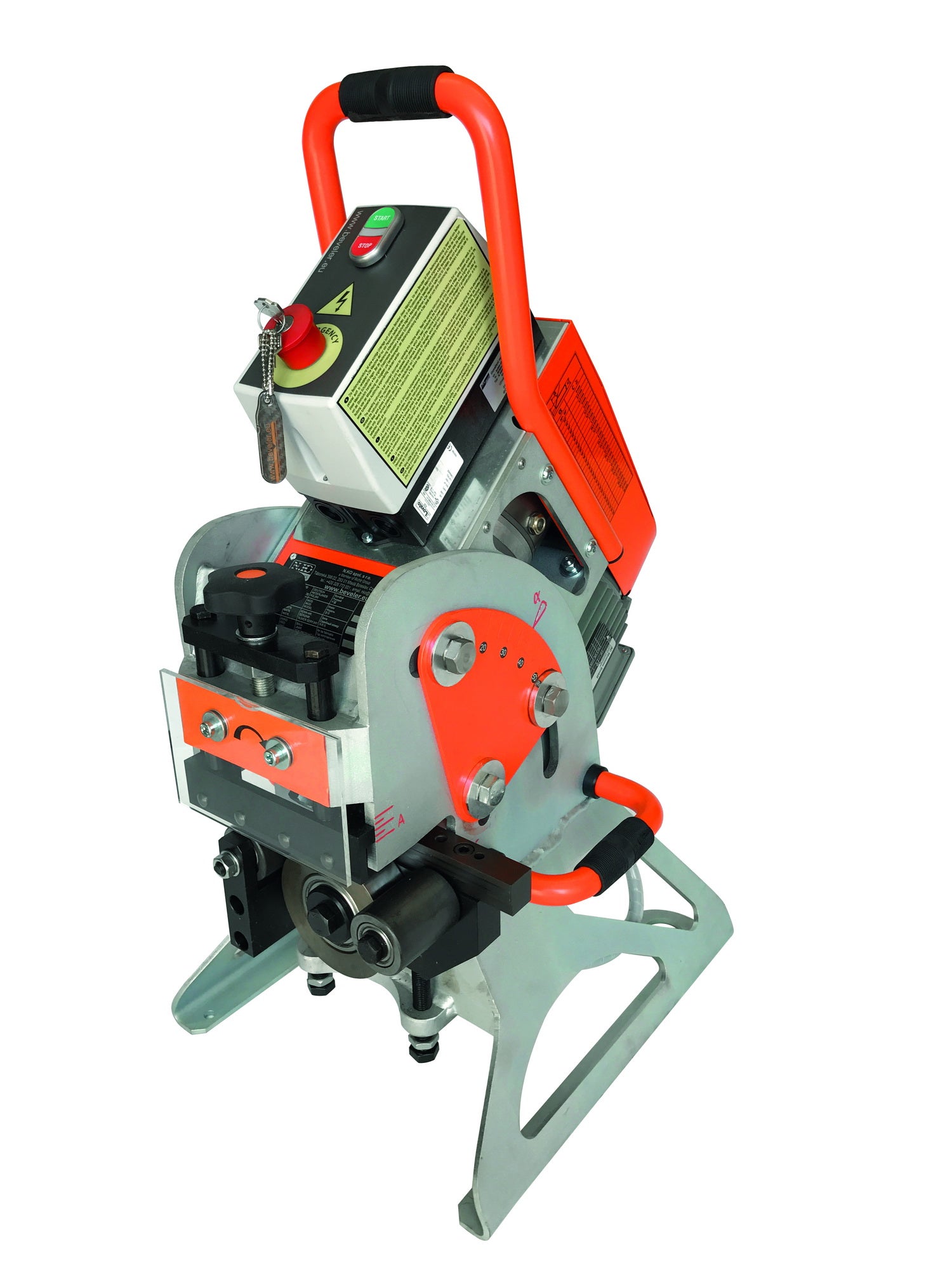

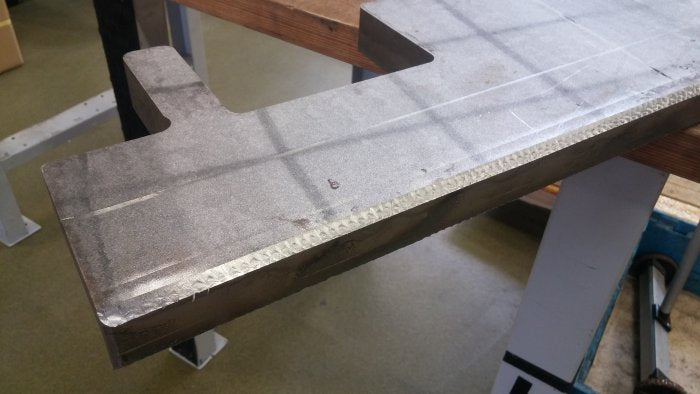

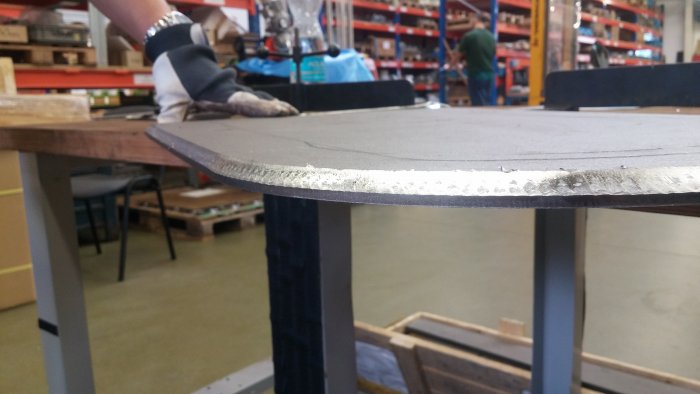

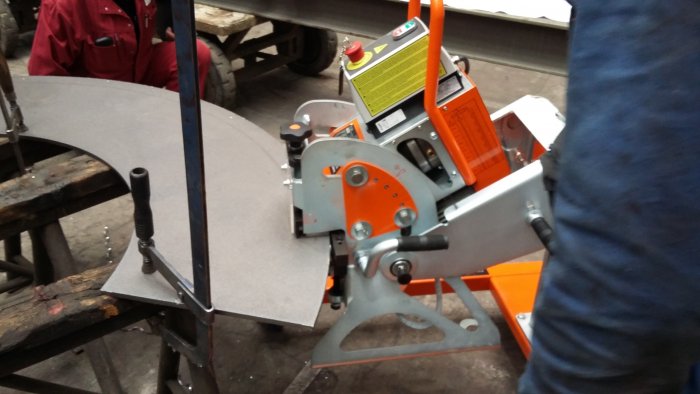

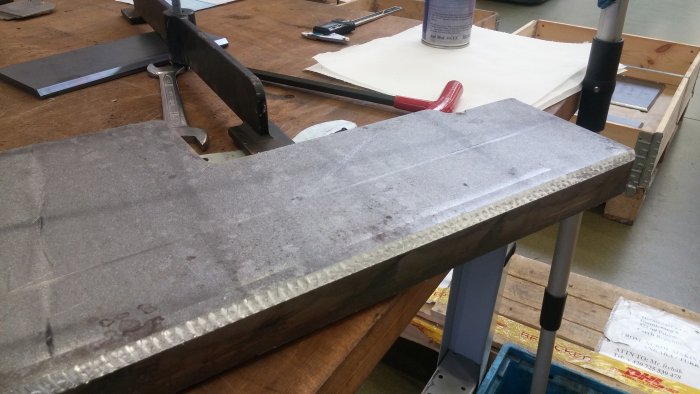

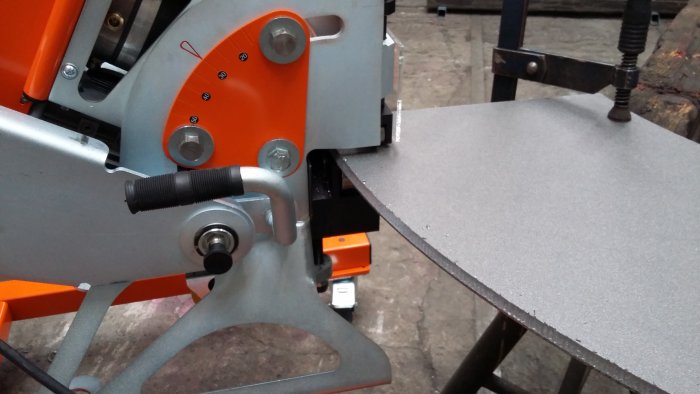

The KA15 Auto Beveller is a robust plate beveling machine built for welding prep across iron, stainless, copper, and aluminium. It cuts clean bevels from 15° to 50° without part changes and can handle material up to 40 mm thick. The 3D Manipulator system flips the unit 180° in seconds without a crane so you can work both sides fast and clean without touching the plate.
- Works on iron, steel, stainless, brass, copper, aluminium
- Bevels from 5–40 mm thickness
- Angle adjusts 15°–50° on the fly
- Use vertically or horizontally
- Locks onto trolley in seconds
User manual 3D MANIPULATOR User manual UZ15 RAPID Catalogue sheet
Specifications
- Working range max. bevel: width (B): 15mm
- Bevel angle: 15°- 50°infinitely variable
- Thickness shearable materials: from 6 to 40mm
- Engine: 1500 W/ 2800 rpm/3,5m/min
- Machine weight: 94kg
- Dimensions: 530 x 395 x 860mm
|
Machine name: |
400V – 3phase |
|
KA 15 Auto Beveler |
1931 |
|
KA 15 Auto Beveler - including the 3D MANIPULATOR |
1932 |
| Accessories: | Art.Nr. |

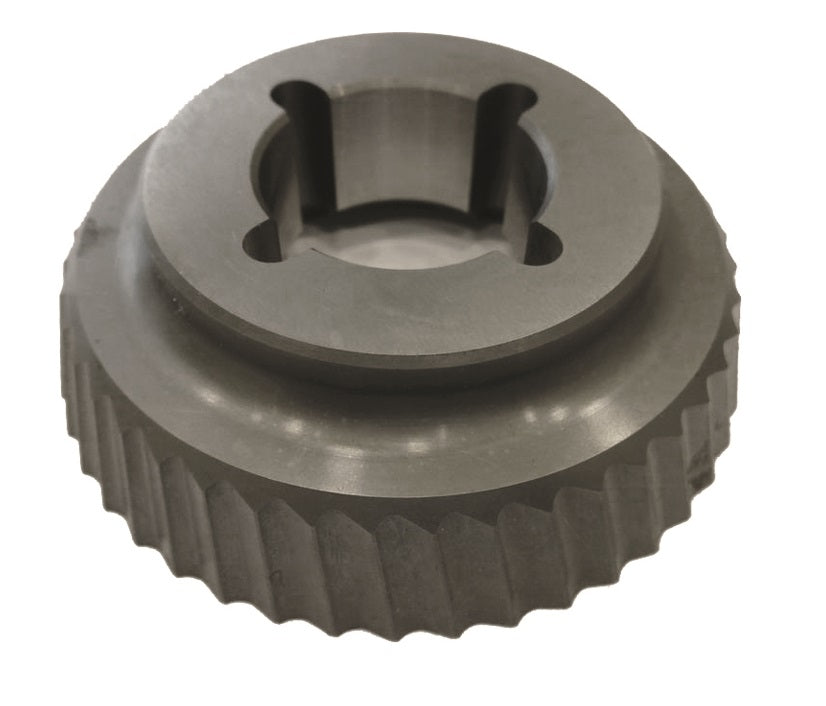

| ECO cutting tool - suitable for conventional steel |
2137 |
| ECO cutting tool - suitable for conventional steel - 2+1 free set |
2134 |
| PVD cutting tool - suitable for tougher materials |
2142 |
| PVD cutting tool - suitable for tougher materials - 2+1 free set |
1936 |

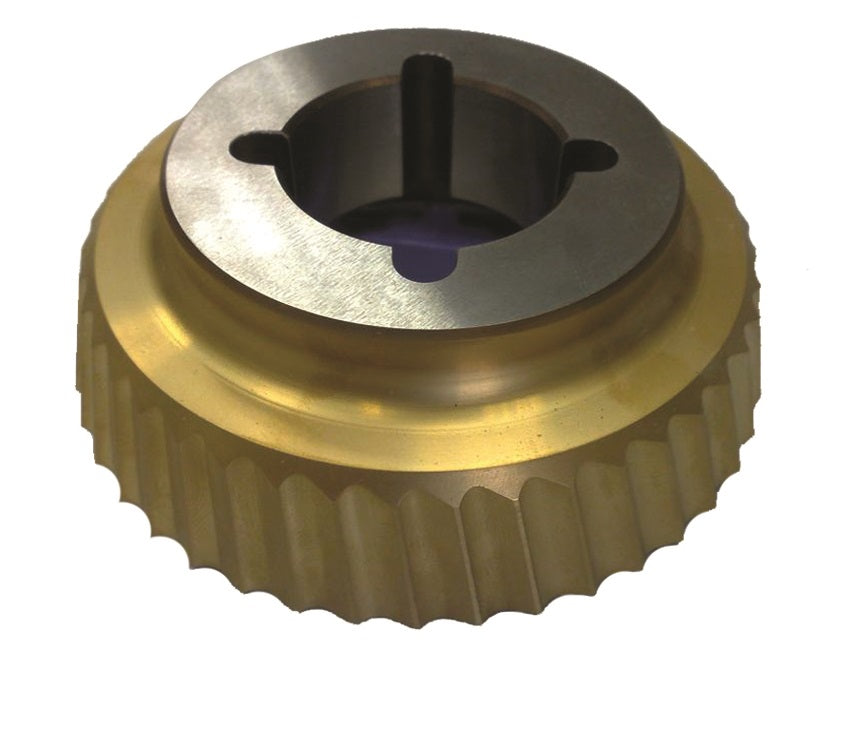

| PREMIUM cutting tool – coated TiN - suitable for conventional steel |
2136 |

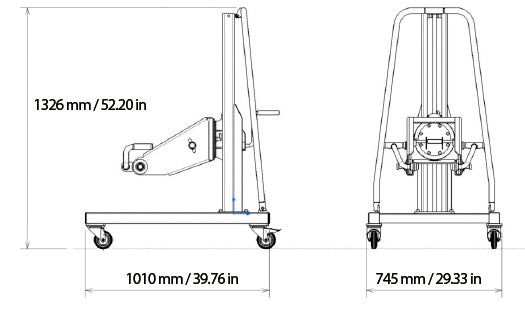

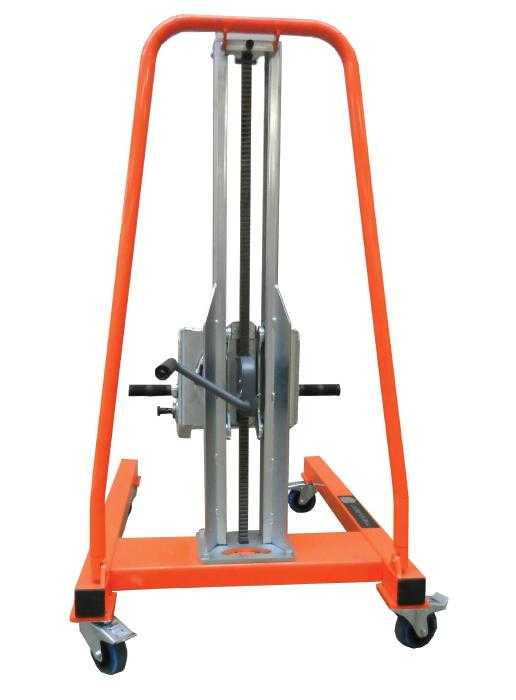

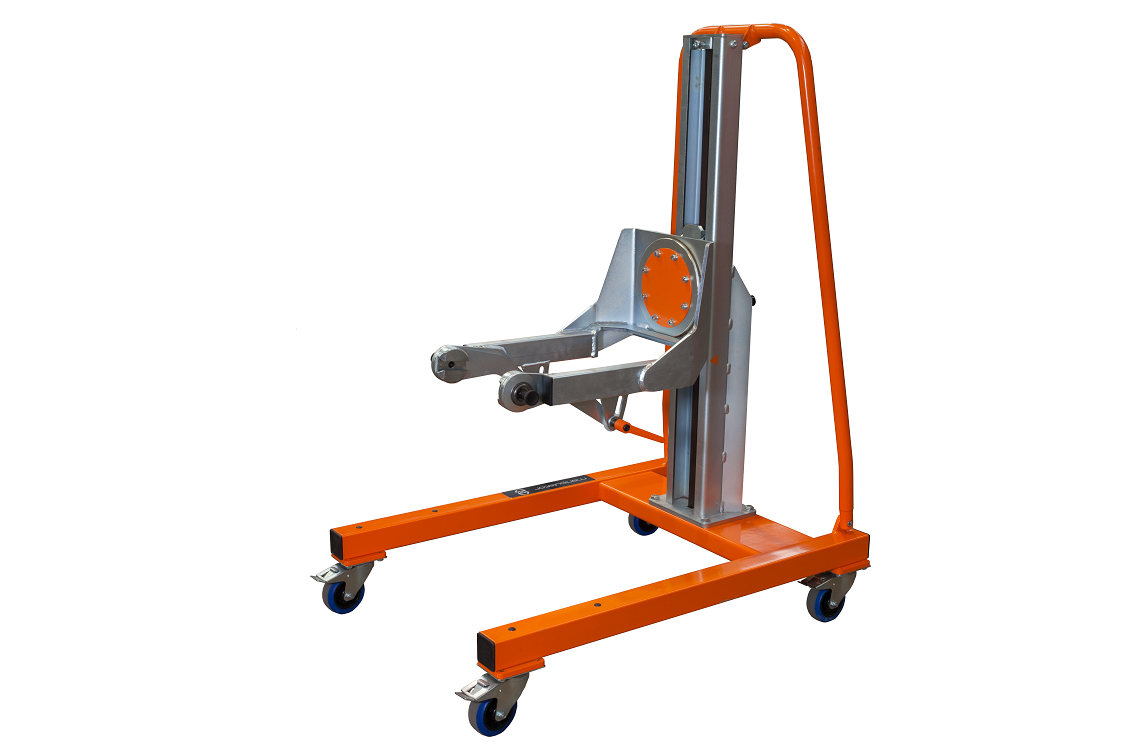

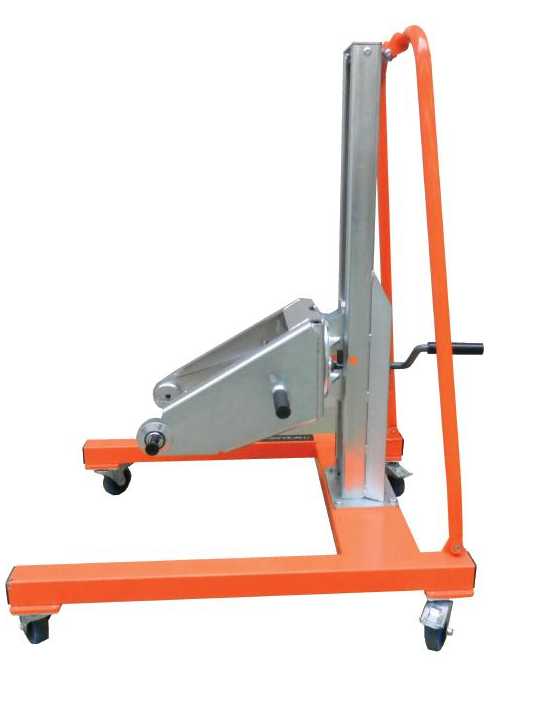

| 3D MANIPULATOR – allows to rotate the machine by 180° to create a two-sided bevel and facilitates the machine transport across the workplace. | 1930 |
