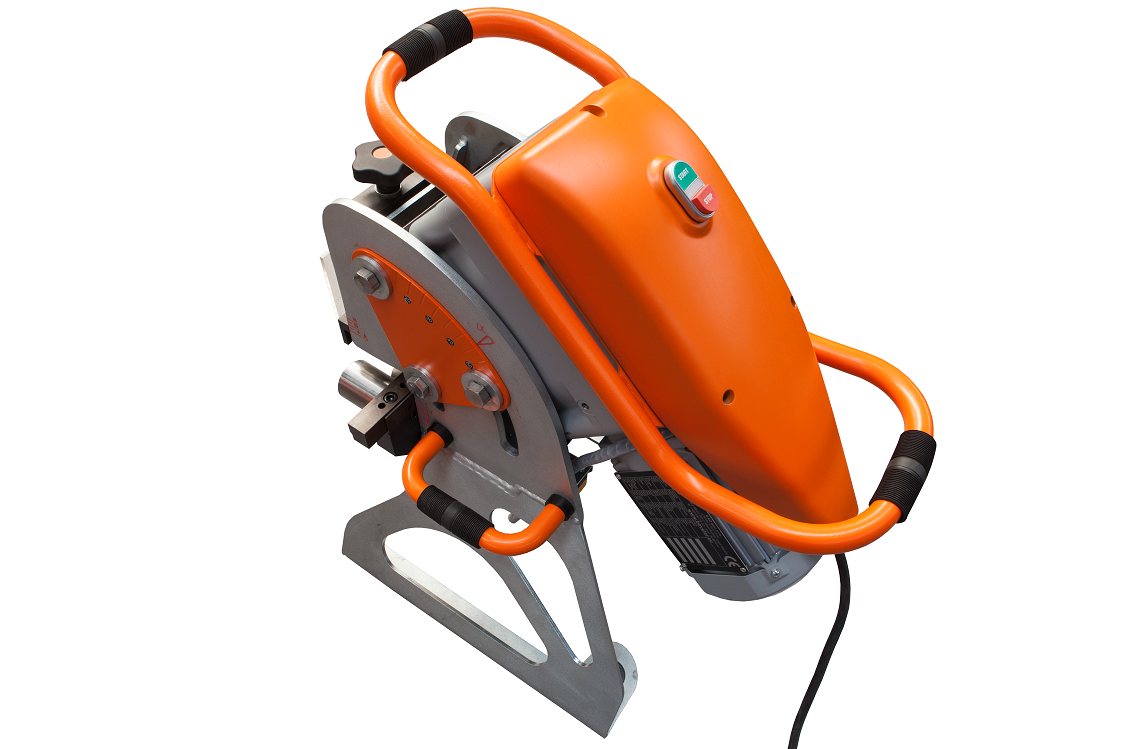

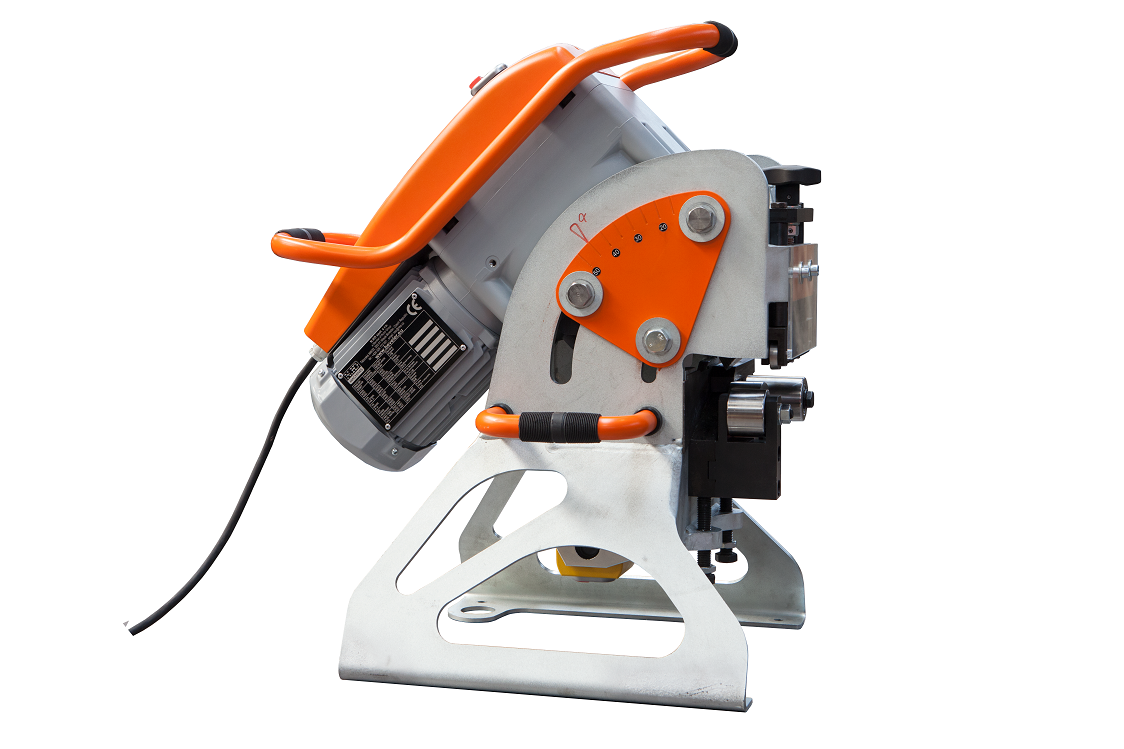

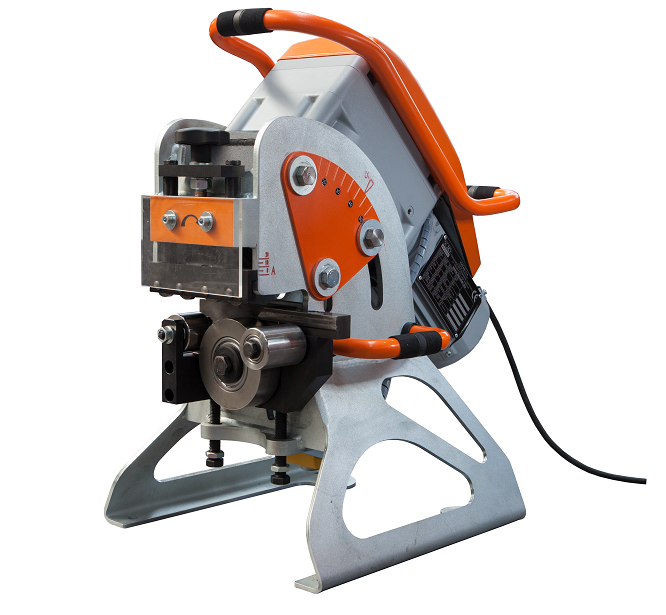

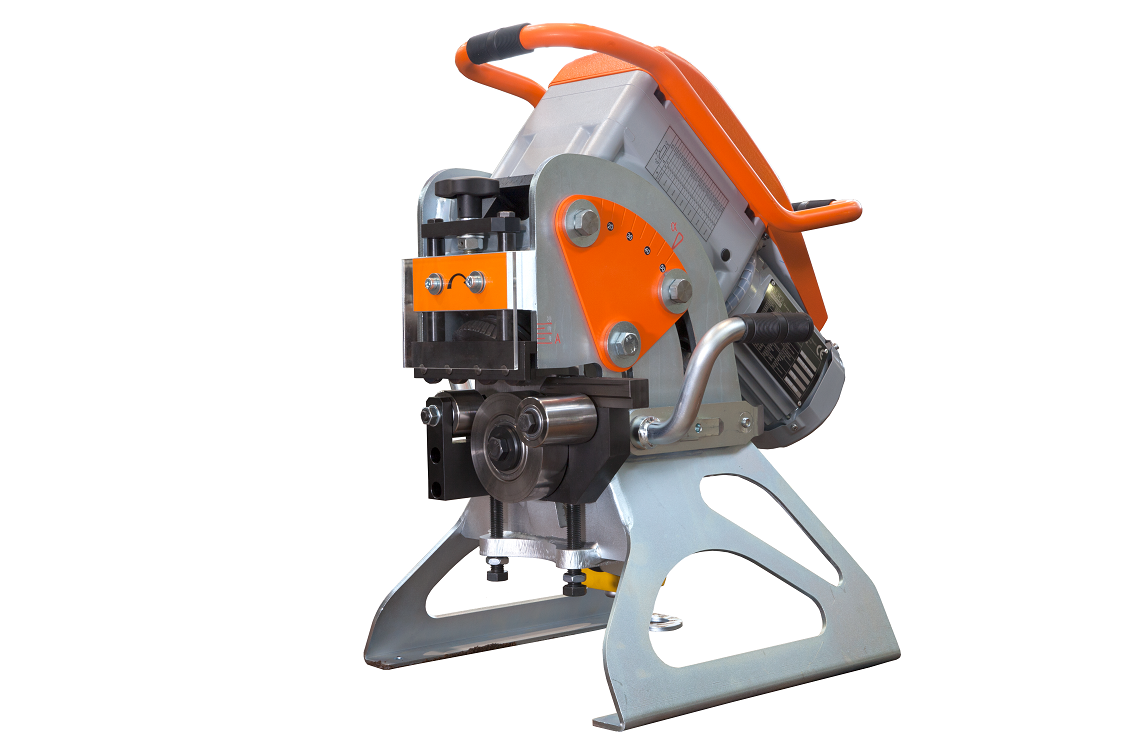

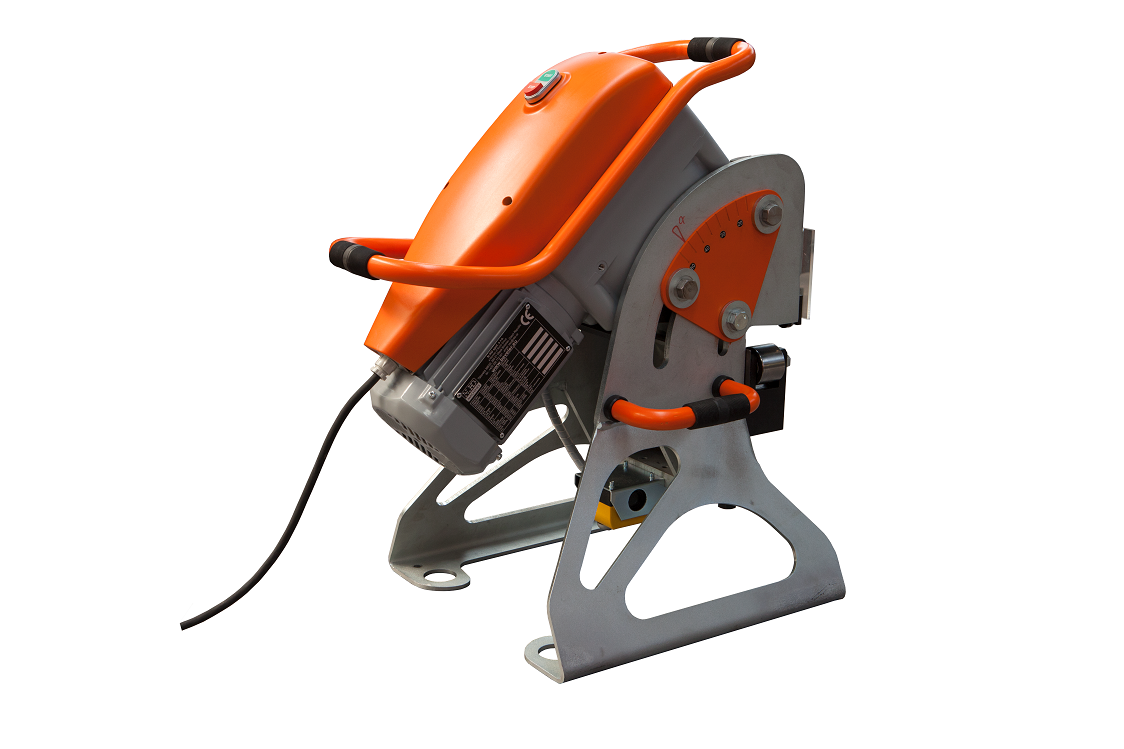

KA18 Auto Beveller

Product Code:

With automatic feed and smooth angle adjustment from 15° to 50°, the KA18 Auto Beveller takes the grunt work out of prepping edges. It handles both X and K bevels without flipping the plate and cuts clean on steel, brass, copper or aluminium. No swapping parts. No babysitting the feed. Add the 3D Manipulator and switch between fixed or mobile setup in seconds.

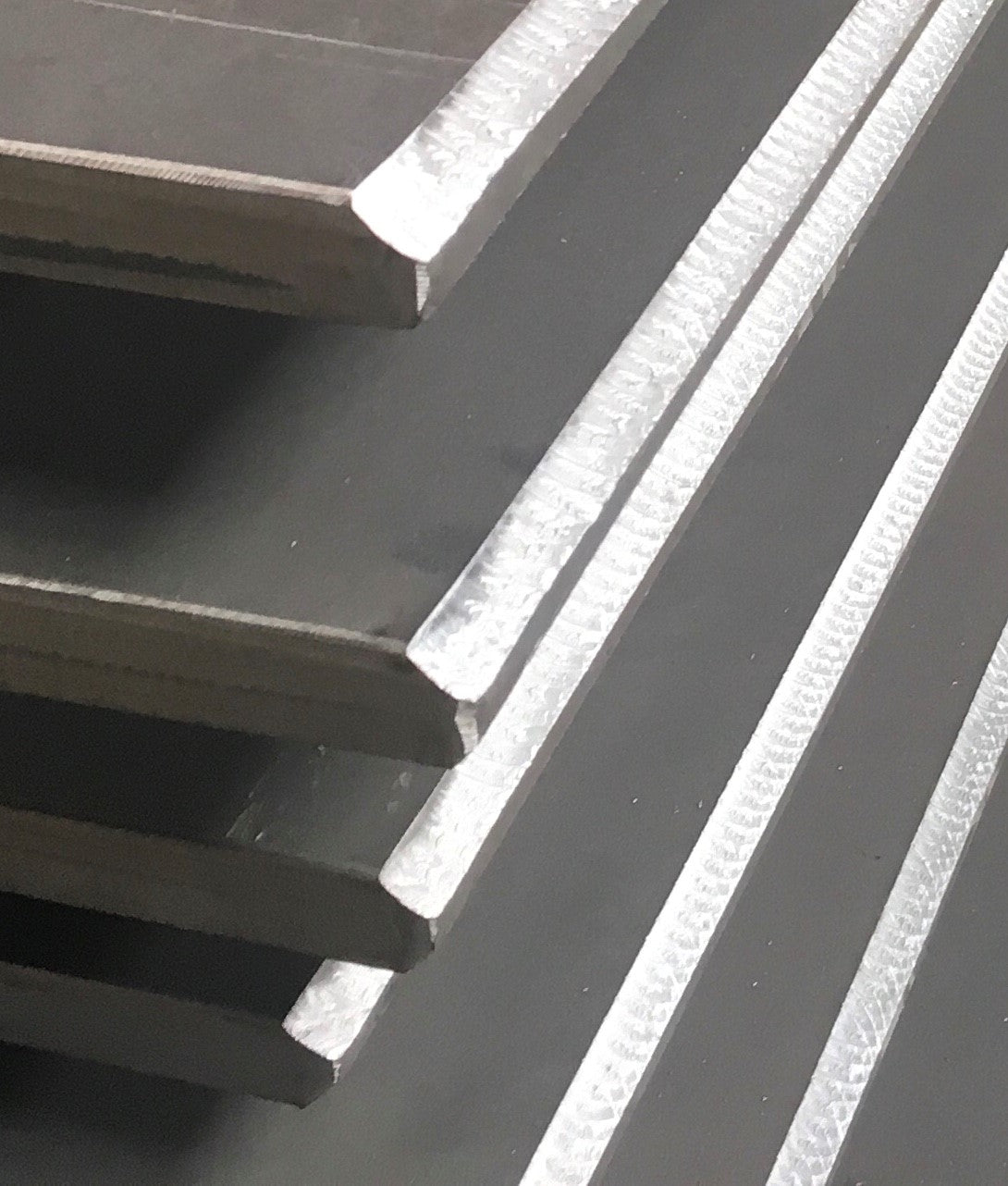

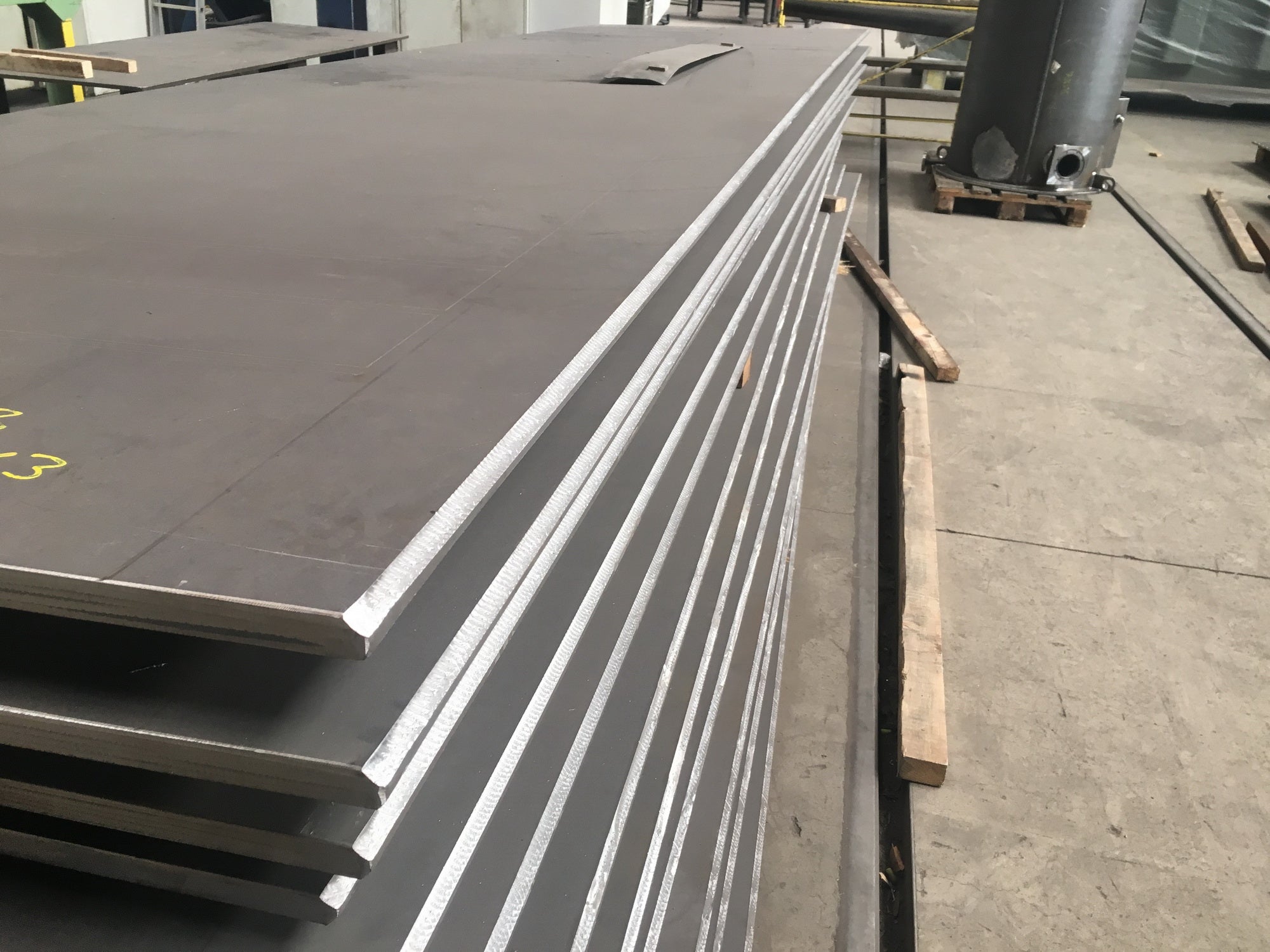

Double-sided bevels with no material flipping

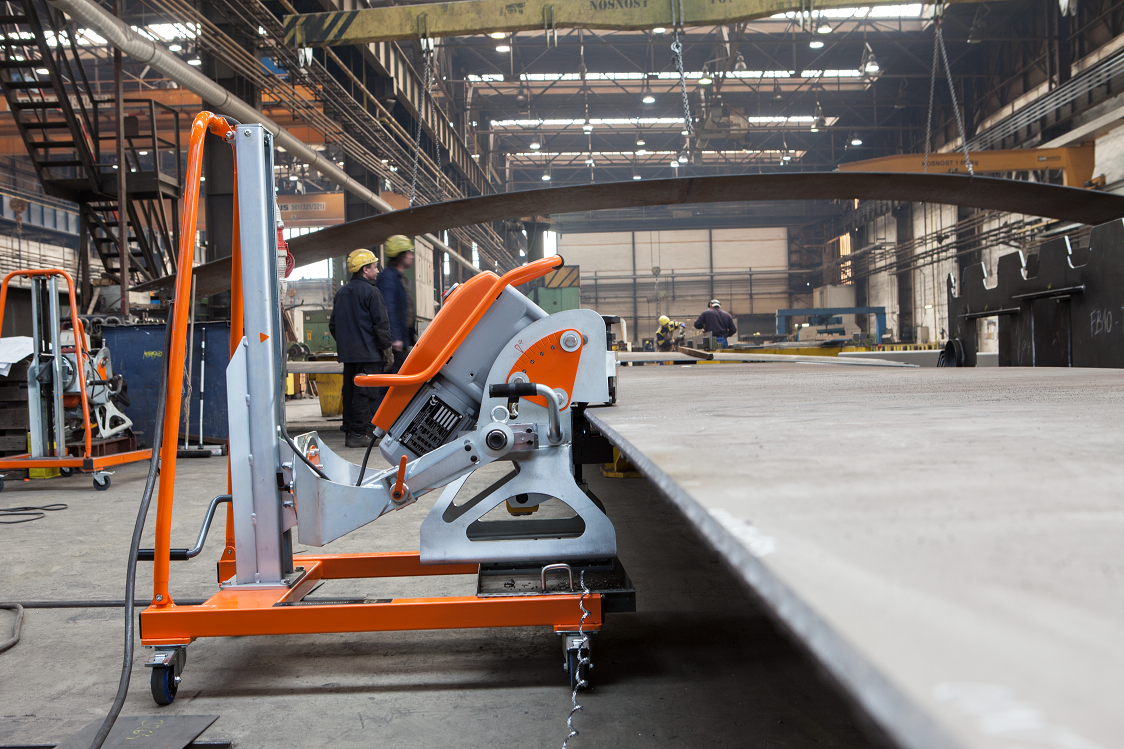

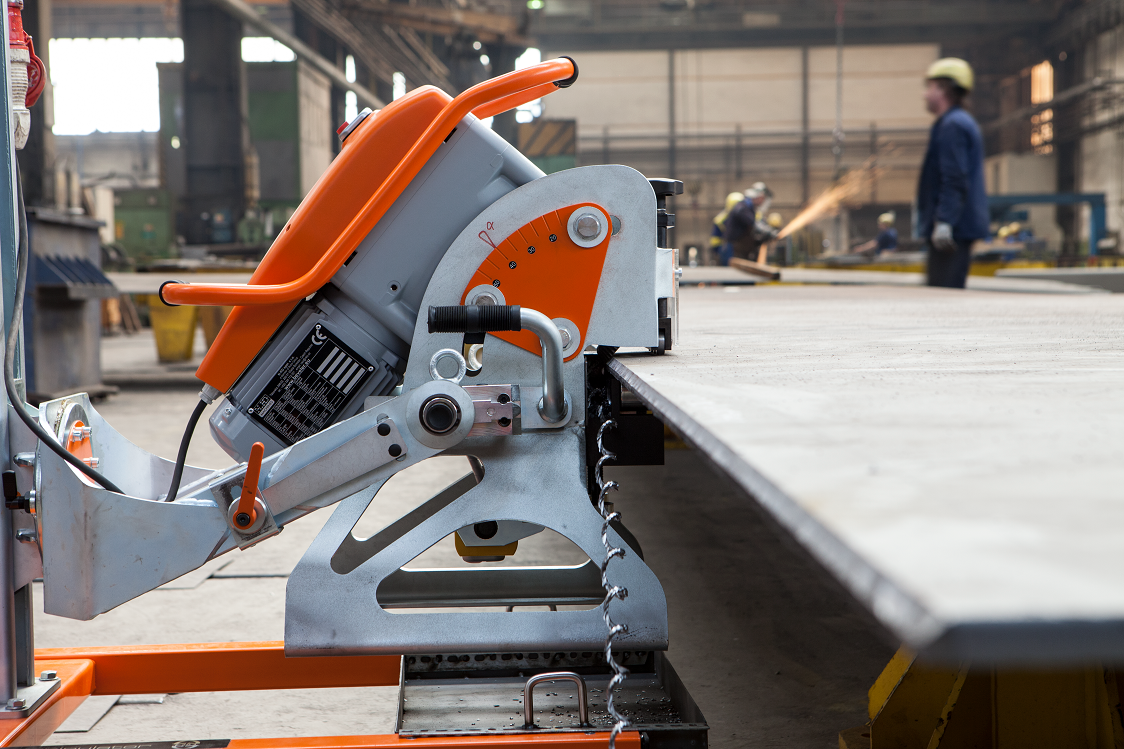

Works stationary or mobile
Handles rough floors or warped stock
Cuts steel up to 700 MPa
Fast connect/disconnect with 3D Manipulator

User manual 3D MANIPULATOR User manual Catalogue sheet

Watch Video Watch Video

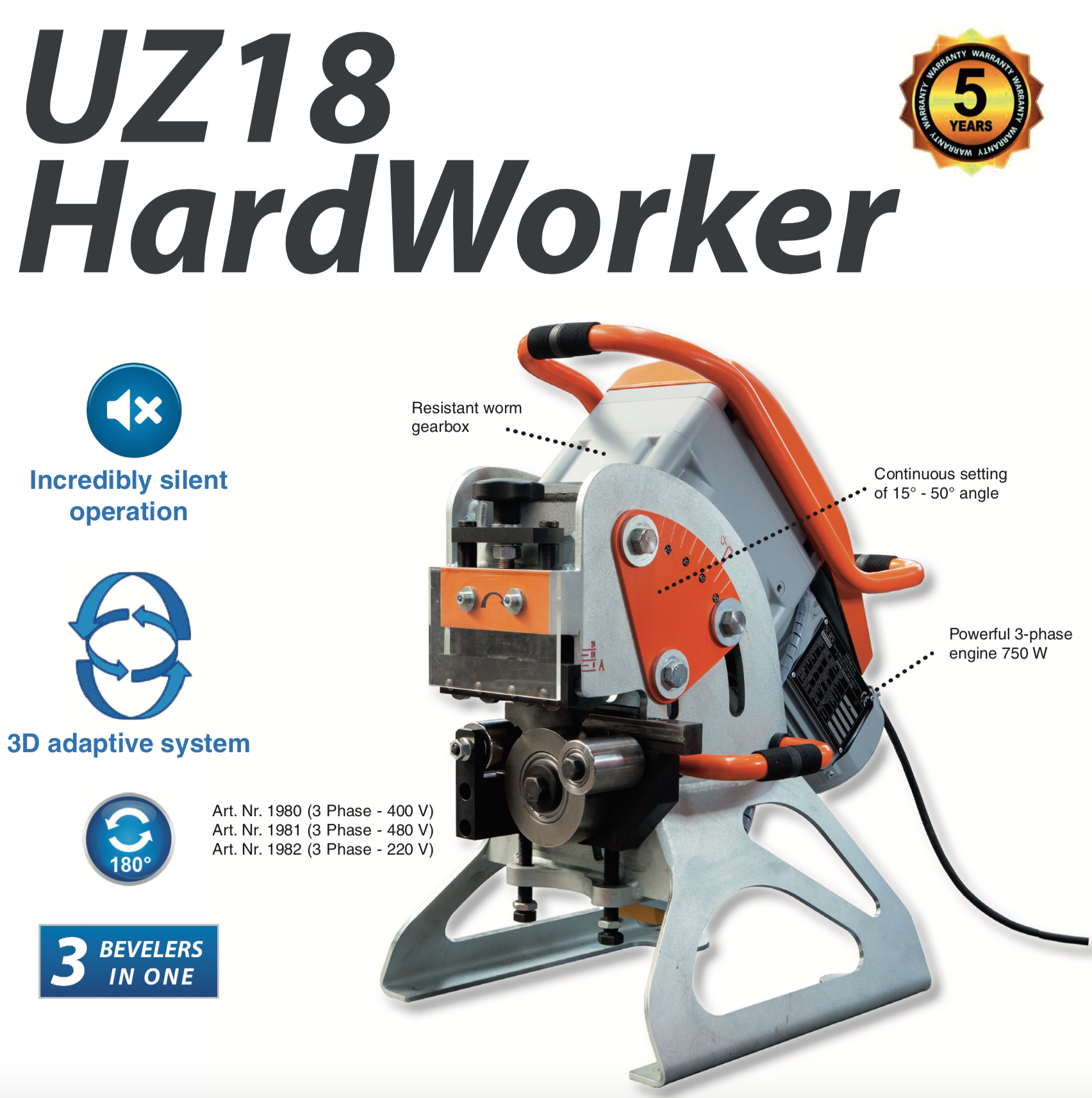

Specifications

Max. bevel width: 18 mm (600 MPa)
Continuously adjustable angle: 15° - 50°
Thickness of bevel. material: 6 - 40 mm
Engine: 750 W / 380 V
Feed: 1,9 m/min.
Weight: 110 kg
Dimensions (WxHxD): 43,8 x 71,9 x 64,4 cm

Machine name:	400V – 3phase	480V – 3phase	220V – 3phase
KA 18 Auto Beveler	1980	1981	1982
KA 18 Auto Beveler - including the 3D MANIPULATOR	1983	1984	1985

Accessories:	Art.Nr.
ECO cutting tool - suitable for conventional steel	2137
ECO cutting tool - suitable for conventional steel – 2+1 free set	2134
PVD cutting tool - suitable for tougher materials	2142
PVD cutting tool - suitable for tougher materials – 2+1 free set	1936
PREMIUM cutting tool – coated TiN - suitable for conventional steel	2136

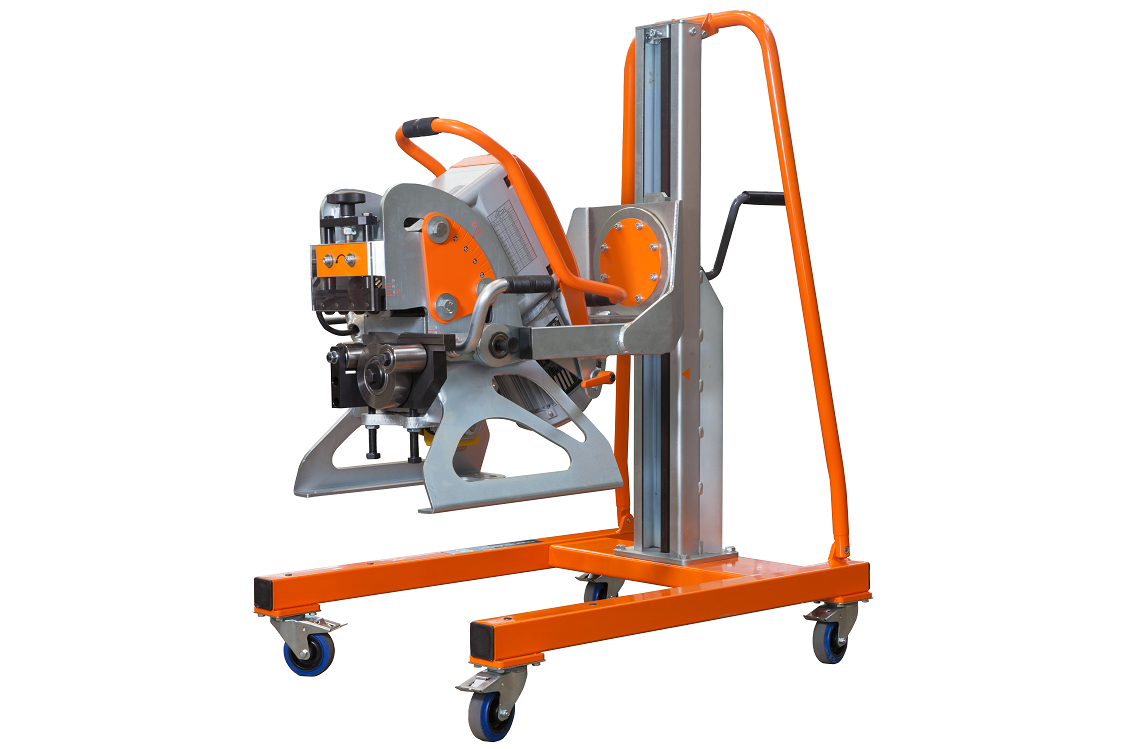

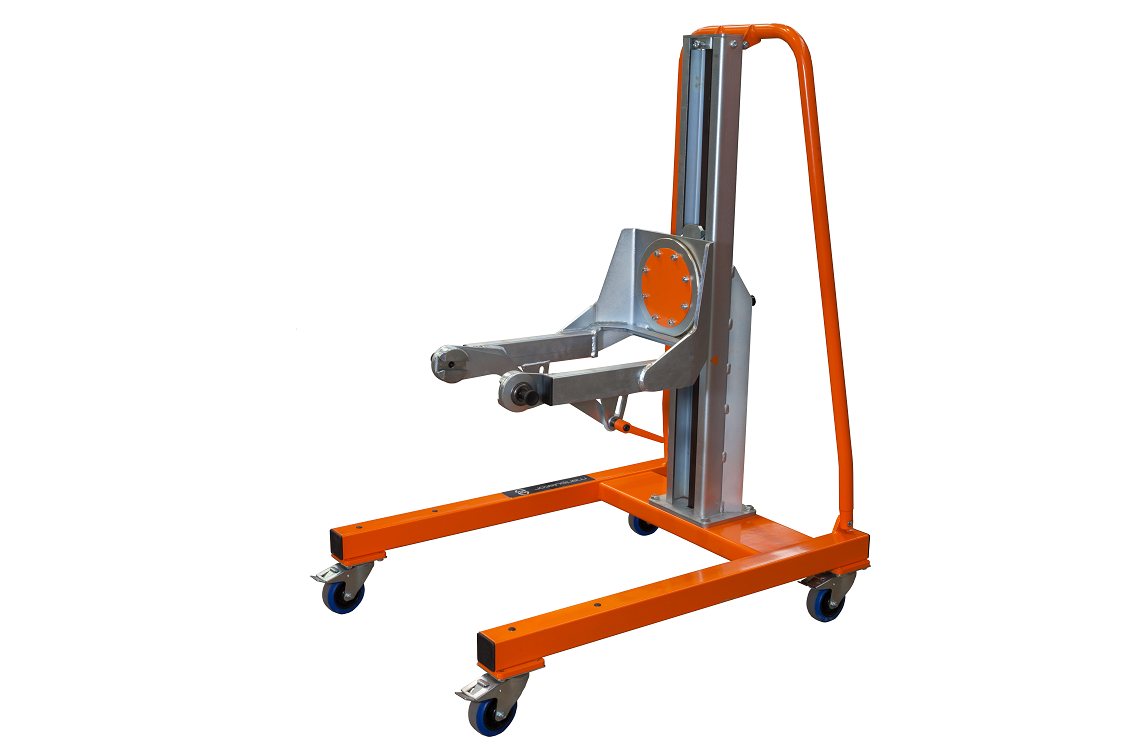

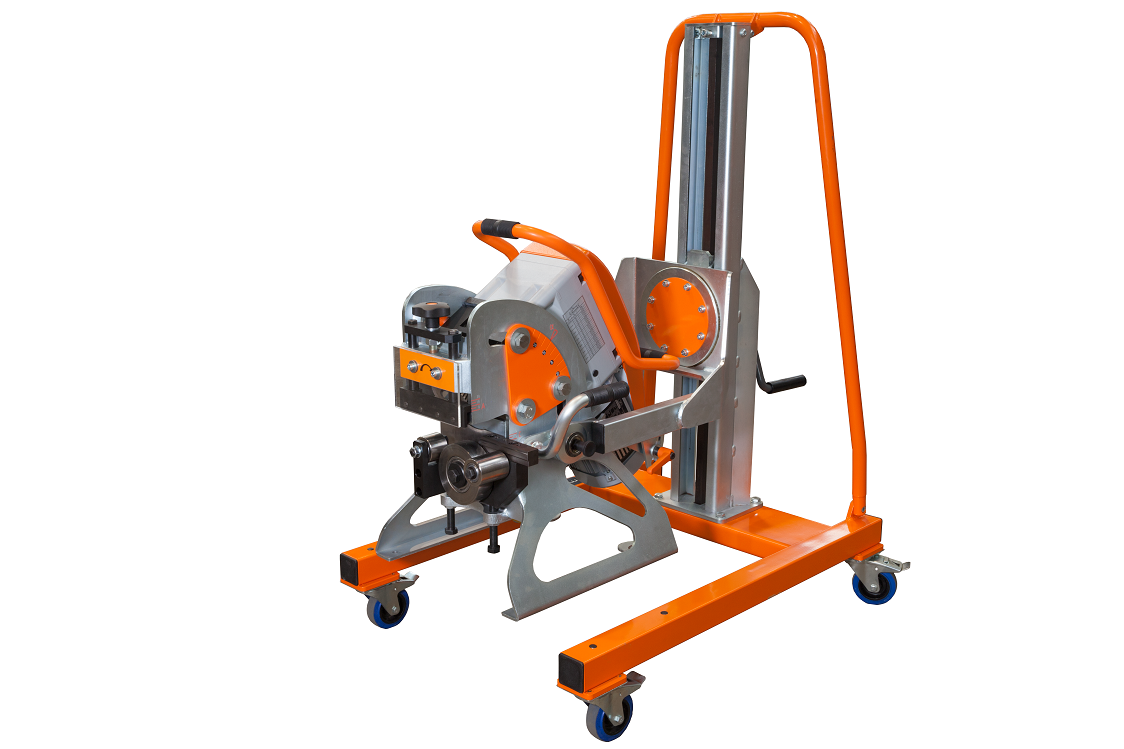

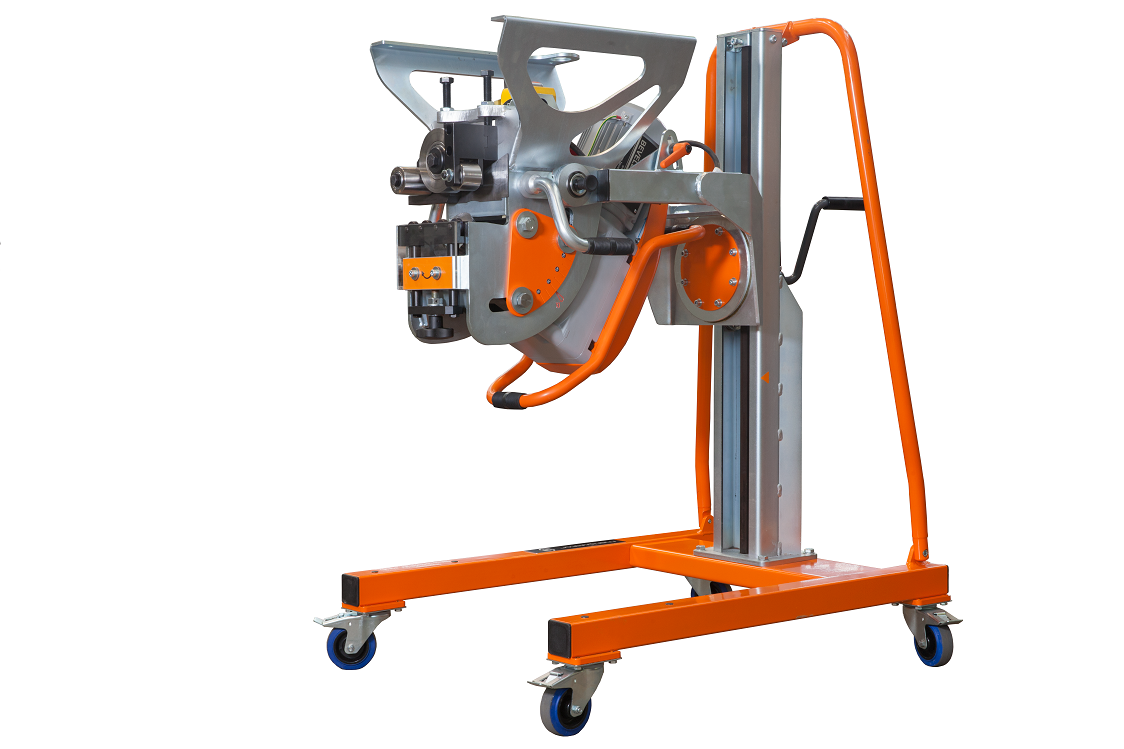

3D MANIPULATOR – allows to rotate the machine by 180° to create a two-sided bevel and facilitates the machine transport across the workplace.	1930
Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in	NMF0107

Product Data

No specifications available.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

No Material Handling Needed

Cuts both sides in one go — saves time and strain.

Fast Angle Changes

Bevel angle adjusts on the fly with no tools or part swaps.

Tough on Steel

Eats through hard metals up to 700 MPa with ease.
