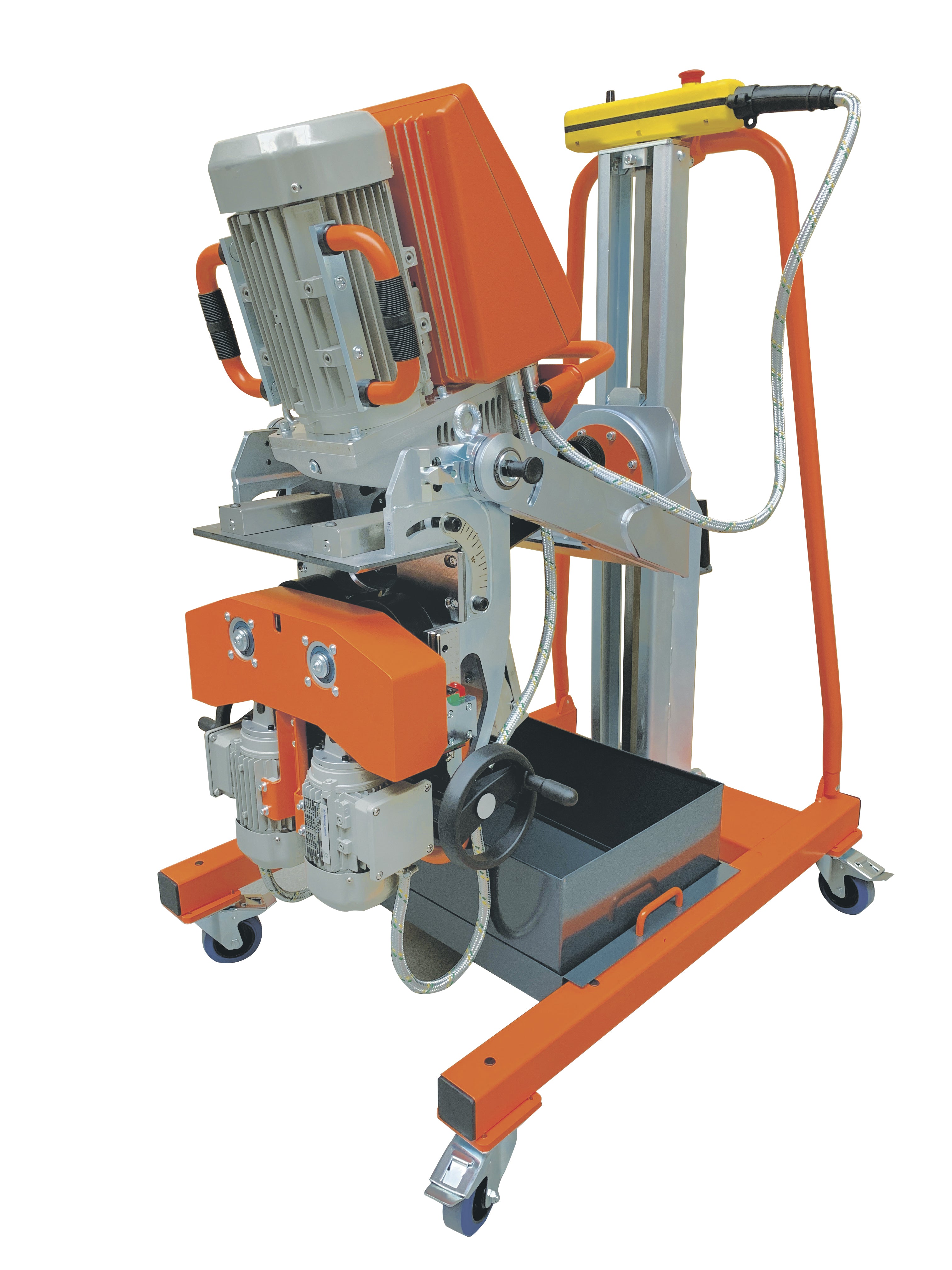

KA50 Auto Beveller
Product Code:

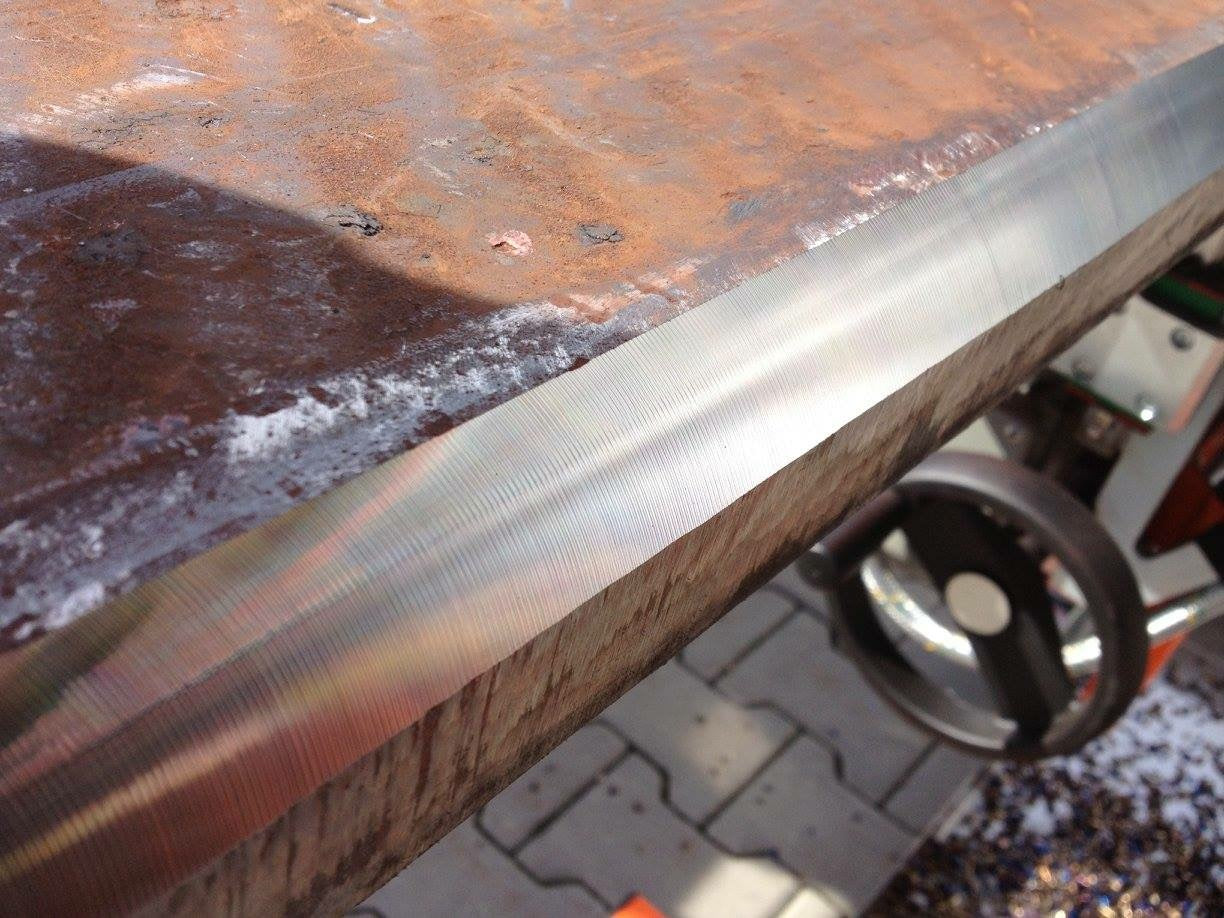

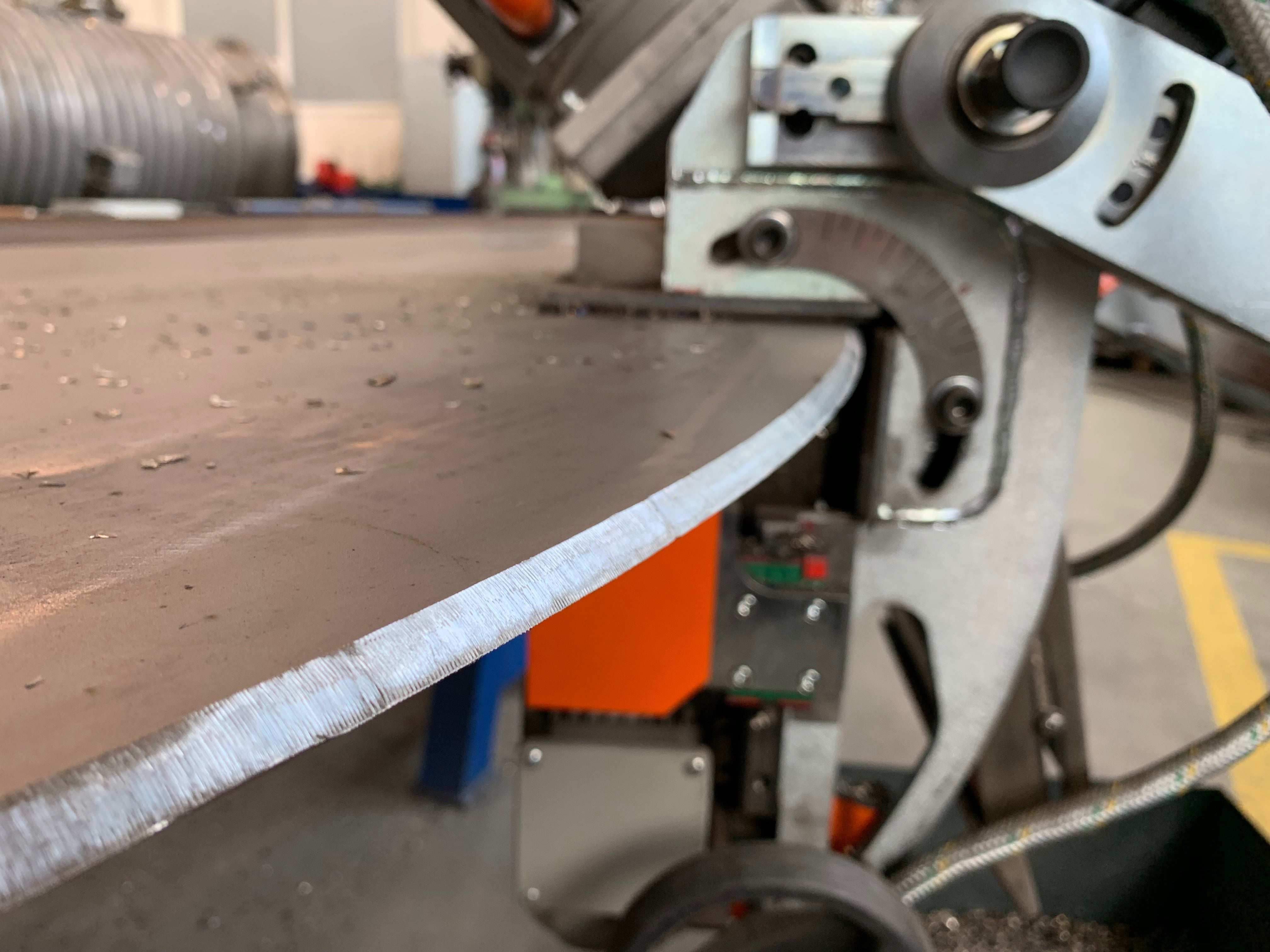

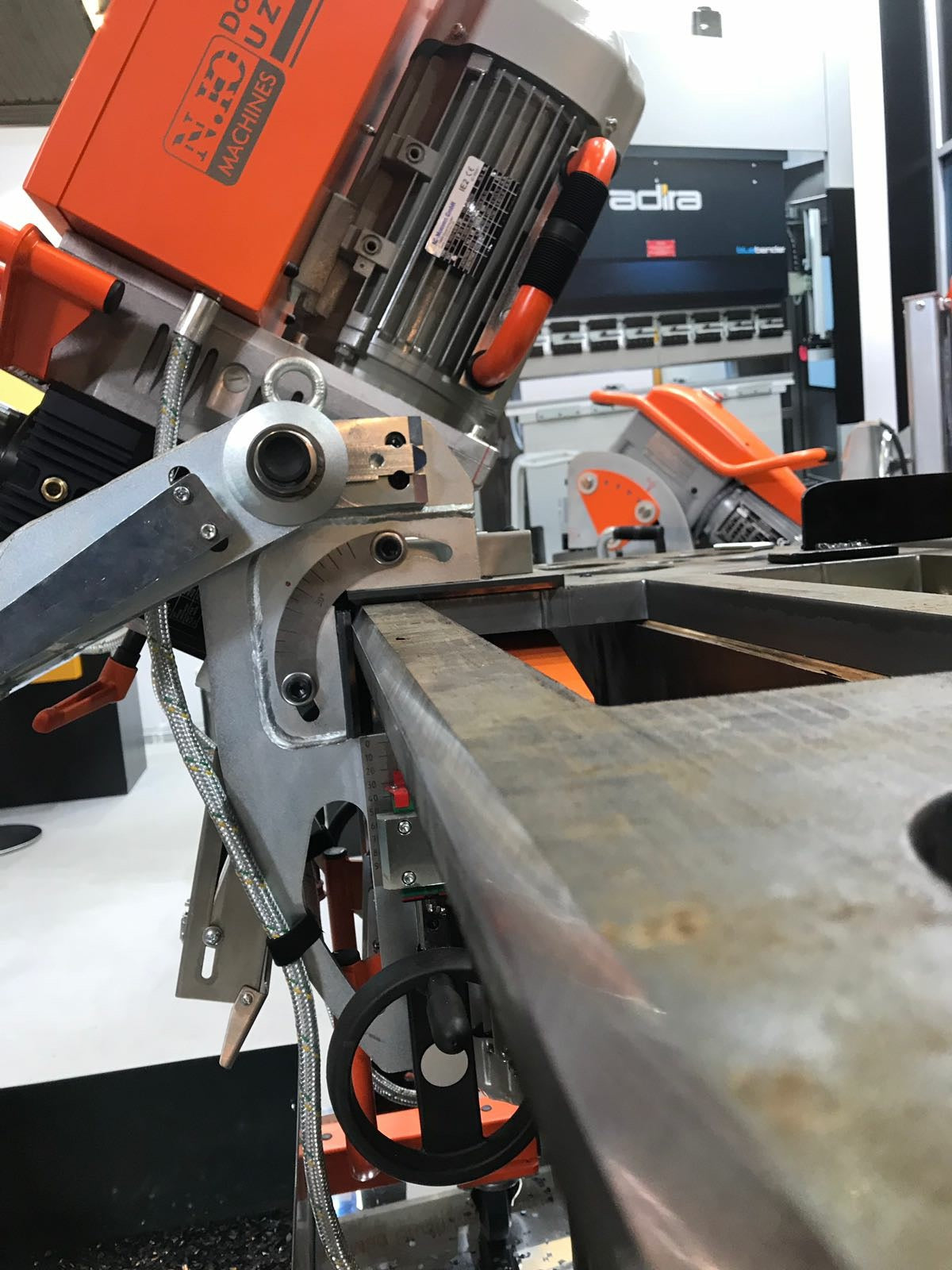

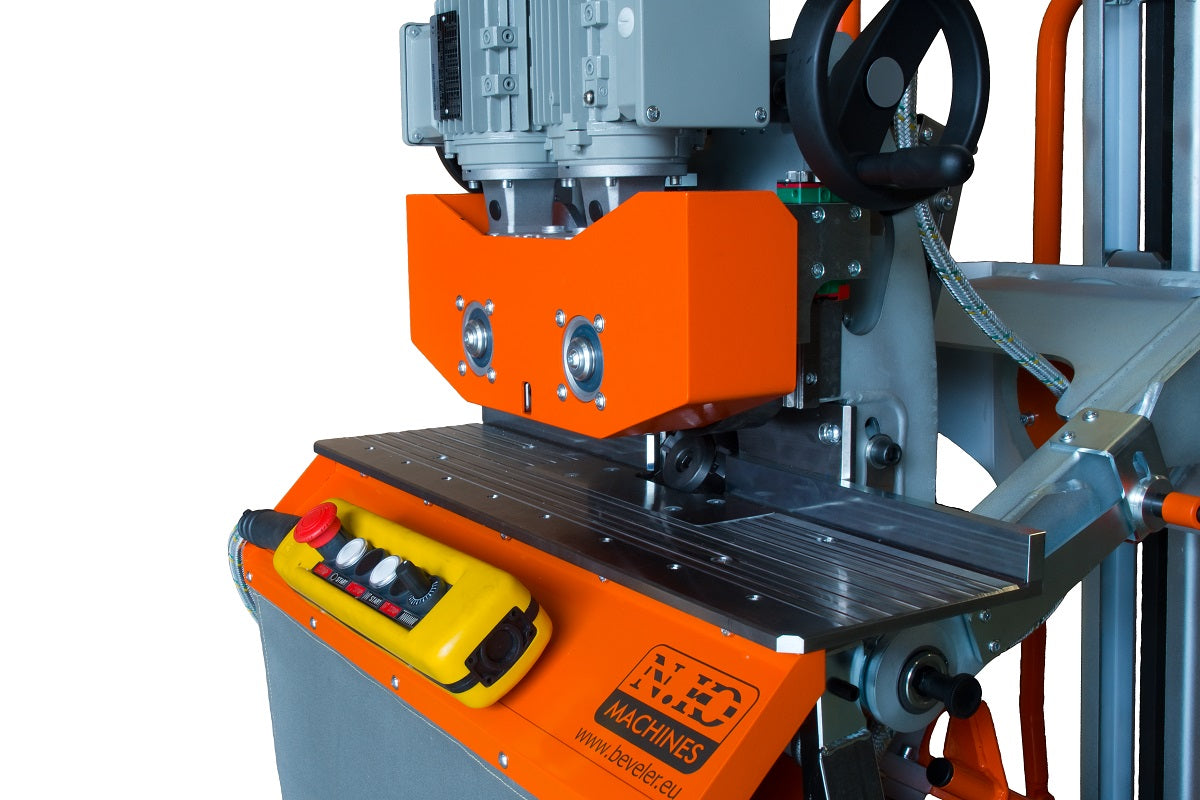

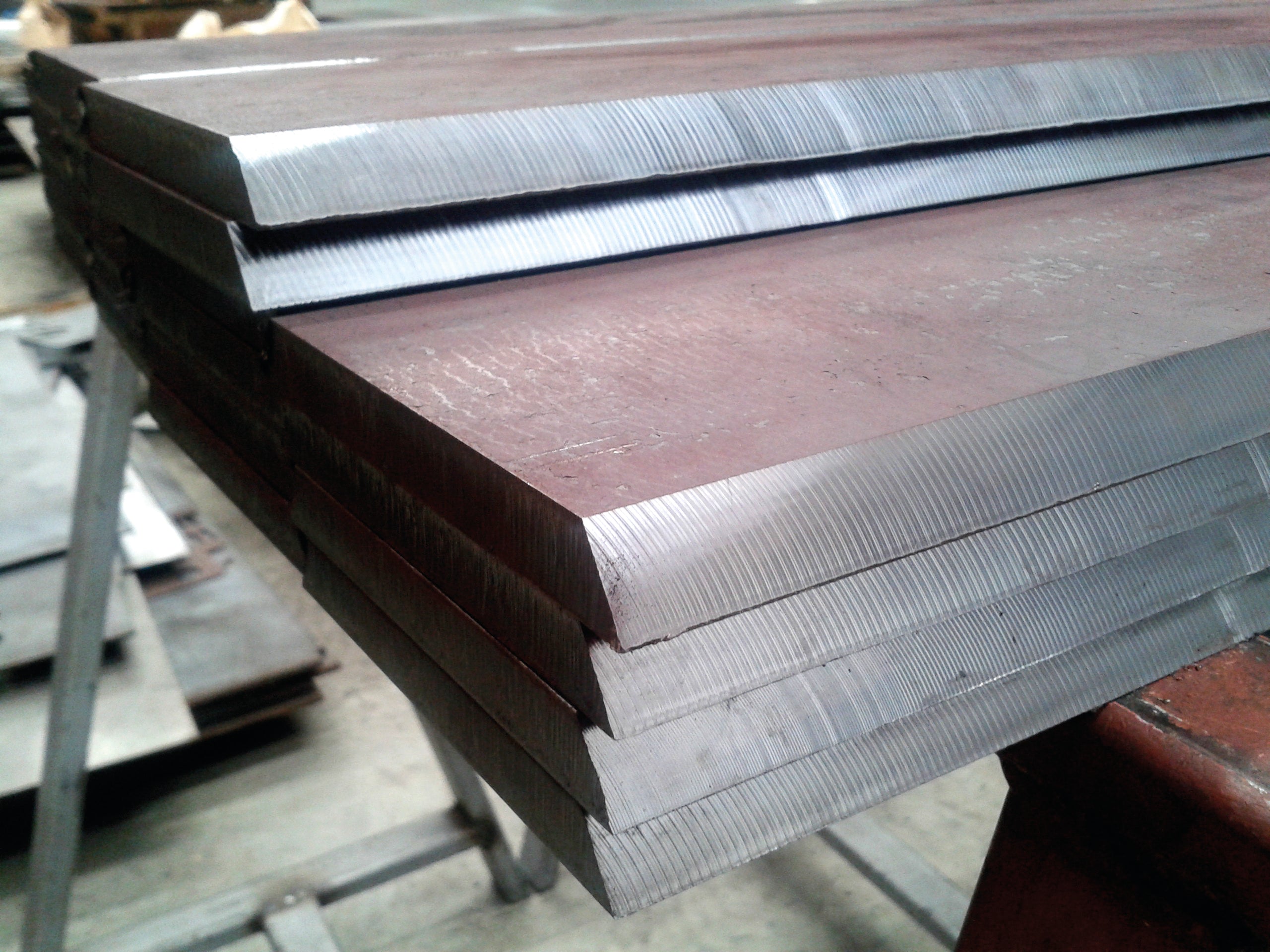

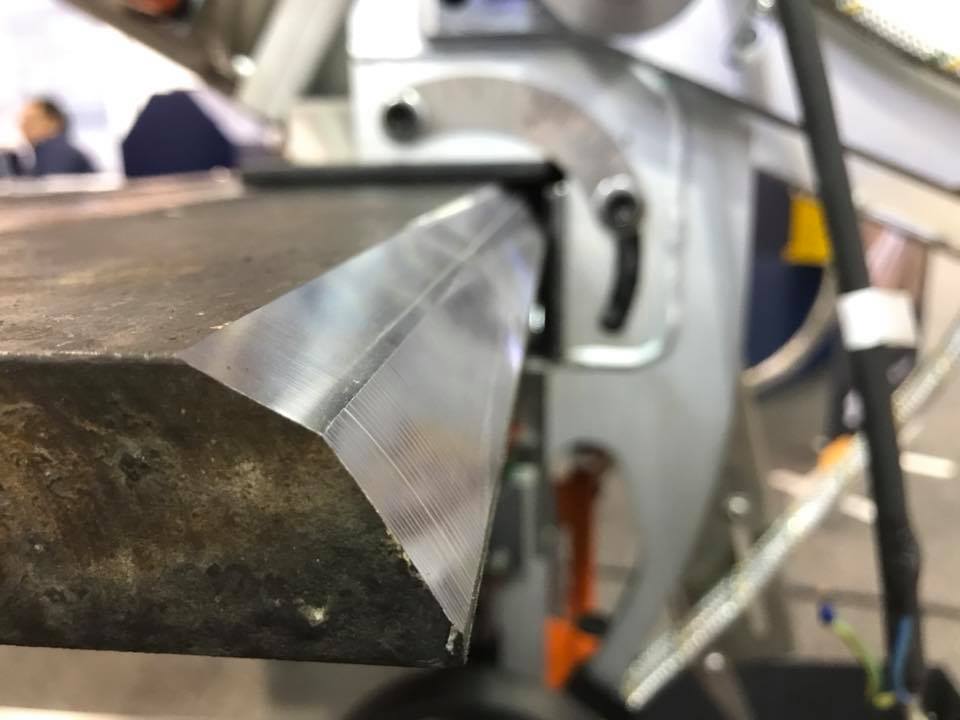

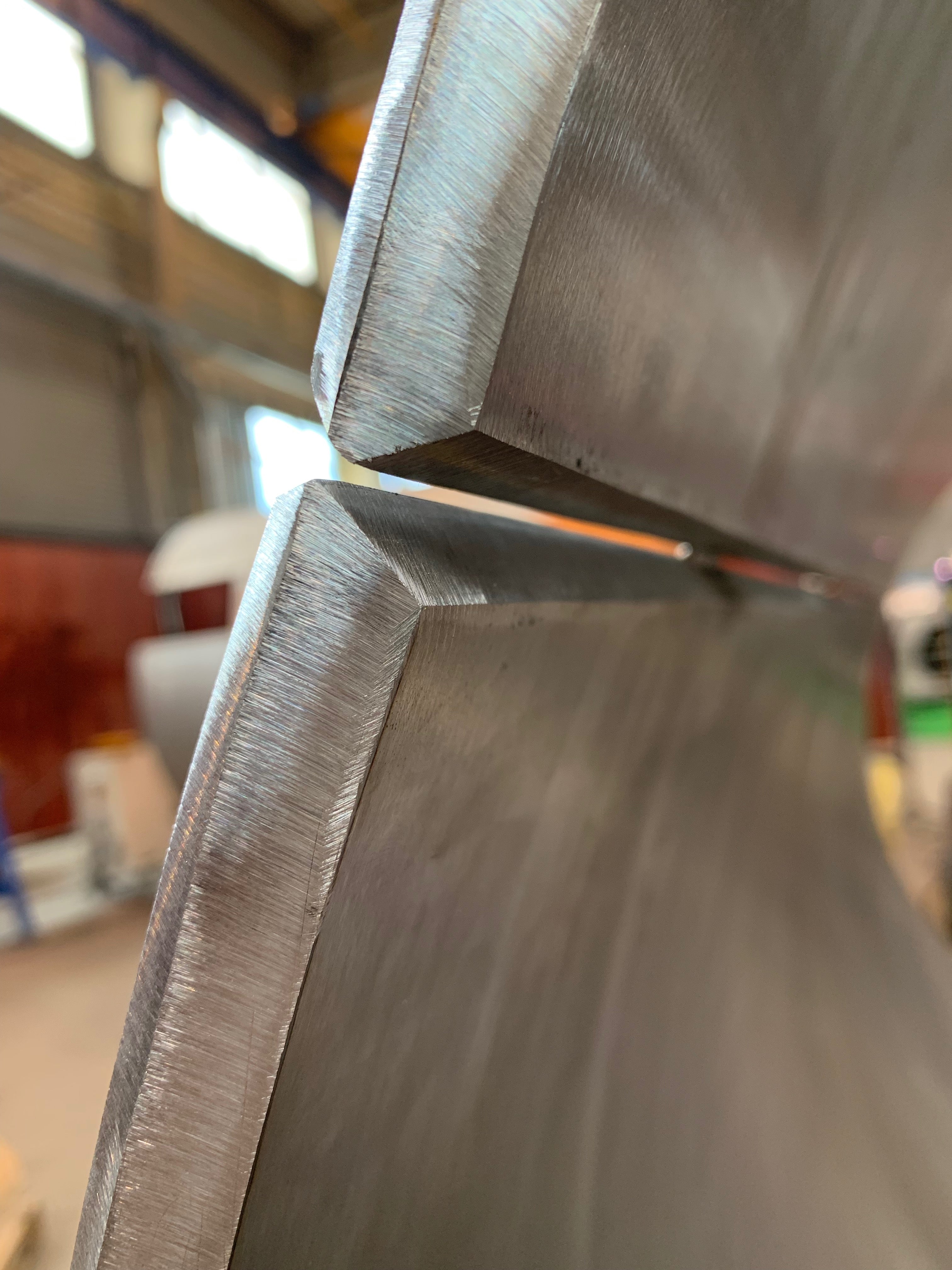

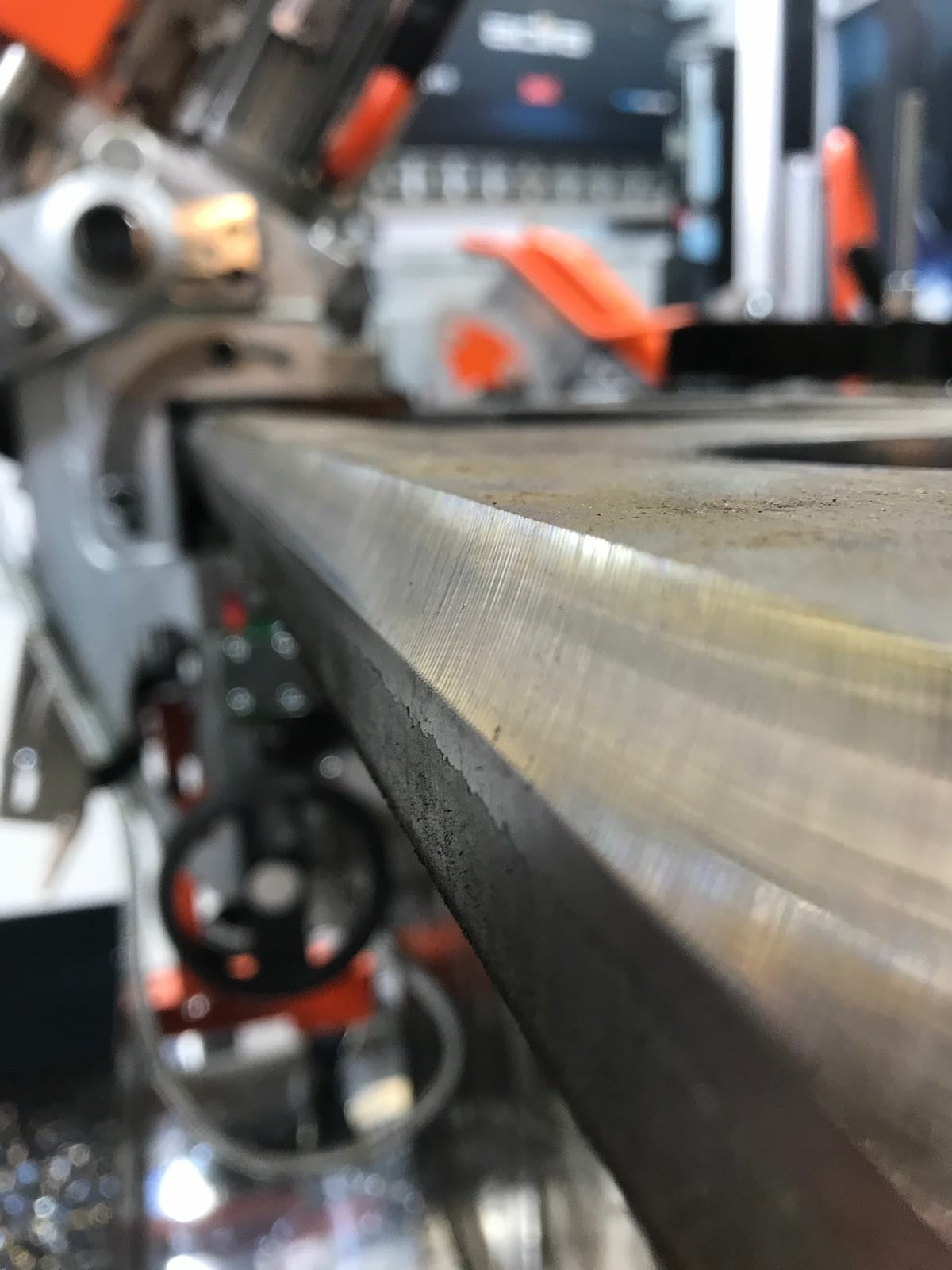

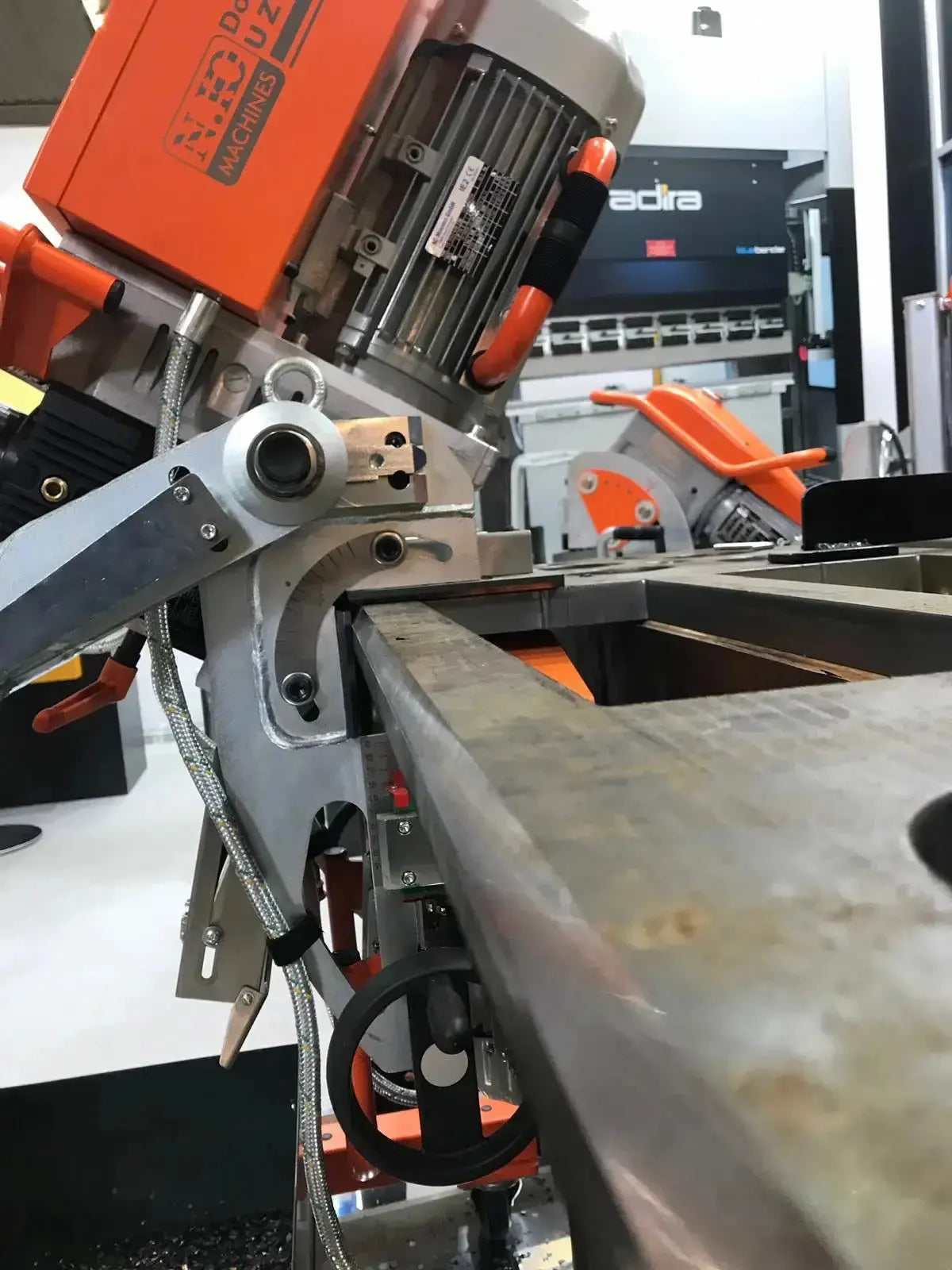

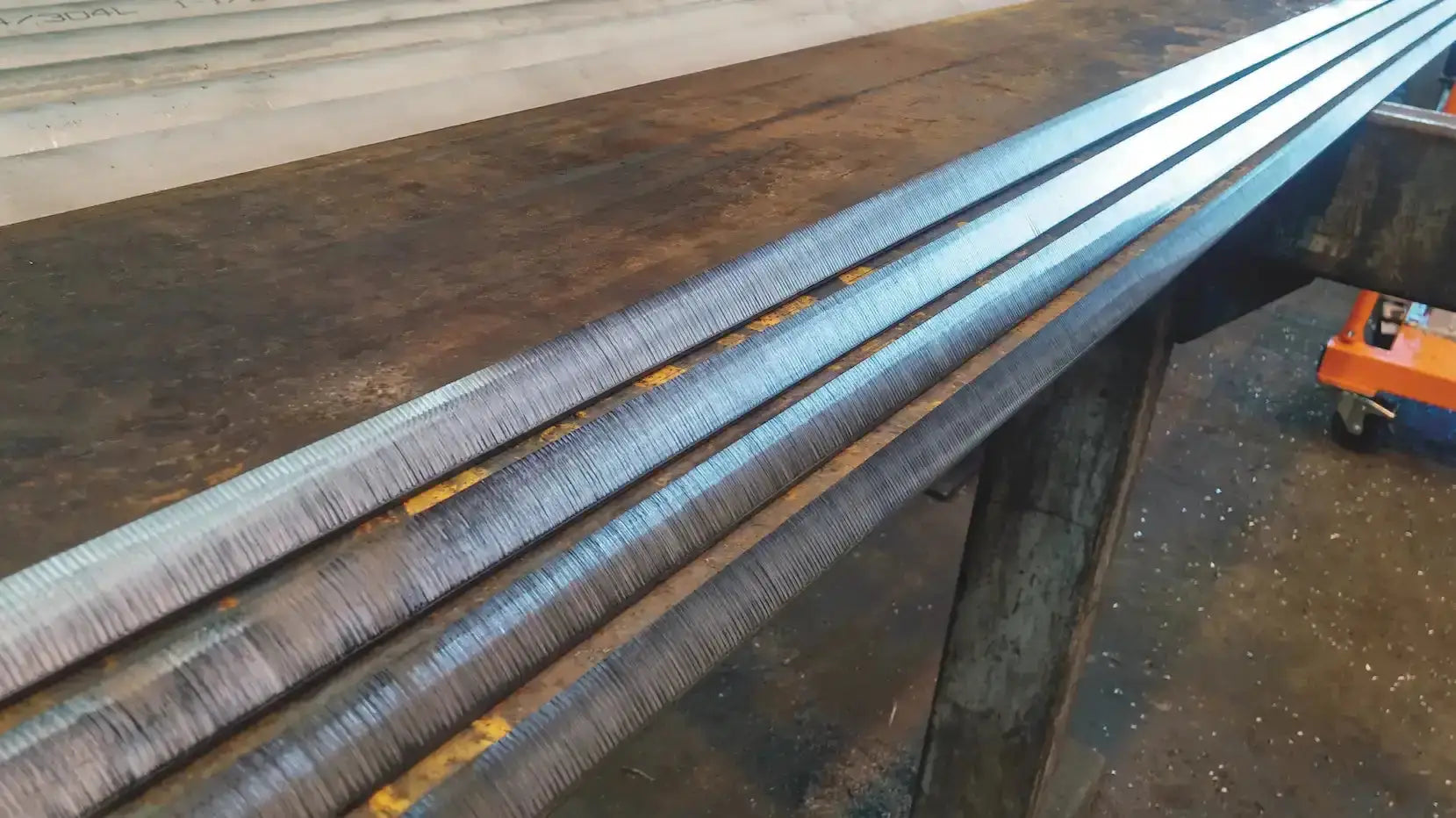

The KA50 Auto Beveler handles steel, stainless, HARDOX, DOMEX, and aluminium without breaking stride. Its double-sided milling head cuts up to 62mm wide, angles shift on the fly, and no crane is needed thanks to the 3D Manipulator. Set it, flip it, feed it—done. Tidy bevels on everything from small flat steel to oversized plate.
- Auto feed with inverter control
- Bevels 15–60° with no part swaps
- Handles plate 7–80mm thick

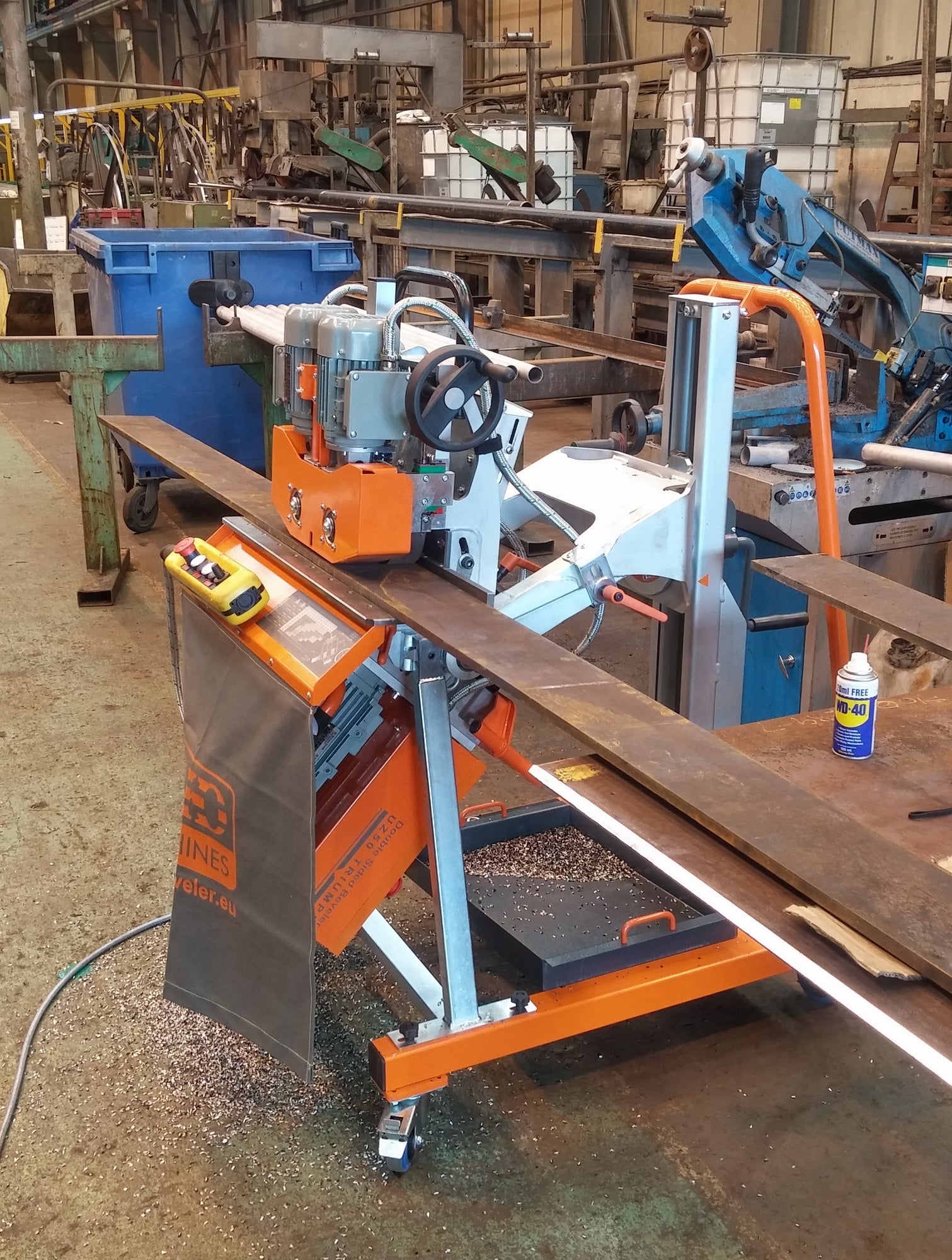

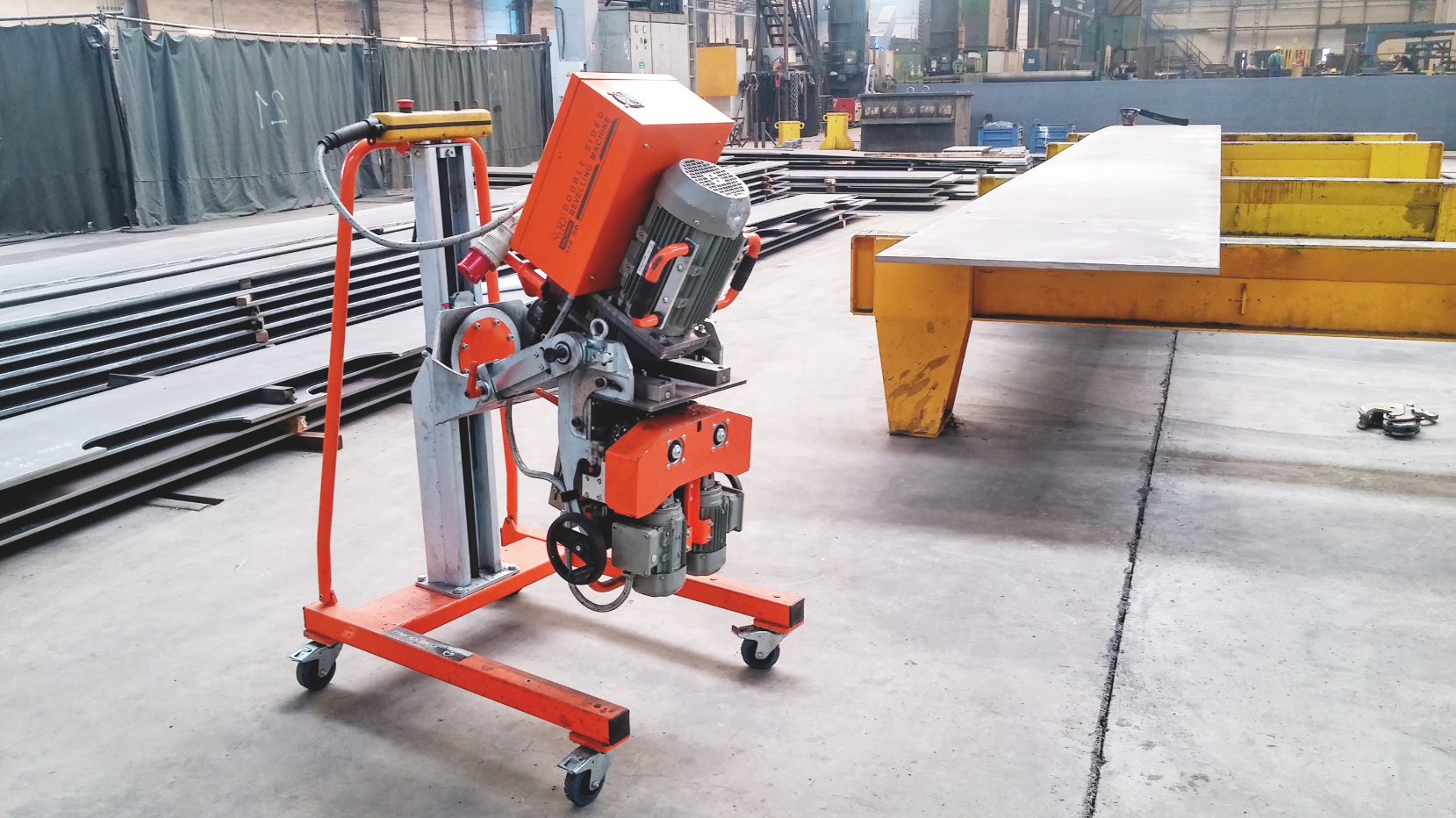

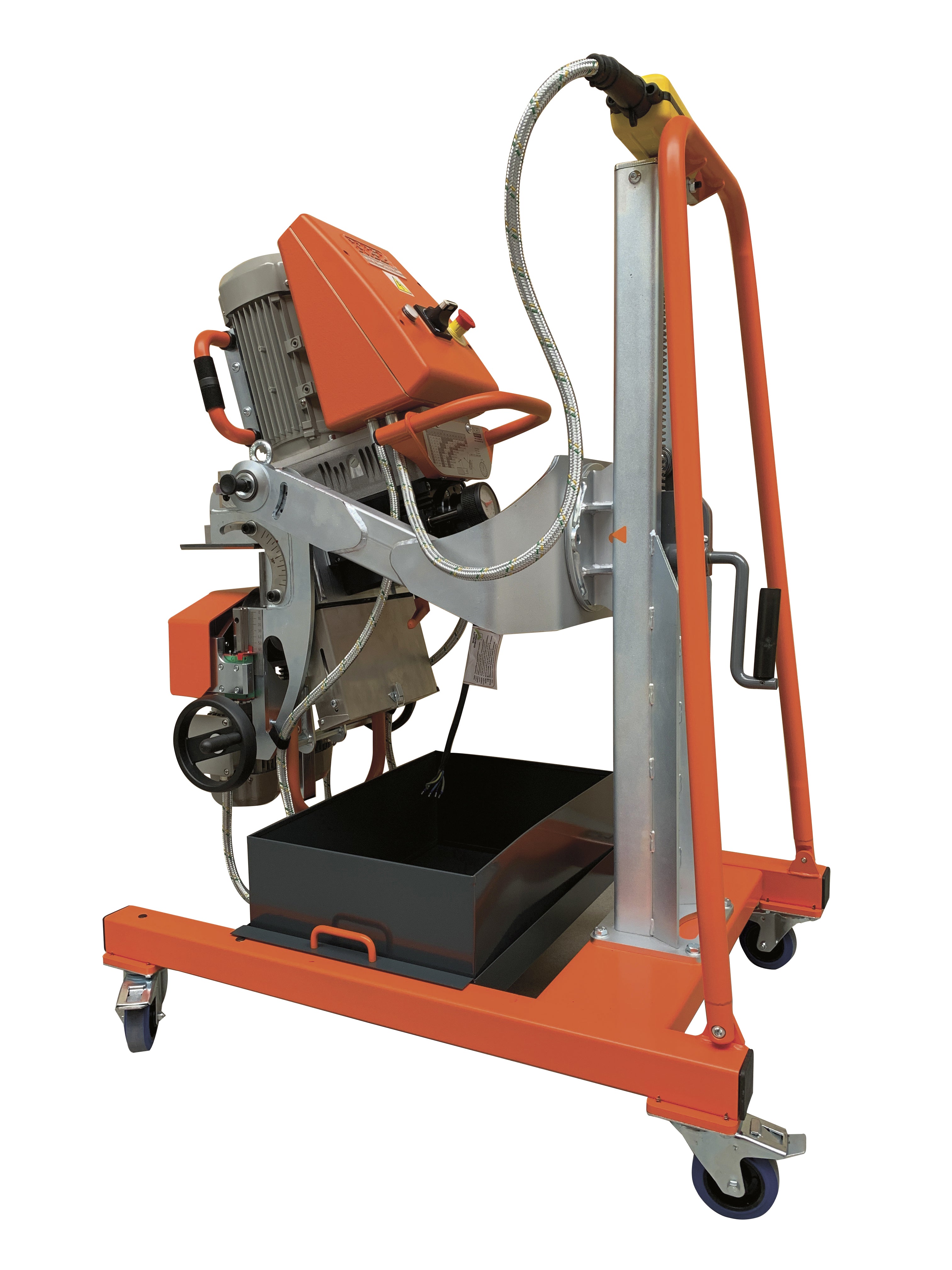

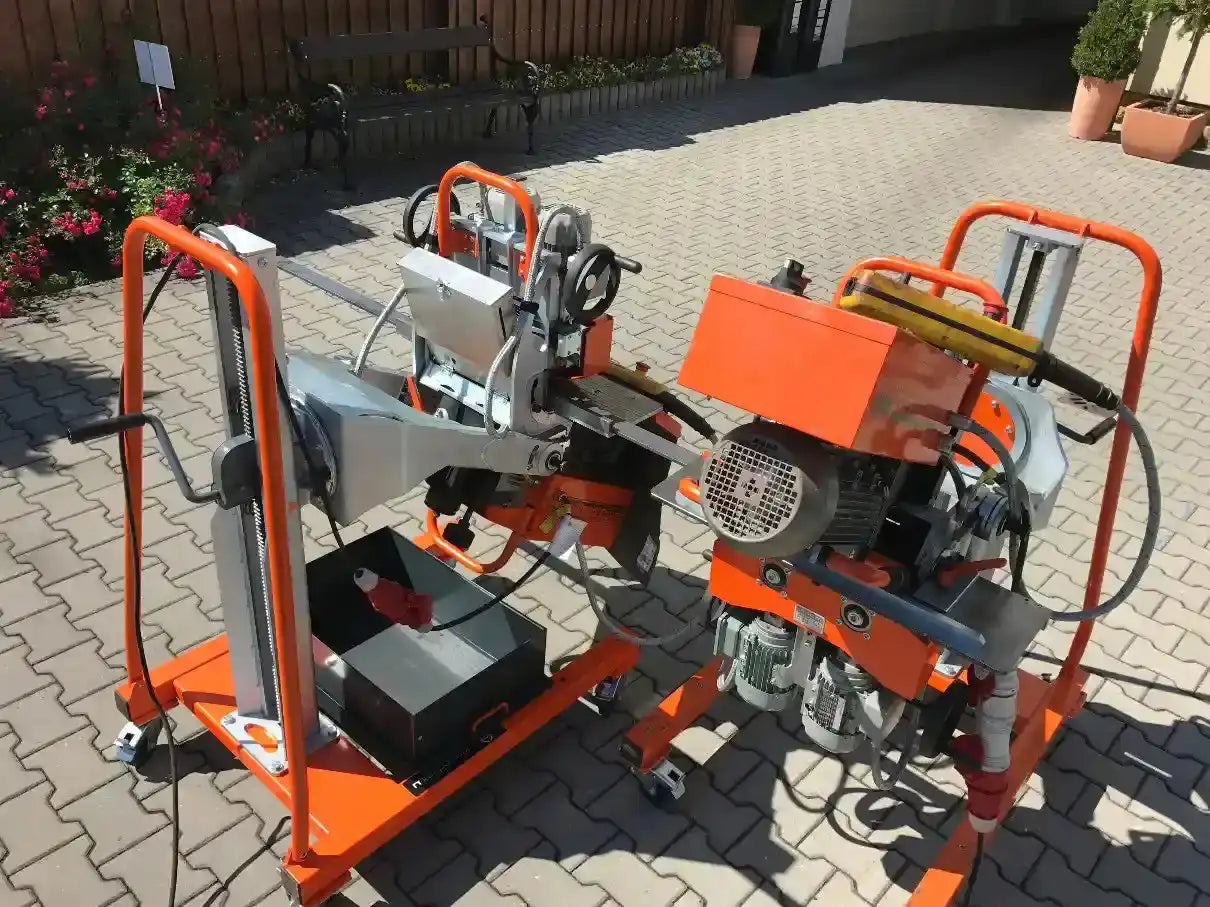

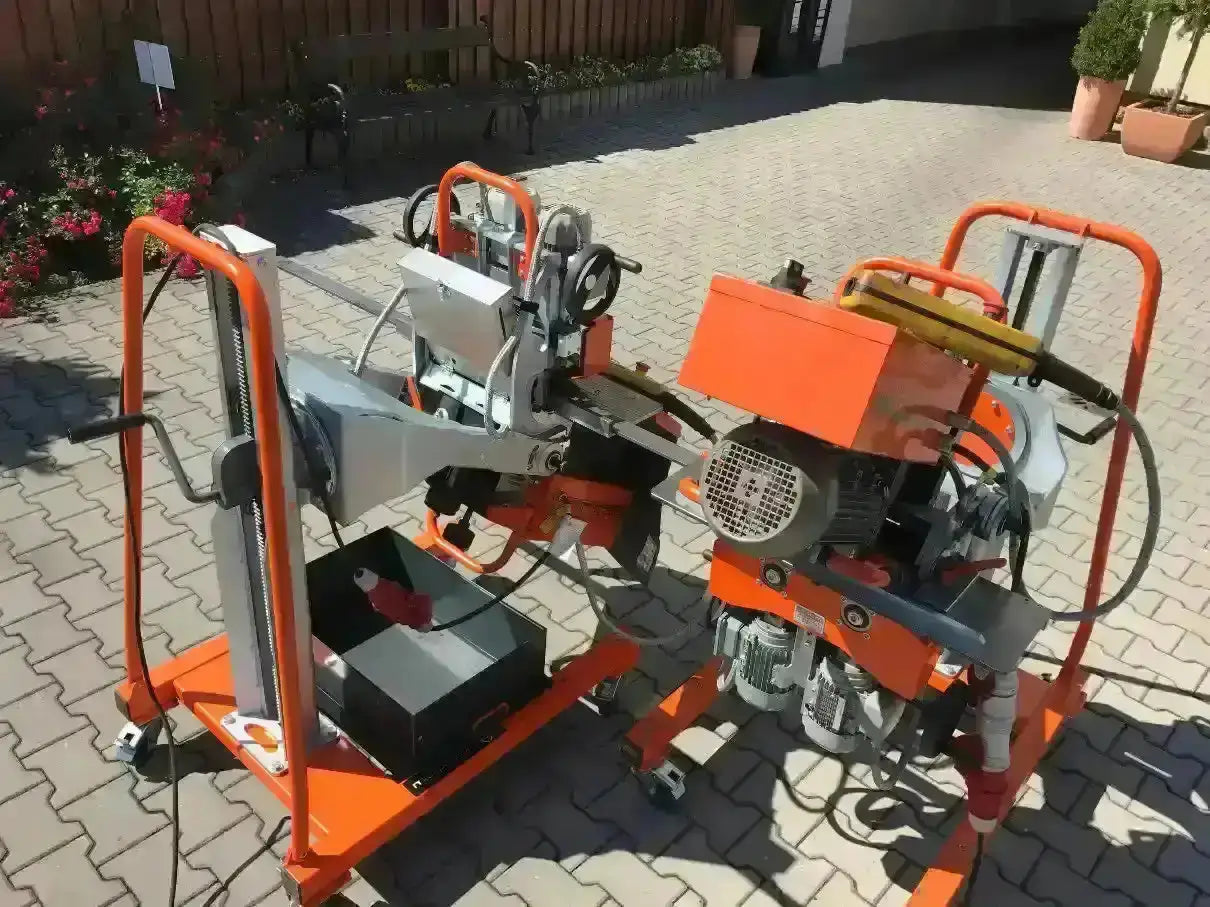

- 3D Manipulator simplifies handling
- Tool-free disassembly
User manual UZP30 NEW UZ50 TRIUMPH - 2020 User manual UZ50 TRIUMPH Catalogue sheet
Watch Video Watch Video Watch Video
Specifications
- Material specifications - for bevelling carbon steel, stainless stell and aluminium
- Thickness of material - from 7 to 80 mm

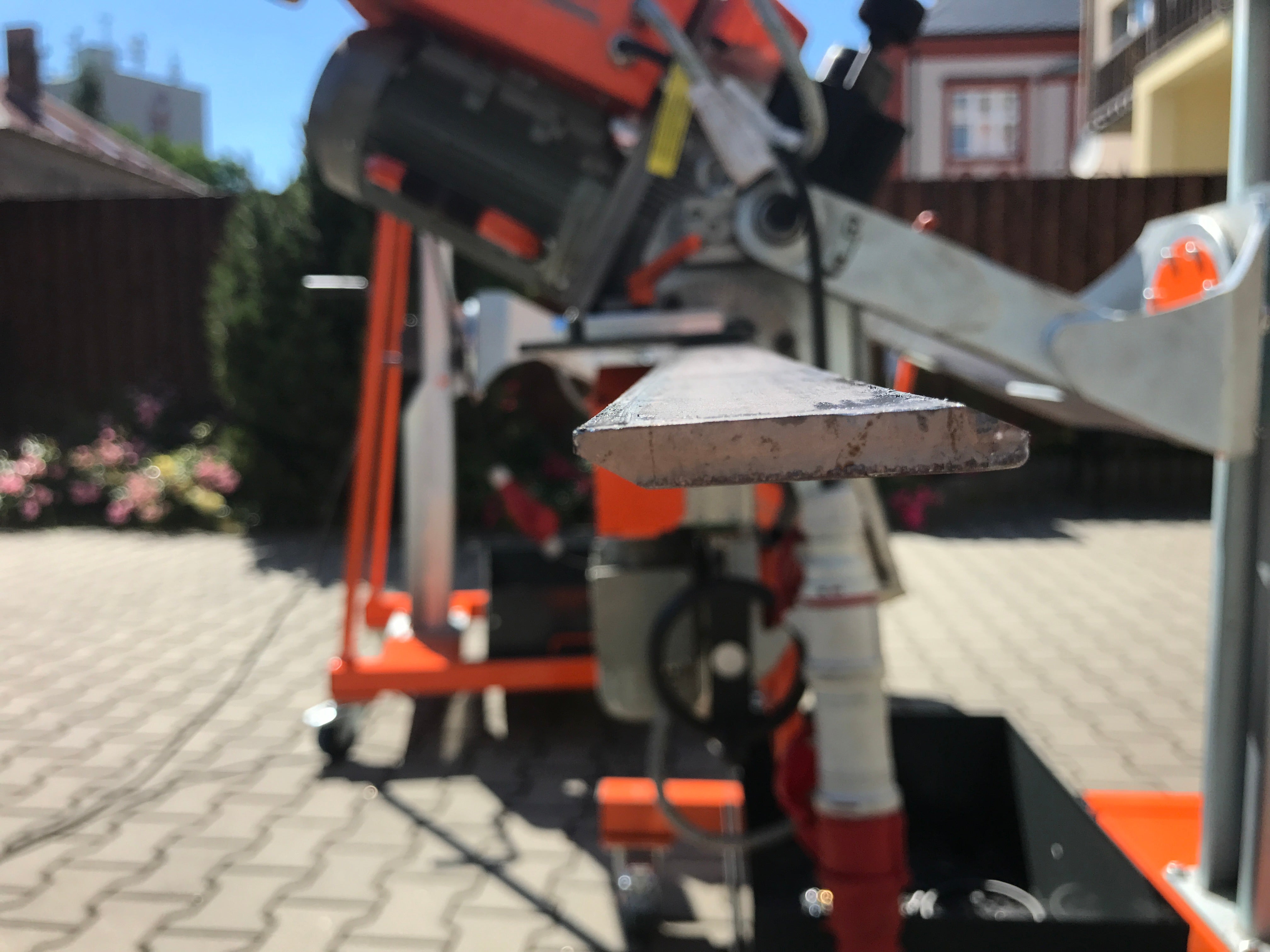

- Minimum dimension of material - 200 x 100 x 7 mm, with equipment for bevelling small flat steel
- Maximum dimension of material - unlimited
- Engine milling head - power 4 000 W / 400 V / 3 phases / 50 Hz
- Cutting speed - 182,92 m/min

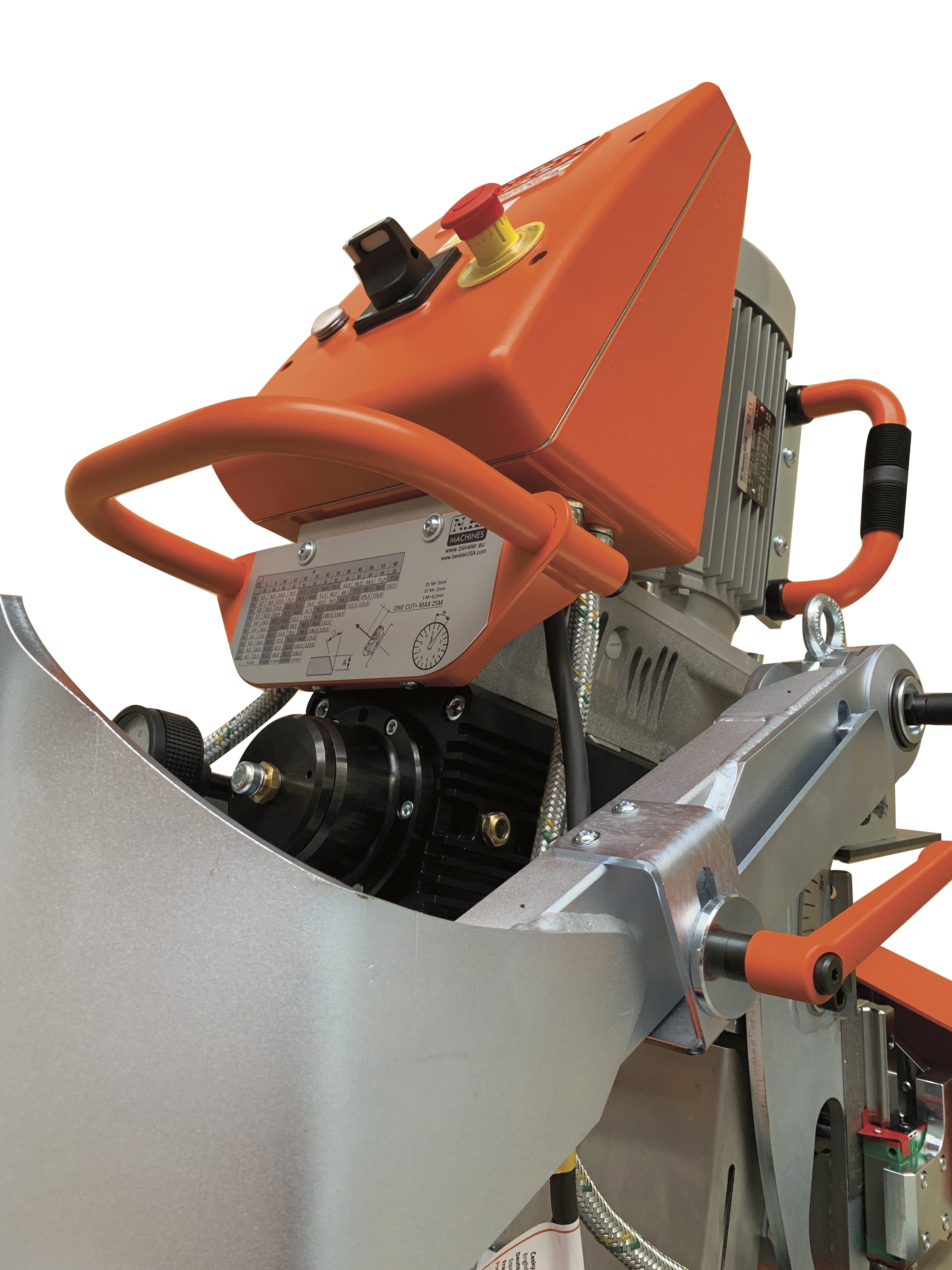

- Milling head - 85 mm with 5 inserts
- Engine automatic feeding - 2 engine, power 120 W/ 400V /3 phases/50 Hz
automatic feed speed adjustment with inverter 0-1,2 m/min, adjustment depends on cutting conditions - Machine weight KA 50 AUTO BEVELER + MANIPULATOR 3D - 175kg

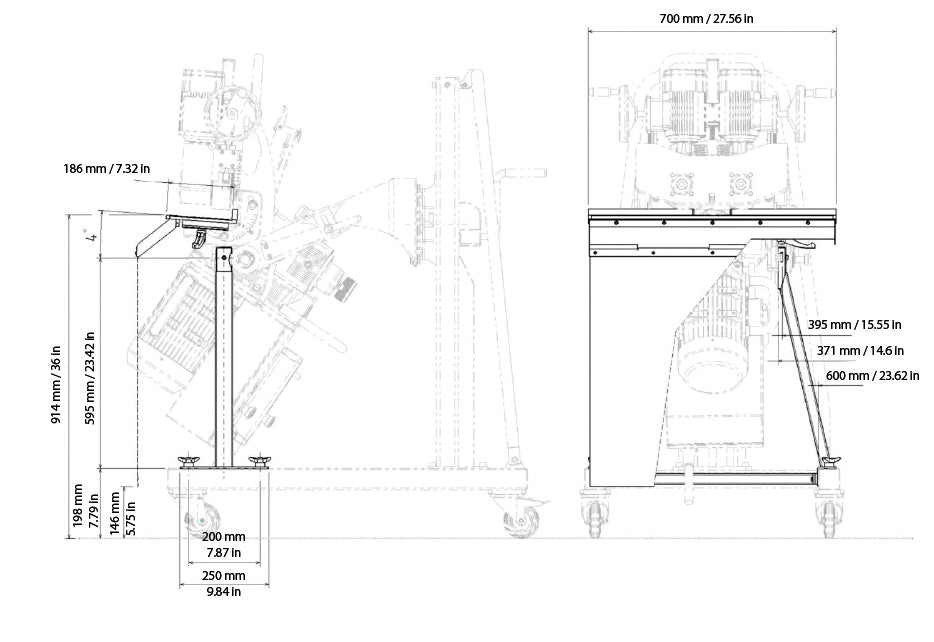

- Table size: 700 x 200 mm
- Working height: 914mm
- Weight (without machine): 30kg
- Smallest possible size workpiece: 200 x 100 x 7 mm

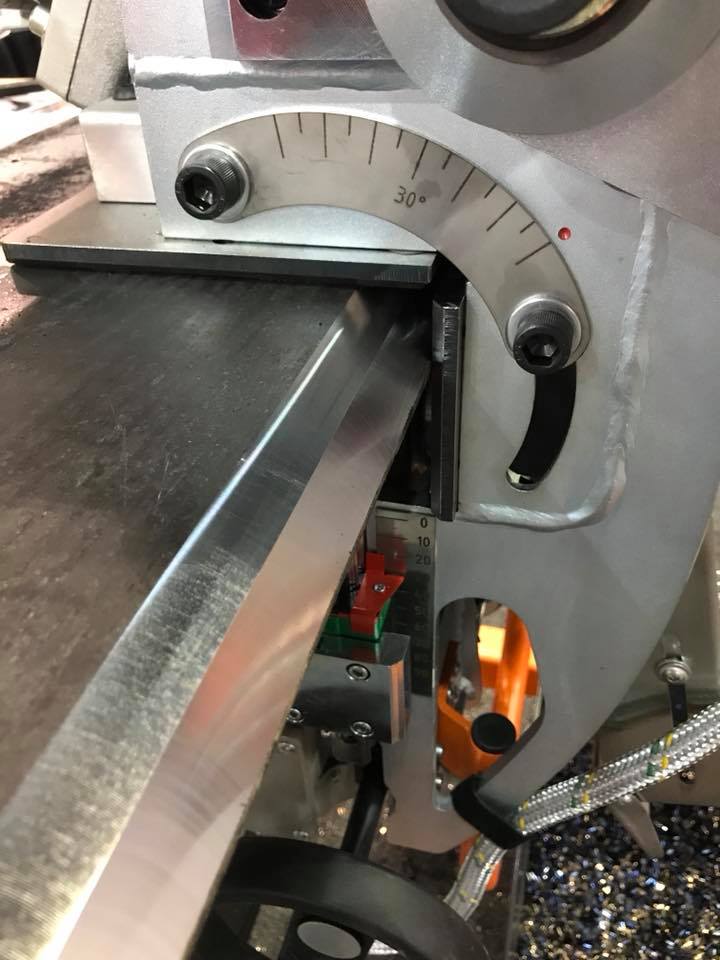

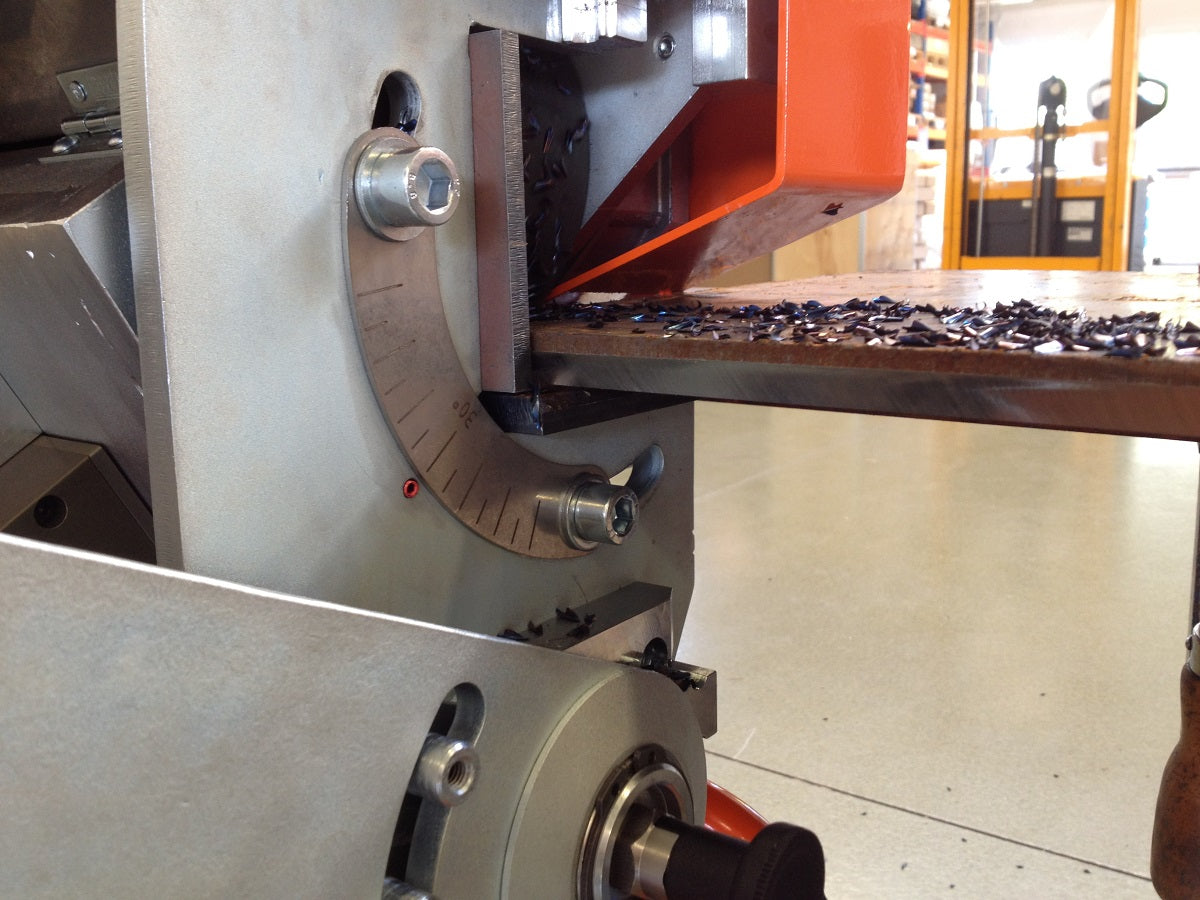

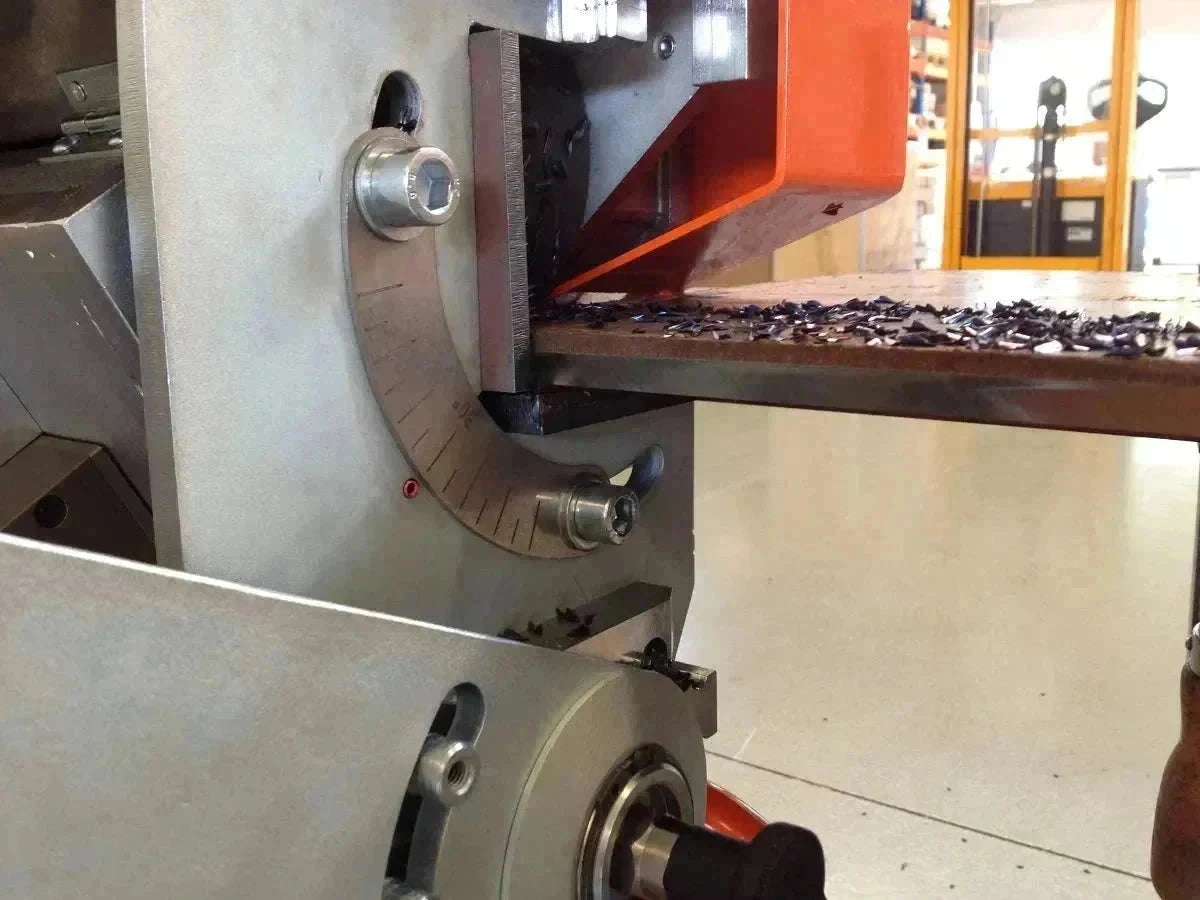

- Bevel angle α: 20°-60° infinitely variable
|
Machine name: |
400V – 3phase | 480V – 3phase | 220V – 3phase |
|

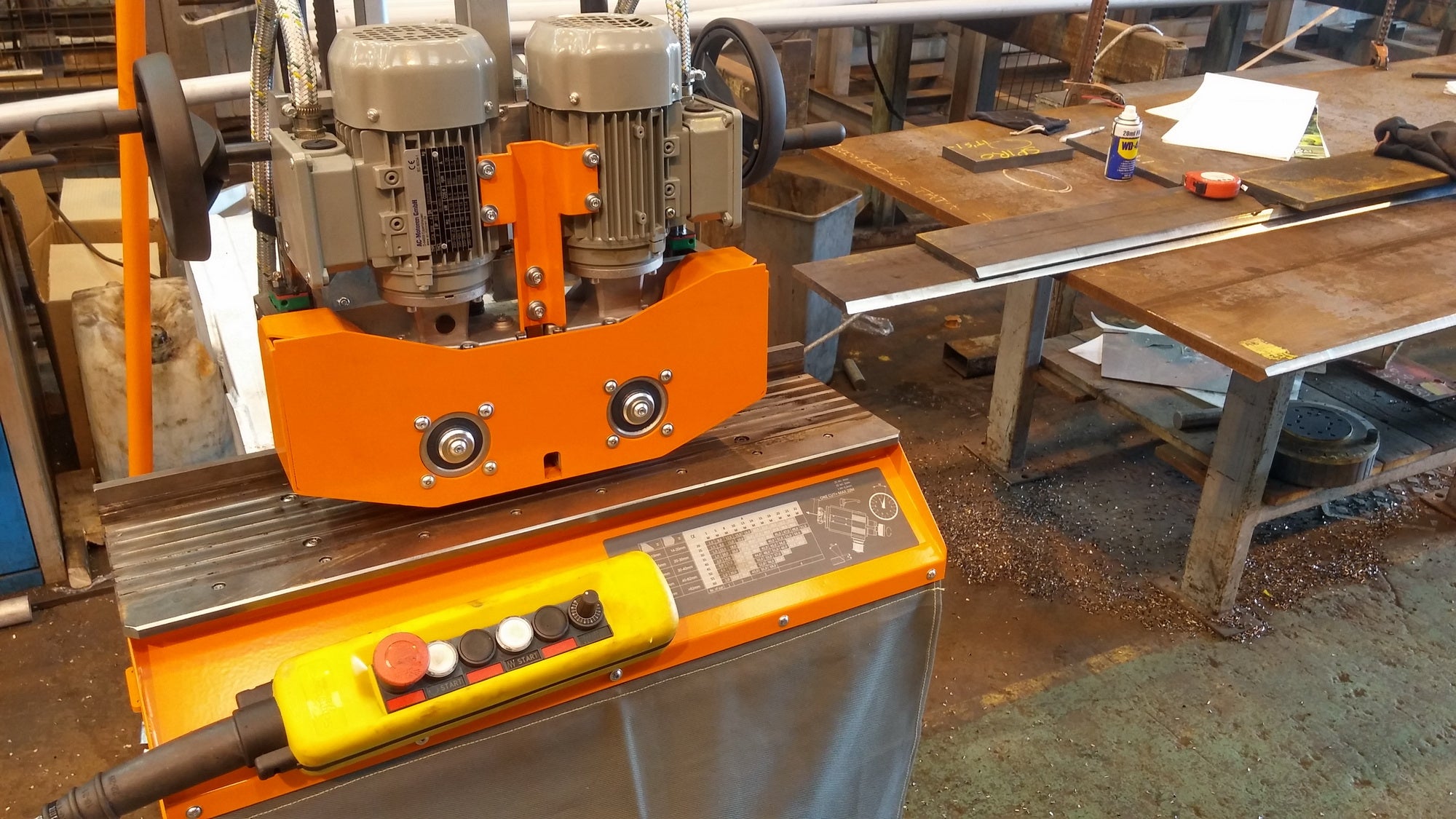

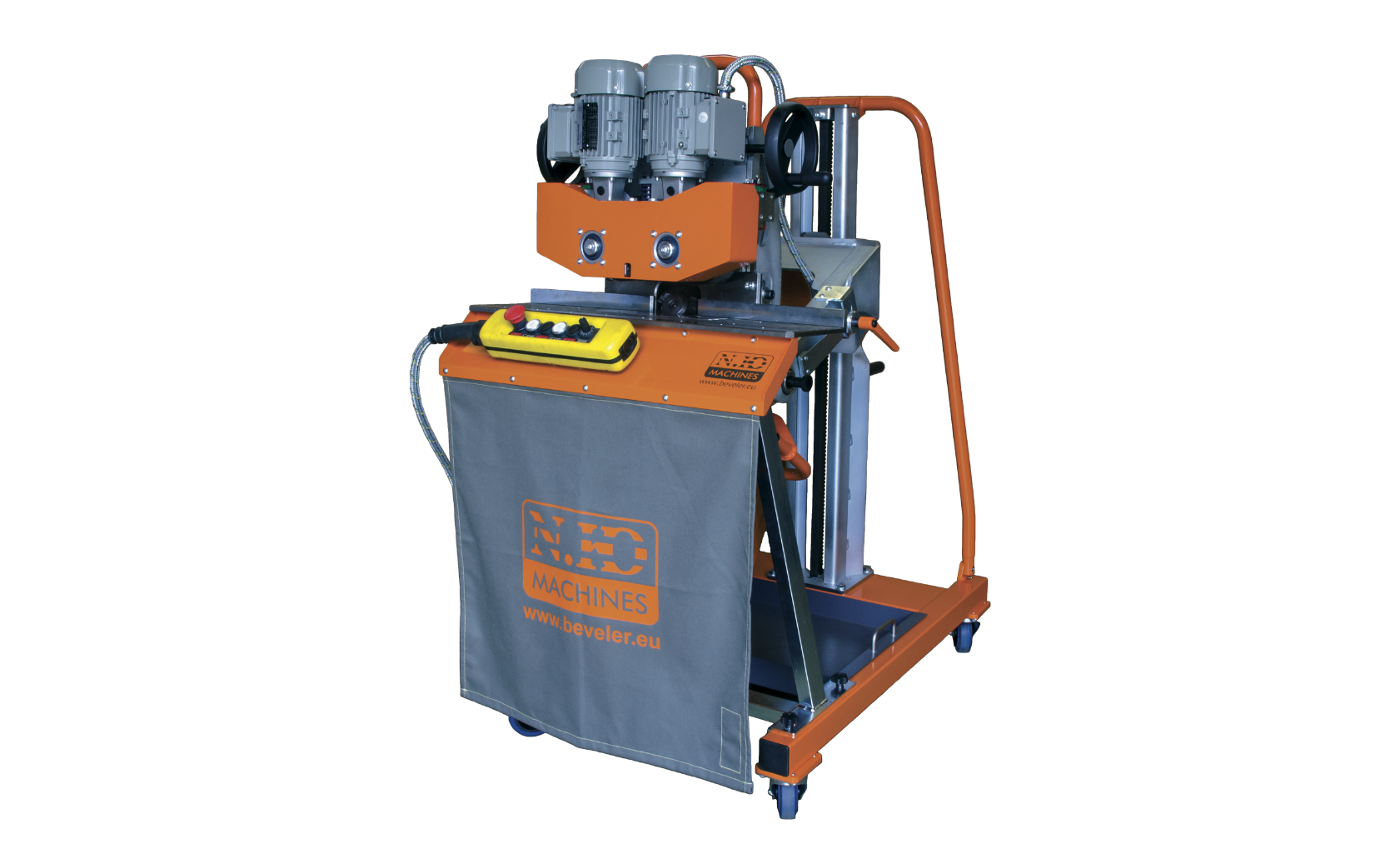

KA 50 Auto Beveler - including the 3D MANIPULATOR |
1940 | 1952 | 1953 |

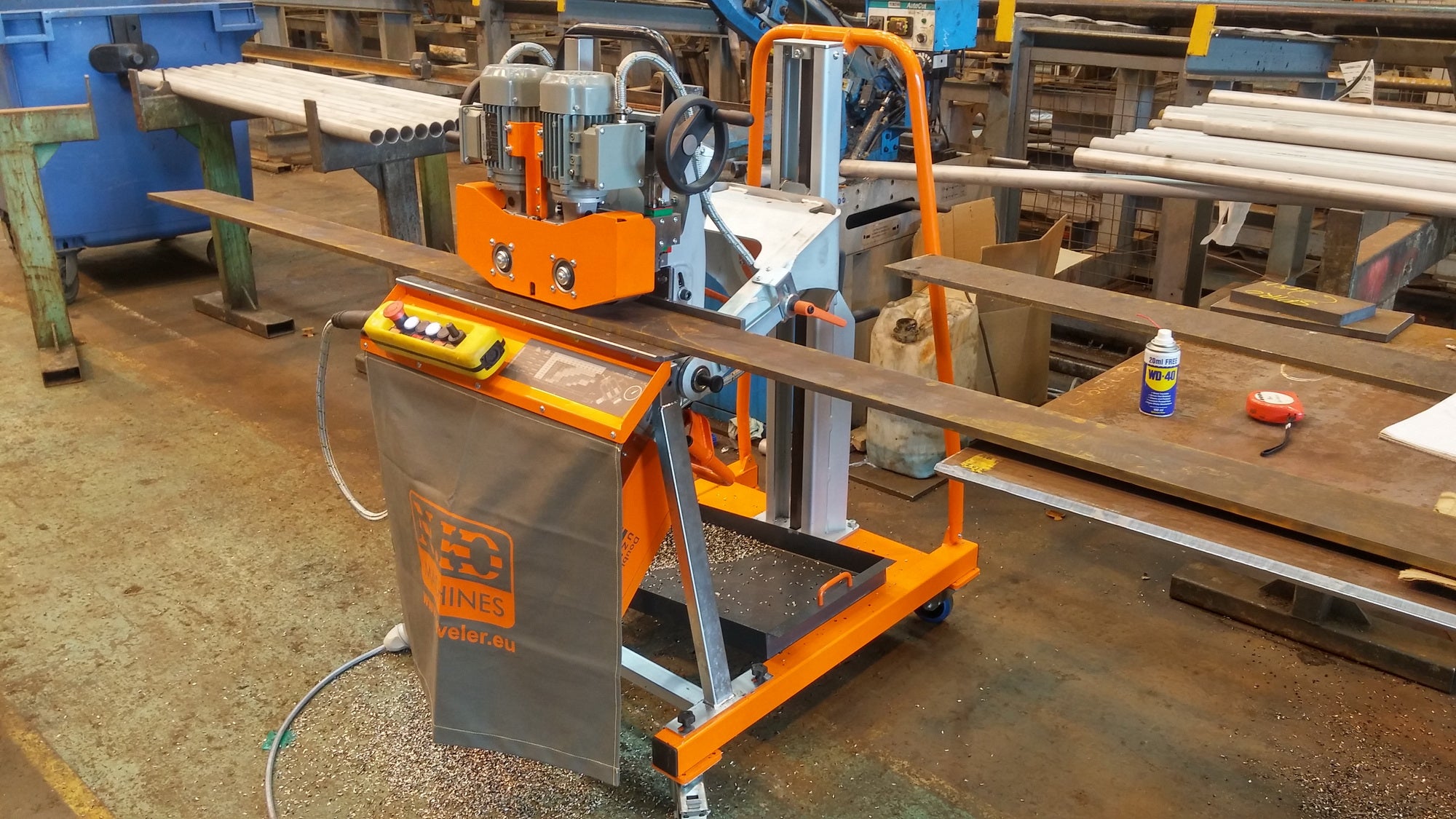

| SET - Bevelling system KA 50 Auto Beveler + table for processing small pieces UZP30 - including the 3D MANIPULATOR |
1941 | 1954 | 1957 |
| Accessories: | Art.Nr. |

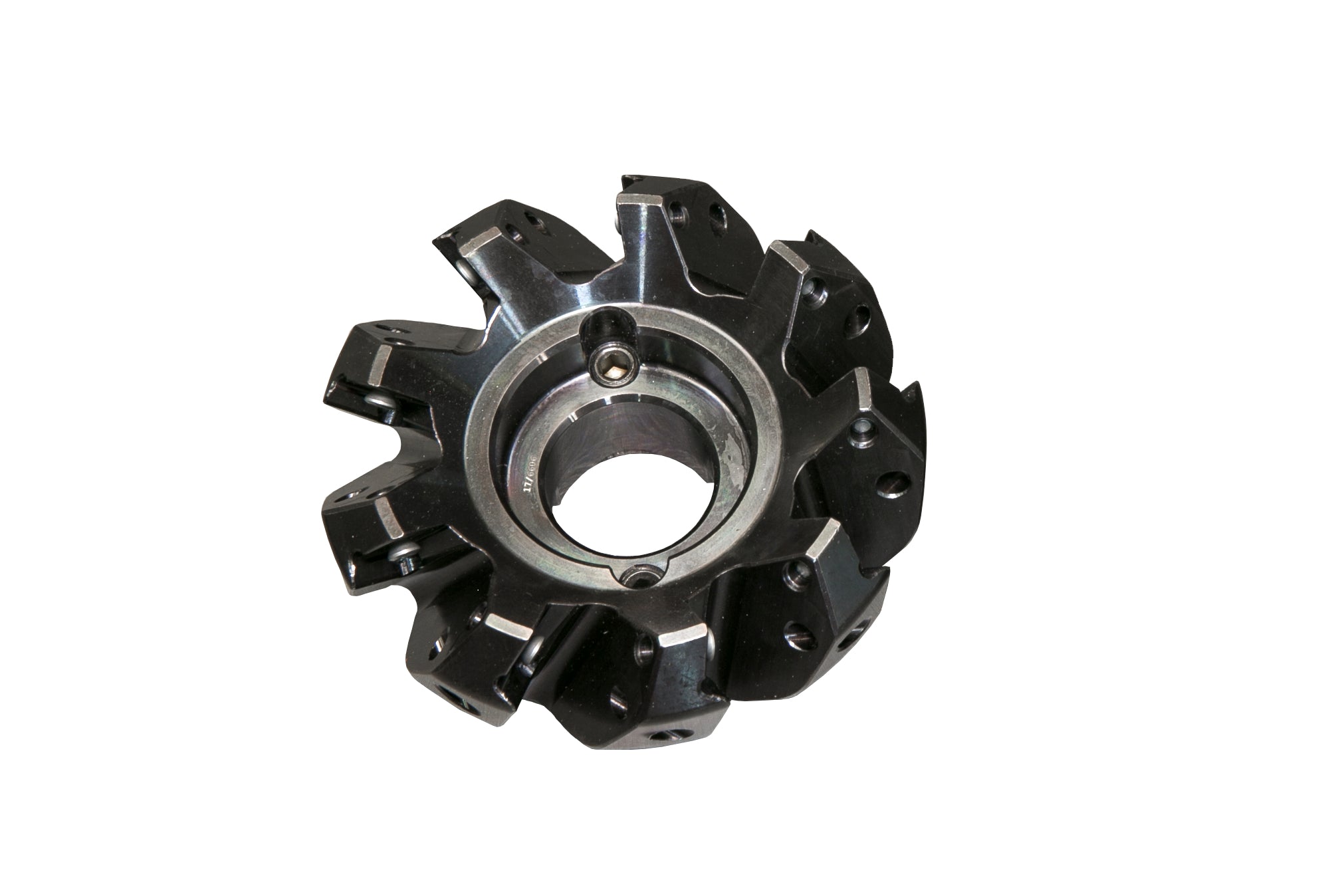

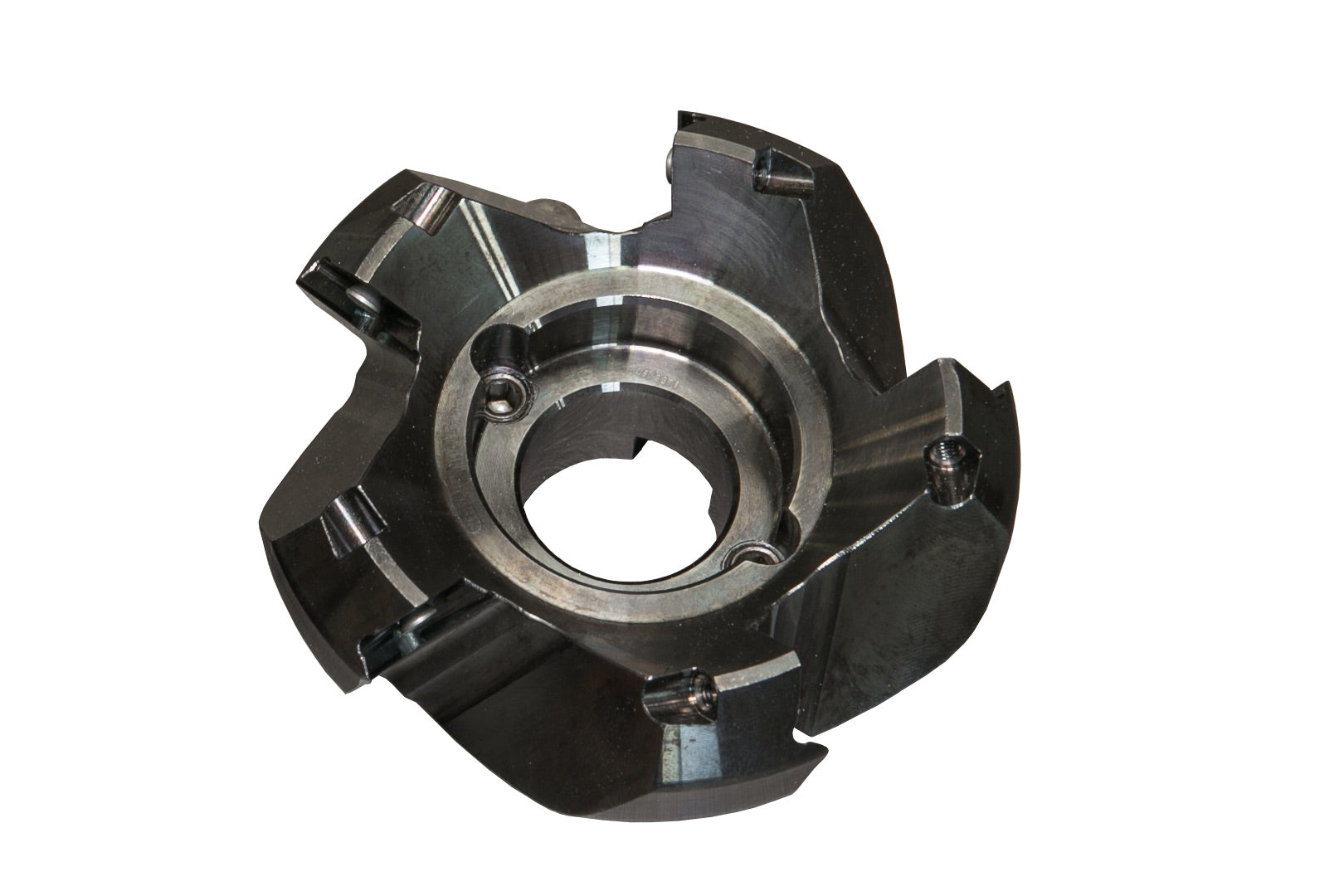

| Cutting head ECO – 5 inserts | 1946 |

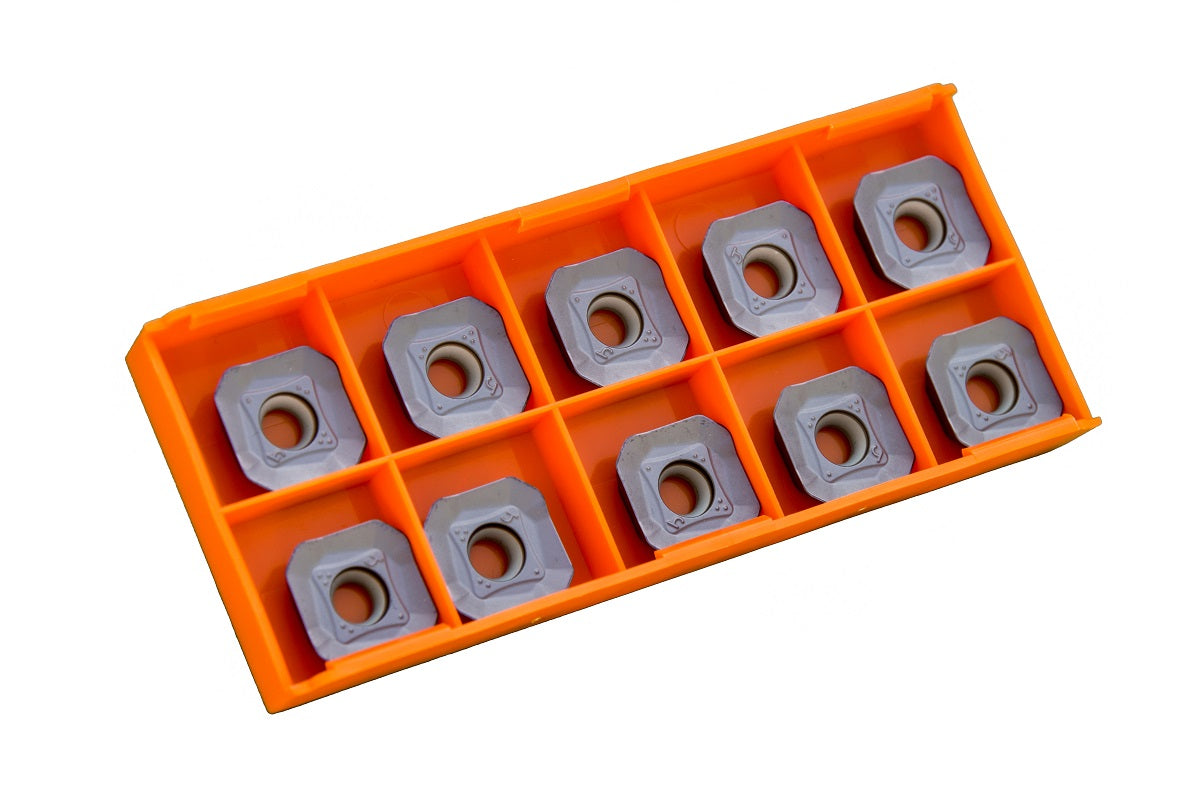

| Cutting inserts - four-sided - pack of 10 pcs |
1945 |
| Cutting head PREMIUM – 9 inserts - recommended when using UZP30! |
1943 |
| Cutting inserts HARDOX - four-sided - pack of 10 pcs |
1955 |

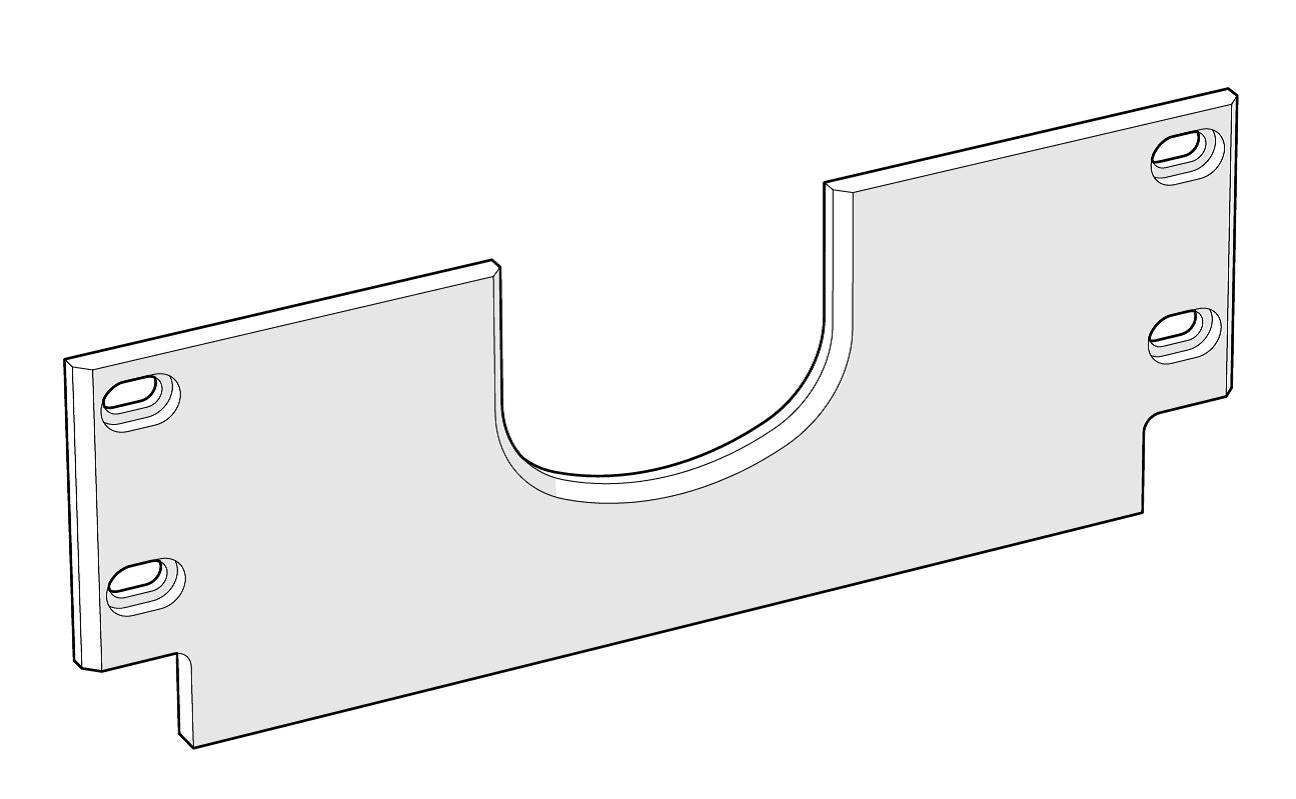

| Vertical guide plate adapted for bevelling HARDOX and other wear-resistant materials | 1949 |
| ASP active smart protection against overloading of the machine | 1956 |

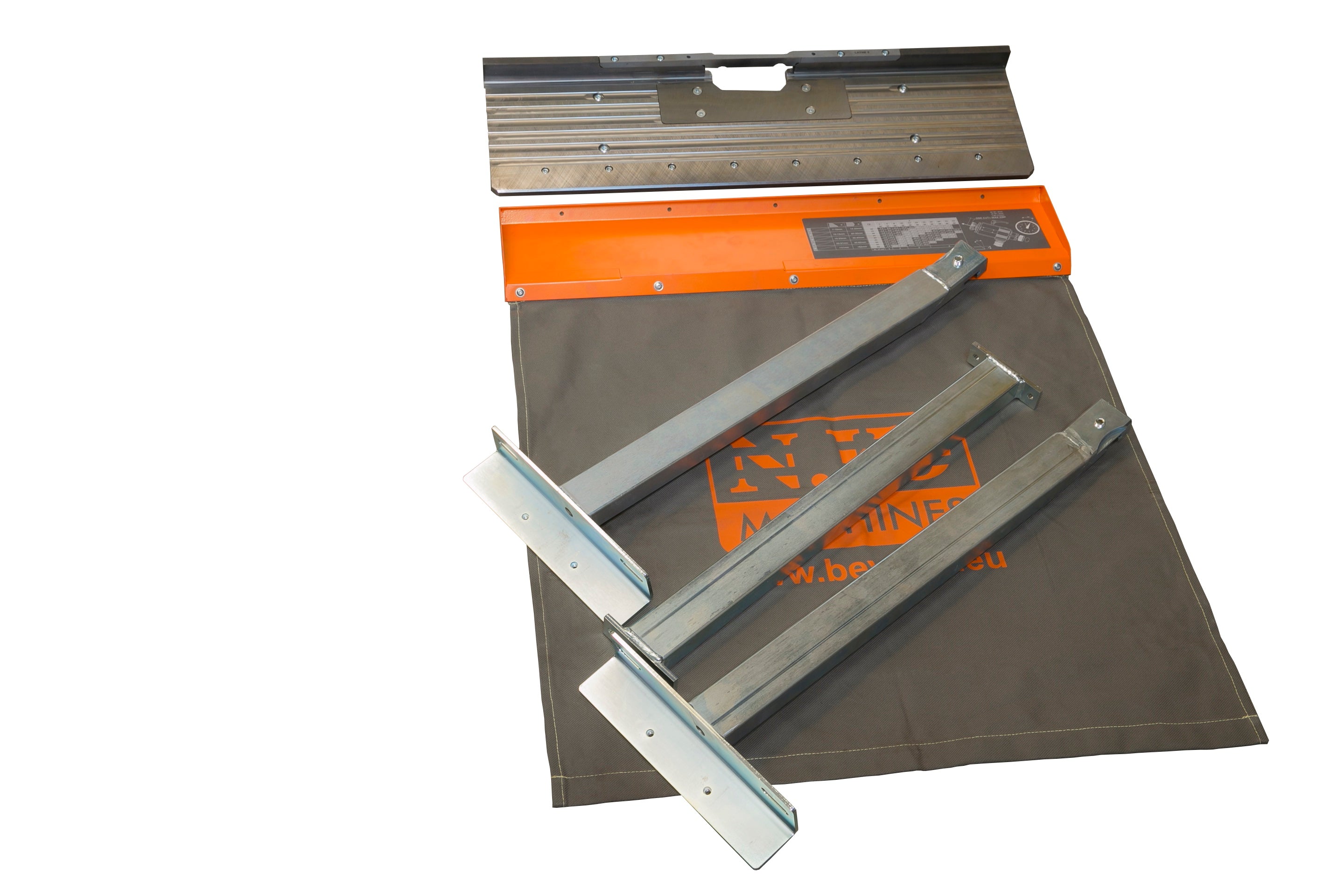

| UZP30 additional table for processing small pieces | 1942 |
| Screw for the cutting inserts | 1947 |

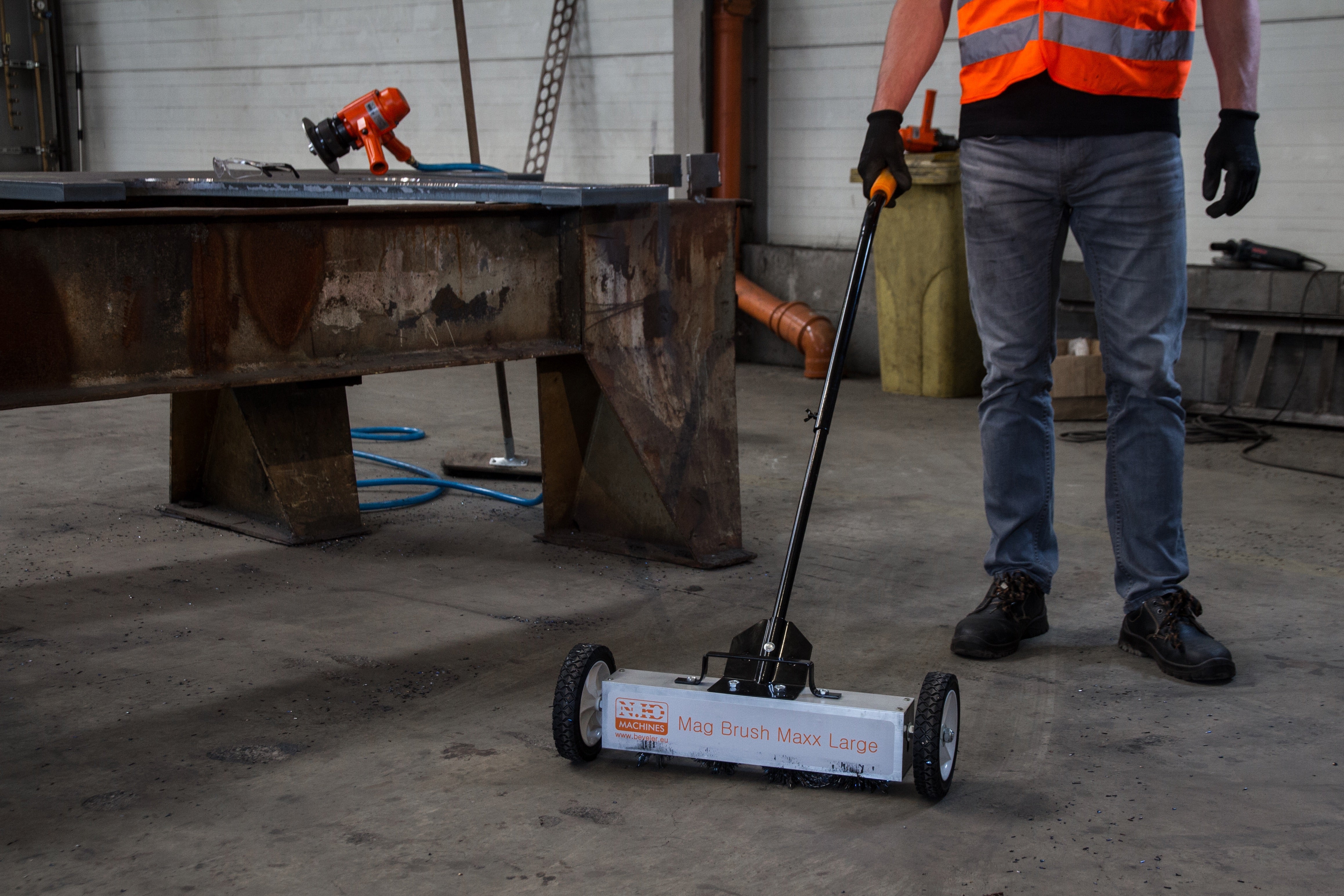

| Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in | NMF0107 |
No specifications available.

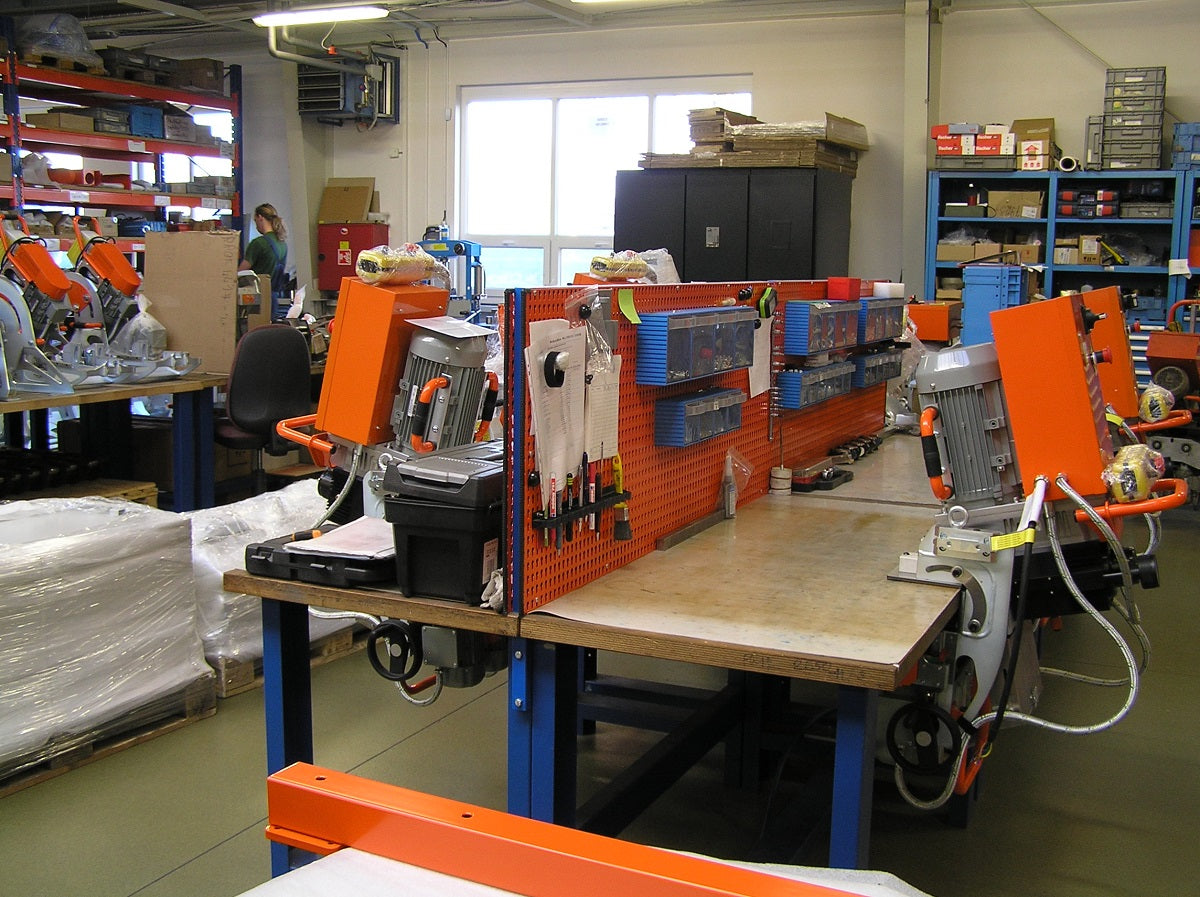

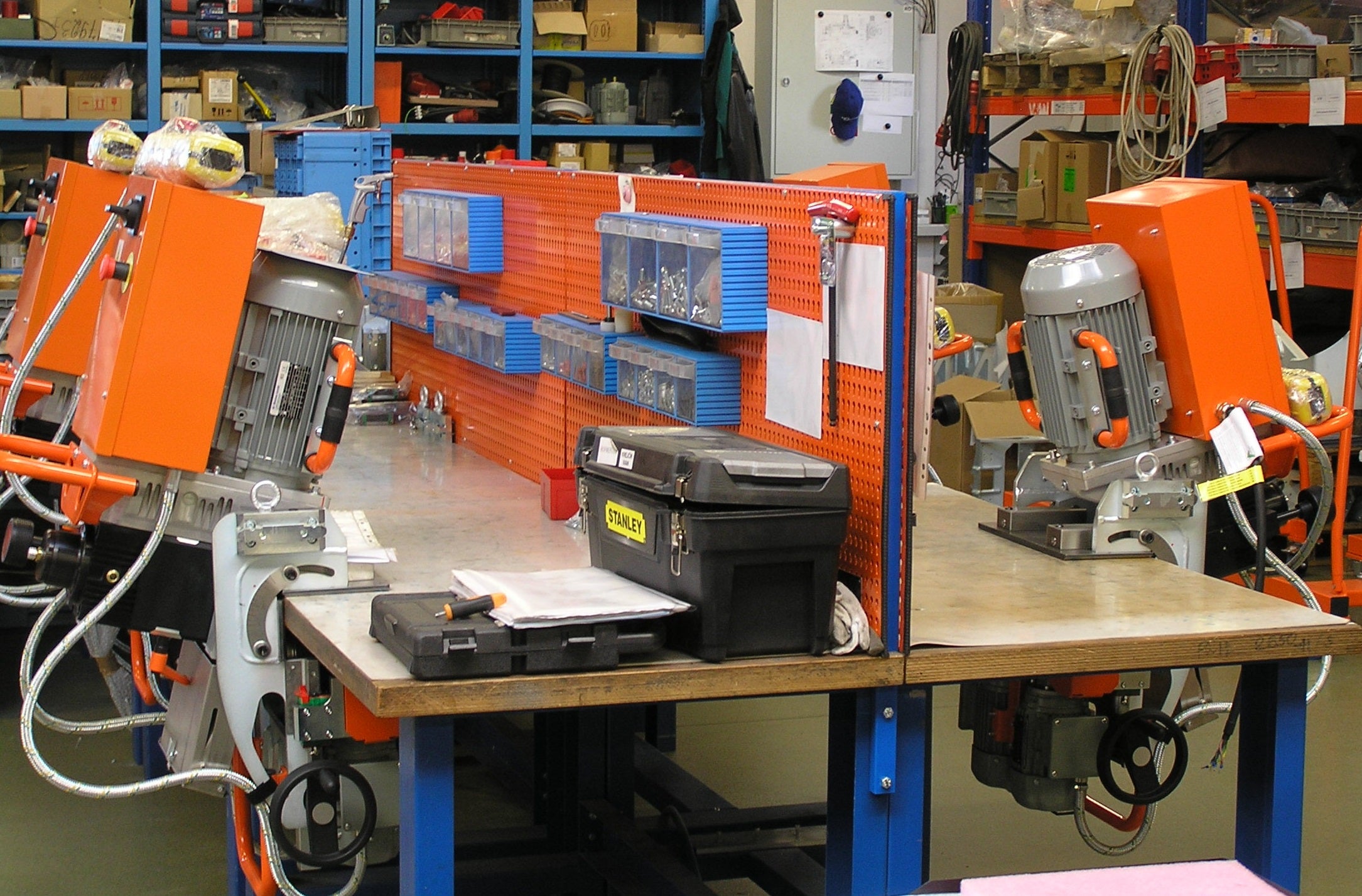

Made in Czech Republic

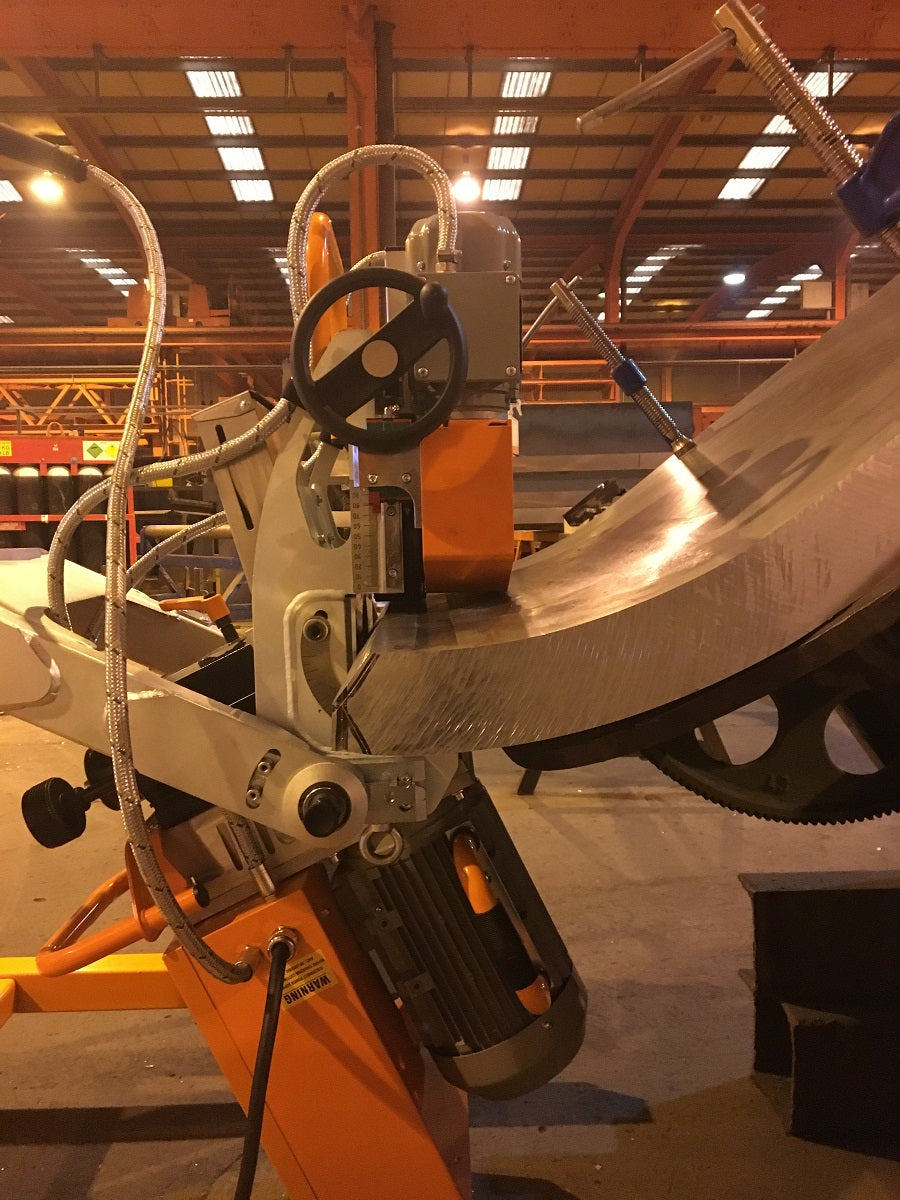

Double-Sided in One Pass

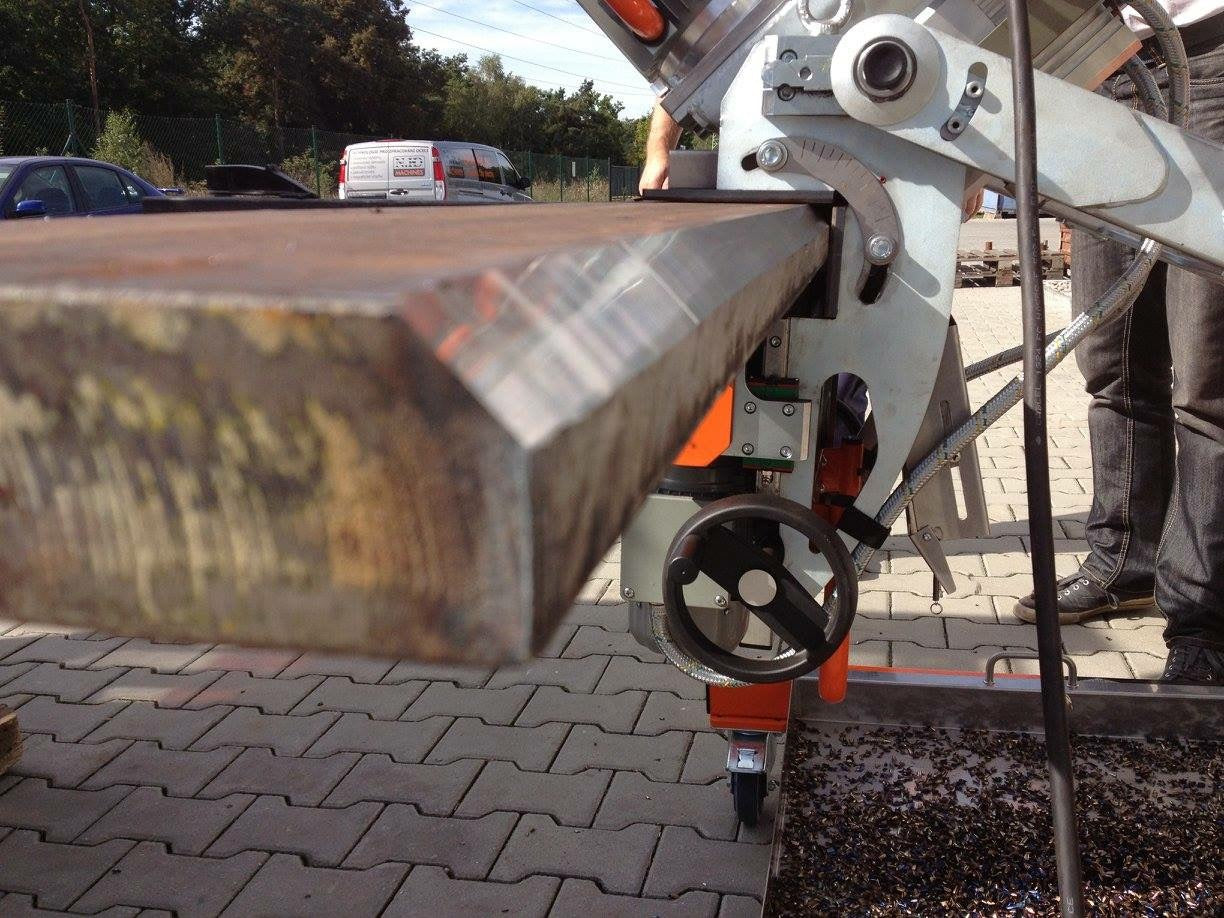

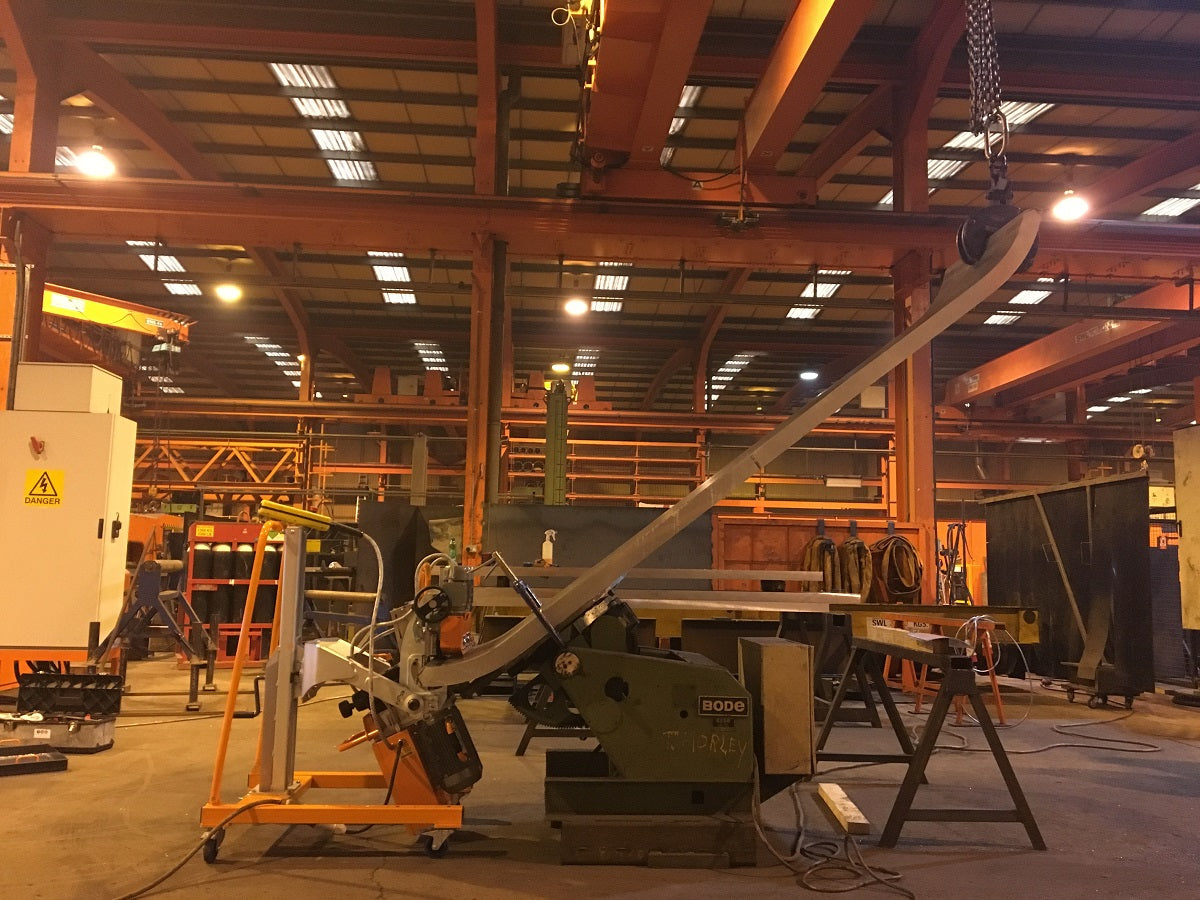

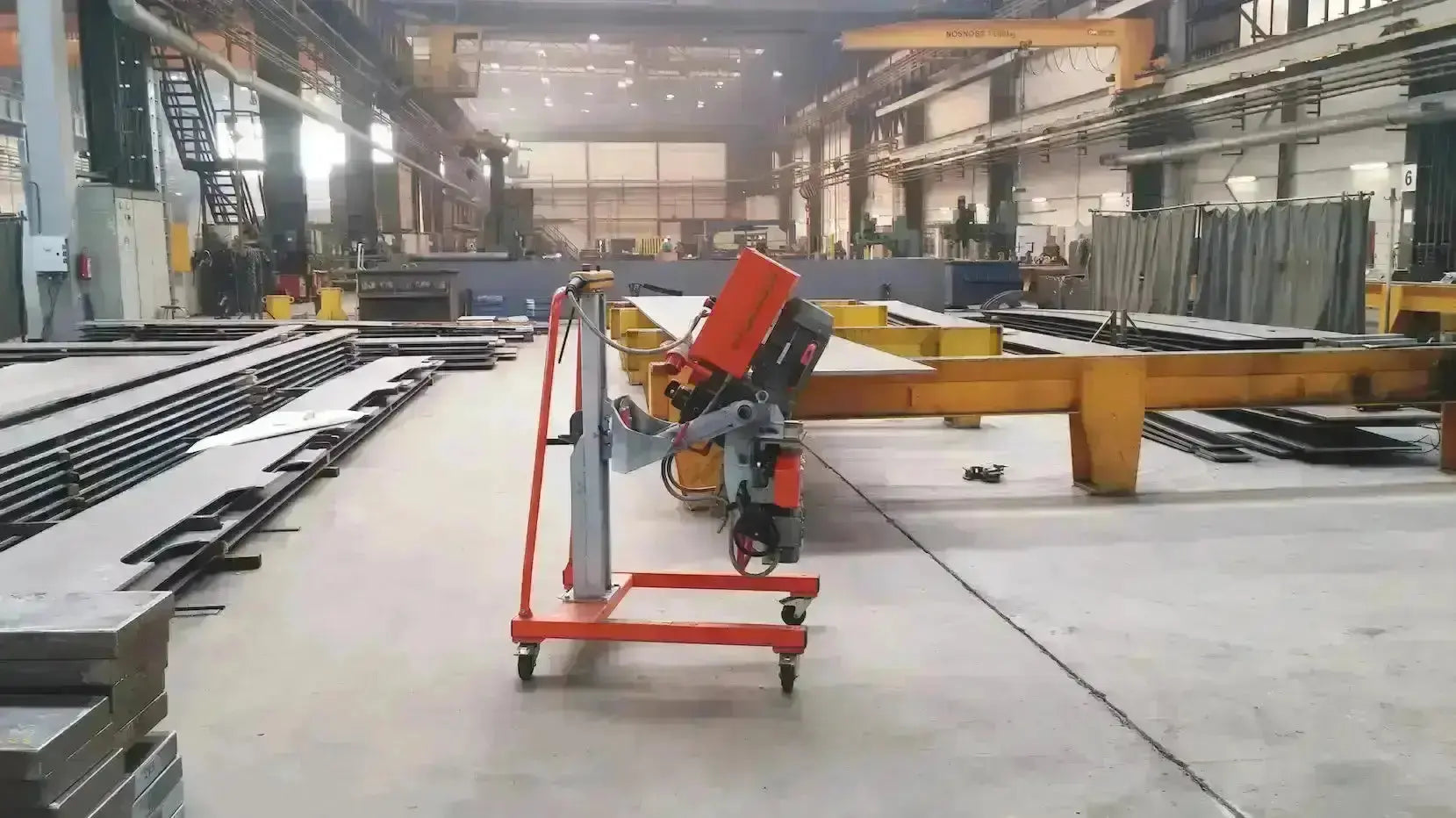

Flip the KA50 in seconds with the 3D arm—no crane needed.
More Range Less Hassle
Adjust bevel angles fast without changing a thing.
Built-In Floor Flex

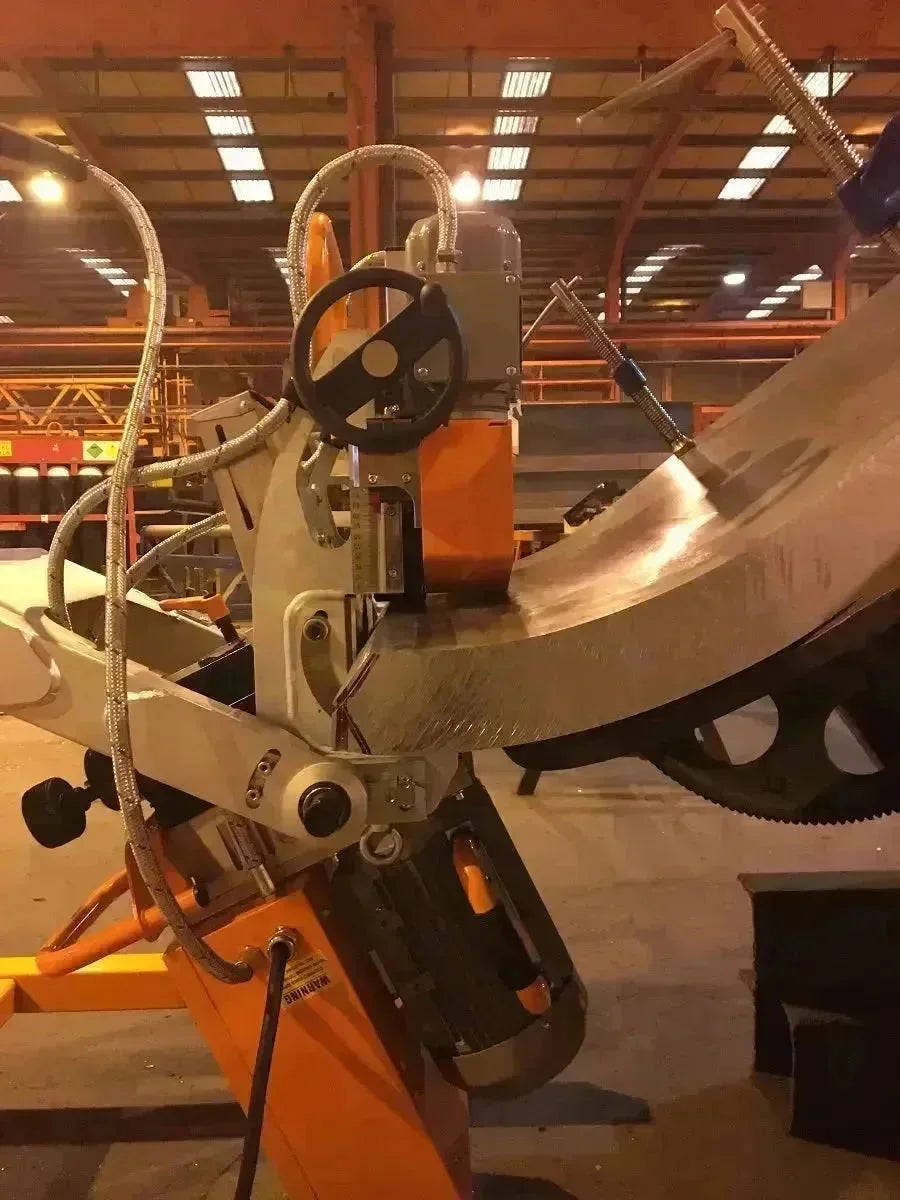

Manipulator compensates for warped plate and rough workshop floors.
