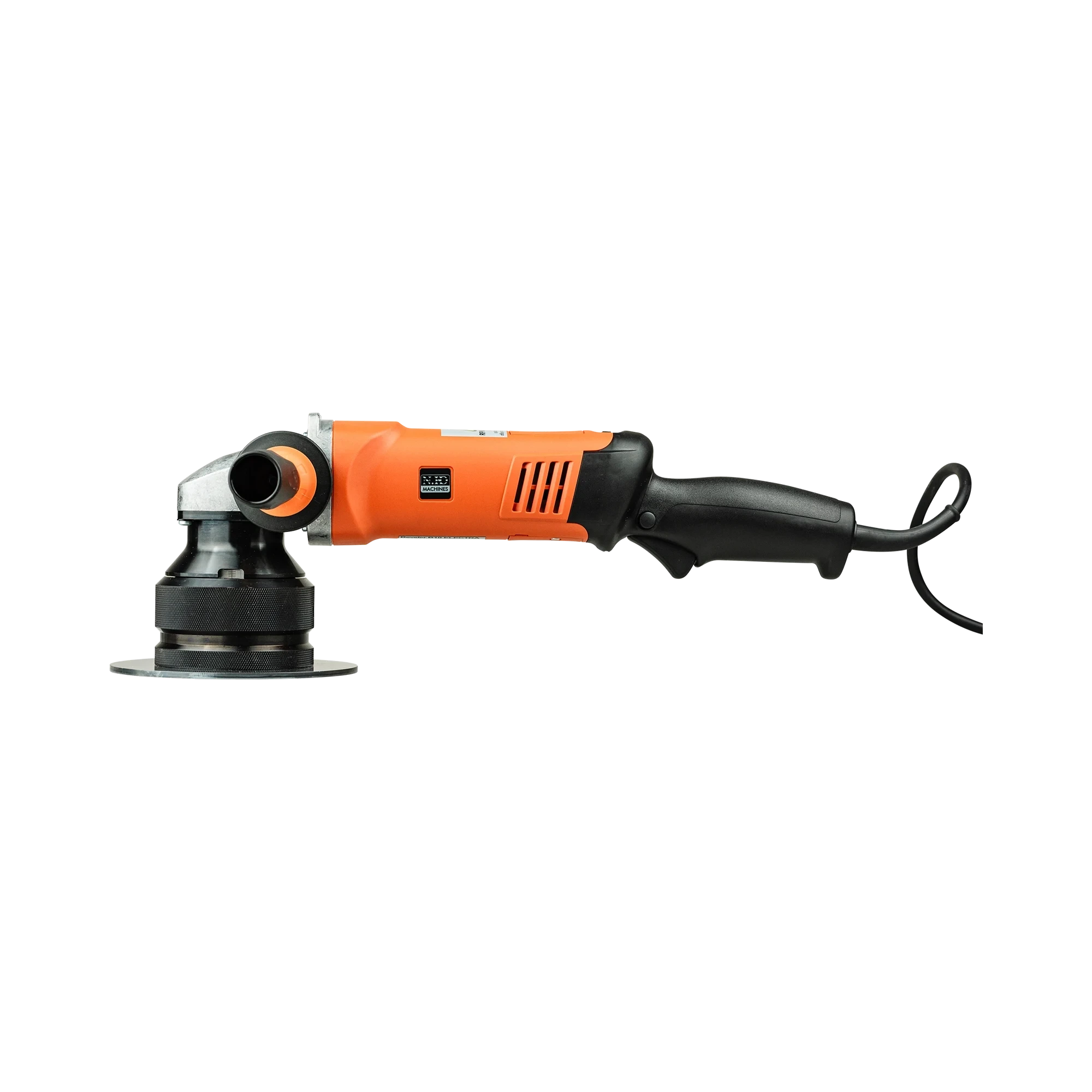

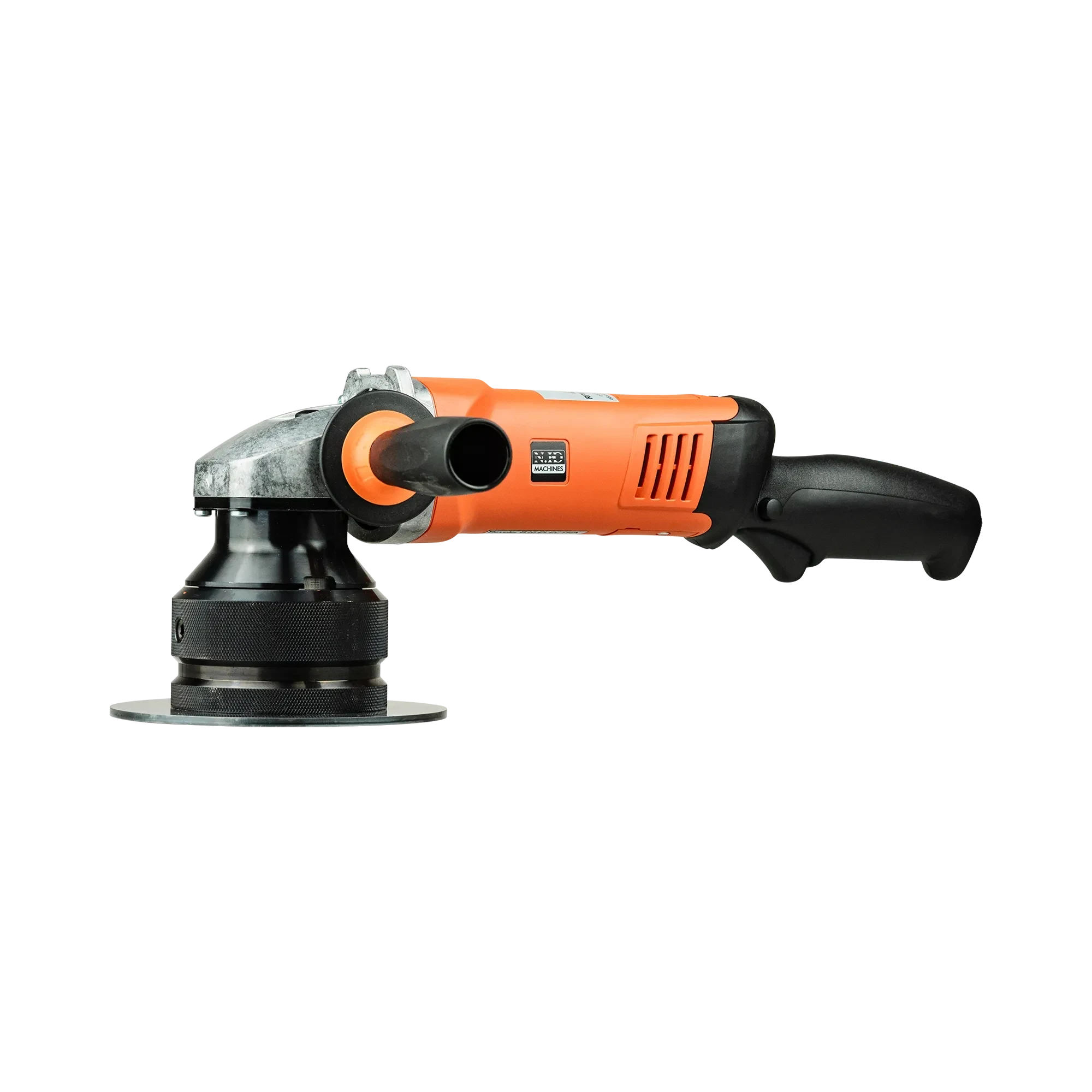

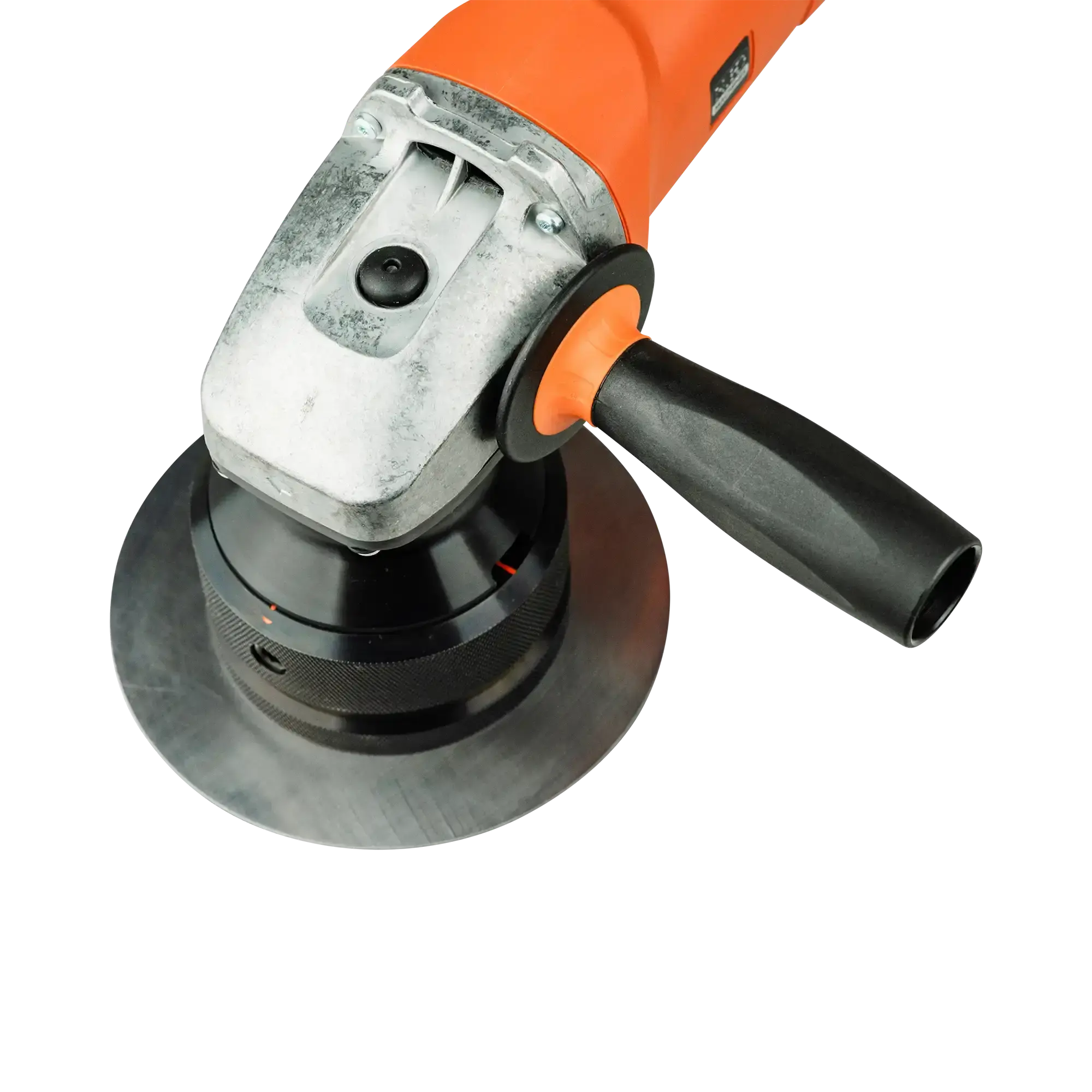

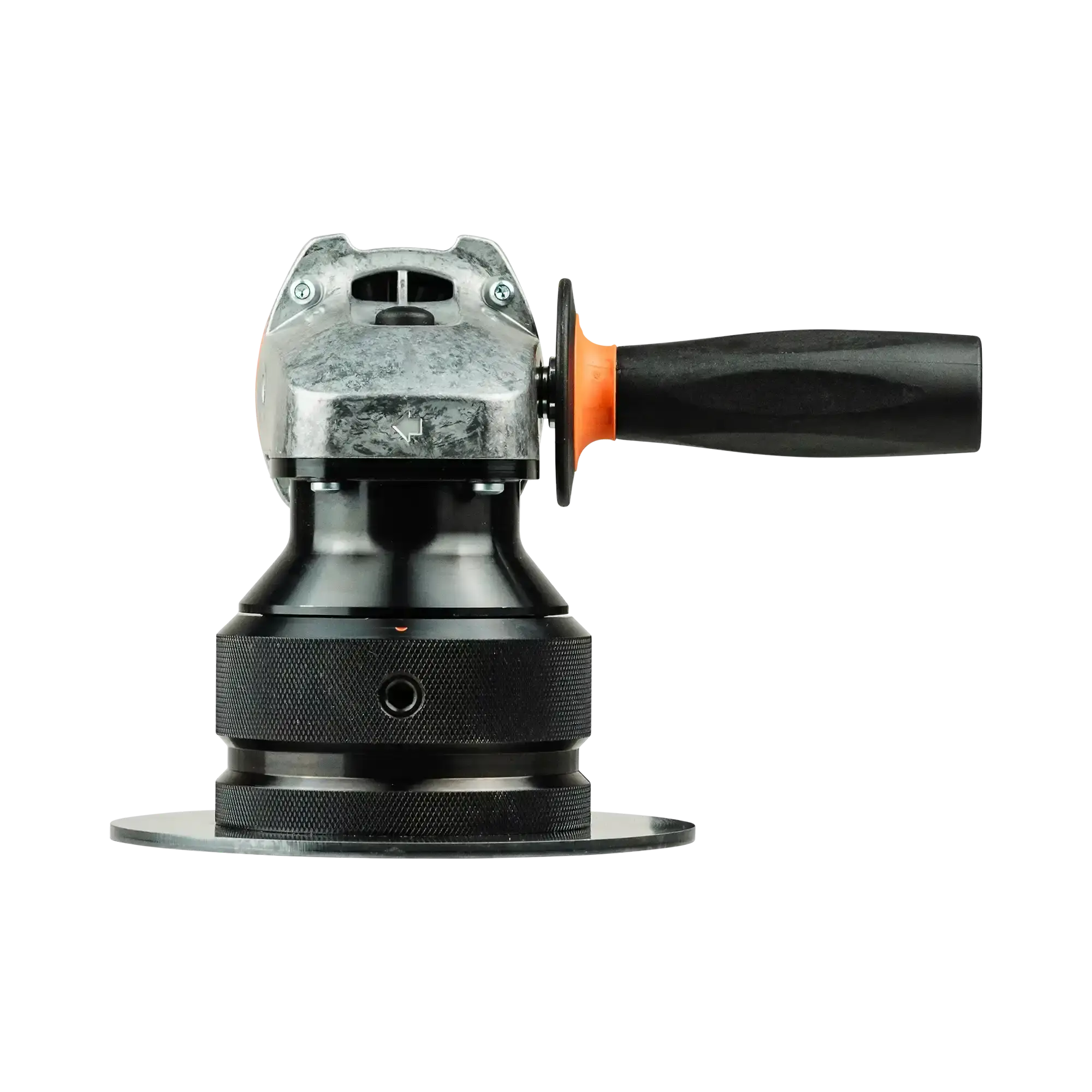

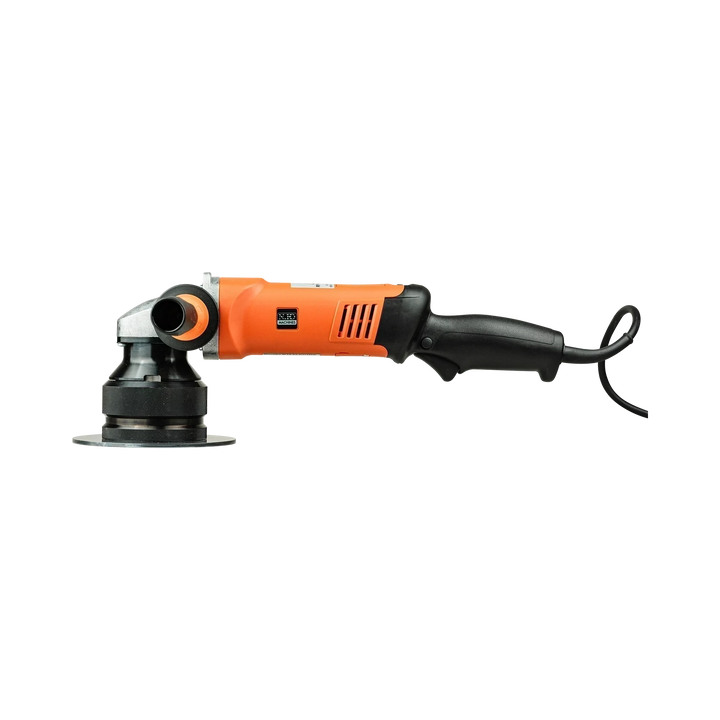

KFK10 Portable Beveller
- SKU
- 25300
- Product type
- Metal Preparing Machines
More Work, Less Waste
Smart head design saves inserts when cutting up to 8 mm bevel width.
Built for Hard Materials
Handles a wide range of metals without compromising control or finish.
Compact, No-Nonsense Design
Stable, handheld unit made for fast bevel changes and on-site efficiency.
Add KFK10 Portable Beveller to comparison
View Comparison- Overview
- Downloads & Documents
- Reviews

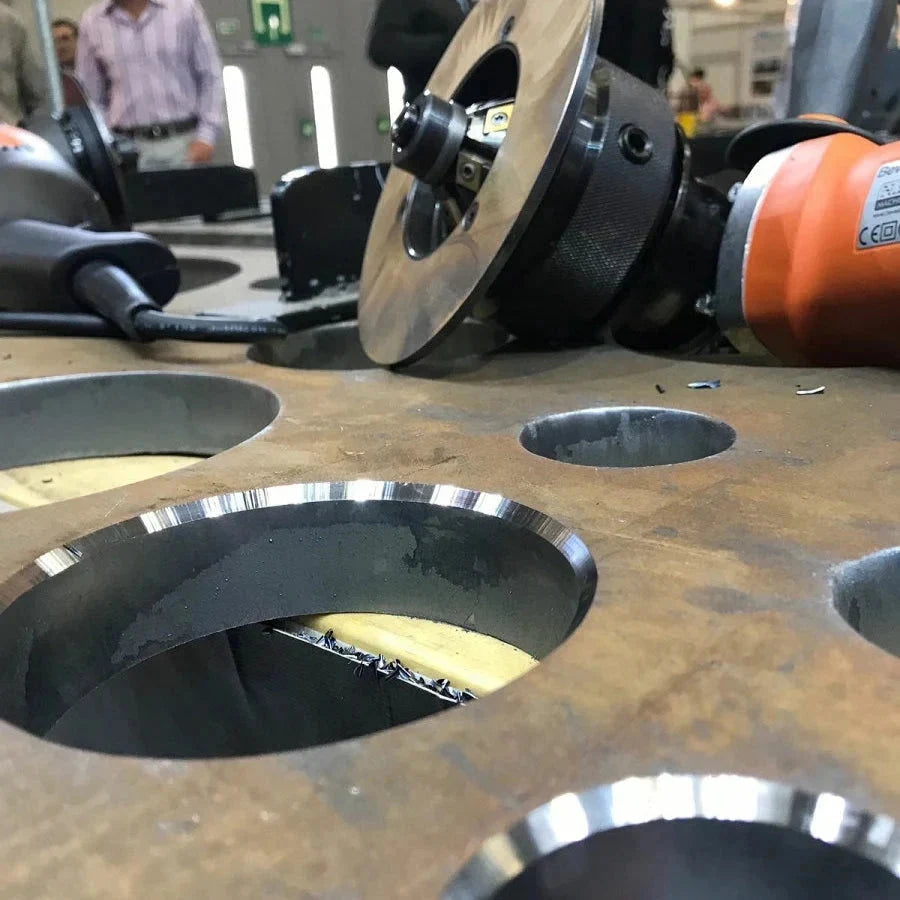

Tough and compact, the KFK10 Portable Beveller is built to take on edge prep jobs without slowing down. Its FEIN-made motor keeps power consistent while you bevel, deburr, or round off internal and external curves. The smart cutting head design lets you save inserts on shallower cuts up to 8 mm. Simple bevel size control and a replaceable head make on-site adjustments fast.
- Bevels up to 10 mm
- Rounds edges for coating prep
- Works on steel, aluminium, and more
- Electronic speed control
- Built in Czech Republic with German motor
Watch Video Watch Video Watch Video Watch Video Watch Video
Specifications
- Max. bevel width:
0 to 10 mm / 0 to 0.4 in < 400 MPa / 58 015 PSI
0 to 5 mm / 0 to 0.2 in > 400 MPa / 58 015 PSI
- Bevel angle:
replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand
- Rounding Radius:
R 2,5 mm / R 3,5 mm / R 4 mm
R 0.1 in / R 0.14 in / R 0.16 in
- Motor: 1.700 W
- Speed:2700-8500 RPM
- Overload protection: thermal
- Feeding: manual
- Weight: 6 kg / 13.2 lb
|
Machine name: |
1Phase-240V | |
| Bevelling and deburring system KFK10 (without the milling head) |
25300 | |
| SET Bevelling system KFK10 + dock station B-Dock (without the milling head) | 25302 | |
| SET Bevelling system KFK10 + Xpipe Beveler (without the milling head) | 25304 | |
| SET Bevelling system KFK10 + dock station B-Dock + Xpipe Beveler (without the milling head) | 25305 |
| Accessories – PREMIUM milling heads: | Part no. |
|
30° milling head PREMIUM - the cutting inserts and the lead roller Ø 30 mm / 1.19“are included |
27223X |
|
37,5° milling head PREMIUM - the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included |
27227X |
|
45° milling head PREMIUM - the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included |
27222X |
|
50° milling head PREMIUM - the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included |
27224X |
|
60° milling head PREMIUM - the cutting inserts and the lead roller Ø 19 mm / 0.75“ are included |
27240X |
| The additional special roller 30° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 33,5 mm / 1.32“ | 28004 |
| The additional special roller 37,5° for shorter cutting inserts 8 mm / 0.3“ | 28013 |
| The additional special roller 45° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 31 mm / 1.23“ | 28005 |
| The additional special roller 50° for shorter cutting inserts 8 mm / 0.3“ | 28014 |
| The additional special roller 60° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 25,5 mm / 1.01“ | 28006 |
| The spare two sided cutting inserts 15 mm / 0.6“ - two-sided, coated - pack of 10 pcs - only for premium milling heads |
28015 |
| The shorter four sided cutting inserts 8 mm / 0.3“ - four-sided, coated - pack of 10 pcs - only for premium milling heads with additional special roller |
28008 |
| The fastening screws for cutting inserts (works with both cutting inserts versions) - only for premium milling heads |
28007 |
| Accessories – Edge cleaner – grinding adapter: | Part No. |
|

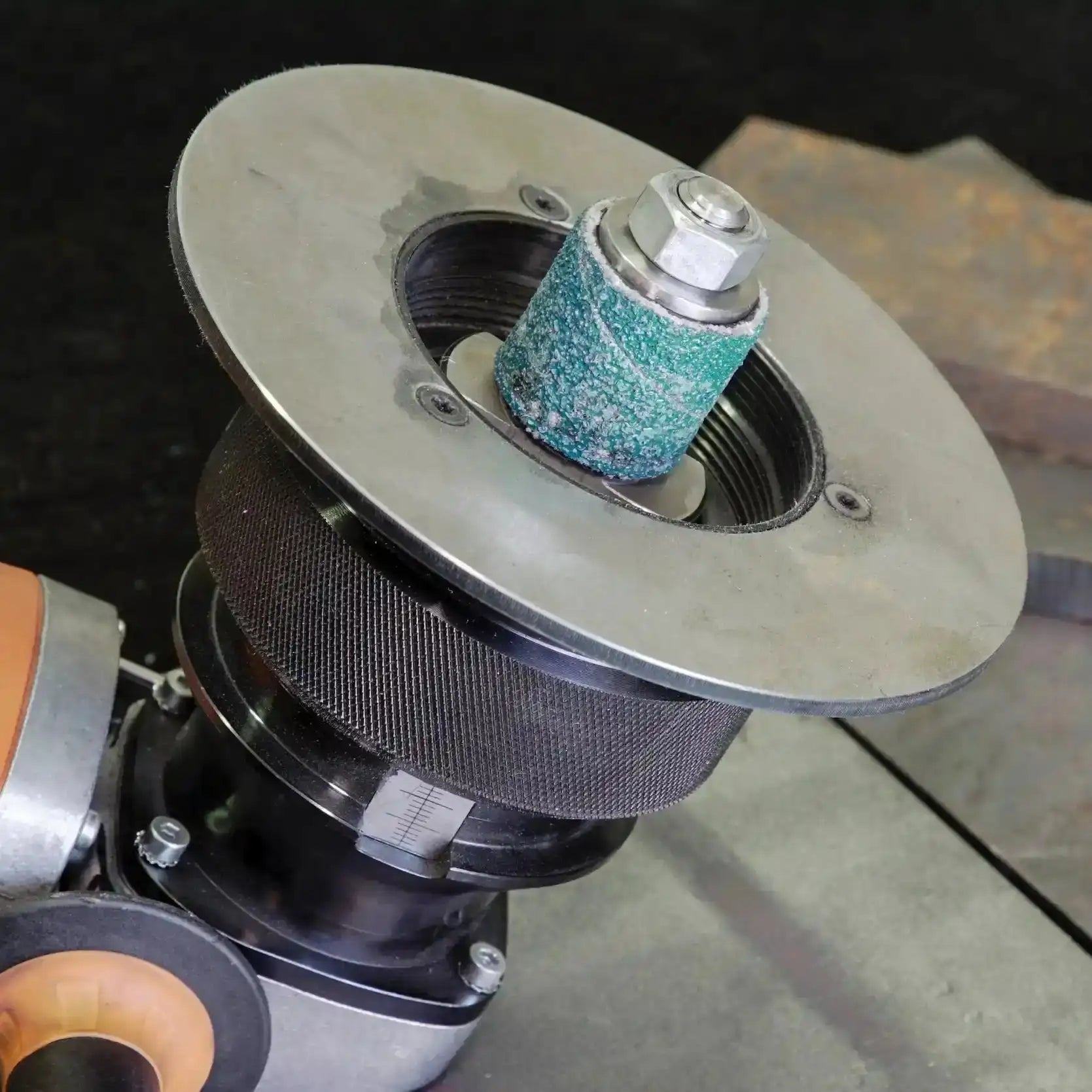

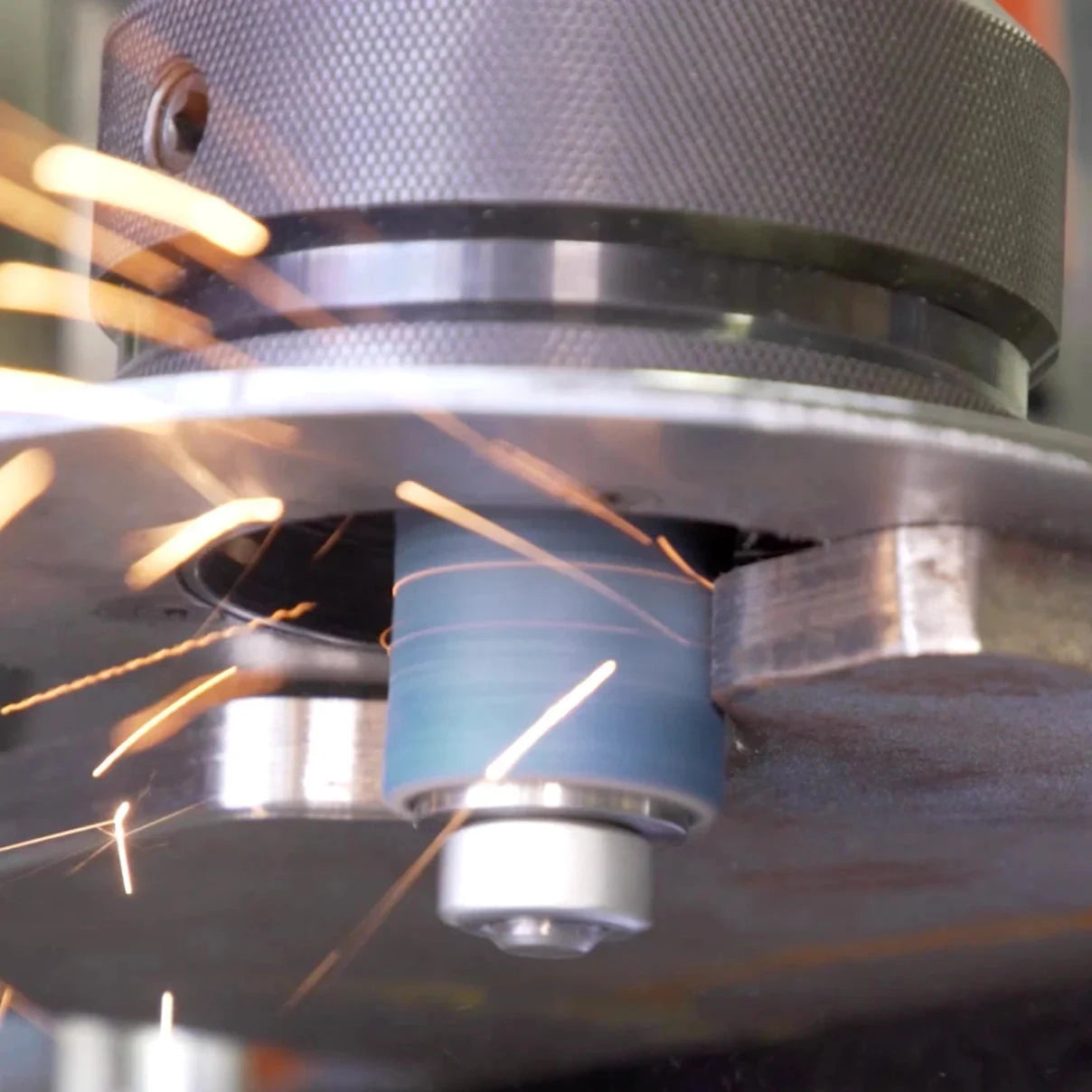

Edge Cleaner – grinding adapter - including 10 pcs grinding rings grain 40, 1 pc guiding roller |
25310 |
|
Grinding rings grain 40 for Edge Cleaner - pack of 50 pcs |
25312 |
| Spare polyurethane guiding roller for Edge Cleaner | 25311 |
| Accessories – The Rounding milling heads: | Part No. |
| Complete radius milling head R2,5 mm / 0.08“ - including of the guiding roll and fastening screw, the cutting inserts are included - the lead roller diameter Ø 30 mm / 1.19“ |
27234 |
| Complete radius milling head R3,5 mm / 0.12“ and R4 mm / 0.16“ - including of the guiding roll and fastening screw, the cutting inserts R3,5 mm / 0,12“ are included - the lead roller diameter Ø 39,5 mm / 1.55“ |
27233 |
| Cutting inserts for rounding edges R2,5 mm / 0.08“ - four-sided - pack of 10 pcs |
26109 |
| Coated cutting inserts for rounding edges R3,5 mm / 0.12“ - four-sided - pack of 10 pcs |
26110 |
| Coated cutting inserts for rounding edges R4 mm / 0.16“ - four-sided - pack of 10 pcs |
26111 |
| The fastening screws for cutting inserts - only for rounding milling heads |
27242 |
| Accessories – The older ECO milling heads. Available while supplied last. | Part No. |
|
30° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 34 mm / 1.34“ |
27223 |
|
37,5° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm / 1.10“ |
27227 |
|
45° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm / 1.10“ |
27222 |
|
50° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 28 mm / 1.10“ |
27224 |
|
60° cutting head - including inserts, screws, bolts and roller - guide roller diameter Ø 27 mm / 1.06“ |
27240 |
| Cutting head with non-standard angle - including inserts, screws, bolts and roller |
27XXX |
| Coated cutting inserts - four-sided - pack of 10 pcs - only for ECO milling heads |
27231 |
| Screw for the cutting inserts - only for ECO milling heads |
27241 |
