(D1105) HSS (M2) Jobber Drill for Multi Purpose (Steam Tempered)

Name: (D1105) HSS (M2) Jobber Drill for Multi Purpose (Steam Tempered)
Brand: Excision Pty Ltd
SKU: D1105003
Price: 5.90 AUD
Availability: OutOfStock

General-Purpose Steam-Tempered Jobber Drill

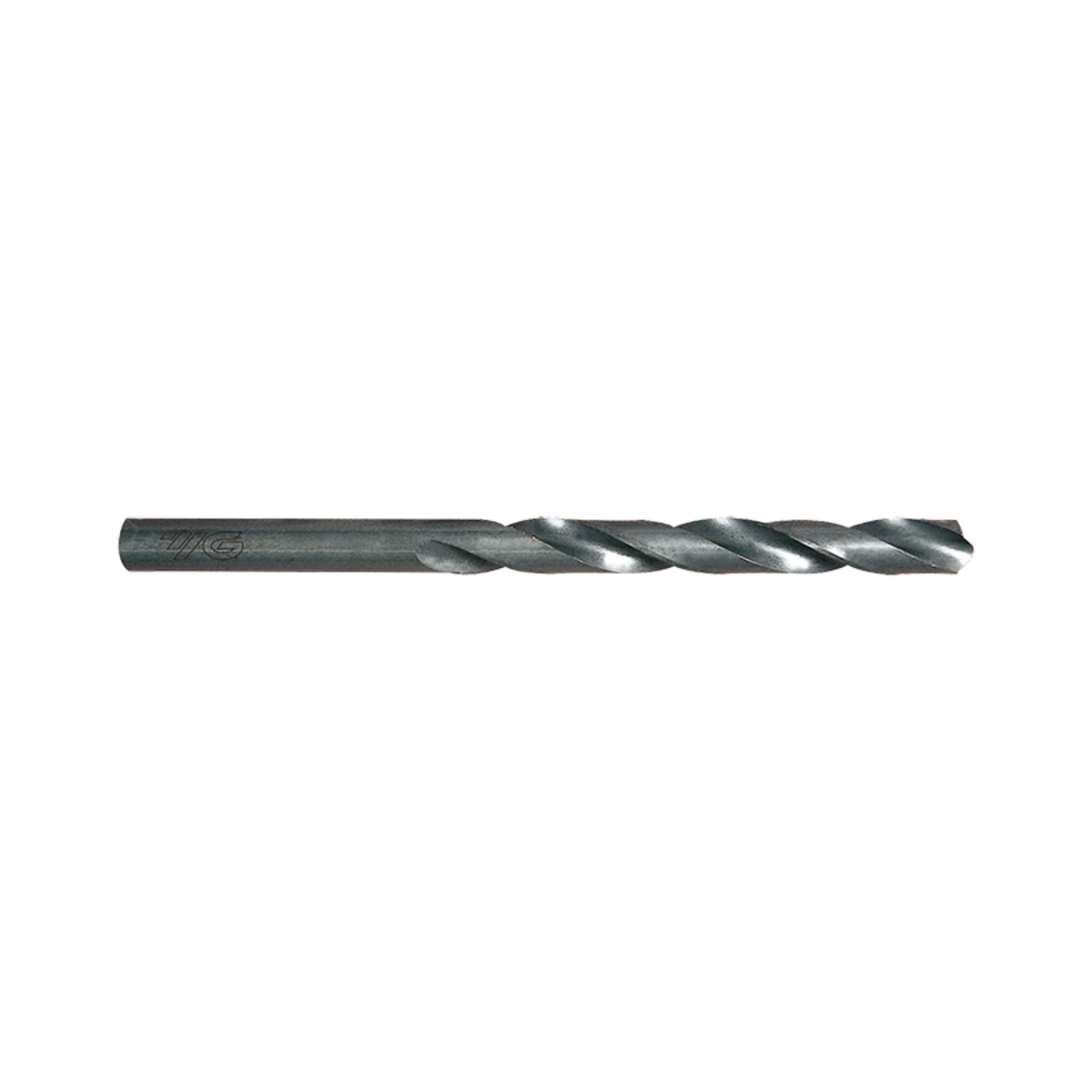

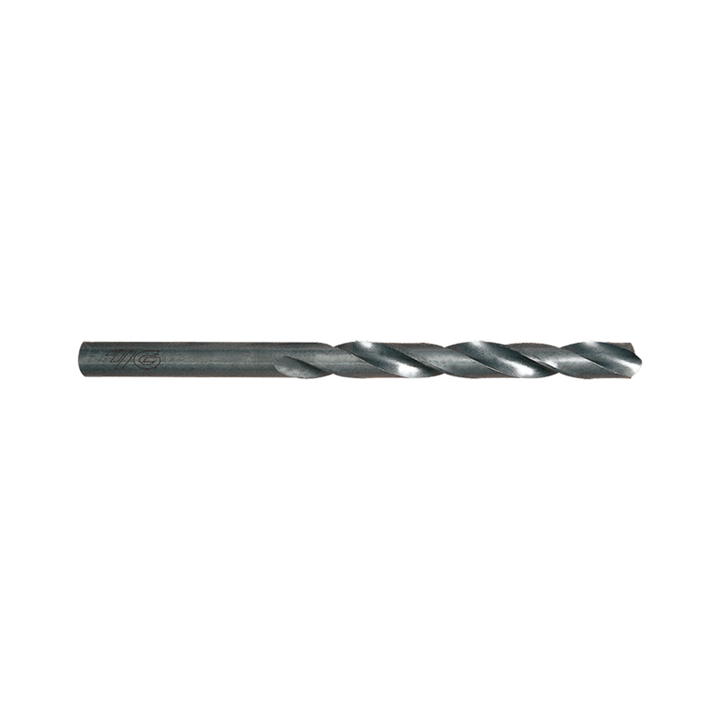

YG-1 D1105 product photograph · transparent

$6.38 INC GST $5.80 EX GST Price available on request

SKU: D1105003

Work materials

P M K N S

Key features

HSS straight shank jobber drill
118 Vap point
Steam-tempered black oxide finish from 2 mm

Drill Diameter (mm)

Loading stock…

Made in South Korea

Free standard delivery on orders over $500.

!If you're not 100% happy with your purchase, we'll replace or refund.

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Specified material coverage

Designed for steels, cast steels, grey cast iron, malleable cast iron and graphite.

Practical jobber format

Straight shank jobber geometry suits standard drilling operations and general holemaking work.

Useful diameter selection

A 0.3 mm to 10.2 mm range supports fine through to larger general-purpose holes.

SKU	Drill Diameter (mm)	Overall length (mm)	Stock	Price
D1105002	0.2	-	No stock	$5.90
D1105003	0.3	19.0	1-2 Weeks	$5.80
D1105004	0.4	20.0	1-2 Weeks	$5.00
D1105005	0.5	22.0	In stock	$4.67
D1105905	0.55	-	No stock	$2.63
D1105006	0.6	24.0	In stock	$4.70
D1105906	0.65	-	No stock	$2.30
D1105007	0.7	28.0	In stock	$3.40
D1105907	0.75	-	No stock	$2.30
D1105008	0.8	30.0	In stock	$3.40
D1105908	0.85	-	In stock	$2.30
D1105009	0.9	32.0	1-2 Weeks	$3.40
D1105909	0.95	-	No stock	$2.30
D1105010	1.0	34.0	In stock	$2.80
D1105910	1.05	-	No stock	$2.80
D1105011	1.1	36.0	In stock	$2.80
D1105911	1.15	-	In stock	$2.80
D1105012	1.2	38.0	In stock	$2.80
D1105912	1.25	-	In stock	$2.80
D1105013	1.3	38.0	In stock	$2.80
D1105913	1.35	-	No stock	$2.80
D1105014	1.4	40.0	In stock	$2.80
D1105914	1.45	-	In stock	$2.80
D1105015	1.5	40.0	In stock	$2.80
D1105915	1.55	-	In stock	$2.80
D1105016	1.6	43.0	In stock	$2.80
D1105916	1.65	-	In stock	$2.80
D1105017	1.7	43.0	In stock	$2.90
D1105917	1.75	-	In stock	$2.90
D1105018	1.8	46.0	In stock	$2.90
D1105918	1.85	-	In stock	$2.90
D1105019	1.9	46.0	In stock	$2.80
D1105919	1.95	-	In stock	$3.00
D1105020	2.0	49.0	1-2 Weeks	$2.10
D1105920	2.05	-	In stock	$3.00
D1105021	2.1	49.0	In stock	$2.80
D1105921	2.15	-	In stock	$2.80
D1105022	2.2	53.0	1-2 Weeks	$2.10
D1105922	2.25	-	In stock	$2.30
D1105023	2.3	53.0	1-2 Weeks	$2.10
D1105923	2.35	-	In stock	$2.50
D1105024	2.4	57.0	1-2 Weeks	$2.10
D1105924	2.45	-	In stock	$2.50
D1105025	2.5	57.0	1-2 Weeks	$2.10
D1105925	2.55	-	In stock	$2.30
D1105026	2.6	57.0	1-2 Weeks	$2.10
D1105926	2.65	-	In stock	$2.30
D1105027	2.7	61.0	Low stock	$2.10
D1105927	2.75	-	In stock	$2.30
D1105028	2.8	61.0	1-2 Weeks	$2.10
D1105928	2.85	-	In stock	$2.20
D1105029	2.9	61.0	1-2 Weeks	$2.10
D1105929	2.95	-	Low stock	$2.20
D1105030	3.0	61.0	Low stock	$2.10
D1105930	3.05	-	No stock	$2.20
D1105031	3.1	65.0	In stock	$2.10
D1105931	3.15	-	No stock	$2.30
D1105032	3.2	65.0	1-2 Weeks	$2.10
D1105932	3.25	-	No stock	$2.30
D1105033	3.3	65.0	1-2 Weeks	$2.10
D1105933	3.35	-	No stock	$2.30
D1105034	3.4	70.0	1-2 Weeks	$2.10
D1105934	3.45	-	No stock	$2.40
D1105035	3.5	70.0	1-2 Weeks	$2.20
D1105935	3.55	-	No stock	$2.40
D1105036	3.6	70.0	1-2 Weeks	$2.20
D1105936	3.65	-	No stock	$2.50
D1105037	3.7	70.0	In stock	$2.30
D1105937	3.75	-	In stock	$2.60
D1105038	3.8	75.0	Restocking	$2.30
D1105938	3.85	-	No stock	$2.60
D1105039	3.9	75.0	In stock	$2.40
D1105939	3.95	-	No stock	$2.70
D1105040	4.0	75.0	1-2 Weeks	$2.50
D1105940	4.05	-	No stock	$2.70
D1105041	4.1	75.0	In stock	$2.60
D1105941	4.15	-	No stock	$2.70
D1105042	4.2	75.0	1-2 Weeks	$2.60
D1105942	4.25	-	No stock	$2.10
D1105043	4.3	80.0	1-2 Weeks	$2.60
D1105943	4.35	-	No stock	$3.30
D1105044	4.4	80.0	1-2 Weeks	$2.60
D1105944	4.45	-	No stock	$3.30
D1105045	4.5	80.0	1-2 Weeks	$2.60
D1105945	4.55	-	No stock	$3.30
D1105046	4.6	80.0	In stock	$2.90
D1105946	4.65	-	No stock	$3.30
D1105047	4.7	80.0	In stock	$3.00
D1105947	4.75	-	No stock	$3.30
D1105048	4.8	86.0	1-2 Weeks	$3.00
D1105948	4.85	-	No stock	$4.10
D1105049	4.9	86.0	In stock	$3.00
D1105949	4.95	-	No stock	$4.10
D1105050	5.0	86.0	1-2 Weeks	$3.20
D1105950	5.05	-	No stock	$4.10
D1105051	5.1	86.0	1-2 Weeks	$3.40
D1105951	5.15	-	No stock	$4.50
D1105052	5.2	86.0	1-2 Weeks	$3.70
D1105952	5.25	-	No stock	$2.90
D1105053	5.3	86.0	In stock	$3.70
D1105953	5.35	-	No stock	$4.50
D1105054	5.4	93.0	In stock	$3.70
D1105954	5.45	-	No stock	$4.50
D1105055	5.5	93.0	1-2 Weeks	$3.70
D1105955	5.55	-	No stock	$5.00
D1105056	5.6	93.0	In stock	$4.10
D1105956	5.65	-	No stock	$5.00
D1105057	5.7	93.0	In stock	$4.10
D1105957	5.75	-	No stock	$3.00
D1105058	5.8	93.0	In stock	$4.10
D1105958	5.85	-	No stock	$5.00
D1105059	5.9	93.0	In stock	$4.10
D1105959	5.95	-	No stock	$5.10
D1105060	6.0	93.0	In stock	$4.20
D1105960	6.05	-	No stock	$5.50
D1105061	6.1	101.0	In stock	$4.30
D1105961	6.15	-	No stock	$5.50
D1105062	6.2	101.0	In stock	$4.30
D1105962	6.25	-	In stock	$5.20
D1105063	6.3	101.0	In stock	$4.30
D1105963	6.35	-	In stock	$5.20
D1105064	6.4	101.0	Low stock	$4.70
D1105964	6.45	-	No stock	$5.50
D1105065	6.5	101.0	In stock	$5.20
D1105965	6.55	-	No stock	$5.50
D1105066	6.6	101.0	In stock	$5.30
D1105966	6.65	-	No stock	$5.50
D1105067	6.7	101.0	In stock	$5.30
D1105967	6.75	-	No stock	$4.00
D1105068	6.8	109.0	1-2 Weeks	$5.30
D1105968	6.85	-	No stock	$6.50
D1105069	6.9	109.0	Low stock	$5.30
D1105969	6.95	-	No stock	$6.50
D1105070	7.0	109.0	1-2 Weeks	$5.50
D1105970	7.05	-	No stock	$4.40
D1105071	7.1	109.0	In stock	$5.98
D1105971	7.15	-	No stock	$4.40
D1105072	7.2	109.0	In stock	$6.00
D1105972	7.25	-	In stock	$5.84
D1105073	7.3	109.0	In stock	$6.00
D1105973	7.35	-	No stock	$4.40
D1105074	7.4	109.0	In stock	$6.00
D1105974	7.45	-	No stock	$4.40
D1105075	7.5	109.0	Low stock	$6.00
D1105975	7.55	-	No stock	$8.40
D1105076	7.6	117.0	In stock	$6.80
D1105976	7.65	-	No stock	$5.50
D1105077	7.7	117.0	In stock	$6.80
D1105977	7.75	-	In stock	$7.50
D1105078	7.8	117.0	In stock	$6.80
D1105978	7.85	-	No stock	$5.50
D1105079	7.9	117.0	In stock	$6.80
D1105979	7.95	-	No stock	$5.50
D1105080	8.0	117.0	In stock	$6.80
D1105081	8.1	117.0	In stock	$7.30
D1105082	8.2	117.0	1-2 Weeks	$7.30
D1105982	8.25	-	No stock	$7.10
D1105083	8.3	117.0	In stock	$7.30
D1105084	8.4	117.0	In stock	$7.30
D1105085	8.5	117.0	In stock	$7.70
D1105086	8.6	125.0	In stock	$8.40
D1105087	8.7	125.0	In stock	$8.40
D1105987	8.75	-	Restocking	$9.30
D1105088	8.8	125.0	In stock	$8.40
D1105089	8.9	125.0	In stock	$8.40
D1105090	9.0	125.0	In stock	$8.40
D1105091	9.1	125.0	In stock	$8.60
D1105092	9.2	125.0	In stock	$9.30
D1105992	9.25	-	No stock	$8.00
D1105093	9.3	125.0	Low stock	$9.30
D1105094	9.4	125.0	In stock	$9.30
D1105095	9.5	125.0	Low stock	$9.30
D1105096	9.6	133.0	In stock	$9.90
D1105097	9.7	133.0	In stock	$9.90
D1105997	9.75	-	No stock	$8.50
D1105098	9.8	133.0	In stock	$9.90
D1105099	9.9	133.0	Low stock	$9.90
D1105100	10.0	133.0	Low stock	$9.90
D1105101	10.1	133.0	In stock	$11.20
D1105102	10.2	133.0	1-2 Weeks	$11.20
D1105802	10.25	-	In stock	$11.50
D1105103	10.3	133.0	In stock	$11.20
D1105104	10.4	133.0	In stock	$11.20
D1105105	10.5	133.0	1-2 Weeks	$11.20
D1105106	10.6	133.0	In stock	$12.90
D1105107	10.7	142.0	In stock	$12.90
D1105807	10.75	-	No stock	$14.80
D1105108	10.8	142.0	In stock	$12.90
D1105109	10.9	142.0	In stock	$12.90
D1105110	11.0	142.0	Low stock	$12.90
D1105111	11.1	142.0	In stock	$14.30
D1105112	11.2	142.0	Low stock	$14.30
D1105812	11.25	-	No stock	$7.30
D1105113	11.3	142.0	Low stock	$14.30
D1105114	11.4	142.0	In stock	$14.30
D1105115	11.5	142.0	Low stock	$14.30
D1105116	11.6	142.0	In stock	$16.80
D1105117	11.7	142.0	In stock	$16.80
D1105817	11.75	-	No stock	$20.70
D1105118	11.8	142.0	In stock	$16.80
D1105119	11.9	151.0	In stock	$16.80
D1105120	12.0	151.0	1-2 Weeks	$16.80
D1105121	12.1	151.0	In stock	$18.00
D1105122	12.2	151.0	In stock	$18.00
D1105822	12.25	-	No stock	$7.50
D1105123	12.3	151.0	In stock	$18.00
D1105124	12.4	151.0	In stock	$17.90
D1105125	12.5	151.0	In stock	$18.00
D1105126	12.6	151.0	In stock	$19.40
D1105127	12.7	151.0	In stock	$19.40
D1105827	12.75	-	In stock	$23.90
D1105128	12.8	151.0	In stock	$19.40
D1105129	12.9	151.0	In stock	$19.40
D1105130	13.0	151.0	Low stock	$19.40
D1105131	13.1	-	No stock	$34.00
D1105832	13.25	-	No stock	$10.60
D1105133	13.3	-	In stock	$34.00
D1105135	13.5	160.0	Low stock	$34.00
D1105837	13.75	-	No stock	$38.80
D1105138	13.8	-	In stock	$38.80
D1105140	14.0	160.0	In stock	$34.00
D1105842	14.25	-	In stock	$42.70
D1105145	14.5	169.0	In stock	$38.80
D1105847	14.75	-	Restocking	$38.80
D1105150	15.0	169.0	In stock	$38.80
D1105852	15.25	-	In stock	$45.60
D1105155	15.5	178.0	In stock	$45.60
D1105857	15.75	-	No stock	$47.70
D1105160	16.0	178.0	In stock	$45.60
D1105862	16.25	-	In stock	$52.00
D1105165	16.5	184.0	In stock	$45.60
D1105867	16.75	-	No stock	$52.00
D1105170	17.0	184.0	In stock	$45.60
D1105872	17.25	-	In stock	$59.50
D1105175	17.5	191.0	In stock	$53.40
D1105877	17.75	-	No stock	$21.50
D1105180	18.0	191.0	Low stock	$56.00
D1105882	18.25	-	Low stock	$61.90
D1105185	18.5	198.0	1-2 Weeks	$61.90
D1105887	18.75	-	No stock	$24.40
D1105190	19.0	198.0	1-2 Weeks	$61.90
D1105892	19.25	-	No stock	$27.10
D1105195	19.5	205.0	1-2 Weeks	$78.42
D1105897	19.75	-	No stock	$27.10
D1105200	20.0	205.0	Low stock	$78.50
D1105220	22.0	-	No stock	$103.70

Add (D1105) HSS (M2) Jobber Drill for Multi Purpose (Steam Tempered) to comparison

View Comparison

Overview
Specifications
Work Material
Reviews

Product Description

The YG-1 D1105 HSS jobber drill is a straight shank twist drill with steam-tempered black oxide finish. It is designed for drilling steels, alloyed and non-alloyed cast steels, grey cast iron, malleable cast iron and graphite. The 118 Vap point supports practical general drilling work in these specified materials. Steam tempering provides the black oxide surface treatment specified for the D1105 series. Smaller diameters below 2 mm have a bright finish rather than steam-tempered black oxide. This jobber-format drill range covers diameters from 0.3 mm to 10.2 mm. Select the required diameter for standard holemaking applications using straight shank drilling equipment.

HSS straight shank jobber drill
118 Vap point
Steam-tempered black oxide finish from 2 mm
Bright finish on diameters below 2 mm
For steels and specified cast materials
0.3 mm to 10.2 mm diameter range

Product Data

No specifications available.

EDP No. OutsideDia (D1) Connection Size (D2) FluteLength (L1) Overall Length (L2) Drilling Depth D1105003 0.3 - 3 19 - D1105003G 0.3 0.3 3 19 - D1105004 0.4 - 5 20 - D1105004G 0.4 0.4 5 20 - D1105005 0.5 - 6 22 - D1105005G 0.5 0.5 6 22 - D1105006 0.6 - 7 24 - D1105006G 0.6 0.6 7 24 - D1105007 0.7 - 9 28 - D1105007G 0.7 0.7 9 28 - D1105008 0.8 - 10 30 - D1105008G 0.8 0.8 10 30 - D1105009 0.9 - 11 32 - D1105009G 0.9 0.9 11 32 - D1105010 1 1 12 34 - D1105010K 1 1 12 34 - D1105011 1.1 1.1 14 36 - D1105011K 1.1 1.1 14 36 - D1105012 1.2 1.2 16 38 - D1105012K 1.2 1.2 16 38 - D1105013 1.3 1.3 16 38 - D1105013K 1.3 1.3 16 38 - D1105014 1.4 1.4 18 40 - D1105014K 1.4 1.4 18 40 - D1105015 1.5 1.5 18 40 - D1105015K 1.5 1.5 18 40 - D1105016 1.6 1.6 20 43 - D1105016K 1.6 1.6 20 43 - D1105017 1.7 1.7 20 43 - D1105017K 1.7 1.7 20 43 - D1105018 1.8 1.8 22 46 - D1105019 1.9 1.9 22 46 - D1105019K 1.9 1.9 22 46 - D1105020 2 2 24 49 - D1105020K 2 2 24 49 - D1105021 2.1 2.1 24 49 - D1105021K 2.1 2.1 24 49 - D1105022 2.2 2.2 27 53 - D1105022K 2.2 2.2 27 53 - D1105023 2.3 2.3 27 53 - D1105023K 2.3 2.3 27 53 - D1105024 2.4 2.4 30 57 - D1105024K 2.4 2.4 30 57 - D1105025 2.5 2.5 30 57 - D1105025K 2.5 2.5 30 57 - D1105026 2.6 2.6 30 57 - D1105026K 2.6 2.6 30 57 - D1105027 2.7 2.7 33 61 - D1105027K 2.7 2.7 33 61 - D1105028 2.8 2.8 33 61 - D1105028K 2.8 2.8 33 61 - D1105029 2.9 2.9 33 61 - D1105029K 2.9 2.9 33 61 - D1105030 3 3 33 61 - D1105030K 3 3 33 61 - D1105031 3.1 3.1 36 65 - D1105031K 3.1 3.1 36 65 - D1105032 3.2 3.2 36 65 - D1105032K 3.2 3.2 36 65 - D1105033 3.3 3.3 36 65 - D1105033K 3.3 3.3 36 65 - D1105034 3.4 3.4 39 70 - D1105034K 3.4 3.4 39 70 - D1105035 3.5 3.5 39 70 - D1105035K 3.5 3.5 39 70 - D1105036 3.6 3.6 39 70 - D1105036K 3.6 3.6 39 70 - D1105037 3.7 3.7 39 70 - D1105037K 3.7 3.7 39 70 - D1105038 3.8 3.8 43 75 - D1105038K 3.8 3.8 43 75 - D1105039 3.9 3.9 43 75 - D1105039K 3.9 3.9 43 75 - D1105040 4 4 43 75 - D1105040K 4 4 43 75 - D1105041 4.1 4.1 43 75 - D1105041K 4.1 4.1 43 75 - D1105042 4.2 4.2 43 75 - D1105042K 4.2 4.2 43 75 - D1105043 4.3 4.3 47 80 - D1105043K 4.3 4.3 47 80 - D1105044 4.4 4.4 47 80 - D1105044K 4.4 4.4 47 80 - D1105045 4.5 4.5 47 80 - D1105045K 4.5 4.5 47 80 - D1105046 4.6 4.6 47 80 - D1105047 4.7 4.7 47 80 - D1105047K 4.7 4.7 47 80 - D1105048 4.8 4.8 52 86 - D1105048K 4.8 4.8 52 86 - D1105049 4.9 4.9 52 86 - D1105049K 4.9 4.9 52 86 - D1105050 5 5 52 86 - D1105050K 5 5 52 86 - D1105051 5.1 5.1 52 86 - D1105051K 5.1 5.1 52 86 - D1105052 5.2 5.2 52 86 - D1105052K 5.2 5.2 52 86 - D1105053 5.3 5.3 52 86 - D1105053K 5.3 5.3 52 86 - D1105054 5.4 5.4 57 93 - D1105054K 5.4 5.4 57 93 - D1105055 5.5 5.5 57 93 - D1105055K 5.5 5.5 57 93 - D1105056 5.6 5.6 57 93 - D1105057 5.7 5.7 57 93 - D1105057K 5.7 5.7 57 93 - D1105058 5.8 5.8 57 93 - D1105058K 5.8 5.8 57 93 - D1105059 5.9 5.9 57 93 - D1105059K 5.9 5.9 57 93 - D1105060 6 6 57 93 - D1105060K 6 6 57 93 - D1105061 6.1 6.1 63 101 - D1105062 6.2 6.2 63 101 - D1105062K 6.2 6.2 63 101 - D1105063 6.3 6.3 63 101 - D1105063K 6.3 6.3 63 101 - D1105064 6.4 6.4 63 101 - D1105065 6.5 6.5 63 101 - D1105065K 6.5 6.5 63 101 - D1105066 6.6 6.6 63 101 - D1105067 6.7 6.7 63 101 - D1105067K 6.7 6.7 63 101 - D1105068 6.8 6.8 69 109 - D1105068K 6.8 6.8 69 109 - D1105069 6.9 6.9 69 109 - D1105069K 6.9 6.9 69 109 - D1105070 7 7 69 109 - D1105070K 7 7 69 109 - D1105071 7.1 7.1 69 109 - D1105071K 7.1 7.1 69 109 - D1105072 7.2 7.2 69 109 - D1105072K 7.2 7.2 69 109 - D1105073 7.3 7.3 69 109 - D1105073K 7.3 7.3 69 109 - D1105074 7.4 7.4 69 109 - D1105075 7.5 7.5 69 109 - D1105075K 7.5 7.5 69 109 - D1105076 7.6 7.6 75 117 - D1105077 7.7 7.7 75 117 - D1105078 7.8 7.8 75 117 - D1105078K 7.8 7.8 75 117 - D1105079 7.9 7.9 75 117 - D1105080 8 8 75 117 - D1105080K 8 8 75 117 - D1105081 8.1 8.1 75 117 - D1105082 8.2 8.2 75 117 - D1105082K 8.2 8.2 75 117 - D1105083 8.3 8.3 75 117 - D1105084 8.4 8.4 75 117 - D1105084K 8.4 8.4 75 117 - D1105085 8.5 8.5 75 117 - D1105085K 8.5 8.5 75 117 - D1105086 8.6 8.6 81 125 - D1105086K 8.6 8.6 81 125 - D1105087 8.7 8.7 81 125 - D1105087K 8.7 8.7 81 125 - D1105088 8.8 8.8 81 125 - D1105088K 8.8 8.8 81 125 - D1105089 8.9 8.9 81 125 - D1105089K 8.9 8.9 81 125 - D1105090 9 9 81 125 - D1105090K 9 9 81 125 - D1105091 9.1 9.1 81 125 - D1105092 9.2 9.2 81 125 - D1105093 9.3 9.3 81 125 - D1105093K 9.3 9.3 81 125 - D1105094 9.4 9.4 81 125 - D1105095 9.5 9.5 81 125 - D1105095K 9.5 9.5 81 125 - D1105096 9.6 9.6 87 133 - D1105097 9.7 9.7 87 133 - D1105098 9.8 9.8 87 133 - D1105098K 9.8 9.8 87 133 - D1105099 9.9 9.9 87 133 - D1105100 10 10 87 133 - D1105100K 10 10 87 133 - D1105101 10.1 10.1 87 133 - D1105102 10.2 10.2 87 133 - D1105102K 10.2 10.2 87 133 - D1105103 10.3 10.3 87 133 - D1105103K 10.3 10.3 87 133 - D1105104 10.4 10.4 87 133 - D1105104K 10.4 10.4 87 133 - D1105105 10.5 10.5 87 133 - D1105105K 10.5 10.5 87 133 - D1105106 10.6 10.6 87 133 - D1105106K 10.6 10.6 87 133 - D1105107 10.7 10.7 94 142 - D1105108 10.8 10.8 94 142 - D1105108K 10.8 10.8 94 142 - D1105109 10.9 10.9 94 142 - D1105110 11 11 94 142 - D1105110K 11 11 94 142 - D1105111 11.1 11.1 94 142 - D1105112 11.2 11.2 94 142 - D1105113 11.3 11.3 94 142 - D1105114 11.4 11.4 94 142 - D1105115 11.5 11.5 94 142 - D1105115K 11.5 11.5 94 142 - D1105116 11.5 11.5 94 142 - D1105117 11.7 11.7 94 142 - D1105118 11.8 11.8 94 142 - D1105118K 11.8 11.8 94 142 - D1105119 11.9 11.9 101 151 - D1105120 12 12 101 151 - D1105120K 12 12 101 151 - D1105121 12.1 12.1 101 151 - D1105122 12.2 12.2 101 151 - D1105123 12.3 12.3 101 151 - D1105124 12.4 12.4 101 151 - D1105125 12.5 12.5 101 151 - D1105125K 12.5 12.5 101 151 - D1105126 12.6 12.6 101 151 - D1105126K 12.6 12.6 101 151 - D1105127 12.7 12.7 101 151 - D1105128 12.8 12.8 101 151 - D1105129 12.9 12.9 101 151 - D1105130 13 13 101 151 - D1105130K 13 13 101 151 - D1105132 13.2 13.2 101 151 - D1105135 13.5 13.5 108 160 - D1105138 13.8 13.8 108 160 - D1105140 14 14 108 160 - D1105145 14.5 14.5 114 169 - D1105150 15 15 114 169 - D1105155 15.5 15.5 120 178 - D1105160 16 16 120 178 - D1105165 16.5 16.5 125 184 - D1105170 17 17 125 184 - D1105175 17.5 17.5 130 191 - D1105180 18 18 130 191 - D1105185 18.5 18.5 135 198 - D1105190 19 19 135 198 - D1105195 19.5 19.5 140 205 - D1105200 20 20 140 205 - D1105802 10.25 10.25 87 133 - D1105807 10.75 10.75 94 142 - D1105812 11.25 11.25 94 142 - D1105817 11.75 11.75 94 142 - D1105822 12.25 12.25 101 151 - D1105827 12.75 12.75 101 151 - D1105832 13.25 13.25 108 160 - D1105837 13.75 13.75 108 160 - D1105842 14.25 14.25 114 169 - D1105847 14.75 14.75 114 169 - D1105852 15.25 15.25 120 178 - D1105857 15.75 15.75 120 178 - D1105862 16.25 16.25 125 184 - D1105867 16.75 16.75 125 184 - D1105872 17.25 17.25 130 191 - D1105877 17.75 17.75 130 191 - D1105882 18.25 18.25 135 198 - D1105887 18.75 18.75 135 198 - D1105892 19.25 19.25 140 205 - D1105897 19.75 19.75 140 205 - D1105910 1.05 1.05 12 34 - D1105911 1.15 1.15 14 36 - D1105912 1.25 1.25 16 38 - D1105913 1.35 - 18 40 - D1105913 1.35 1.35 18 40 - D1105914 1.45 - 18 40 - D1105914 1.45 1.45 18 40 - D1105915 1.55 - 20 43 - D1105915 1.55 1.55 20 43 - D1105916 1.65 - 20 43 - D1105916 1.65 1.65 20 43 - D1105917 1.75 - 22 46 - D1105917 1.75 1.75 22 46 - D1105918 1.85 - 22 46 - D1105918 1.85 1.85 22 46 - D1105919 1.95 - 24 49 - D1105919 1.95 1.95 24 49 - D1105920 2.05 - 24 49 - D1105920 2.05 2.05 24 49 - D1105921 2.15 - 27 53 - D1105921 2.15 2.15 27 53 - D1105922 2.25 - 27 53 - D1105922 2.25 2.25 27 53 - D1105923 2.35 - 27 53 - D1105923 2.35 2.35 27 53 - D1105924 2.45 - 30 57 - D1105924 2.45 2.45 30 57 - D1105925 2.55 - 30 57 - D1105925 2.55 2.55 30 57 - D1105926 2.65 - 30 57 - D1105926 2.65 2.65 30 57 - D1105927 2.75 - 33 61 - D1105927 2.75 2.75 33 61 - D1105928 2.85 - 33 61 - D1105928 2.85 2.85 33 61 - D1105929 2.95 - 33 61 - D1105929 2.95 2.95 33 61 - D1105930 3.05 - 36 65 - D1105930K 3.05 - 36 65 - D1105931 3.15 - 36 65 - D1105931 3.15 3.15 36 65 - D1105932 3.25 - 36 65 - D1105932 3.25 3.25 36 65 - D1105933 3.35 - 36 65 - D1105933 3.35 3.35 36 65 - D1105934 3.45 - 39 70 - D1105934 3.45 3.45 39 70 - D1105935 3.55 - 39 70 - D1105935 3.55 3.55 39 70 - D1105936 3.65 - 39 70 - D1105936 3.65 3.65 39 70 - D1105937 3.75 - 39 70 - D1105937 3.75 3.75 39 70 - D1105938 3.85 - 43 75 - D1105938 3.85 3.85 43 75 - D1105939 3.95 - 43 75 - D1105939 3.95 3.95 43 75 - D1105940 4.05 - 43 75 - D1105940 4.05 4.05 43 75 - D1105941 4.15 - 43 75 - D1105941 4.15 4.15 43 75 - D1105942 4.25 - 43 75 - D1105942 4.25 4.25 43 75 - D1105943 4.35 - 47 80 - D1105943 4.35 4.35 47 80 - D1105944 4.45 - 47 80 - D1105944 4.45 4.45 47 80 - D1105945 4.55 - 47 80 - D1105945 4.55 4.55 47 80 - D1105946 4.65 - 47 80 - D1105946 4.65 4.65 47 80 - D1105947 4.75 - 47 80 - D1105947 4.75 4.75 47 80 - D1105948 4.85 - 52 86 - D1105948 4.85 4.85 52 86 - D1105949 4.95 - 52 86 - D1105949 4.95 4.95 52 86 - D1105950 5.05 - 52 86 - D1105950 5.05 5.05 52 86 - D1105951 5.15 - 52 86 - D1105951 5.15 5.15 52 86 - D1105952 5.25 - 52 86 - D1105952 5.25 5.25 52 86 - D1105953 5.35 - 57 93 - D1105953 5.35 5.35 57 93 - D1105954 5.45 - 57 93 - D1105954 5.45 5.45 57 93 - D1105955 5.55 - 57 93 - D1105955 5.55 5.55 57 93 - D1105956 5.65 - 57 93 - D1105956 5.65 5.65 57 93 - D1105957 5.75 - 57 93 - D1105957 5.75 5.75 57 93 - D1105958 5.85 - 57 93 - D1105958 5.85 5.85 57 93 - D1105959 5.95 - 57 93 - D1105959 5.95 5.95 57 93 - D1105960 6.05 - 63 101 - D1105960 6.05 6.05 63 101 - D1105961 6.15 - 63 101 - D1105961 6.15 6.15 63 101 - D1105962 6.25 - 63 101 - D1105962 6.25 6.25 63 101 - D1105963 6.35 - 63 101 - D1105963 6.35 6.35 63 101 - D1105964 6.45 - 63 101 - D1105964 6.45 6.45 63 101 - D1105965 6.55 - 63 101 - D1105965 6.55 6.55 63 101 - D1105966 6.65 - 63 101 - D1105966 6.65 6.65 63 101 - D1105967 6.75 - 69 109 - D1105967 6.75 6.75 69 109 - D1105968 6.85 - 69 109 - D1105968 6.85 6.85 69 109 - D1105969 6.95 - 69 109 - D1105969 6.95 6.95 69 109 - D1105970 7.05 - 69 109 - D1105970 7.05 7.05 69 109 - D1105971 7.15 - 69 109 - D1105971 7.15 7.15 69 109 - D1105972 7.25 - 69 109 - D1105972 7.25 7.25 69 109 - D1105973 7.35 - 69 109 - D1105973 7.35 7.35 69 109 - D1105974 7.45 - 69 109 - D1105974 7.45 7.45 69 109 - D1105975 7.55 - 75 117 - D1105975 7.55 7.55 75 117 - D1105976 7.65 - 75 117 - D1105976 7.65 7.65 75 117 - D1105977 7.75 - 75 117 - D1105977 7.75 7.75 75 117 - D1105978 7.85 - 75 117 - D1105978 7.85 7.85 75 117 - D1105979 7.95 - 75 117 - D1105979 7.95 7.95 75 117 - D1105982 8.25 - 75 117 - D1105982 8.25 8.25 75 117 - D1105987 8.75 - 81 125 - D1105987 8.75 8.75 81 125 - D1105992 9.25 - 81 125 - D1105992 9.25 9.25 81 125 - D1105997 9.75 - 87 133 - D1105997 9.75 9.75 87 133 -

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

8 grades

Non-alloy steel

ExcellentVDI 1–3

GoodVDI 4

Low-alloy steel

ExcellentVDI 6

GoodVDI 7–8

High-alloy and tool steel

GoodVDI 10

Cast iron

4 grades

Grey cast iron

GoodVDI 15–16

Nodular cast iron

GoodVDI 17

Malleable cast iron

GoodVDI 19

Superalloys & titanium

1 grade

Titanium alloys

GoodVDI 36

Stainless steel

3 grades

Stainless steel

GoodVDI 12–14

Non-ferrous materials

4 grades

Wrought aluminium

GoodVDI 21–22

Cast aluminium

GoodVDI 23

Non-metallic materials

GoodVDI 29

VDI grade reference20 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDI	Work material	Recommendation	HB ref.	HRC ref.
1	PNon-alloy steel	Excellent	125	-
2	PNon-alloy steel	Excellent	190	13
3	PNon-alloy steel	Excellent	250	25
4	PNon-alloy steel	Good	270	28
6	PLow-alloy steel	Excellent	180	10
7	PLow-alloy steel	Good	275	29
8	PLow-alloy steel	Good	300	32
10	PHigh-alloy and tool steel	Good	200	15
12	MStainless steel	Good	200	15
13	MStainless steel	Good	240	23
14	MStainless steel	Good	180	10
15	KGrey cast iron	Good	180	10
16	KGrey cast iron	Good	260	26
17	KNodular cast iron	Good	160	3
19	KMalleable cast iron	Good	130	-
21	NWrought aluminium	Good	60	-
22	NWrought aluminium	Good	100	-
23	NCast aluminium	Good	75	-
29	NNon-metallic materials	Good	-	-
36	STitanium alloys	Good	-	-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.

Resources

Service & Delivery

How do I purchase my items?

Excision products are available through 300+ local distributors around Australia. Some products may also have buy online options available for online purchase through our distributors.

Find your local distributor

What delivery services do we offer?

We freight out of Melbourne every day for 1-3 days delivery to your local distributor. We also offer upon request (for an extra charge):

Send direct
Air frieght for small urgent items

How do I return an item?

We offer lifetime returns. If you’re unhappy with your purchase, you can return unused items to us for free – no questions asked.

Have a question about this product?

Contact Sales

+61 (03) 5551 4555

Mon - Fri 7am - 5pm

Resources

About

Metal Cutting Bandsaw Blades

Timber Cutting Bandsaw Blades

Meat Cutting Bandsaw Blades

Other Bandsaw Blades

HSS Coldsaw Blades

TCT Circular Blades

Metal Working Fluids

Neat Oils

Cutting & Tapping Compounds

Industrial Fluids

Coolant Accessories

Magnetic Based Drills

Bandsaw Machines

Coldsaw Machines

Bevelling & Deburring Machines

Material Handling

Punches & Dies

Industrial Clamps & Hand Tools

(D1105) HSS (M2) Jobber Drill for Multi Purpose (Steam Tempered)
