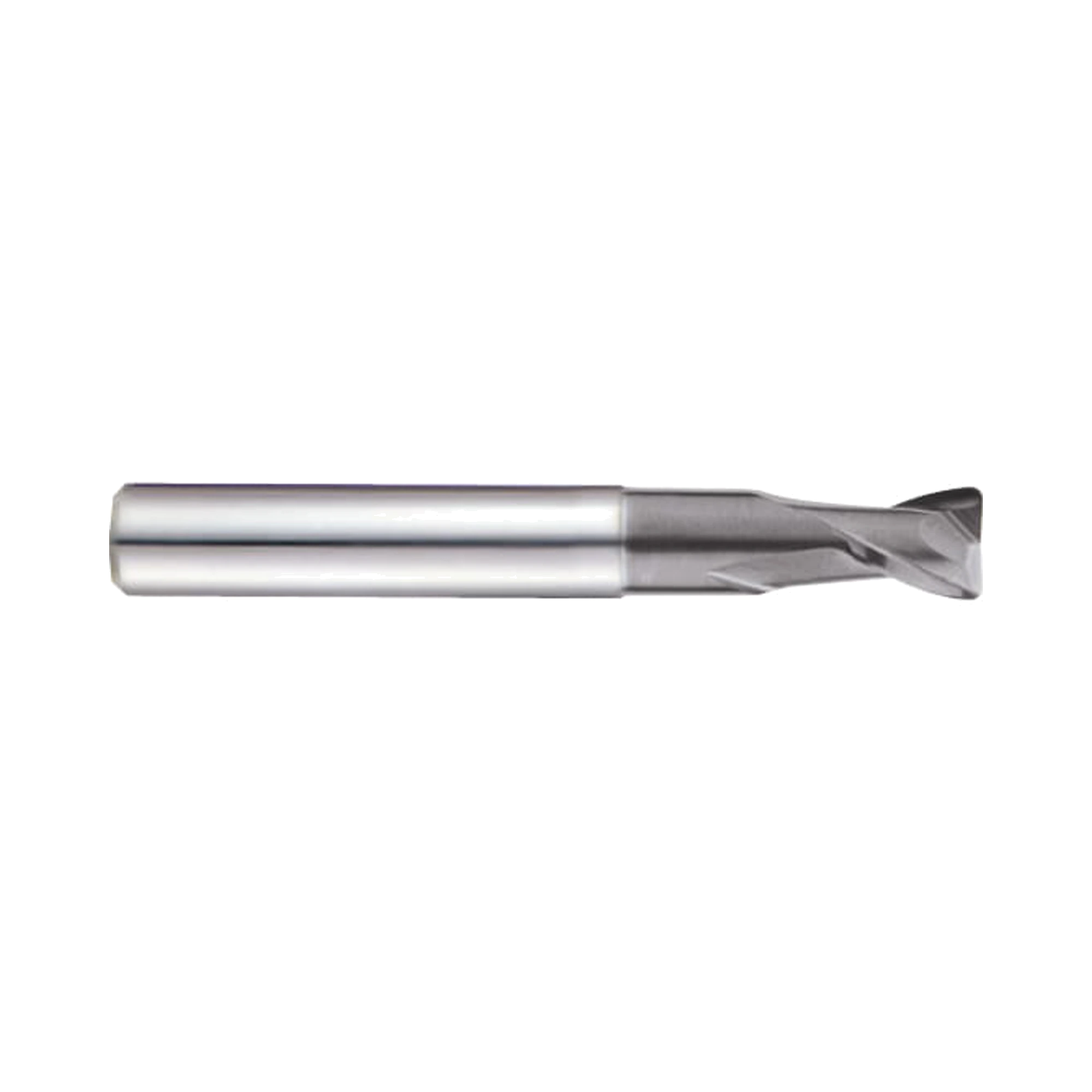

CRX S 2 Flute 30°Helix Long Neck Corner Radius End Mill (SGED29)

CRX S 2 Flute 30°Helix Long Neck Corner Radius End Mill (SGED29)
CRX S 2 Flute 30°Helix Long Neck Corner Radius End Mill (SGED29)
New

CRX S 2 Flute 30°Helix Long Neck Corner Radius End Mill (SGED29)

Product Code: SGED29

Corner Radius Tolerance: 0.01 Corner Radius Tolerance: 0.015 No. Flutes: 2 YG-1 LEGEND DLC Surface Treatment: DLC YG-1 LEGEND CARBIDE Tool Material: Carbide YG-1 LEGEND HELIX SQUARE 30 Helix Angle: Square 30° YG-1 LEGEND move ball profiling YG-1 LEGEND SHANK PLAIN Shank Type: Plain
Buy Local

The SGED29 series CRX-S milling cutters range from 1-12mm diameter and have a plain shank. They give excellent performance machining on copper, copper alloys, soft graphites, wrought or abrasive aluminium, CFRP/GFRP (glass and carbon reinforced plastic) and abrasive plastics. The DLC coated nanograin carbide has superior anti-adhesion properties.

  • Nanograin Carbide Substrate
  • Diamond-like Carbon coating with anti-adhesion properties
  • Up to 4 times the tool life of TiAlN coated tools
  • Excellent chip control on long chipping materials
  • Self lubrication in dry wear conditions
  • For high speed machining of copper, wrought aluminium, high silicon aluminium, abrasive plastics, soft graphite, carbon fibre and glass fibre

Specifications

Flutes 2
Helix Angle 30°
Cutting Edge Shape CORNER RADIUS
Size Min D1.0
Size Max D12.0
Length

EXTENDED NECK
Coating DLC



Product Data
Workpiece Material N
Corner Radius Tolerance 0.01, 0.015
Helix Angle Square 30
No. Flutes 2
Operation Corner, Die Sinking, Helical-Interpol, Profiling, Side Milling, Slotting, Small Part
Shank Type Plain
Surface Treatment DLC
Tool Material Carbide
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add CRX S 2 Flute 30°Helix Long Neck Corner Radius End Mill (SGED29) to comparison

View Comparison

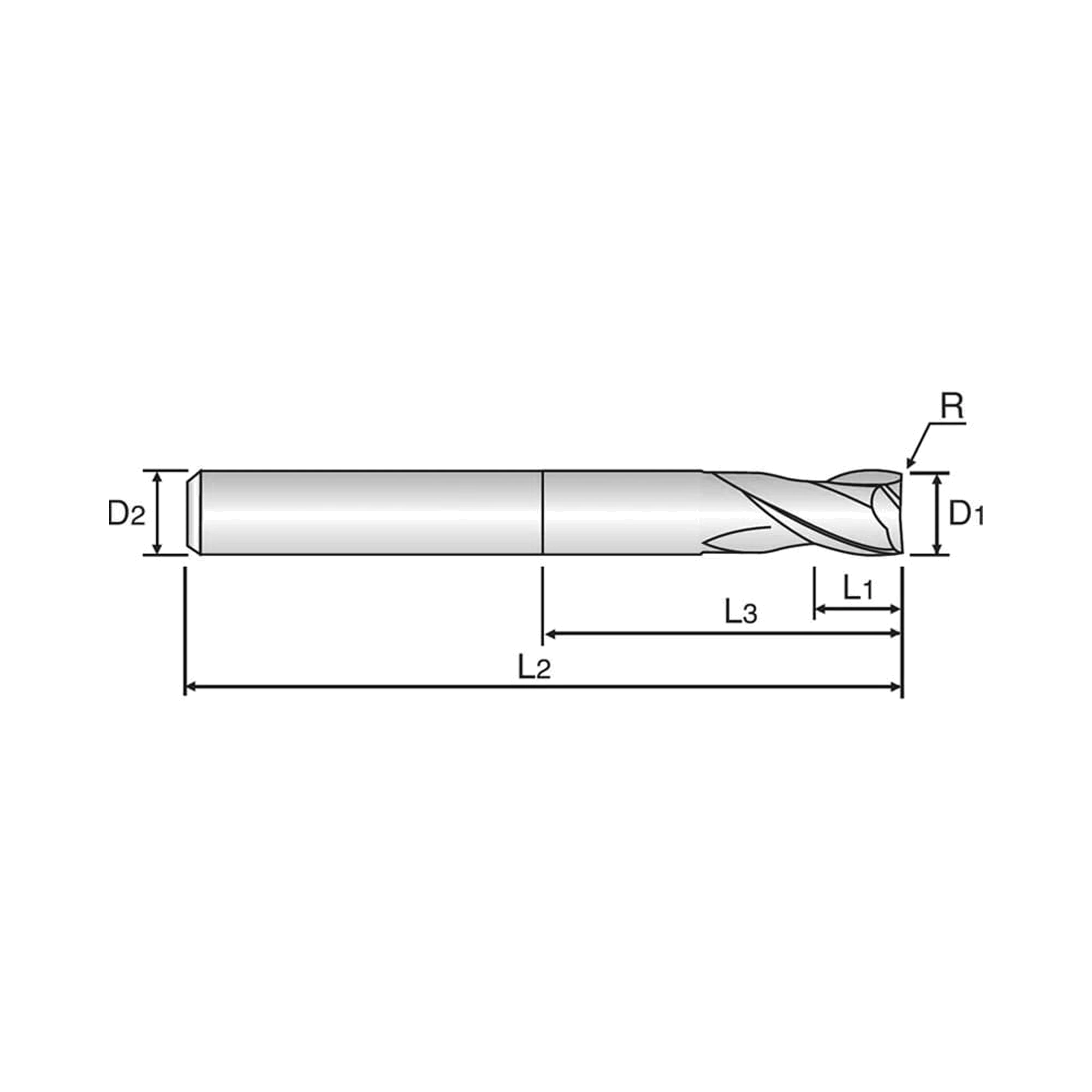

EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute SGED290100104 1 4 1.5 45 0~-0.012 h5 2 SGED290100106 1 4 1.5 45 0~-0.012 h5 2 SGED290100108 1 4 1.5 45 0~-0.012 h5 2 SGED290100204 1 4 1.5 45 0~-0.012 h5 2 SGED290100206 1 4 1.5 45 0~-0.012 h5 2 SGED290100208 1 4 1.5 45 0~-0.012 h5 2 SGED290150106 1.5 4 2.3 45 0~-0.012 h5 2 SGED290150108 1.5 4 2.3 45 0~-0.012 h5 2 SGED290150110 1.5 4 2.3 45 0~-0.012 h5 2 SGED290150206 1.5 4 2.3 45 0~-0.012 h5 2 SGED290150208 1.5 4 2.3 45 0~-0.012 h5 2 SGED290150210 1.5 4 2.3 45 0~-0.012 h5 2 SGED290200208 2 4 3 45 0~-0.012 h5 2 SGED290200210 2 4 3 45 0~-0.012 h5 2 SGED290200212 2 4 3 45 0~-0.012 h5 2 SGED290200508 2 4 3 45 0~-0.012 h5 2 SGED290200512 2 4 3 45 0~-0.012 h5 2 SGED290300210 3 6 4.5 50 0~-0.012 h5 2 SGED290300212 3 6 4.5 50 0~-0.012 h5 2 SGED290300216 3 6 4.5 60 0~-0.012 h5 2 SGED290300310 3 6 4.5 50 0~-0.012 h5 2 SGED290300312 3 6 4.5 50 0~-0.012 h5 2 SGED290300316 3 6 4.5 60 0~-0.012 h5 2 SGED290400212 4 6 6 50 0~-0.012 h5 2 SGED290400216 4 6 6 60 0~-0.012 h5 2 SGED290400220 4 6 6 60 0~-0.012 h5 2 SGED290400512 4 6 6 50 0~-0.012 h5 2 SGED290400516 4 6 6 60 0~-0.012 h5 2 SGED290400520 4 6 6 60 0~-0.012 h5 2 SGED290600320 6 6 9 60 0~-0.012 h5 2 SGED290600520 6 6 9 60 0~-0.012 h5 2 SGED290601020 6 6 9 60 0~-0.012 h5 2 SGED290800325 8 8 12 65 0~-0.015 h5 2 SGED290800525 8 8 12 65 0~-0.015 h5 2 SGED290801025 8 8 12 65 0~-0.015 h5 2 SGED291000530 10 10 15 70 0~-0.015 h5 2 SGED291001030 10 10 15 70 0~-0.015 h5 2 SGED291200532 12 12 18 80 0~-0.015 h5 2

Operation

Profiling
Side Milling
Small Part
Slotting
Die Sinking
Corner
Helical Interpol

Work Material

N Aluminium

Great

Good Great Excellent
N Copper

Excellent

Good Great Excellent
