(XSEME68) i-Smart 4G Mill, Modular Head, 4Flute Corner Radius End Mill

  • $0.00INC GST $0.00 EX GST
(XSEME68) i-Smart 4G Mill, Modular Head, 4Flute Corner Radius End Mill
(XSEME68) i-Smart 4G Mill, Modular Head, 4Flute Corner Radius End Mill

(XSEME68) i-Smart 4G Mill, Modular Head, 4Flute Corner Radius End Mill

  • $0.00INC GST $0.00 EX GST Price available on request

Code:

P K H
Mill Diameter (mm)
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add (XSEME68) i-Smart 4G Mill, Modular Head, 4Flute Corner Radius End Mill to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description

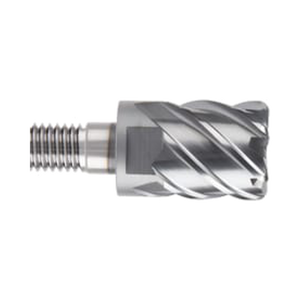

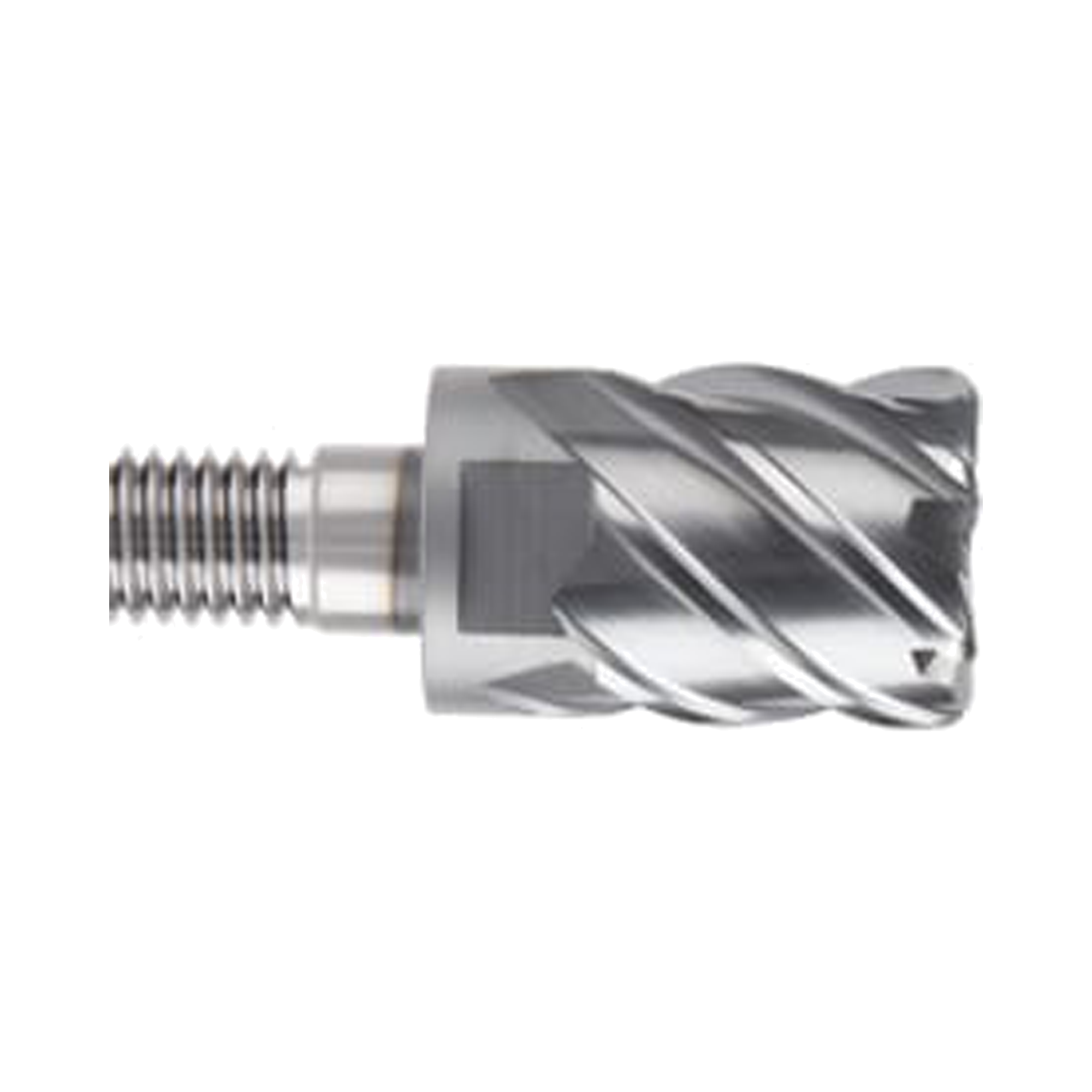

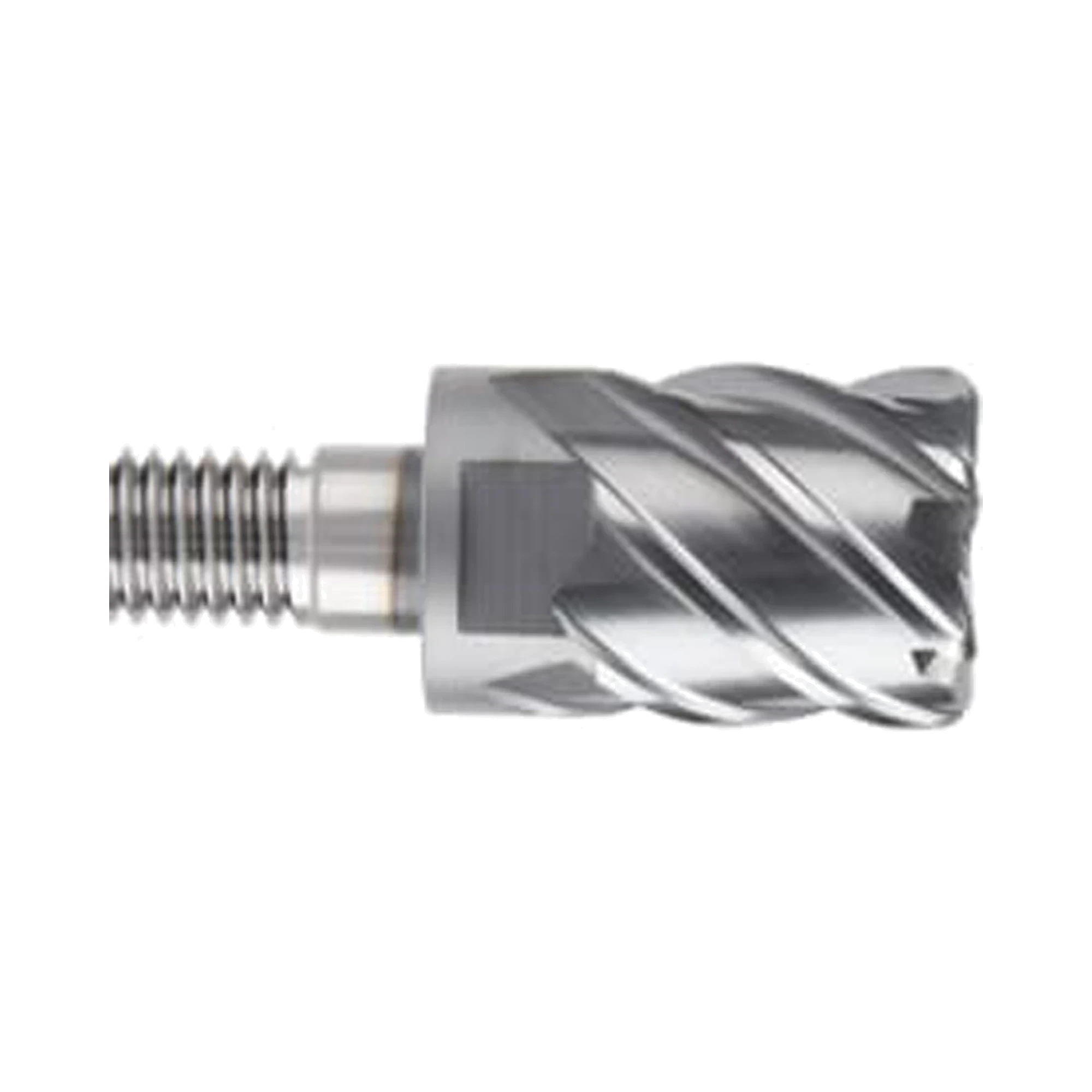

The XSEME68 series modular head is designed for ranges in diameter from 10-32mm, has a corner radius from R0.3mm to R2mm and a 45° helix. The 6 flute design allows for a high quality surface finish. These heads are suitable for use with i-Smart modular holders and high speed machining of steel

  • 45° Helix.
  • 6 flute design ensures a high quality surface finish.
  • Corner radius strengthens cutting edge and prevents chipping of the tool.
  • Change the carbide head on the machine, no need to reset tool length.
  • Y1200 coated ultrafine micrograin carbide for machining up to 1200°C.
  • Quick change replaceable heads - multiple head size and styles with just 1 holder.
  • High Speed Machining (HSC).
  • High precision.
  • Large cost savings compared to solid carbide tools.
  • High precision head location.
  • Reduced machine downtime.
  • YG-1 provides high accuracy and performance at an economical price.

Product Data
Workpiece Material P K H
Corner Radius Tolerance 0.015
Hardened Steels(HRc40~45) Great
Helix Angle Square 45
No. Flutes 6
Operation Facing, Side Milling
Surface Treatment YG-1 Y Coating
Tool Material Carbide
Flutes 6
Helix Angle 45°
Cutting Edge Shape CORNER RADIUS
Size Min D10.0
Size Max D32.0
Length -
Coating Y-Coating

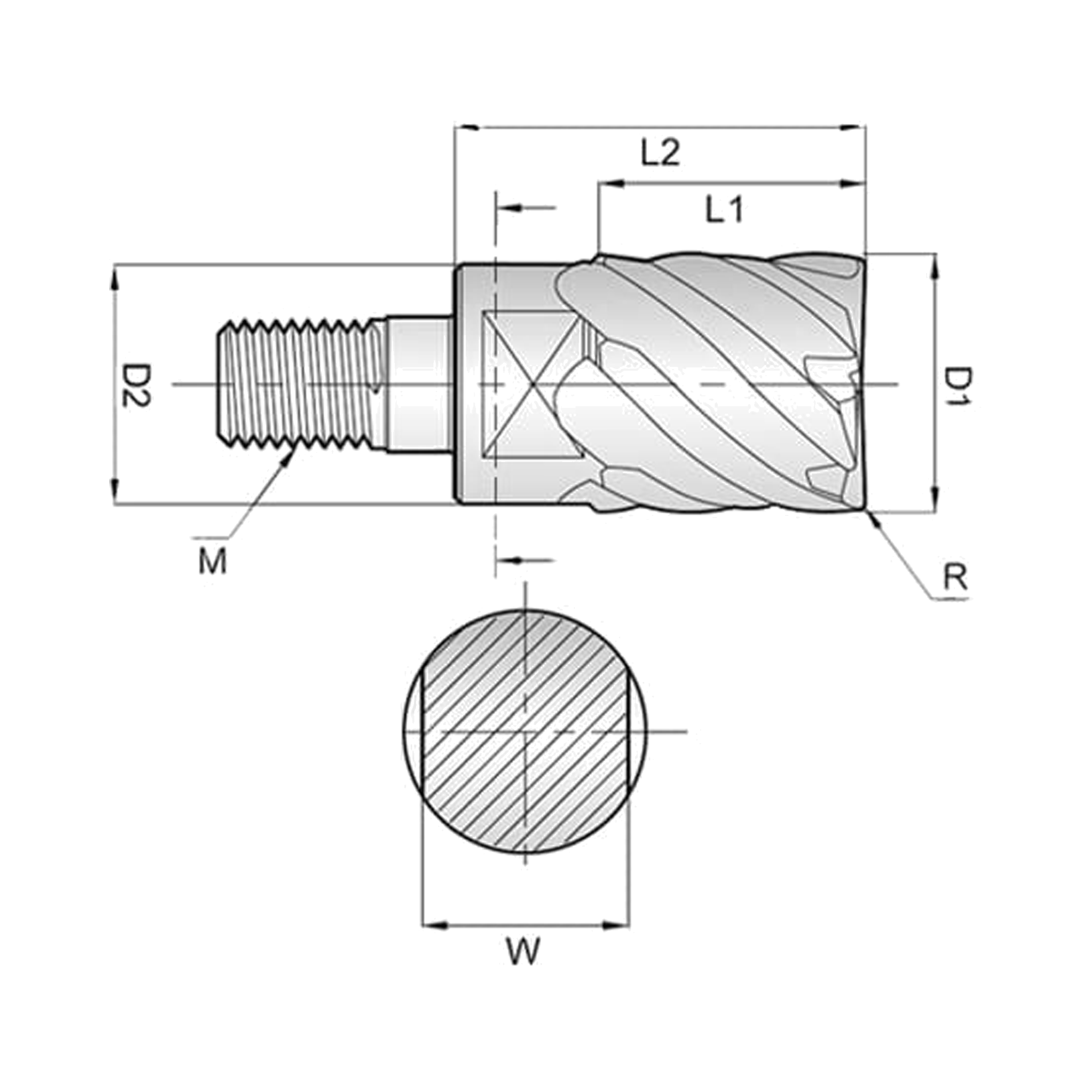

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME68100030 10 9 10 17.5 8 M6 6 XSEME68100050 10 9 10 17.5 8 M6 6 XSEME68100100 10 9 10 17.5 8 M6 6 XSEME68120030 12 11 12 20.5 10 M6 6 XSEME68120050 12 11 12 20.5 10 M6 6 XSEME68120100 12 11 12 20.5 10 M6 6 XSEME68160050 16 15 16 25.5 13 M8 6 XSEME68160100 16 15 16 25.5 13 M8 6 XSEME68160150 16 15 16 25.5 13 M8 6 XSEME68160200 16 15 16 25.5 13 M8 6 XSEME68200050 20 19 20 30 17 M10 6 XSEME68200100 20 19 20 30 17 M10 6 XSEME68200150 20 19 20 30 17 M10 6 XSEME68200200 20 19 20 30 17 M10 6 XSEME68250050 25 24 25 37 22 M12 6 XSEME68250100 25 24 25 37 22 M12 6 XSEME68250150 25 24 25 37 22 M12 6 XSEME68250200 25 24 25 37 22 M12 6 XSEME68300050 30 29 30 43 27 M16 6 XSEME68300100 30 29 30 43 27 M16 6 XSEME68300150 30 29 30 43 27 M16 6 XSEME68300200 30 29 30 43 27 M16 6 XSEME68320050 32 31 32 45 27 M16 6 XSEME68320100 32 31 32 45 27 M16 6 XSEME68320150 32 31 32 45 27 M16 6 XSEME68320200 32 31 32 45 27 M16 6
Side Milling
Facing
P Carbon Steels

Great

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
H Hardened Steels (HRc45~55)

Great

Good Great Excellent
H High Hardened Steels (HRc55~70)

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Mill Diameter (D1) Neck Diameter (D2) Length of Cut (L1) Length Below Shank (L2) Wrench Width Thread No. of Flute XSEME68100030 10 9 10 17.5 8 M6 6 XSEME68100050 10 9 10 17.5 8 M6 6 XSEME68100100 10 9 10 17.5 8 M6 6 XSEME68120030 12 11 12 20.5 10 M6 6 XSEME68120050 12 11 12 20.5 10 M6 6 XSEME68120100 12 11 12 20.5 10 M6 6 XSEME68160050 16 15 16 25.5 13 M8 6 XSEME68160100 16 15 16 25.5 13 M8 6 XSEME68160150 16 15 16 25.5 13 M8 6 XSEME68160200 16 15 16 25.5 13 M8 6 XSEME68200050 20 19 20 30 17 M10 6 XSEME68200100 20 19 20 30 17 M10 6 XSEME68200150 20 19 20 30 17 M10 6 XSEME68200200 20 19 20 30 17 M10 6 XSEME68250050 25 24 25 37 22 M12 6 XSEME68250100 25 24 25 37 22 M12 6 XSEME68250150 25 24 25 37 22 M12 6 XSEME68250200 25 24 25 37 22 M12 6 XSEME68300050 30 29 30 43 27 M16 6 XSEME68300100 30 29 30 43 27 M16 6 XSEME68300150 30 29 30 43 27 M16 6 XSEME68300200 30 29 30 43 27 M16 6 XSEME68320050 32 31 32 45 27 M16 6 XSEME68320100 32 31 32 45 27 M16 6 XSEME68320150 32 31 32 45 27 M16 6 XSEME68320200 32 31 32 45 27 M16 6
