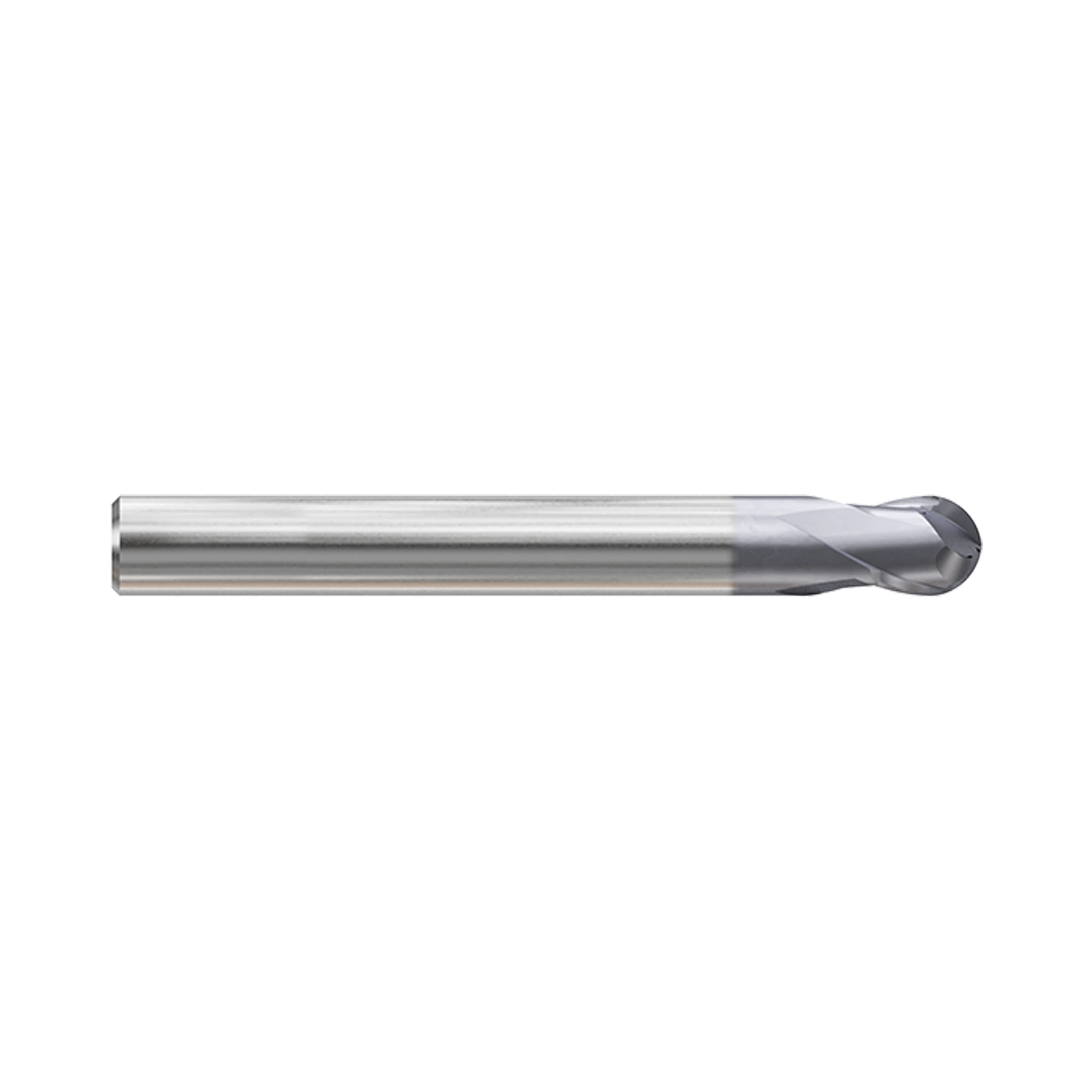

ONLY ONE PM60 2 Flute 30°Helix Short Ball End Mill (GYG77)

  • $0.00INC GST $0.00 EX GST
ONLY ONE PM60 2 Flute 30°Helix Short Ball End Mill (GYG77)
New

ONLY ONE PM60 2 Flute 30°Helix Short Ball End Mill (GYG77)

  • $0.00INC GST $0.00 EX GST Price available on request

Code: GYG77

P M K N
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add ONLY ONE PM60 2 Flute 30°Helix Short Ball End Mill (GYG77) to comparison

View Comparison
  • Overview
  • Specifications
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description



Product Data
Workpiece Material P M K N
Ball Radius Tolerance 0.02
Cutting Shape Ball Nose
Hardened Steels(HRc40~45) Great
Helix Angle Ball Nose 30
No. Flutes 2
Operation Profiling, Side Milling, Small Part
Shank Type Plain
Surface Treatment YG-1 Y Coating
Tool Material PM 60
Flutes 2
Helix Angle 30°
Cutting Edge Shape BALL NOSE
Size Min R0.5
Size Max R12.5
Length SHORT LENGTH
Coating Y-Coating



EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYG77010 1 6 2.5 47 0~-0.030 h6 2 GYG77020 2 6 4 48 0~-0.030 h6 2 GYG77030 3 6 5 49 0~-0.030 h6 2 GYG77040 4 6 7 51 0~-0.030 h6 2 GYG77050 5 6 8 52 0~-0.030 h6 2 GYG77060 6 6 8 52 0~-0.030 h6 2 GYG77070 7 8 10 60 0~-0.030 h6 2 GYG77080 8 8 11 61 0~-0.030 h6 2 GYG77090 9 10 11 61 0~-0.030 h6 2 GYG77100 10 10 13 63 0~-0.030 h6 2 GYG77120 12 12 16 73 0~-0.030 h6 2 GYG77140 14 12 16 73 0~-0.030 h6 2 GYG77160 16 16 19 79 0~-0.030 h6 2 GYG77180 18 16 19 79 0~-0.030 h6 2 GYG77200 20 20 22 88 0~-0.030 h6 2 GYG77250 25 25 26 102 0~-0.030 h6 2
Profiling
Side Milling
Small Part
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Prehardened Steels

Great

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Excellent

Good Great Excellent
N Copper

Great

Good Great Excellent
H Hardened Steels (HRc40~45)

Great

Good Great Excellent
EDP No. Mill Diameter (D1) ShankDia (D2) Length of Cut (L1) Overall Length (L2) Mill Dia. Tolerance Shank Dia. Tolerance No. of Flute GYG77010 1 6 2.5 47 0~-0.030 h6 2 GYG77020 2 6 4 48 0~-0.030 h6 2 GYG77030 3 6 5 49 0~-0.030 h6 2 GYG77040 4 6 7 51 0~-0.030 h6 2 GYG77050 5 6 8 52 0~-0.030 h6 2 GYG77060 6 6 8 52 0~-0.030 h6 2 GYG77070 7 8 10 60 0~-0.030 h6 2 GYG77080 8 8 11 61 0~-0.030 h6 2 GYG77090 9 10 11 61 0~-0.030 h6 2 GYG77100 10 10 13 63 0~-0.030 h6 2 GYG77120 12 12 16 73 0~-0.030 h6 2 GYG77140 14 12 16 73 0~-0.030 h6 2 GYG77160 16 16 19 79 0~-0.030 h6 2 GYG77180 18 16 19 79 0~-0.030 h6 2 GYG77200 20 20 22 88 0~-0.030 h6 2 GYG77250 25 25 26 102 0~-0.030 h6 2
