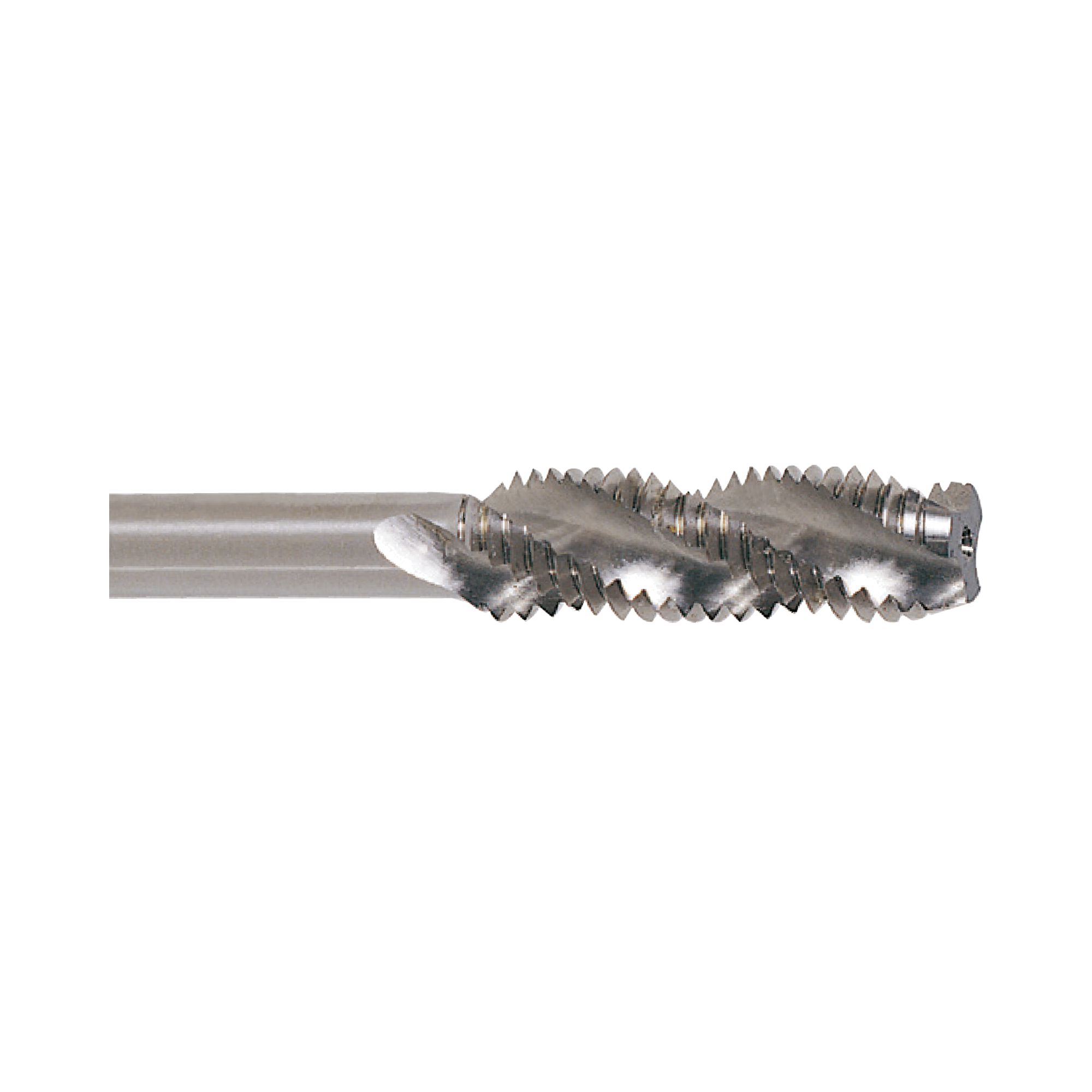

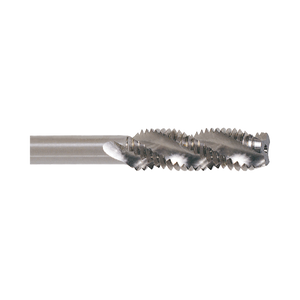

JIS J-TYPE STI Spiral Flute Bright (T2198)

JIS J-TYPE STI Spiral Flute Bright (T2198)
JIS J-TYPE STI Spiral Flute Bright (T2198)
New

JIS J-TYPE STI Spiral Flute Bright (T2198)

Product Code: T2198

Thread Class: 1B Thread Form: 2.5P YG-1 LEGEND UNC Thread Shape: UNC YG-1 LEGEND UNF Thread Shape: UNF YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND BRIGHT Surface Treatment: Bright YG-1 LEGEND HSS-E Tool Material: HSS-E YG-1 LEGEND HELIX SQUARE 40 Helix Angle: Square 40° YG-1 LEGEND JIS J
Buy Local
Product Data
Workpiece Material P N
Helix Angle Square 40
Operation Blind Drilling
Surface Treatment Bright
Thread Angle 60
Thread Class 1B
Thread Form 2.5P
Thread Shape UNC, UNF
Tool Material HSS-E
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add JIS J-TYPE STI Spiral Flute Bright (T2198) to comparison

View Comparison
EDP No. Size TPI Thread Length Overall Length Neck Length Shank Diameter Square Size No. of Flute T2198161 #4 40 18 48 48 4 3.2 3 T2198161 #4 40 18 48 48 4 3.2 3 T2198201 #5 40 20 52 52 5 4 3 T2198201 #5 40 20 52 52 5 4 3 T2198241 #6 32 20 55 55 5 4 3 T2198241 #6 32 20 55 55 5 4 3 T2198281 #8 32 22 60 60 5.5 4.5 3 T2198281 #8 32 22 60 60 5.5 4.5 3 T2198321 #10 24 24 62 62 6 4.5 3 T2198321 #10 24 24 62 62 6 4.5 3 T2198401 1/4 20 30 70 70 6.1 5 3 T2198401 1/4 20 30 70 70 6.1 5 3 T2198441 5/16 18 32 75 75 7 5.5 3 T2198441 5/16 18 32 75 75 7 5.5 3 T2198481 3/8 16 38 82 82 8.5 6.5 3 T2198481 3/8 16 38 82 82 8.5 6.5 3 T2198501 3/8 24 38 80 80 8 6 3 T2198501 3/8 24 38 80 80 8 6 3 T2198561 1/2 13 45 95 95 12 9 3 T2198561 1/2 13 45 95 95 12 9 3 T2198581 1/2 20 42 90 90 10.5 8 3 T2198581 1/2 20 42 90 90 10.5 8 3 T2198641 5/8 11 50 105 105 14 11 4 T2198641 5/8 11 50 105 105 14 11 4 T2198661 5/8 18 45 95 95 14 11 4 T2198661 5/8 18 45 95 95 14 11 4 T2198701 3/4 10 55 120 120 18 14 4 T2198701 3/4 10 55 120 120 18 14 4 T2198721 3/4 16 45 95 95 17 13 4 T2198721 3/4 16 45 95 95 17 13 4 T2198741 7/8 9 62 130 130 20 15 4 T2198741 7/8 9 62 130 130 20 15 4 T2198761 7/8 14 45 95 95 19 15 4 T2198761 7/8 14 45 95 95 19 15 4 T2198781 1" 8 65 135 135 23 17 4 T2198781 1" 8 65 135 135 23 17 4 T2198801 1" 12 45 105 105 22 17 4 T2198801 1" 12 45 105 105 22 17 4

Operation

Blind Drilling

Work Material

P Carbon Steels

Great

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
