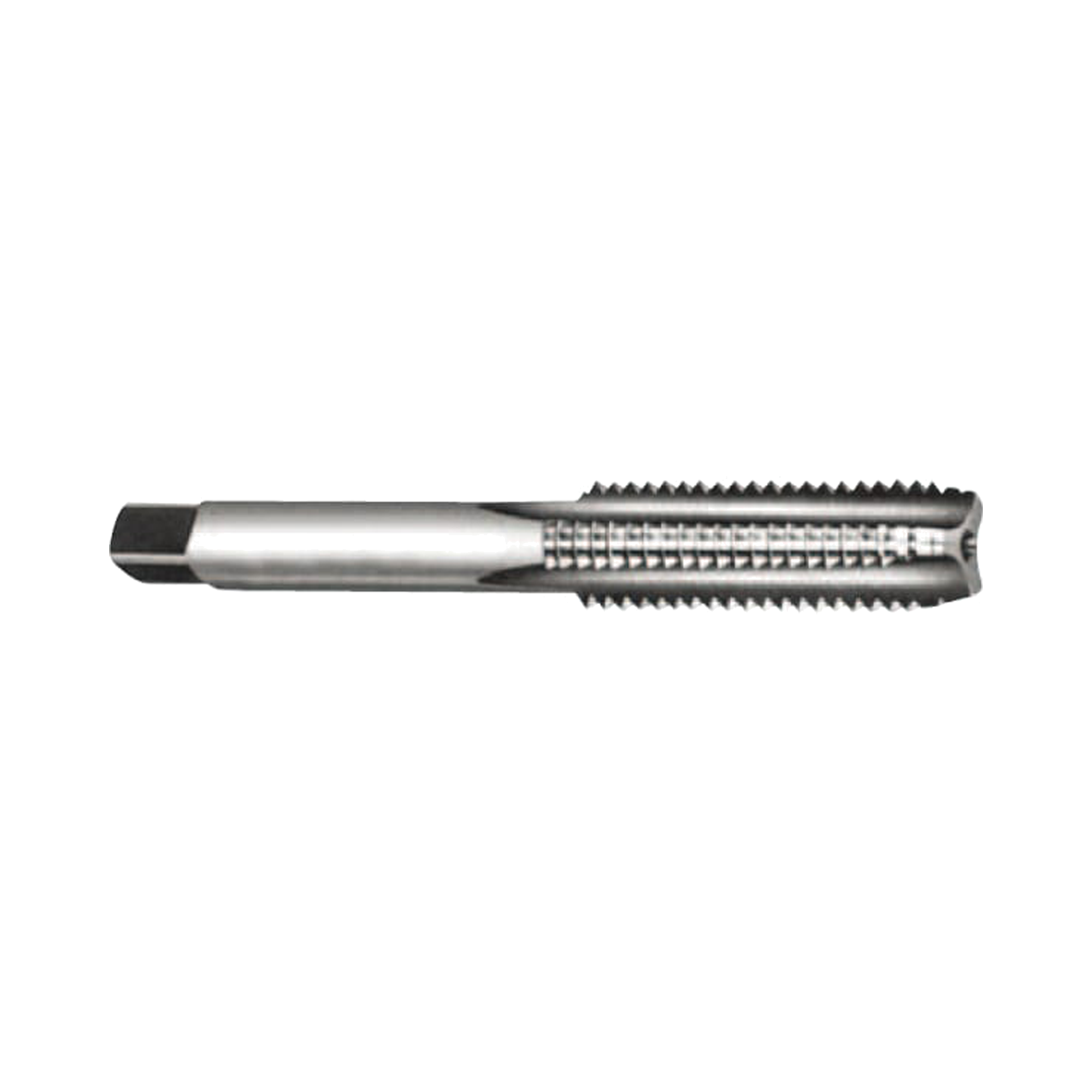

JIS J-TYPE STI Straight Flute Bright (T7399)

JIS J-TYPE STI Straight Flute Bright (T7399)
JIS J-TYPE STI Straight Flute Bright (T7399)
New

JIS J-TYPE STI Straight Flute Bright (T7399)

Product Code: T7399

Thread Class: 1B YG-1 LEGEND M-MF Thread Shape: M/MF YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND BRIGHT Surface Treatment: Bright YG-1 LEGEND JIS J
Buy Local
Product Data
Workpiece Material P N
Operation Blind Drilling, Through Drilling
Surface Treatment Bright
Thread Angle 60
Thread Class 1B
Thread Shape M/MF
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add JIS J-TYPE STI Straight Flute Bright (T7399) to comparison

View Comparison
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute T7399207 M3 0.5 18 48 48 4 3.2 6 3 T7399208 M3 0.5 18 48 48 4 3.2 6 3 T7399247 M4 0.7 22 60 60 5.5 4.5 7 3 T7399248 M4 0.7 22 60 60 5.5 4.5 7 3 T7399287 M5 0.8 24 62 62 6 4.5 7 3 T7399288 M5 0.8 24 62 62 6 4.5 7 3 T7399317 M6 1 26 65 65 6.2 5 8 3 T7399318 M6 1 26 65 65 6.2 5 8 3 T7399367 M8 1.25 32 75 75 7 5.5 8 4 T7399368 M8 1.25 32 75 75 7 5.5 8 4 T7399427 M10 1.5 38 82 82 8.5 6.5 9 4 T7399428 M10 1.5 38 82 82 8.5 6.5 9 4 T7399437 M10 1.25 38 82 82 8.5 6.5 9 4 T7399438 M10 1.25 38 82 82 8.5 6.5 9 4 T7399507 M12 1.75 42 90 90 10.5 8 11 4 T7399508 M12 1.75 42 90 90 10.5 8 11 4 T7399517 M12 1.5 42 88 88 10.5 8 11 4 T7399518 M12 1.5 42 88 88 10.5 8 11 4 T7399527 M12 1.25 42 88 88 10.5 8 11 4 T7399528 M12 1.25 42 88 88 10.5 8 11 4 T7399547 M14 2 42 95 95 13 10 13 4 T7399548 M14 2 42 95 95 13 10 13 4 T7399557 M14 1.5 45 95 95 12.5 10 13 4 T7399558 M14 1.5 45 95 95 12.5 10 13 4 T7399607 M16 2 45 95 95 14 11 14 4 T7399608 M16 2 45 95 95 14 11 14 4 T7399617 M16 1.5 45 95 95 14 11 14 4 T7399618 M16 1.5 45 95 95 14 11 14 4 T7399657 M18 2.5 55 115 115 17 13 16 4 T7399658 M18 2.5 55 115 115 17 13 16 4 T7399677 M18 1.5 45 95 95 15 12 15 4 T7399678 M18 1.5 45 95 95 15 12 15 4 T7399707 M20 2.5 58 120 120 19 15 18 5 T7399708 M20 2.5 58 120 120 19 15 18 5 T7399727 M20 1.5 45 95 95 17 13 16 5 T7399728 M20 1.5 45 95 95 17 13 16 5 T7399747 M22 2.5 62 130 130 20 15 18 5 T7399748 M22 2.5 62 130 130 20 15 18 5 T7399767 M22 1.5 45 95 95 19 15 18 5 T7399768 M22 1.5 45 95 95 19 15 18 5 T7399787 M24 3 65 135 135 21 17 20 5 T7399788 M24 3 65 135 135 21 17 20 5 T7399807 M24 1.5 45 95 95 20 15 18 5 T7399808 M24 1.5 45 95 95 20 15 18 5

Operation

Blind Drilling
Through Drilling

Work Material

P Carbon Steels

Great

Good Great Excellent
P Structural Steels

Great

Good Great Excellent
P Mild & Free Machining

Great

Good Great Excellent
N Aluminium

Excellent

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent

Excision is now the exclusive distributor of YG-1 in Australia & New Zealand

View the range

Screw Thread Insert Tap

You Might Also Like

New
DIN371/DIN376 STI Spiral Point Bright (TC973) DIN371/DIN376 STI Spiral Point Bright (TC973)

DIN371/DIN376 STI Spiral Point Bright (TC973)

TC973

YG-1 LEGEND 6H MOD YG-1 LEGEND FORM B YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND BRIGHT YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376
View Comparison
New
DIN371/DIN374 STI Spiral Point Bright (TC954) DIN371/DIN374 STI Spiral Point Bright (TC954)

DIN371/DIN374 STI Spiral Point Bright (TC954)

TC954

YG-1 LEGEND FORM B YG-1 LEGEND UNF YG-1 LEGEND 60° YG-1 LEGEND BRIGHT YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-374
View Comparison
New
DIN371/DIN376 STI Spiral Point Bright (TC934) DIN371/DIN376 STI Spiral Point Bright (TC934)

DIN371/DIN376 STI Spiral Point Bright (TC934)

TC934

YG-1 LEGEND FORM B YG-1 LEGEND UNC YG-1 LEGEND 60° YG-1 LEGEND BRIGHT YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376
View Comparison
New
DIN371/DIN376 STI Spiral Flute Bright (TC944) DIN371/DIN376 STI Spiral Flute Bright (TC944)

DIN371/DIN376 STI Spiral Flute Bright (TC944)

TC944

YG-1 LEGEND FORM C YG-1 LEGEND UNC YG-1 LEGEND 60° YG-1 LEGEND BRIGHT YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
View Comparison
New
DIN371/DIN376 STI Spiral Flute Bright (TC909) DIN371/DIN376 STI Spiral Flute Bright (TC909)

DIN371/DIN376 STI Spiral Flute Bright (TC909)

TC909

YG-1 LEGEND 6H MOD YG-1 LEGEND FORM C YG-1 LEGEND M YG-1 LEGEND 60° YG-1 LEGEND BRIGHT YG-1 LEGEND HSS-E YG-1 LEGEND DIN 371-376 YG-1 LEGEND HELIX SQUARE 40
View Comparison
New

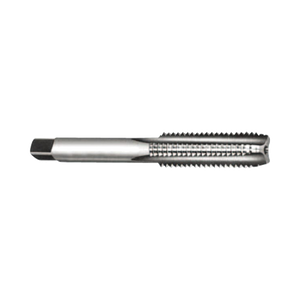

JIS J-TYPE STI Straight Flute Bright (T7322) JIS J-TYPE STI Straight Flute Bright (T7322)
