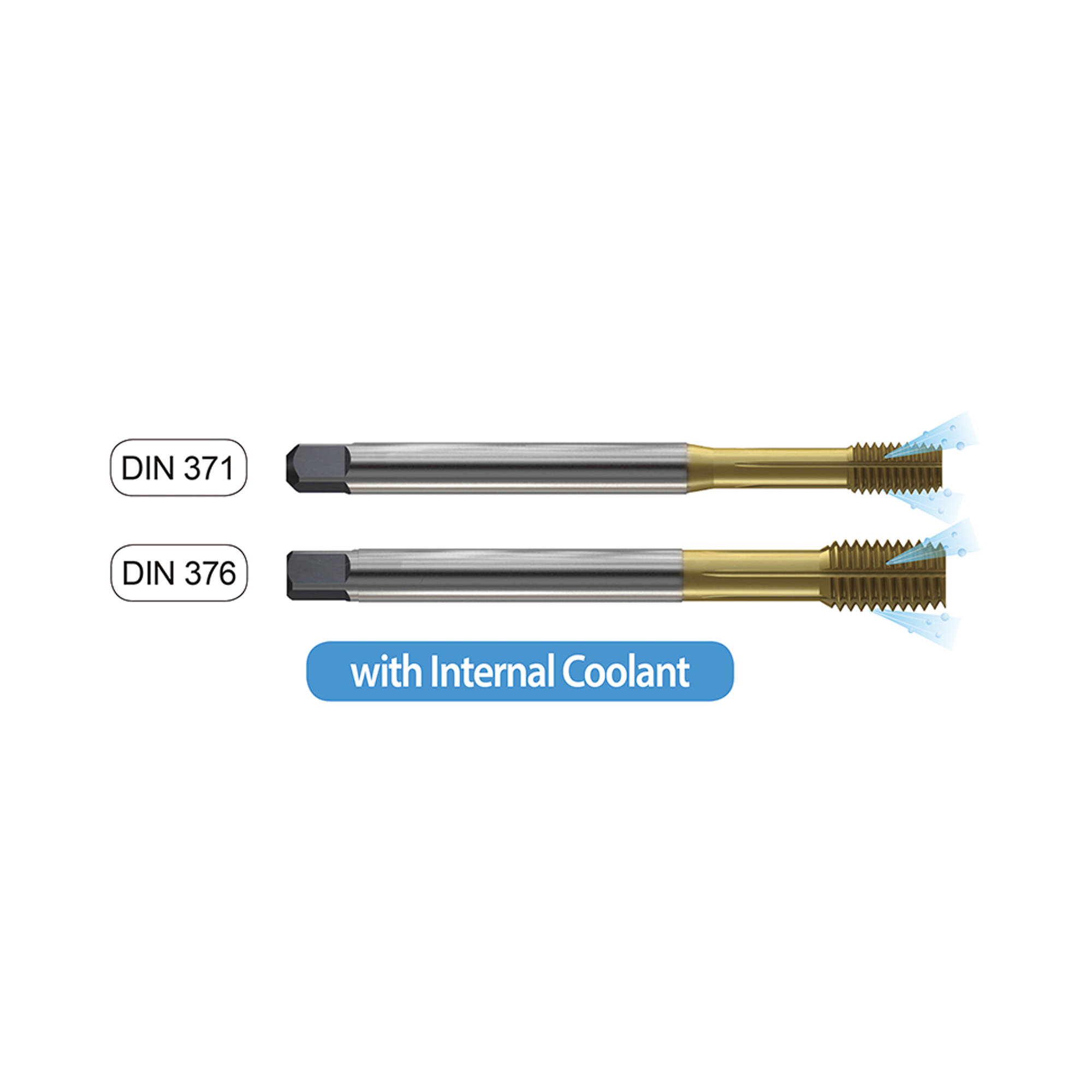

DIN371/DIN376 SYNCHRO Cold Forming TiN (TTS45-RCP)

DIN371/DIN376 SYNCHRO Cold Forming TiN (TTS45-RCP)
DIN371/DIN376 SYNCHRO Cold Forming TiN (TTS45-RCP)
New

DIN371/DIN376 SYNCHRO Cold Forming TiN (TTS45-RCP)

Product Code: TTS45-RCP

YG-1 LEGEND 6HX Thread Class: 6HX YG-1 LEGEND FORM C Thread Form: C YG-1 LEGEND M Thread Shape: M YG-1 LEGEND 60° Thread Angle: 60° YG-1 LEGEND TiN Surface Treatment: Titanium Nitride Coating YG-1 LEGEND HSS PM Tool Material: HSS PM YG-1 LEGEND DIN 371-376 Tool Standard: DIN 371-376
Buy Local
  • Coated HSS-PM(Powder Metallurgy) Taps for high-speed tapping on rigid CNC machines or equivalent machines
  • Up to 3 times faster in tapping compared to conventional taps
  • For high-speed synchro tapping, synchro holder for increasing tool life and thread quality is recommended
  • High precision threads
  • With Internal Coolant
Product Data
Workpiece Material P M K N
Aluminum Excellent
Operation Blind Drilling, Through Drilling
Surface Treatment Titanium Nitride Coating
Thread Angle 60
Thread Class 6HX
Thread Form C
Thread Shape M
Tool Material HSS PM
Tool Standard DIN 371-376
South Korea Made in South Korea
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add DIN371/DIN376 SYNCHRO Cold Forming TiN (TTS45-RCP) to comparison

View Comparison

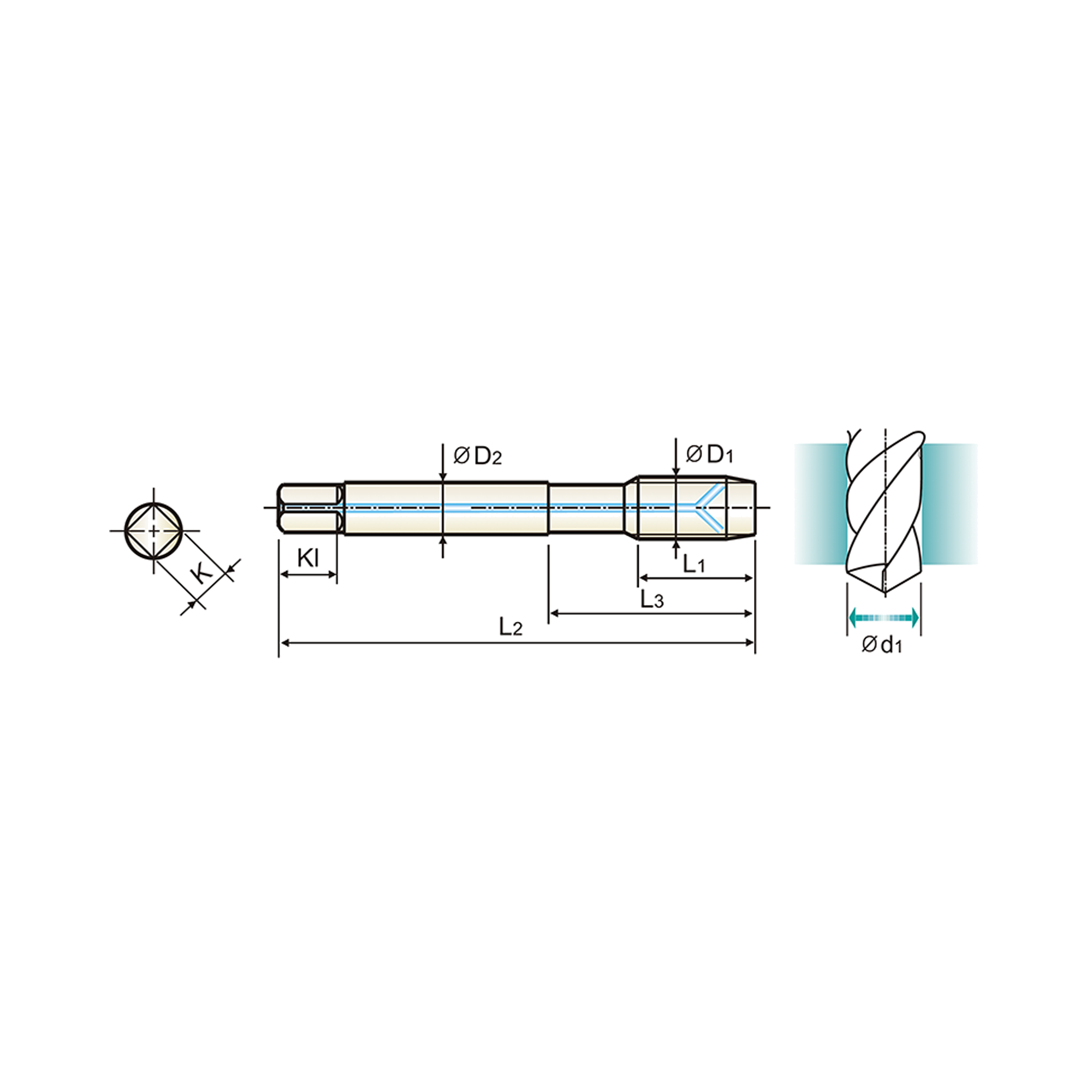

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length Tapping Drill Dia TTS45286RCP M5 0.8 8 70 25 6 4.9 8 4.65 TTS45316RCP M6 1 10 80 30 6 4.9 8 5.55 TTS45366RCP M8 1.25 13 90 35 8 6.2 9 7.4 TTS45426RCP M10 1.5 15 100 39 10 8 11 9.3 TTS45506RCP M12 1.75 18 110 44 9 7 10 11.2 TTS45546RCP M14 2 20 110 52 11 9 12 13 TTS45606RCP M16 2 20 110 52 12 9 12 15 TTS45656RCP M18 2.5 25 125 66 14 11 14 16.8 TTS45706RCP M20 2.5 25 140 72 16 12 15 18.8

Operation

Blind Drilling
Through Drilling

Work Material

P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
M Stainless Steels

Excellent

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Bronze

Excellent

Good Great Excellent
N Copper

Excellent

Good Great Excellent
