(TTS31) HSS-PM, Metric Synchro tap Spiral Flute for General Purpose (TiN Coated)

TiN-Coated Synchro Spiral Flute for CNC
  • $41.80INC GST $38.00 EX GST
(TTS31) HSS-PM, Metric Synchro tap Spiral Flute for General Purpose (TiN Coated)
(TTS31) HSS-PM, Metric Synchro tap Spiral Flute for General Purpose (TiN Coated)

(TTS31) HSS-PM, Metric Synchro tap Spiral Flute for General Purpose (TiN Coated)

TiN-Coated Synchro Spiral Flute for CNC
  • $41.80INC GST $38.00 EX GST

Code: TTS31206

P M K N
Size
Pitch
Loading stock…
Buy Local
Minimum order: $200.00
$200.00 to go
Spend $200.00 or more to enable checkout.
South Korea Made in South Korea
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

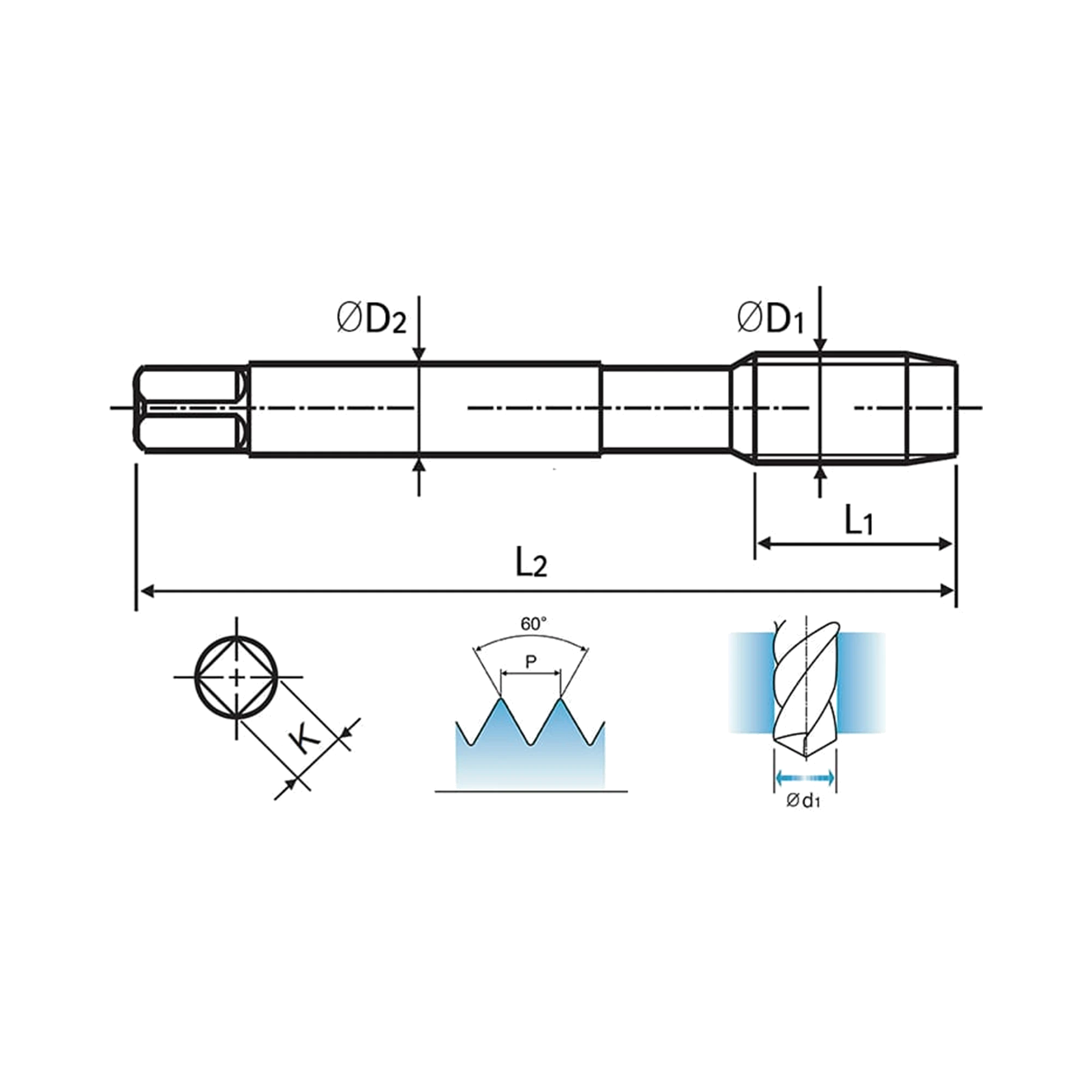

SKUSizePitchThread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TTS31206M30.56.056.018.03.52.76.032.5 5 days $38.00
TTS31246M40.77.063.021.04.53.46.033.3 5 days $38.20
TTS31286M50.88.070.025.06.04.98.034.2 5 days $42.50
TTS31316M6110.080.030.06.04.98.035.0 5 days $42.50
TTS31366M81.2513.090.035.08.06.29.036.8 5 days $60.90
TTS31426M101.515.0100.039.010.08.011.038.5 5 days $72.80
TTS31506M121.7518.0110.044.09.07.010.0310.2 5 days $99.20
TTS31546M14220.0110.044.011.09.012.0312.0 5 days $119.60
TTS31606M16220.0110.044.012.09.012.0314.0 5 days $147.40
TTS31656M182.525.0125.050.014.011.014.0415.5 5 days $194.50
TTS31706M202.525.0140.054.016.012.015.0417.5 5 days $232.20

Add (TTS31) HSS-PM, Metric Synchro tap Spiral Flute for General Purpose (TiN Coated) to comparison

View Comparison
  • Overview
  • Specifications
  • Operation
  • Work Material
  • Reviews
Product Description
  • Coated HSS-PM(Powder Metallurgy) Taps for high-speed tapping on rigid CNC machines or equivalent machines
  • Up to 3 times faster in tapping compared to conventional taps
  • For high-speed synchro tapping, synchro holder for increasing tool life and thread quality is recommended
  • High precision threads
Product Data
Workpiece Material P M K N
Aluminum Great
Helix Angle Square 45
Operation Blind Drilling
Surface Treatment Titanium Nitride Coating
Thread Angle 60
Thread Class 6HX
Thread Form C
Thread Shape M
Tool Material HSS PM

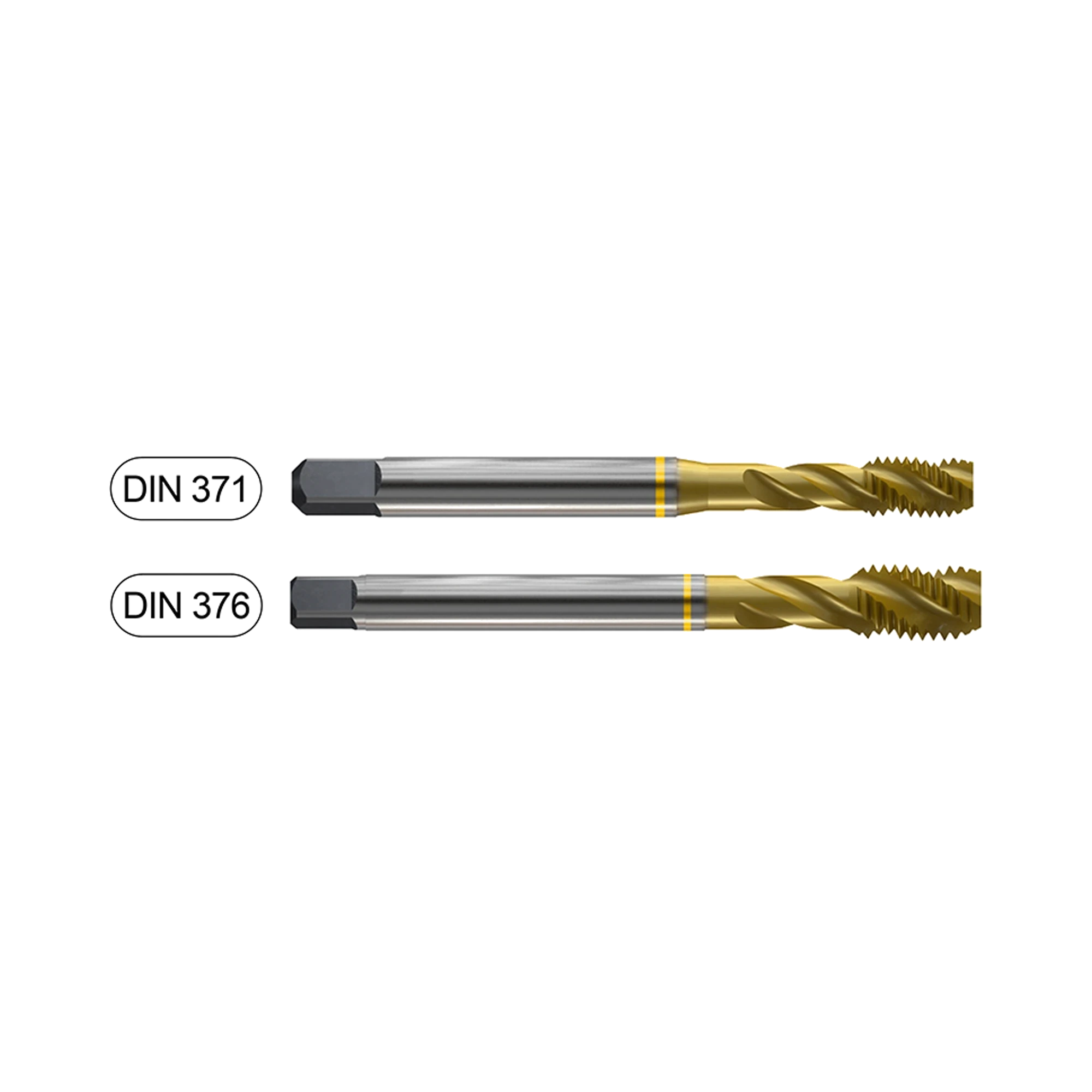

Tool Standard DIN 371-376
EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute Tapping Drill Dia TTS31206 M3 0.5 6 56 18 3.5 2.7 6 3 2.5 TTS31246 M4 0.7 7 63 21 4.5 3.4 6 3 3.3 TTS31286 M5 0.8 8 70 25 6 4.9 8 3 4.2 TTS31316 M6 1 10 80 30 6 4.9 8 3 5 TTS31366 M8 1.25 13 90 35 8 6.2 9 3 6.75 TTS31426 M10 1.5 15 100 39 10 8 11 3 8.5 TTS31506 M12 1.75 18 110 44 9 7 10 3 10.2 TTS31546 M14 2 20 110 44 11 9 12 3 12 TTS31606 M16 2 20 110 44 12 9 12 3 14 TTS31656 M18 2.5 25 125 50 14 11 14 4 15.5 TTS31706 M20 2.5 25 140 54 16 12 15 4 17.5
Blind Drilling
P Carbon Steels

Excellent

Good Great Excellent
P Alloy Steels

Excellent

Good Great Excellent
P Structural Steels

Excellent

Good Great Excellent
P Mild & Free Machining

Excellent

Good Great Excellent
M Stainless Steels

Great

Good Great Excellent
K Cast Iron

Great

Good Great Excellent
N Aluminium

Great

Good Great Excellent
N Bronze

Great

Good Great Excellent
N Copper

Great

Good Great Excellent
N Plastic

Great

Good Great Excellent

No VDI recommendations set for this product.

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute Tapping Drill Dia TTS31206 M3 0.5 6 56 18 3.5 2.7 6 3 2.5 TTS31246 M4 0.7 7 63 21 4.5 3.4 6 3 3.3 TTS31286 M5 0.8 8 70 25 6 4.9 8 3 4.2 TTS31316 M6 1 10 80 30 6 4.9 8 3 5 TTS31366 M8 1.25 13 90 35 8 6.2 9 3 6.75 TTS31426 M10 1.5 15 100 39 10 8 11 3 8.5 TTS31506 M12 1.75 18 110 44 9 7 10 3 10.2 TTS31546 M14 2 20 110 44 11 9 12 3 12 TTS31606 M16 2 20 110 44 12 9 12 3 14 TTS31656 M18 2.5 25 125 50 14 11 14 4 15.5 TTS31706 M20 2.5 25 140 54 16 12 15 4 17.5
