Code: GA941060
Made in South Korea
| SKU | Mill Diameter (mm) | Chamfer (mm) | Overall length (mm) | Shank dia. (mm) | Flutes | Length of cut (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| GA941060 | 6 | 0.18 | 57.0 | 6.0 | 3 | 13.0 | 5 days | $68.70 | ||
| GA941070 | 7 | 0.18 | 66.0 | 10.0 | 3 | 16.0 | 5 days | $92.70 | ||
| GA941080 | 8 | 0.18 | 69.0 | 10.0 | 3 | 19.0 | 5 days | $92.70 | ||
| GA941090 | 9 | 0.18 | 69.0 | 10.0 | 3 | 19.0 | 5 days | $94.90 | ||
| GA941100 | 10 | 0.18 | 72.0 | 10.0 | 4 | 22.0 | 5 days | $94.90 | ||
| GA941120 | 12 | 0.18 | 83.0 | 12.0 | 4 | 26.0 | 5 days | $113.20 | ||
| GA941140 | 14 | 0.25 | 83.0 | 12.0 | 4 | 26.0 | 5 days | $139.40 | ||
| GA941160 | 16 | 0.25 | 92.0 | 16.0 | 4 | 32.0 | 5 days | $90.90 | ||
| GA941180 | 18 | 0.25 | 92.0 | 16.0 | 4 | 32.0 | 5 days | $175.40 | ||
| GA941200 | 20 | 0.25 | 104.0 | 20.0 | 4 | 38.0 | 5 days | $219.90 | ||
| GA941220 | 22 | 0.36 | 104.0 | 20.0 | 5 | 38.0 | 5 days | $270.90 | ||
| GA941250 | 25 | 0.36 | 121.0 | 25.0 | 5 | 45.0 | 5 days | $324.10 |

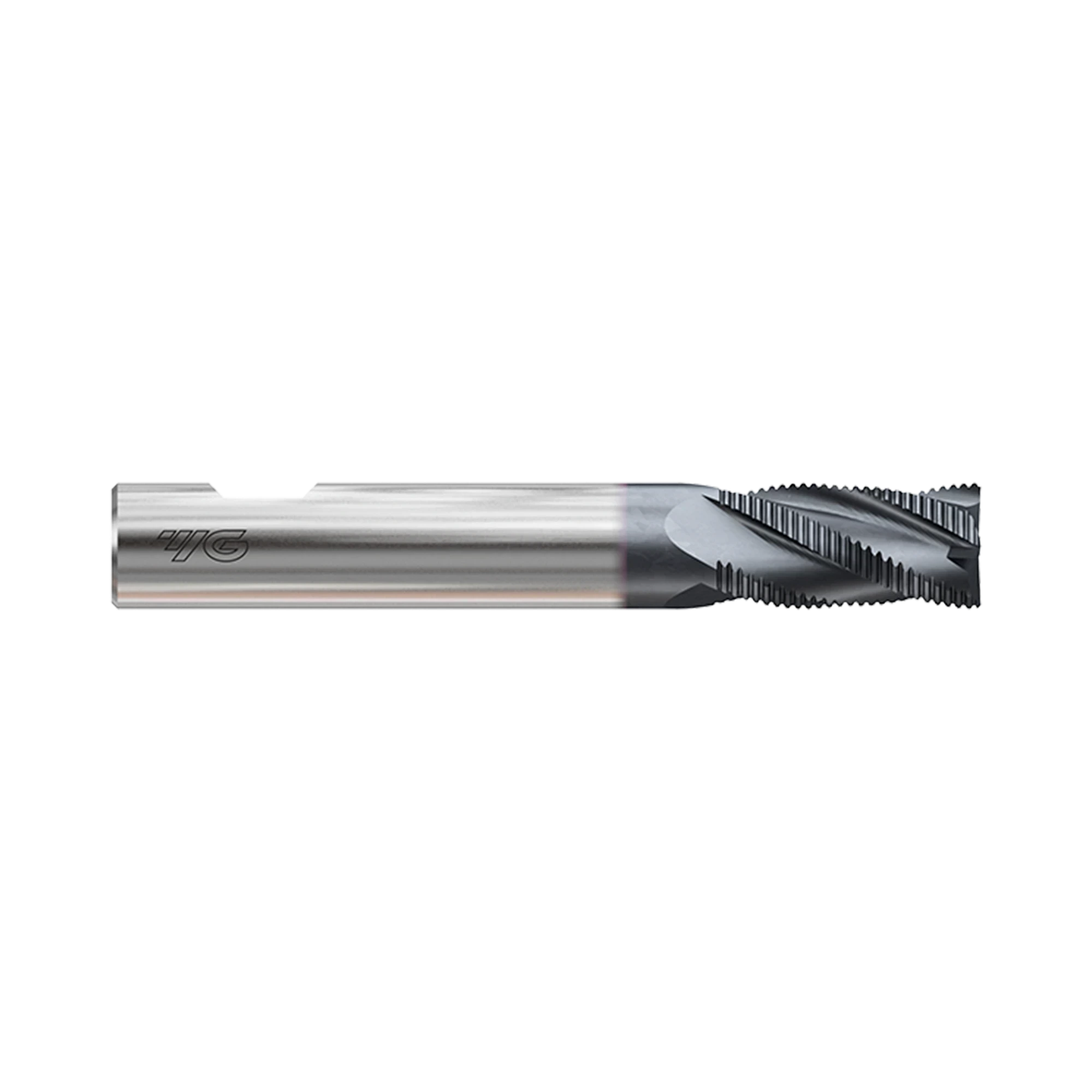

Add (GA941) HSS-PM, Tank-Power, 3 Flute Roughing End Mill, Short Length (TiAlN Coated) to comparison
View Comparison| Workpiece Material | P M K N |
| Chamfer Angle | 45 |
| Cutting Shape | Chamfer Prep, Roughing |
| Helix Angle | Square 30 |
| Length | Short |
| No. Flutes | 3-5 |
| Operation | Die Sinking, Facing, Side Milling, Slotting, Small Part |
| Periphery Type | Roughing - Fine |
| Shank Type | 1835B |
| Surface Treatment | YG-1 X Coating |
| Tool Material | YPM |
| Tool Standard | DIN 844 |
| Flutes | Multi Flute |
| Helix Angle | 30° |
| Cutting Edge Shape | ROUGHING |
| Size Min | D6.0 |
| Size Max | D25.0 |
| Length |
Short Length |
| Coating | X-Coating |
