Product Description

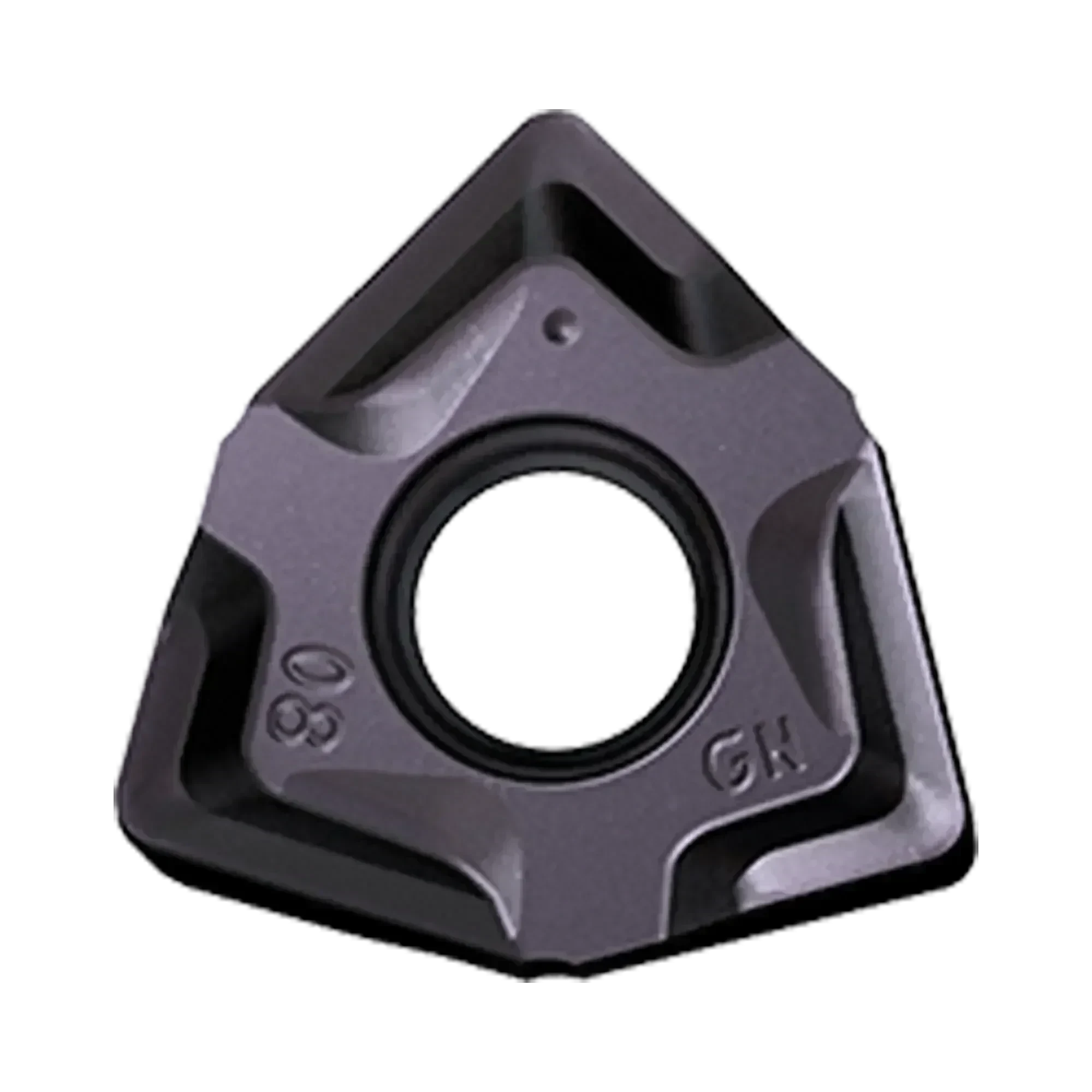

Shoulder Milling Cutters for WNEX (6 Corners Negative)

Product Data
Operation Facing, Side Milling, Slotting

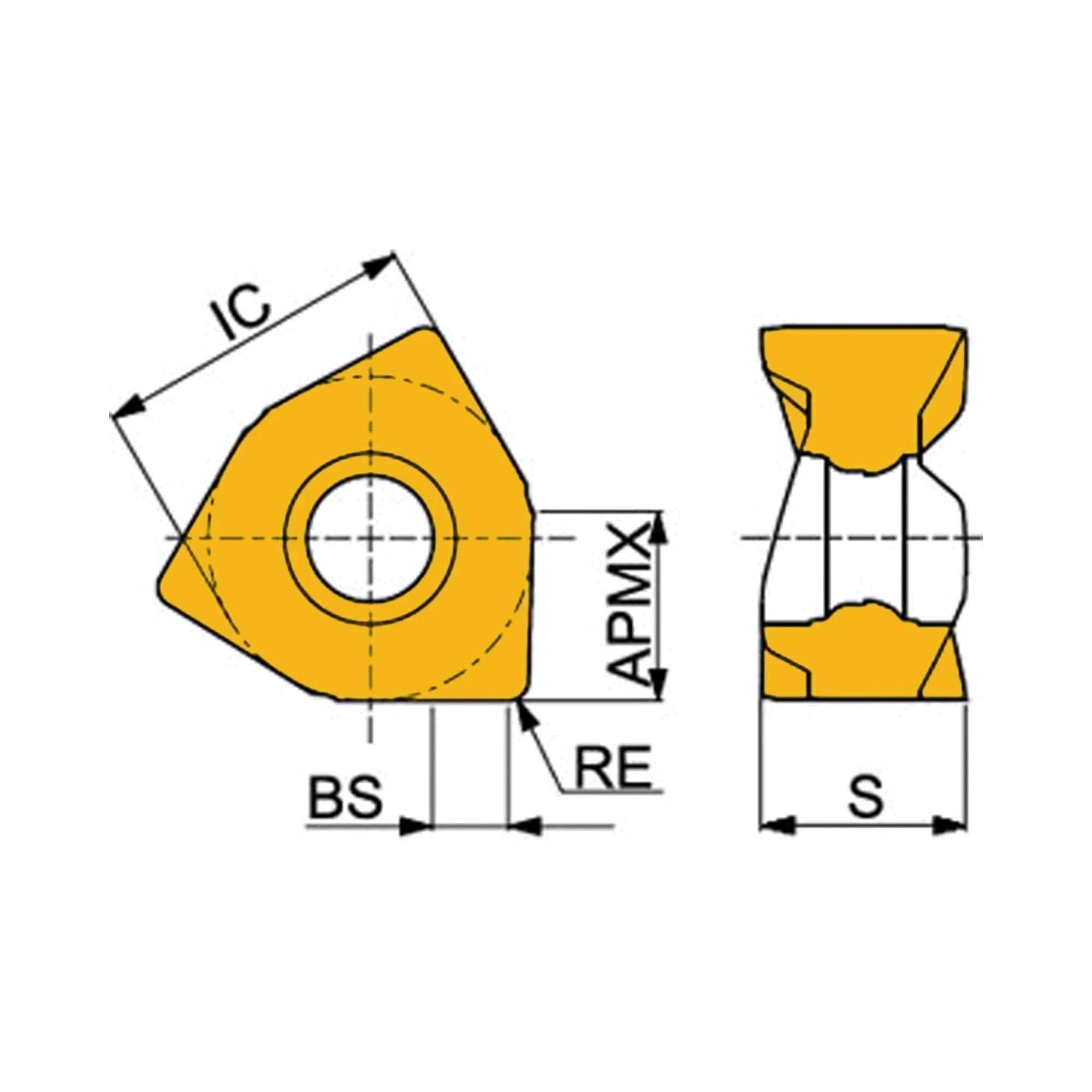

EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000775 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG602 12000792 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG712 12000793 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG613 12000794 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG5020 12000795 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG5020 12000854 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG612 12000855 WNEX080604R-GN 0.4 3.2 7 90° 12.9 6.25 General YG612 12000856 WNEX080604R-GN 0.4 3.2 7 90° 12.9 6.25 General YG012 12000857 WNEX080604R-GN 0.4 3.2 7 90° 12.9 6.25 General YG712 12000858 WNEX080604R-GN 0.4 3.2 7 90° 12.9 6.25 General YG5020 12000859 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG012 12000860 WNEX080616R-GN 1.6 2 7 90° 12.9 6.25 General YG612 12000861 WNEX080616R-GN 1.6 2 7 90° 12.9 6.25 General YG012 12000862 WNEX080616R-GN 1.6 2 7 90° 12.9 6.25 General YG712 12000863 WNEX080616R-GN 1.6 2 7 90° 12.9 6.25 General YG5020 12000864 WNEX080604R-ST 0.4 3.6 7 90° 12.9 6.25 -ST YG612 12000865 WNEX080604R-ST 0.4 3.6 7 90° 12.9 6.25 -ST YG613 12000866 WNEX080608R-ST 0.8 3.3 7 90° 12.9 6.25 -ST YG612 12000867 WNEX080608R-ST 0.8 3.3 7 90° 12.9 6.25 -ST YG613 12000868 WNEX080616R-ST 1.6 2.4 7 90° 12.9 6.25 -ST YG612 12000869 WNEX080616R-ST 1.6 2.4 7 90° 12.9 6.25 -ST YG613 12000875 WNEX080612R-ST 1.2 2.8 7 90° 12.9 6.25 -ST YG612 12000876 WNEX080612R-ST 1.2 2.8 7 90° 12.9 6.25 -ST YG613 12000877 WNEX080612R-GN 1.2 2.4 7 90° 12.9 6.25 General YG012 12000878 WNEX080612R-GN 1.2 2.4 7 90° 12.9 6.25 General YG712 12000879 WNEX080612R-GN 1.2 2.4 7 90° 12.9 6.25 General YG5020 12000880 WNEX080620R-ST 2 2 7 90° 12.9 6.25 -ST YG612 12000881 WNEX080620R-ST 2 2 7 90° 12.9 6.25 -ST YG613 12000882 WNEX080620R-GN 2 1.6 7 90° 12.9 6.25 General YG012 12000883 WNEX080620R-GN 2 1.6 7 90° 12.9 6.25 General YG712 12000884 WNEX080620R-GN 2 1.6 7 90° 12.9 6.25 General YG5020 12000885 WNEX080612R-GN 1.2 2.4 7 90° 12.9 6.25 General YG612 12000886 WNEX080620R-GN 2 1.6 7 90° 12.9 6.25 General YG612 12000924 WNEX080604R-GN 0.4 3.2 7 90° 12.9 6.25 General YG501 12000925 WNEX080612R-GN 1.2 2.4 7 90° 12.9 6.25 General YG501 12000926 WNEX080616R-GN 1.6 2 7 90° 12.9 6.25 General YG501 12000927 WNEX080620R-GN 2 1.6 7 90° 12.9 6.25 General YG501
Side Milling
Slotting
Facing
EDP No. Designation Corner Radius Wiper Edge Length Maximum Cutting Depth Cutting Edge Angle Major Inner Circle Thickness Chipbreaker Grade 12000775 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG602 12000792 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG712 12000793 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG613 12000794 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG5020 12000795 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG5020 12000854 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG612 12000855 WNEX080604R-GN 0.4 3.2 7 90° 12.9 6.25 General YG612 12000856 WNEX080604R-GN 0.4 3.2 7 90° 12.9 6.25 General YG012 12000857 WNEX080604R-GN 0.4 3.2 7 90° 12.9 6.25 General YG712 12000858 WNEX080604R-GN 0.4 3.2 7 90° 12.9 6.25 General YG5020 12000859 WNEX080608R-GN 0.8 2.8 7 90° 12.9 6.25 General YG012 12000860 WNEX080616R-GN 1.6 2 7 90° 12.9 6.25 General YG612 12000861 WNEX080616R-GN 1.6 2 7 90° 12.9 6.25 General YG012 12000862 WNEX080616R-GN 1.6 2 7 90° 12.9 6.25 General YG712 12000863 WNEX080616R-GN 1.6 2 7 90° 12.9 6.25 General YG5020 12000864 WNEX080604R-ST 0.4 3.6 7 90° 12.9 6.25 -ST YG612 12000865 WNEX080604R-ST 0.4 3.6 7 90° 12.9 6.25 -ST YG613 12000866 WNEX080608R-ST 0.8 3.3 7 90° 12.9 6.25 -ST YG612 12000867 WNEX080608R-ST 0.8 3.3 7 90° 12.9 6.25 -ST YG613 12000868 WNEX080616R-ST 1.6 2.4 7 90° 12.9 6.25 -ST YG612 12000869 WNEX080616R-ST 1.6 2.4 7 90° 12.9 6.25 -ST YG613 12000875 WNEX080612R-ST 1.2 2.8 7 90° 12.9 6.25 -ST YG612 12000876 WNEX080612R-ST 1.2 2.8 7 90° 12.9 6.25 -ST YG613 12000877 WNEX080612R-GN 1.2 2.4 7 90° 12.9 6.25 General YG012 12000878 WNEX080612R-GN 1.2 2.4 7 90° 12.9 6.25 General YG712 12000879 WNEX080612R-GN 1.2 2.4 7 90° 12.9 6.25 General YG5020 12000880 WNEX080620R-ST 2 2 7 90° 12.9 6.25 -ST YG612 12000881 WNEX080620R-ST 2 2 7 90° 12.9 6.25 -ST YG613 12000882 WNEX080620R-GN 2 1.6 7 90° 12.9 6.25 General YG012 12000883 WNEX080620R-GN 2 1.6 7 90° 12.9 6.25 General YG712 12000884 WNEX080620R-GN 2 1.6 7 90° 12.9 6.25 General YG5020 12000885 WNEX080612R-GN 1.2 2.4 7 90° 12.9 6.25 General YG612 12000886 WNEX080620R-GN 2 1.6 7 90° 12.9 6.25 General YG612 12000924 WNEX080604R-GN 0.4 3.2 7 90° 12.9 6.25 General YG501 12000925 WNEX080612R-GN 1.2 2.4 7 90° 12.9 6.25 General YG501 12000926 WNEX080616R-GN 1.6 2 7 90° 12.9 6.25 General YG501 12000927 WNEX080620R-GN 2 1.6 7 90° 12.9 6.25 General YG501
