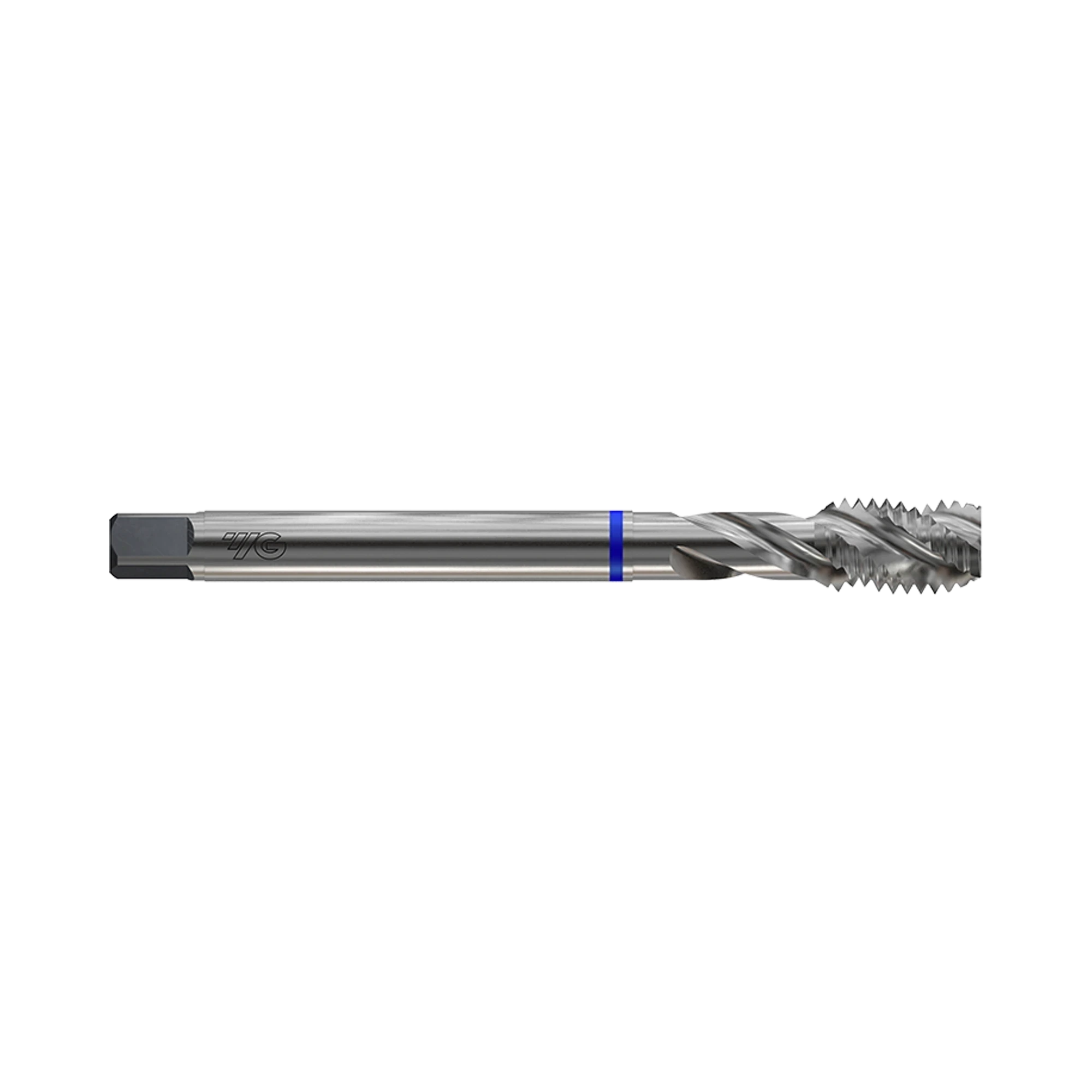

(TC169) HSS-E (M35) UNC Spiral Flute for Aluminum

Bright HSS-E UNC spiral flute taps for aluminium

(TC169) HSS-E (M35) UNC Spiral Flute for Aluminum
$20.02 INC GST $18.20 EX GST
SKU
TC169362
Work materials
PN

Key features

  • Bright HSS-E UNC spiral flute machine tap
  • Special flute geometry supports chip evacuation in blind holes
  • Designed for tapping aluminium applications
Tool material HSS-E
Surface treatment Bright
Size
Loading stock…
South Korea Made in South Korea
Free standard delivery on orders over $500.
!If you're not 100% happy with your purchase, we'll replace or refund.
Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Blind-hole focused

Special flute geometry supports effective chip evacuation in blind-hole tapping.

UNC thread range

Eight coarse-thread sizes cover #4-40 through 5/8-11 UNC requirements.

Aluminium application

Bright HSS-E construction is specified for tapping aluminium applications.

SKUSizeThread length (mm)Overall length (mm)Neck length (mm)Shank dia. (mm)Square size (mm)Square length (mm)FlutesTapping drill dia. (mm)Stock Price Qty Add
TC169362#1210.080.030.06.04.98.024.5 1-2 Weeks $18.20
TC169282#88.063.021.04.53.46.023.5 1-2 Weeks $24.40
TC169162#46.056.018.03.52.76.022.3 Low stock $22.70
TC1694021/413.080.030.07.05.58.025.2 Low stock $18.20
TC1694425/1614.090.035.08.06.29.026.6 In stock $23.60
TC1694823/816.0100.039.09.07.010.028.0 In stock $28.40
TC1695621/220.0110.044.09.07.010.0210.75 Low stock $38.20
TC1696425/822.0110.044.012.09.012.0313.5 1-2 Weeks $80.30

Add (TC169) HSS-E (M35) UNC Spiral Flute for Aluminum to comparison

View Comparison
  • Overview
  • Work Material
  • Reviews
Product Description

YG-1 TC169 HSS-E UNC spiral flute machine taps are bright finished for aluminium. Special flute geometry promotes chip evacuation when tapping blind holes in aluminium applications. The series produces Unified National Coarse internal threads with a 60° thread angle. It combines DIN 371 sizes from #4 to 3/8 with DIN 376 sizes from 1/2 to 5/8.

Available UNC sizes span #4-40 through 5/8-11, covering eight listed thread sizes. Each thread size has a specified tapping drill diameter for preparation. Two flutes are used through 3/8, while 1/2 and 5/8 versions have three. Choose TC169 for machine tapping aluminium blind holes where controlled chip evacuation matters.

  • Bright HSS-E UNC spiral flute machine tap
  • Special flute geometry supports chip evacuation in blind holes
  • Designed for tapping aluminium applications
  • UNC sizes from #4-40 to 5/8-11
  • DIN 371 from #4 to 3/8
  • DIN 376 in 1/2 and 5/8 sizes
Product Data
Surface Treatment Bright
Tool Material HSS-E

Work materials

VDI 3323 recommendations for this tool.

ExcellentGood

Steel

3 grades
Non-alloy steel
GoodVDI 1–3

Non-ferrous materials

5 grades
Wrought aluminium
ExcellentVDI 21–22
Cast aluminium
ExcellentVDI 23–24
Copper, bronze and brass
GoodVDI 27
VDI grade reference8 grades

Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.

Recommended VDI grades and nominal hardness references
VDIWork materialRecommendationHB ref.HRC ref.
1PNon-alloy steelGood125-
2PNon-alloy steelGood19013
3PNon-alloy steelGood25025
21NWrought aluminiumExcellent60-
22NWrought aluminiumExcellent100-
23NCast aluminiumExcellent75-
24NCast aluminiumExcellent90-
27NCopper, bronze and brassGood90-

HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.

Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
