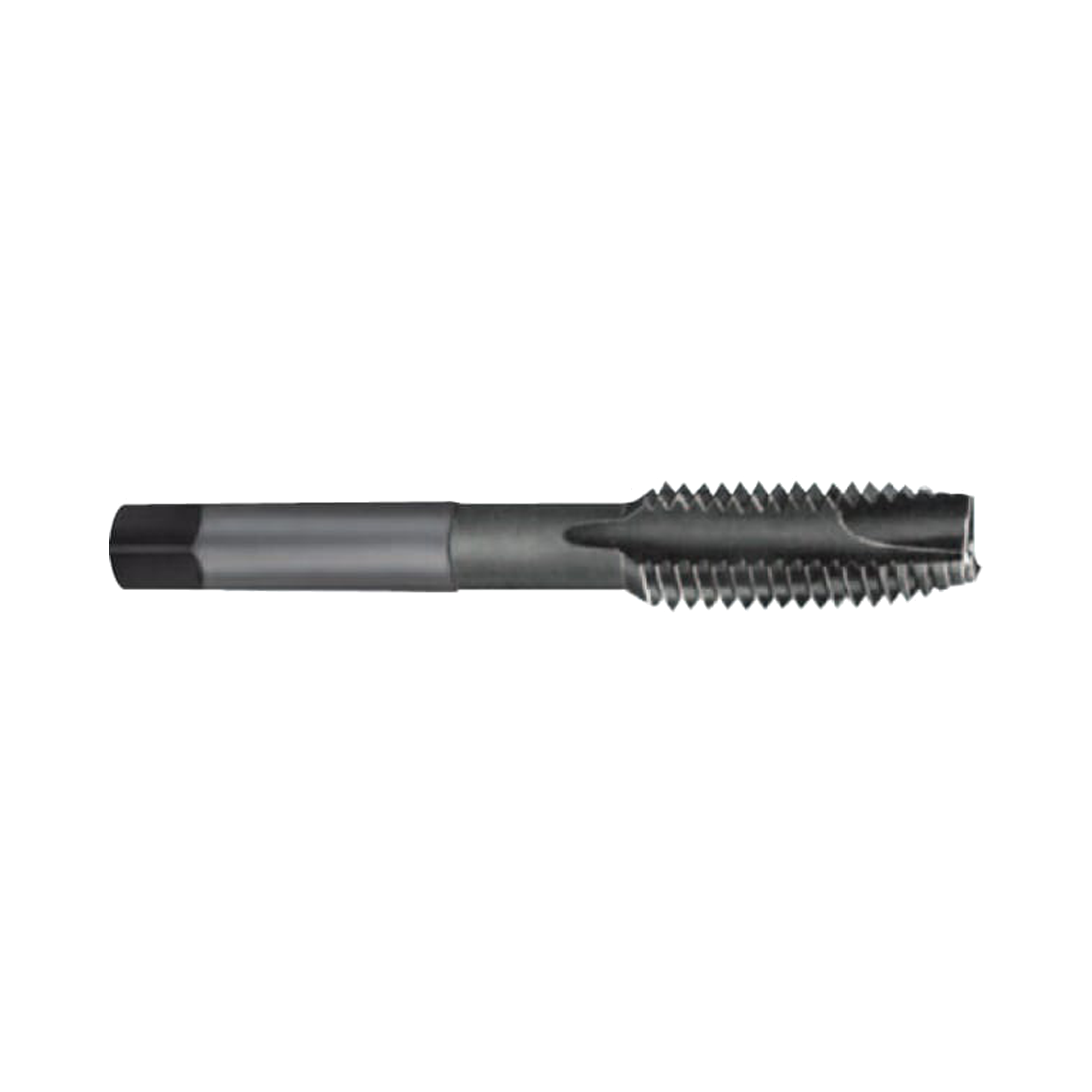

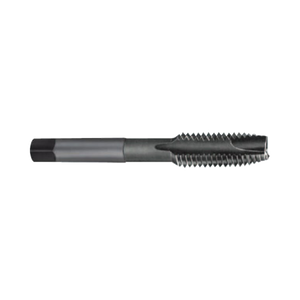

JIS I-TYPE Spiral Point Steam homo (T1023)

New

JIS I-TYPE Spiral Point Steam homo (T1023)

Product Code: T1023

Quantity

Buy Local

Product Data

Workpiece Material	P M N
Operation	Blind Drilling
Surface Treatment	Steam Oxide Coating
Thread Angle	60
Thread Class	YH
Thread Form	5P
Thread Shape	M/MF
Tool Material	HSS-E

Made in South Korea

Buy Online

Buy now from our online retailers:

Select your preferred distributor:

Add JIS I-TYPE Spiral Point Steam homo (T1023) to comparison

View Comparison

Specifications Operation Work Material

EDP No. Size Pitch Thread Length Overall Length Neck Length Shank Diameter Square Size Square Length No. of Flute T1023K82 M3 0.6 11 46 46 4 3.2 6 3 T1023N44 M26 2 45 125 125 20 15 18 4 T1023N53 M26 1 30 95 95 20 15 18 4 T1023N62 M5.5 0.9 16 60 60 5.5 4.5 7 3 T1023002 M4 0.75 13 52 52 5 4 7 3 T1023131 M2 0.4 9.5 40 40 3 2.5 5 2 T1023131 M2 0.4 9.5 40 40 3 2.5 5 2 T1023151 M2.2 0.45 9.5 42 15 3 2.5 5 2 T1023172 M2.5 0.45 9.5 44 44 3 2.5 5 2 T1023172 M2.5 0.45 9.5 44 44 3 2.5 5 2 T1023191 M2.3 0.4 9.5 42 42 3 2.5 5 2 T1023191 M2.3 0.4 9.5 42 42 3 2.5 5 2 T1023202 M3 0.5 11 46 46 4 3.2 6 3 T1023202 M3 0.5 11 46 46 4 3.2 6 3 T1023203 M3 0.5 11 46 46 4 3.2 6 3 T1023204 M3 0.5 11 46 46 4 3.2 6 3 T1023212 M3 0.35 9.5 46 46 4 3.2 6 3 T1023222 M3.5 0.6 13 48 48 4 3.2 6 3 T1023222 M3.5 0.6 13 48 48 4 3.2 6 3 T1023232 M3.5 0.35 9.5 48 48 4 3.2 6 3 T1023242 M4 0.7 13 52 52 5 4 7 3 T1023242 M4 0.7 13 52 52 5 4 7 3 T1023243 M4 0.7 13 52 52 5 4 7 3 T1023244 M4 0.7 13 52 52 5 4 7 3 T1023252 M4 0.5 13 52 52 5 4 7 3 T1023262 M4.5 0.75 13 55 55 5 4 7 3 T1023282 M5 0.8 16 60 60 5.5 4.5 7 3 T1023282 M5 0.8 16 60 60 5.5 4.5 7 3 T1023292 M5 0.5 16 60 60 5.5 4.5 7 3 T1023312 M6 1 19 62 62 6 4.5 7 3 T1023312 M6 1 19 62 62 6 4.5 7 3 T1023322 M6 0.75 19 62 62 6 4.5 7 3 T1023342 M7 1 19 65 65 6.2 5 8 3 T1023363 M8 1.25 22 70 70 6.2 5 8 3 T1023363 M8 1.25 22 70 70 6.2 5 8 3 T1023372 M8 1 22 70 70 6.2 5 8 3 T1023373 M8 1 22 70 70 6.2 5 8 3 T1023422 M10 1.5 24 75 75 7 5.5 8 3 T1023423 M10 1.5 24 75 75 7 5.5 8 3 T1023423 M10 1.5 24 75 75 7 5.5 8 3 T1023433 M10 1.25 24 75 39 7 5.5 8 3 T1023443 M10 1 24 75 75 7 5.5 8 3 T1023492 M2.6 0.45 9.5 44 44 3 2.5 5 2 T1023492 M2.6 0.45 9.5 44 44 3 2.5 5 2 T1023504 M12 1.75 29 82 82 8.5 6.5 9 3 T1023504 M12 1.75 29 82 82 8.5 6.5 9 3 T1023513 M12 1.5 29 82 82 8.5 6.5 9 3 T1023513 M12 1.5 29 82 82 8.5 6.5 9 3 T1023523 M12 1.25 29 82 82 8.5 6.5 9 3 T1023523 M12 1.25 29 82 82 8.5 6.5 9 3 T1023533 M12 1 29 82 82 8.5 6.5 9 3 T1023533 M12 1 29 82 82 8.5 6.5 9 3 T1023544 M14 2 30 88 88 10.5 8 11 3 T1023544 M14 2 30 88 88 10.5 8 11 3 T1023553 M14 1.5 30 88 88 10.5 8 11 3 T1023553 M14 1.5 30 88 88 10.5 8 11 3 T1023563 M14 1.25 30 88 88 10.5 8 11 3 T1023573 M14 1 30 88 88 10.5 8 11 3 T1023604 M16 2 32 95 95 12.5 10 13 3 T1023604 M16 2 32 95 95 12.5 10 13 3 T1023613 M16 1.5 32 95 95 12.5 10 13 3 T1023613 M16 1.5 32 95 95 12.5 10 13 3 T1023623 M16 1 32 95 95 12.5 10 13 3 T1023654 M18 2.5 37 100 100 14 11 14 3 T1023654 M18 2.5 37 100 100 14 11 14 3 T1023664 M18 2 37 100 100 14 11 14 3 T1023674 M18 1.5 37 100 100 14 11 14 3 T1023674 M18 1.5 37 100 100 14 11 14 3 T1023683 M18 1 30 95 95 14 11 14 3 T1023704 M20 2.5 37 105 105 15 12 15 3 T1023704 M20 2.5 37 105 105 15 12 15 3 T1023714 M20 2 37 105 105 15 12 15 3 T1023724 M20 1.5 37 105 105 15 12 15 3 T1023724 M20 1.5 37 105 105 15 12 15 3 T1023733 M20 1 30 95 95 15 12 15 3 T1023744 M22 2.5 38 115 115 17 13 16 3 T1023744 M22 2.5 38 115 115 17 13 16 3 T1023754 M22 2 38 115 115 17 13 16 3 T1023764 M22 1.5 38 115 115 17 13 16 3 T1023764 M22 1.5 38 115 115 17 13 16 3 T1023773 M22 1 30 95 95 17 13 16 3 T1023784 M24 3 45 120 120 19 15 18 3 T1023784 M24 3 45 120 120 19 15 18 3 T1023794 M24 2 45 120 120 19 15 18 3 T1023804 M24 1.5 45 120 120 19 15 18 3 T1023804 M24 1.5 45 120 120 19 15 18 3 T1023813 M24 1 30 95 95 19 15 18 3 T1023834 M25 1.5 45 125 75 19 15 18 3 T1023854 M26 1.5 45 125 125 20 15 18 4 T1023854 M26 1.5 45 125 125 20 15 18 4 T1023864 M27 3 45 130 130 20 15 18 4 T1023864 M27 3 45 130 130 20 15 18 4 T1023874 M27 2 45 130 130 20 15 18 4 T1023884 M27 1.5 45 130 130 20 15 18 4 T1023884 M27 1.5 45 130 130 20 15 18 4 T1023914 M28 1.5 45 130 77 21 17 20 4 T1023945 M30 3.5 48 135 135 23 17 20 4 T1023945 M30 3.5 48 135 135 23 17 20 4 T1023954 M30 3 48 135 135 23 17 20 4 T1023964 M30 2 48 135 135 23 17 20 4 T1023974 M30 1.5 45 135 135 23 17 20 4 T1023974 M30 1.5 45 135 135 23 17 20 4 T1023983 M30 1 30 105 105 23 17 20 4 T1023992 M5 0.9 16 60 60 5.5 4.5 7 3

Operation

Blind Drilling

Work Material

P Carbon Steels

Great

Good Great Excellent

P Alloy Steels

Great

Good Great Excellent

P Structural Steels

Great

Good Great Excellent

P Mild & Free Machining

Great

Good Great Excellent

M Stainless Steels

Excellent

Good Great Excellent

N Aluminium

Great

Good Great Excellent

N Copper

Excellent

Good Great Excellent
