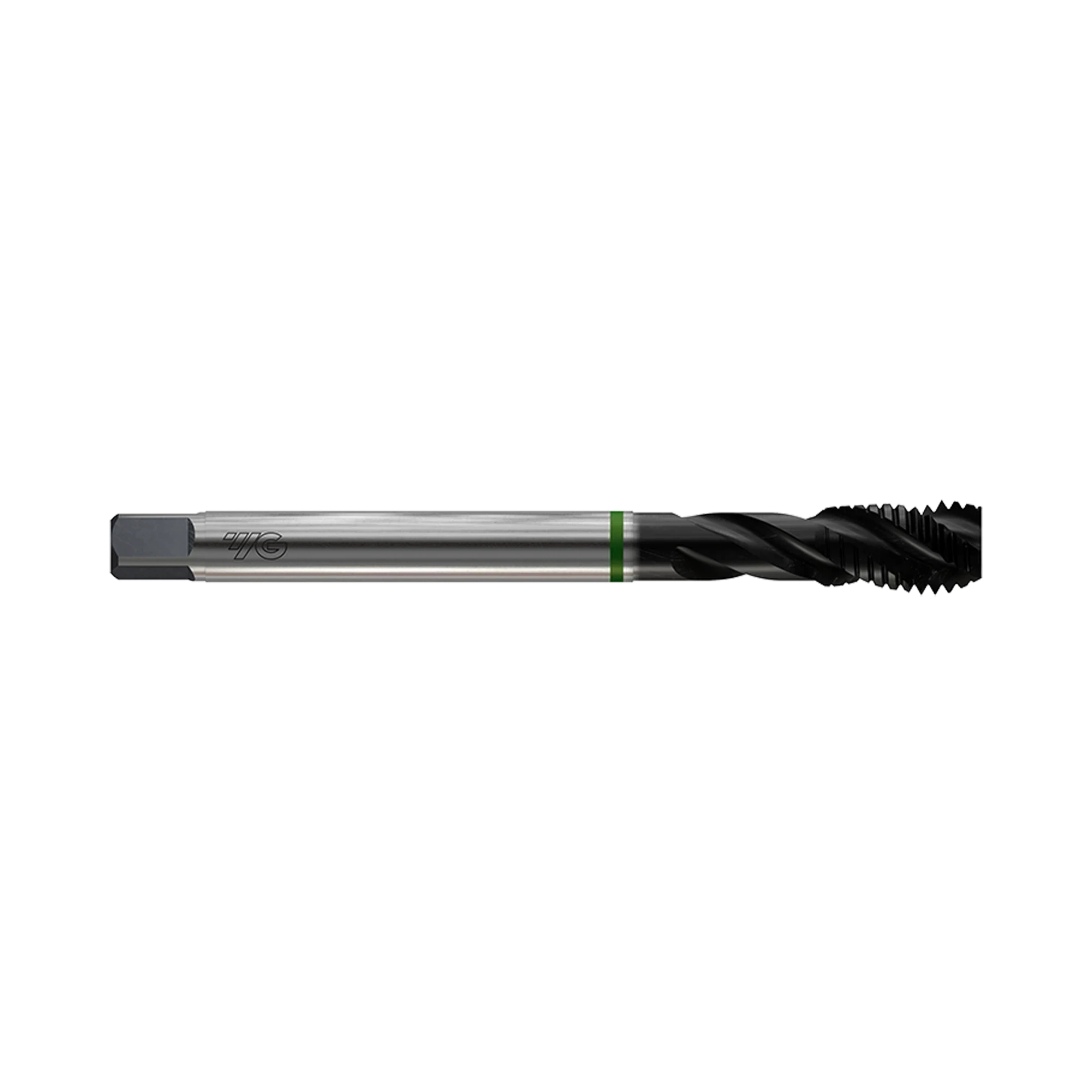

(TCH14) HSS-E (M35) Metric Spiral Flute for Stainless Steel (Hardslick Coated)
Hardslick-coated spiral flute taps for stainless-steel blind holesCode: TCH14136
-
Key Features
- Hardslick-coated HSS-E spiral flute machine tap
- Recessed threads for deep blind-hole tapping
- Special flute geometry for chip evacuation
Made in South Korea
Built for blind holes
Recessed threads provide the reach needed for machine tapping deep blind holes.
Controlled chip removal
Special flute geometry supports chip evacuation in stainless-steel blind-hole applications.
Practical metric coverage
Selected ISO metric coarse thread sizes extend from M2 × 0.4 to M24 × 3.
| SKU | Size | Pitch (mm) | Thread length (mm) | Overall length (mm) | Neck length (mm) | Shank dia. (mm) | Square size (mm) | Square length (mm) | Flutes | Tapping drill dia. (mm) | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TCH14136 | M2 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.6 | Low stock | $35.50 | ||
| TCH14156 | M2.2 | 0.45 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.75 | 5 days | $53.50 | ||
| TCH14196 | M2.3 | 0.4 | 8.0 | 45.0 | 13.0 | 2.8 | 2.1 | 5.0 | 3 | 1.9 | 5 days | $58.70 | ||
| TCH14176 | M2.5 | 0.45 | 9.0 | 50.0 | 15.0 | 2.8 | 2.1 | 5.0 | 3 | 2.05 | 5 days | $42.80 | ||
| TCH14206 | M3 | 0.5 | 6.0 | 56.0 | 18.0 | 3.5 | 2.7 | 6.0 | 3 | 2.5 | In stock | $32.30 | ||
| TCH14226 | M3.5 | 0.6 | 7.0 | 56.0 | 20.0 | 4.0 | 3.0 | 6.0 | 3 | 2.9 | In stock | $32.10 | ||
| TCH14246 | M4 | 0.7 | 7.0 | 63.0 | 21.0 | 4.5 | 3.4 | 6.0 | 3 | 3.3 | In stock | $27.20 | ||
| TCH14286 | M5 | 0.8 | 8.0 | 70.0 | 25.0 | 6.0 | 4.9 | 8.0 | 3 | 4.2 | In stock | $27.20 | ||
| TCH14316 | M6 | 1 | 10.0 | 80.0 | 30.0 | 6.0 | 4.9 | 8.0 | 3 | 5.0 | In stock | $28.50 | ||
| TCH14366 | M8 | 1.25 | 13.0 | 90.0 | 35.0 | 8.0 | 6.2 | 9.0 | 3 | 6.8 | In stock | $39.70 | ||
| TCH14426 | M10 | 1.5 | 15.0 | 100.0 | 39.0 | 10.0 | 8.0 | 11.0 | 3 | 8.5 | In stock | $46.60 | ||
| TCH14466 | M11 | 1.5 | 17.0 | 100.0 | 40.0 | 8.0 | 6.2 | 9.0 | 3 | 9.5 | Low stock | $69.60 | ||
| TCH14506 | M12 | 1.75 | 18.0 | 110.0 | 44.0 | 9.0 | 7.0 | 10.0 | 3 | 10.2 | Low stock | $57.70 | ||
| TCH14546 | M14 | 2 | 20.0 | 110.0 | 44.0 | 11.0 | 9.0 | 12.0 | 3 | 12.0 | In stock | $69.60 | ||
| TCH14606 | M16 | 2 | 20.0 | 110.0 | 44.0 | 12.0 | 9.0 | 12.0 | 3 | 14.0 | Low stock | $83.20 | ||
| TCH14706 | M20 | 2.5 | 25.0 | 140.0 | 54.0 | 16.0 | 12.0 | 15.0 | 4 | 17.5 | In stock | $138.40 | ||
| TCH14746 | M22 | 2.5 | 25.0 | 140.0 | 54.0 | 18.0 | 14.5 | 17.0 | 4 | 19.5 | Low stock | $166.00 | ||
| TCH14786 | M24 | 3 | 30.0 | 160.0 | 60.0 | 18.0 | 14.5 | 17.0 | 4 | 21.0 | Low stock | $190.60 |
Add (TCH14) HSS-E (M35) Metric Spiral Flute for Stainless Steel (Hardslick Coated) to comparison
View Comparison- Overview
- Specifications
- Reviews
YG-1 TCH14 is a HSS-E metric spiral flute machine tap with Hardslick coating. Designed for blind holes in stainless steel, it produces ISO metric coarse threads. Recessed threads support machine tapping of deep blind holes where additional thread reach is required. Special flute geometry promotes effective chip evacuation during blind-hole tapping operations.
The selected range covers M2 × 0.4 to M24 × 3 ISO metric coarse threads. DIN 371 dimensions apply from M2 to M10, with DIN 376 from M11 onwards. Listed variants include three-flute configurations through M16 and four-flute configurations from M20. Use it for controlled thread cutting in stainless-steel parts requiring blind-hole threads.
- Hardslick-coated HSS-E spiral flute machine tap
- Recessed threads for deep blind-hole tapping
- Special flute geometry for chip evacuation
- For ISO metric coarse threads in stainless steel
- M2 × 0.4 to M24 × 3 selected size range
- DIN 371 from M2 to M10 and DIN 376 from M11
