Strong controlled clamping
Delivers 1,200 kg clamping force through a smooth, low-effort internal ball bearing mechanism.
Protected thread operation
The sealed, permanently lubricated trapezoidal thread supports efficient operation in demanding environments.
Built for demanding workshops
Suitable for welding, fluid-exposed work and humid or salty atmospheric conditions.
Add 300mm FX XTREME CLAMP 120MM DEPTH to comparison
View Comparison- Overview
- Reviews

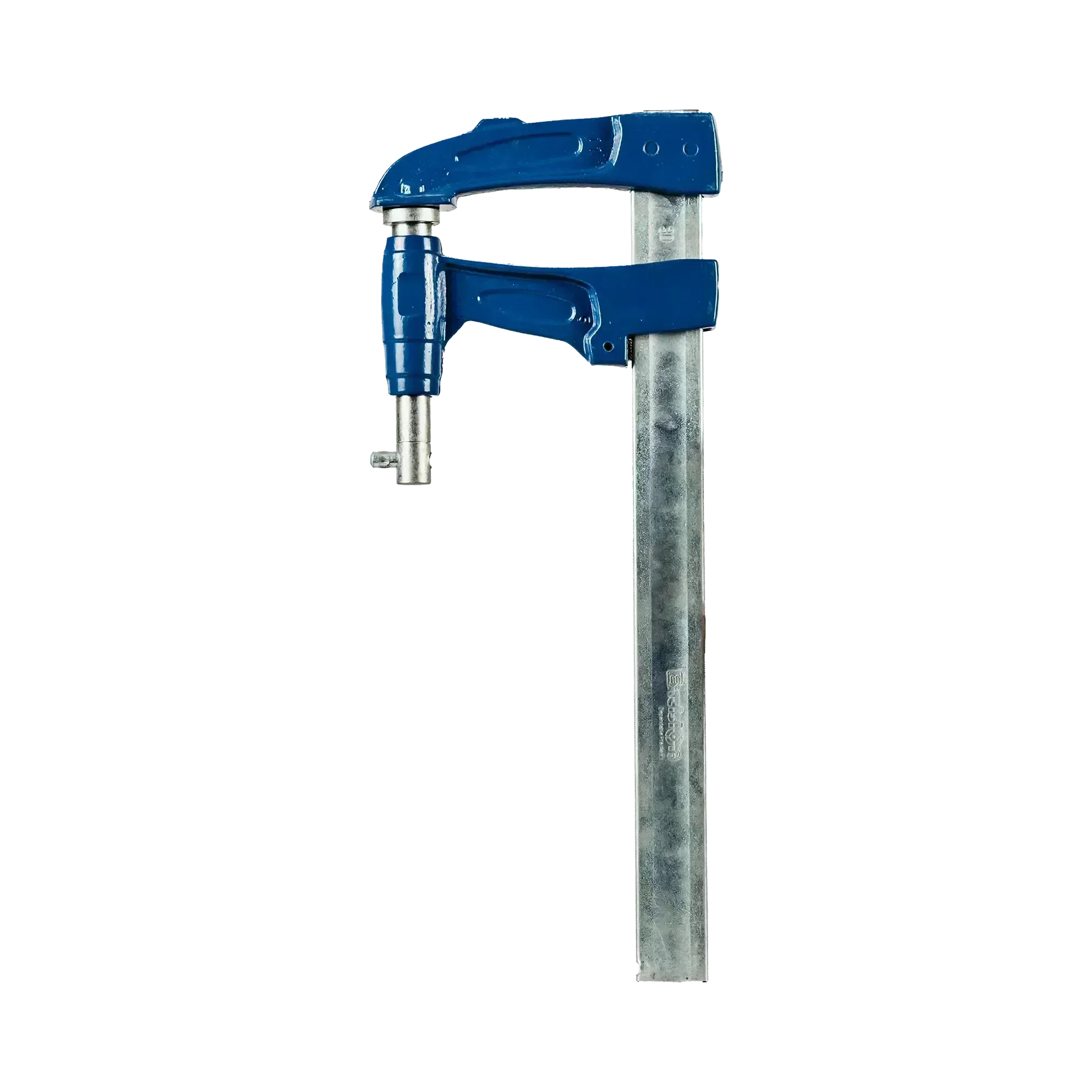

The FX Xtreme Clamp is an industrial clamp with a sealed trapezoidal thread and 1,200 kg clamping force. This 300 mm model provides a 120 mm jaw depth for welding and fluid-exposed workshop applications. The patented internal ball bearing mechanism delivers smooth clamping action with less effort and high precision. Its sealed, permanently lubricated thread is designed to remain efficient throughout its service life.
A hardened steel bar brake provides dependable holding during welding and demanding fabrication tasks. The 35 x 8 mm solid bar balances the specified reach and 1,200 kg clamping capacity. The clamp is suited to humid or salty atmospheres where protected thread operation is beneficial.
- 1,200 kg clamping force

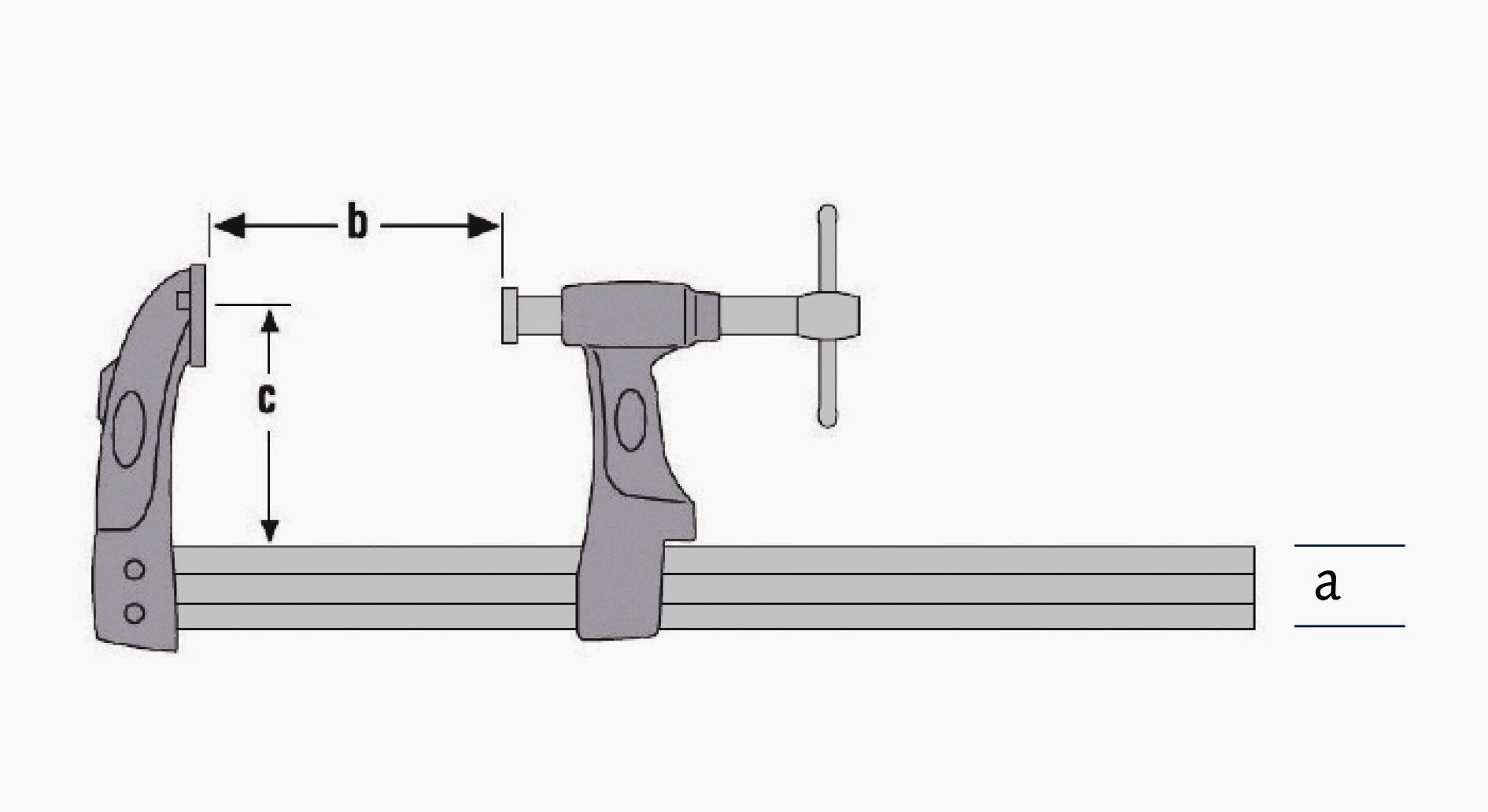

- 300 mm bar opening with 120 mm jaw depth
- 35 x 8 mm solid bar

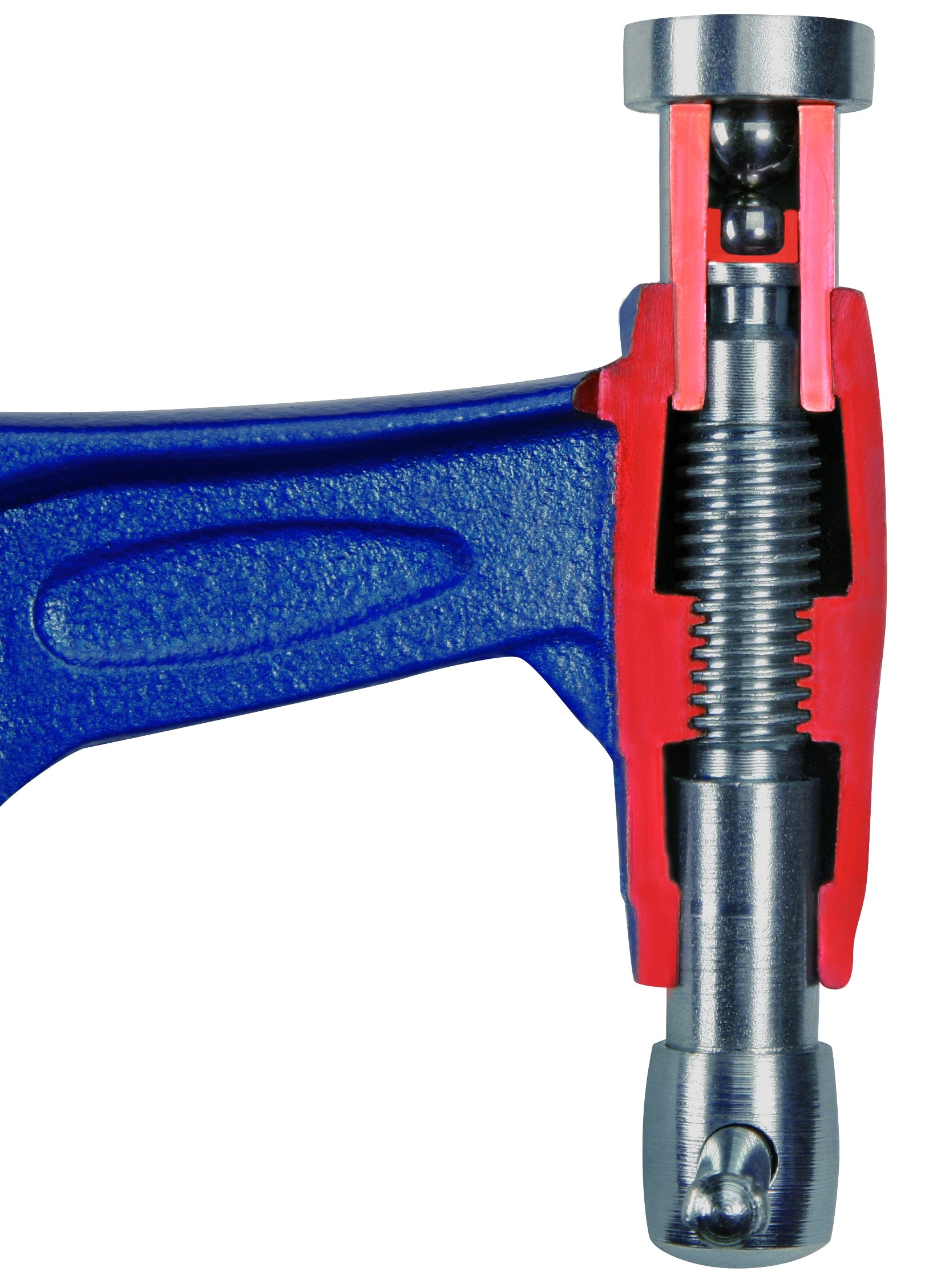

- Patented internal ball bearing mechanism for smooth clamping
- Sealed permanently lubricated trapezoidal thread
- Hardened steel bar brake for dependable holding
