300mm FX XTREME CLAMP 95MM DEPTH
300 mm opening with 800 kg clamping force
- SKU
- 321300095
- Product type
- Industrial Clamps
Key features
- 800 kg clamping force for demanding holding applications

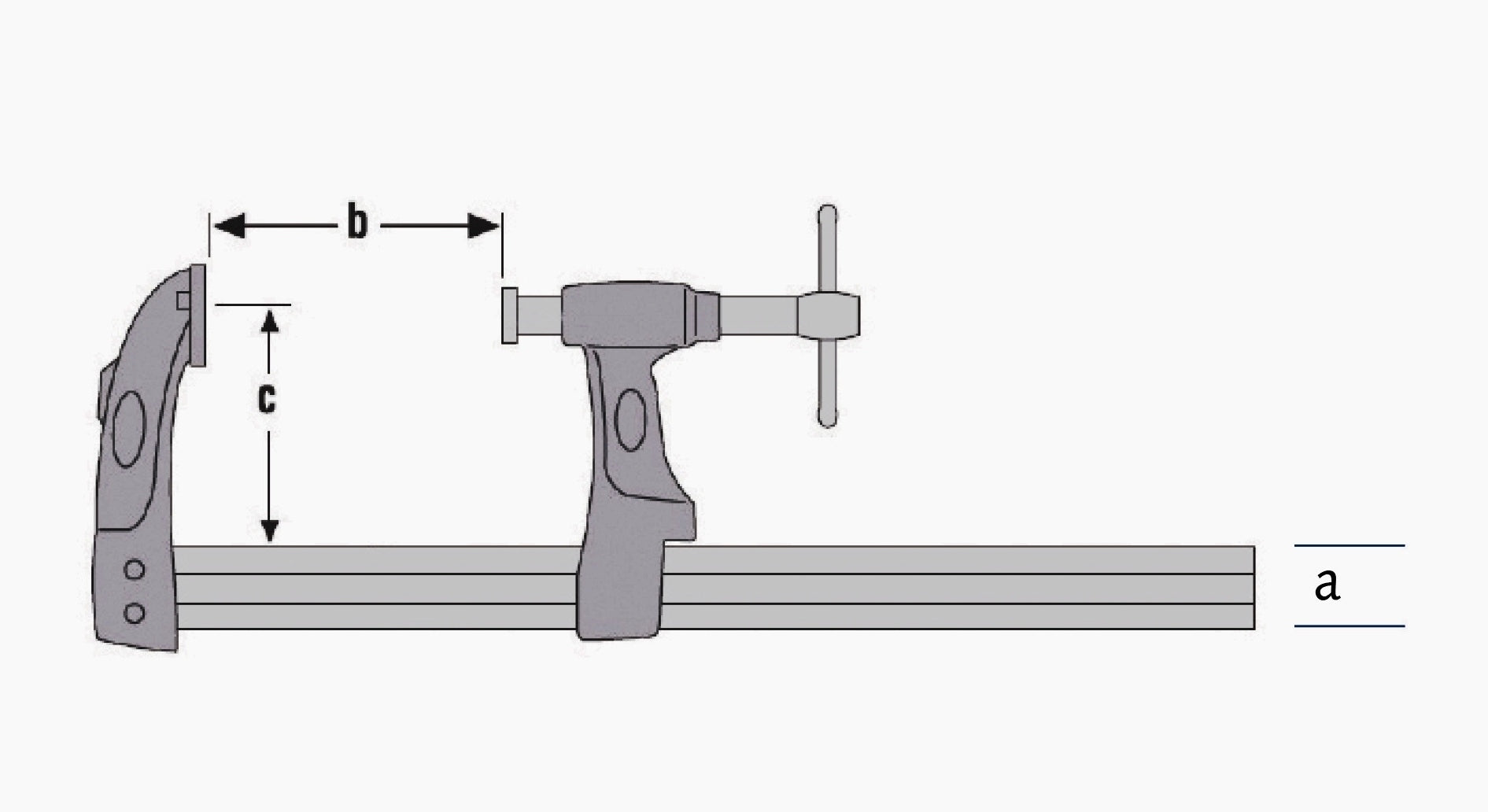

- 300 mm bar opening with 95 mm jaw depth

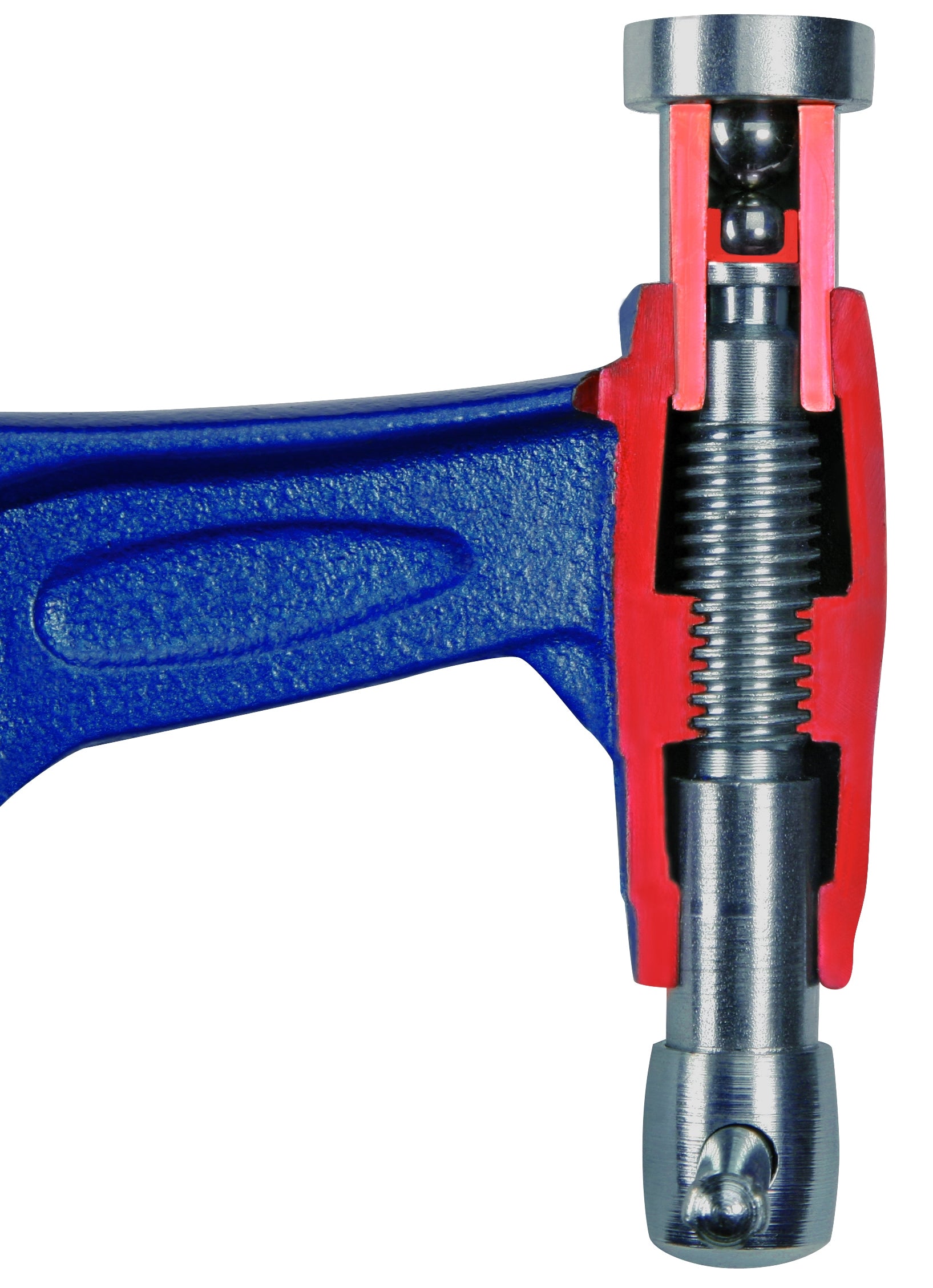

- Patented internal ball bearing mechanism for low-resistance clamping
Strong clamping force
Delivers 800 kg clamping force for firm, controlled workholding.
Lower operating effort
Internal ball bearing action supports smooth clamping with less resistance.
Built for harsh work
Sealed thread suits welding, fluids, humid conditions and salty atmospheres.
Add 300mm FX XTREME CLAMP 95MM DEPTH to comparison
View Comparison- Overview
- Reviews

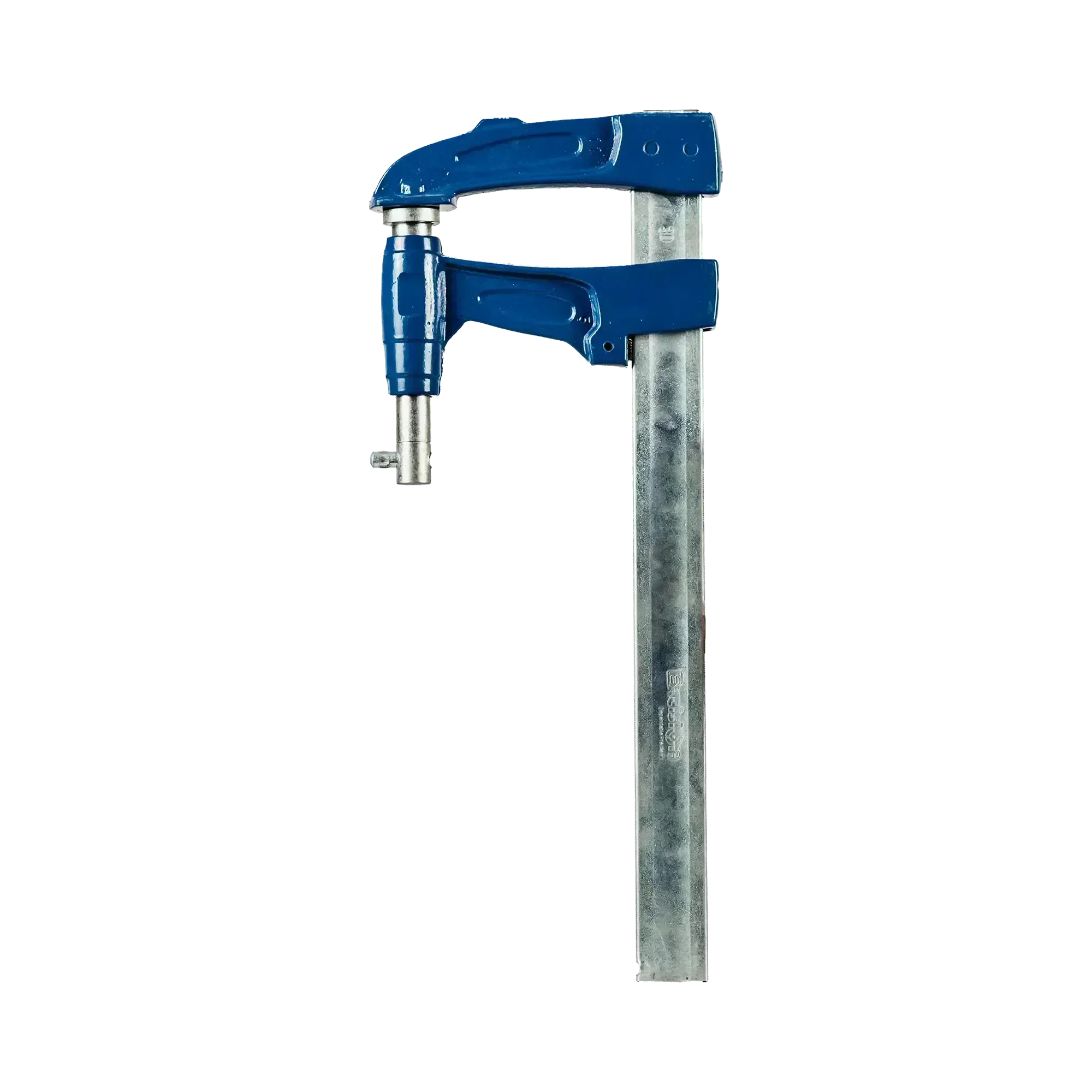

The FX Xtreme Clamp is a 300 mm industrial bar clamp delivering 800 kg clamping force. The patented low-effort design uses an internal ball bearing mechanism for smooth, low-resistance clamping. A sealed, permanently lubricated trapezoidal thread is designed to remain efficient for life. High-precision holding supports welding and work involving fluids, humidity, or salty atmospheric conditions.
A hardened steel bar brake is included for controlled positioning during clamping. This model combines a 300 mm opening and 95 mm jaw depth. The 30 x 8 mm solid bar gives the clamp a rigid foundation. Choose it where strong controlled clamping is needed with reduced operating effort.
- 800 kg clamping force for demanding holding applications
- 300 mm bar opening with 95 mm jaw depth
- Patented internal ball bearing mechanism for low-resistance clamping
- Sealed permanently lubricated trapezoidal thread
- Hardened steel bar brake for controlled positioning
- 30 x 8 mm solid bar construction
No specifications available.
