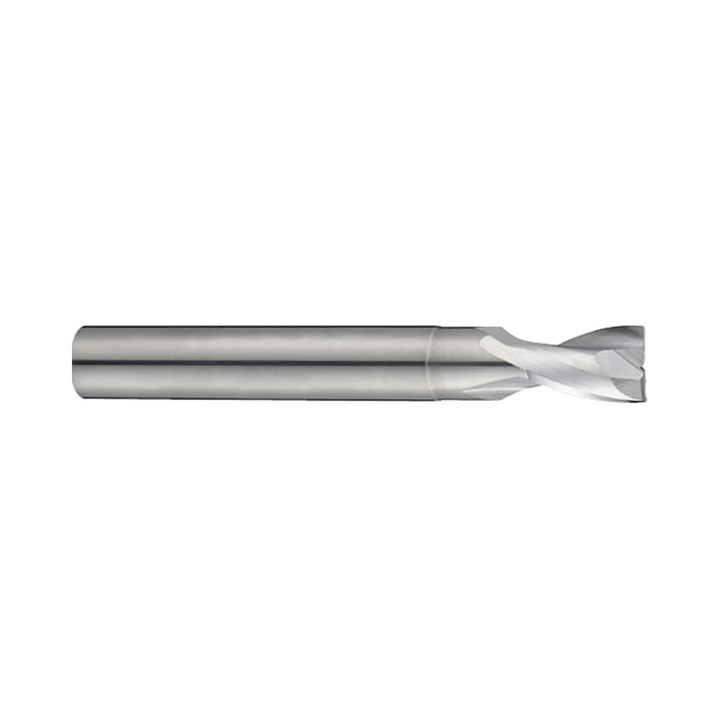

(E5930) Alu-Power Carbide 2Flute Corner Radius End Mill, Plain Shank
Solid Carbide 2 Flute 25° Helix Corner Radius End Mill
Loading 3D model…
$16.14
INC GST
$14.68
EX GST
Price available on request
Unit price per
Was $25.63
Save 37%
- SKU
- E5930030
Work materials
Key features
- Solid carbide two-flute corner radius end mill
- 25° helix cutting geometry
- Plain shank E5930 series configuration
Made in South Korea
Free standard delivery on orders over
$500.
If you're not 100% happy with your purchase, we'll replace or refund.
Material-focused machining
Recommended for aluminium alloys, copper alloys and non-metallic materials
Defined corner geometry
R0.2 corner radius is specified with ±0.01 mm tolerance
Useful size coverage
Mill diameters span 2.0 to 20.0 mm for varied machining requirements

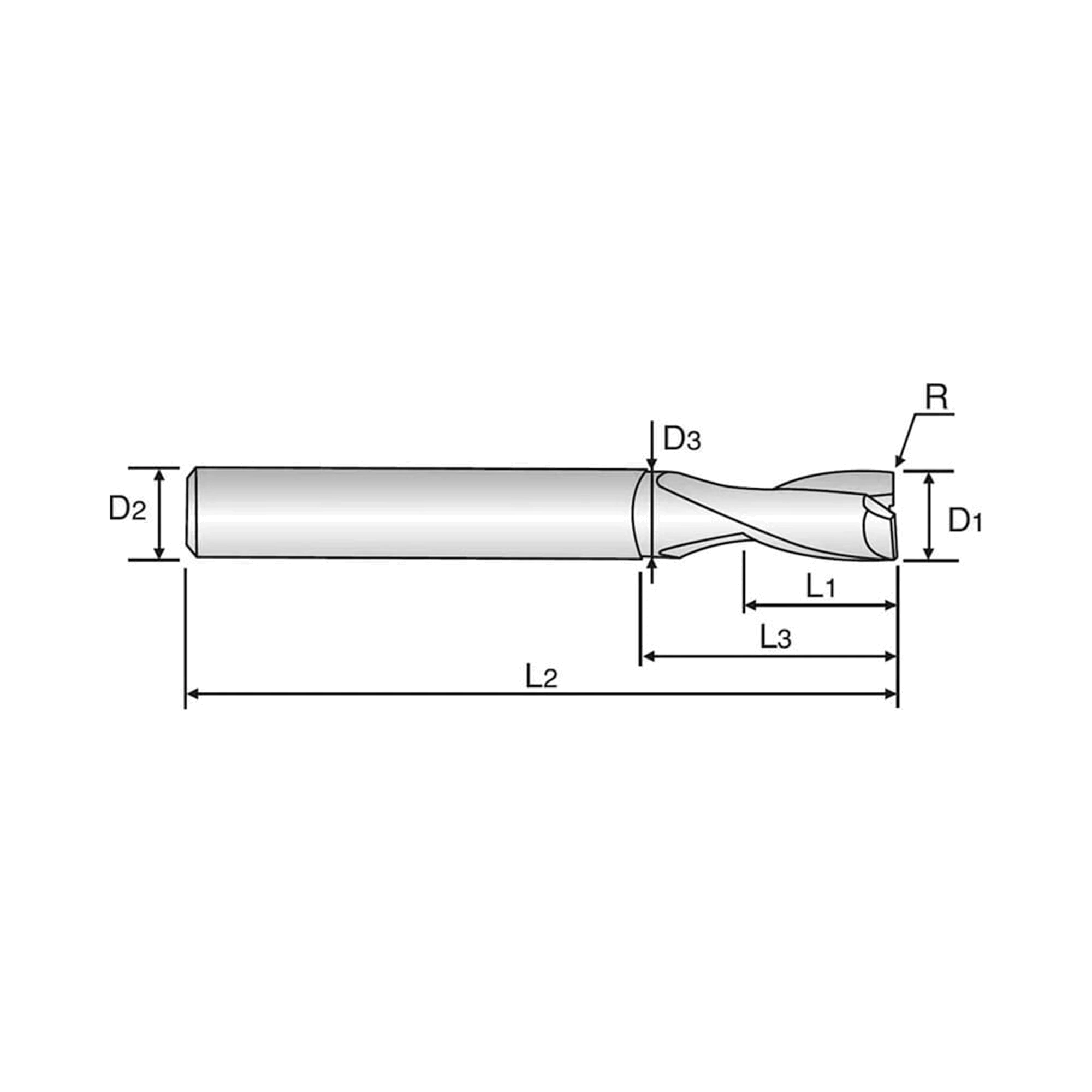

| SKU | Mill Diameter (mm) | Corner Radius (mm) | Overall length (mm) | Shank dia. (mm) | Length of cut (mm) | Length below shank (mm) | Neck dia. (mm) | CAD files | Stock | Price | Qty | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| E5930020 | 2.0 | R0.2 | 40.0 | 3.0 | 3.0 | 6.0 | 1.9 | STEPDXF | Restocking | $14.68 | ||
| E5930030 | 3.0 | R0.2 | 40.0 | 3.0 | 4.0 | 8.0 | 2.9 | STEPDXF | In stock | $14.68 | ||
| E5930040 | 4.0 | R0.2 | 50.0 | 4.0 | 5.0 | 12.0 | 3.8 | STEPDXF | In stock | $20.28 | ||
| E5930050 | 5.0 | R0.2 | 50.0 | 5.0 | 8.0 | 14.0 | 4.8 | STEPDXF | 1-2 Weeks | $32.50 | ||
| E5930060 | 6.0 | R0.2 | 65.0 | 6.0 | 8.0 | 18.0 | 5.7 | STEPDXF | 1-2 Weeks | $39.40 | ||
| E5930080 | 8.0 | R0.2 | 70.0 | 8.0 | 10.0 | 22.0 | 7.7 | STEPDXF | In stock | $28.25 | ||
| E5930100 | 10.0 | R0.2 | 80.0 | 10.0 | 14.0 | 28.0 | 9.7 | STEPDXF | 1-2 Weeks | $68.20 | ||
| E5930120 | 12.0 | R0.2 | 90.0 | 12.0 | 16.0 | 35.0 | 11.5 | STEPDXF | 1-2 Weeks | $95.90 | ||
| E5930160 | 16.0 | R0.2 | 90.0 | 16.0 | 20.0 | 40.0 | 15.5 | STEPDXF | 1-2 Weeks | $165.40 | ||
| E5930200 | 20.0 | R0.2 | 100.0 | 20.0 | 25.0 | 50.0 | 19.5 | STEPDXF | 1-2 Weeks | $269.00 |
Add (E5930) Alu-Power Carbide 2Flute Corner Radius End Mill, Plain Shank to comparison
View Comparison- Overview
- Work Material
- Speeds & Feeds
- Reviews
Application
Product Description
YG-1 E5930 ALU-POWER is a solid carbide, two-flute 25° helix corner radius end mill with plain shank. It is recommended for machining wrought and cast aluminium alloys, copper alloys and non-metallic materials. The range provides 2.0 to 20.0 mm diameters, each with an R0.2 corner radius. Every listed size uses an R0.2 corner radius with a stated ±0.01 mm tolerance. Mill diameter tolerance is 0 to minus 0.03 mm, while shanks are h5. Lengths of cut extend from 3 to 25 mm across the available diameter selection. Overall lengths range from 40 to 100 mm, supporting tool selection for varied reach needs.
- Solid carbide two-flute corner radius end mill
- 25° helix cutting geometry
- Plain shank E5930 series configuration
- R0.2 corner radius with ±0.01 mm tolerance
- 2.0 to 20.0 mm mill diameter range
- Recommended for aluminium copper alloys and non-metallic materials
Product Data
| Cutting Shape | Corner Radius |
| Length | Short |
| No. Flutes | 2 |
Work materials
VDI 3323 recommendations for this tool.
ExcellentGood
Non-ferrous materials
5 gradesWrought aluminium
Cast aluminium
VDI grade reference5 grades
Individual grade ratings and nominal hardness references. Base grades and decimal subgrades are listed separately.
| VDI | Work material | Recommendation | HB ref. | HRC ref. |
|---|---|---|---|---|
| 21 | NWrought aluminium | Excellent | 60 | - |
| 22 | NWrought aluminium | Excellent | 100 | - |
| 23 | NCast aluminium | Excellent | 75 | - |
| 24 | NCast aluminium | Excellent | 90 | - |
| 25 | NCast aluminium | Good | 130 | - |
No grades match your search.
HB and HRC values are nominal catalogue references. Grade subdivisions can vary between catalogues.
Recommendations apply to the listed VDI grades. Unlisted grades have no stated recommendation.
Cutting Speeds and Feeds
Select the operation, workpiece material and tool diameter to calculate the recommended cutting parameters for this product.
